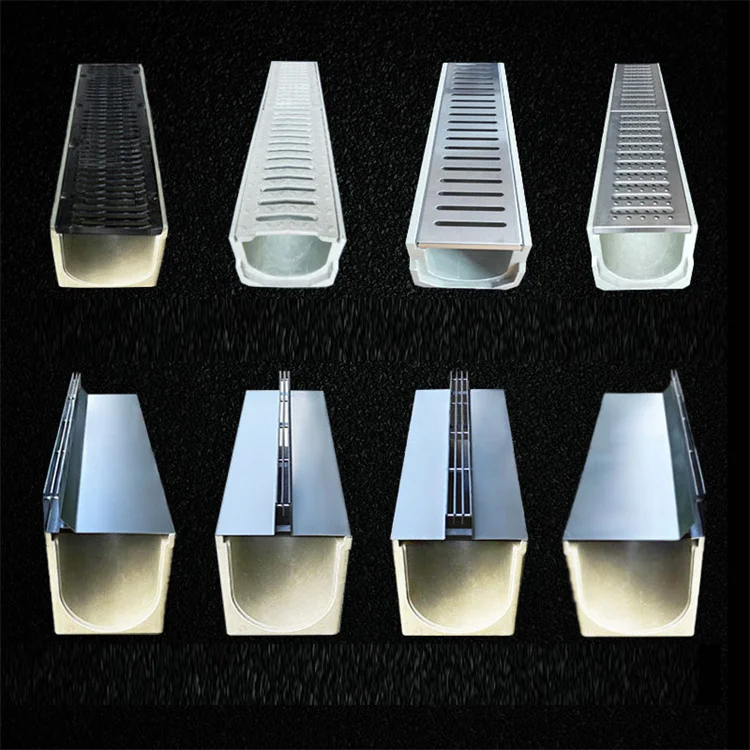

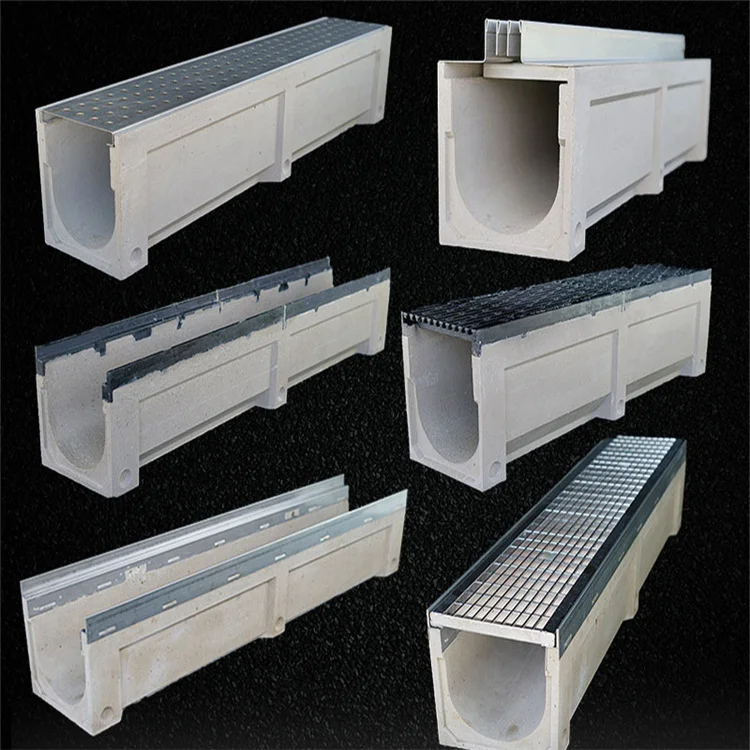

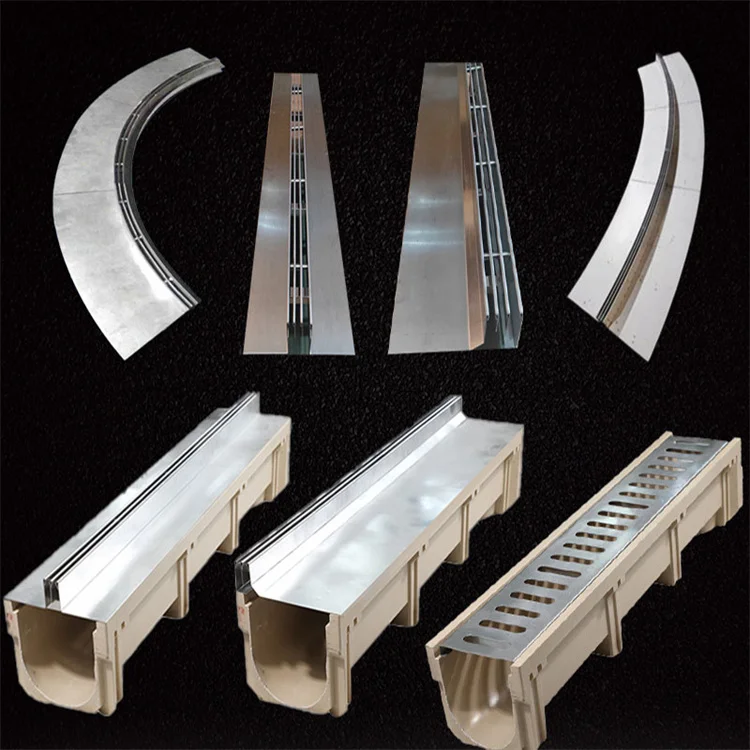

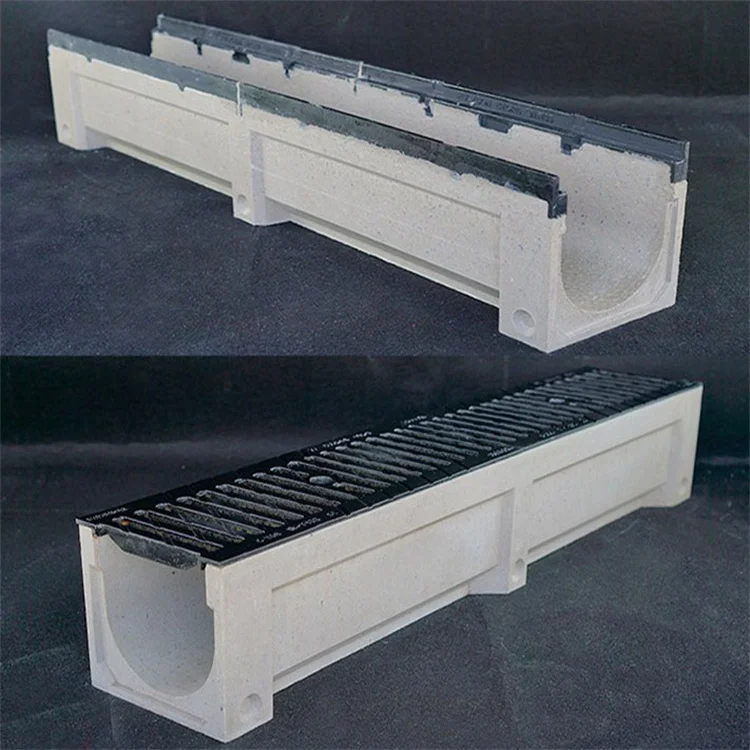

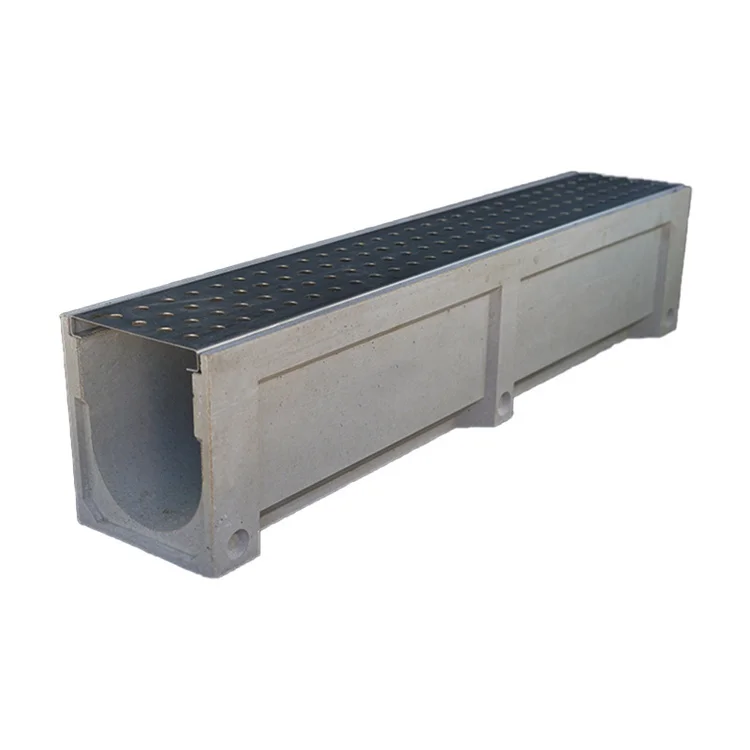

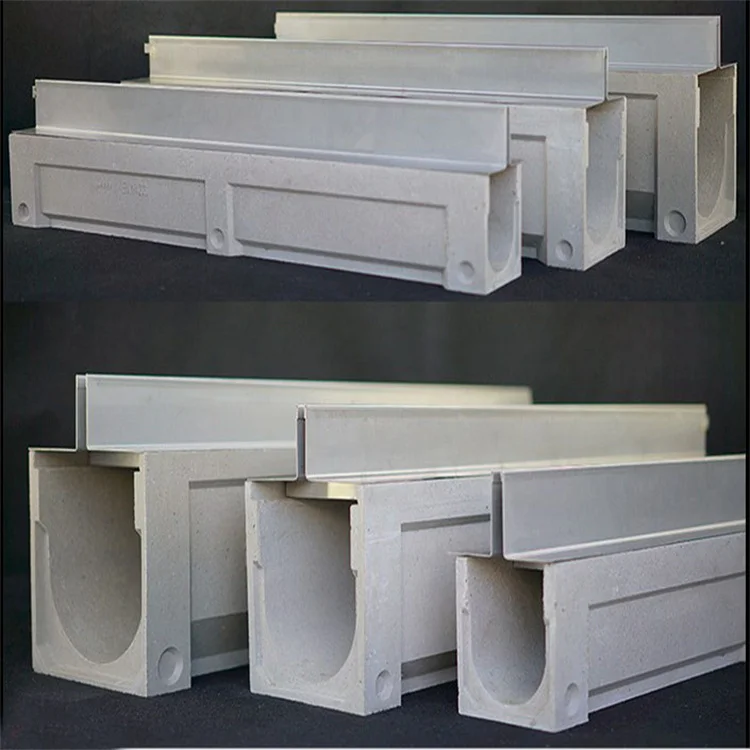

Outdoor Water Drain Cover Strip Grates Pvc U Drains Shaped Concrete Drainage Channel
Product Description
Specification
Product Data Sheet & DWG
Type Model | Inside Size(mm) | Outside Size(mm) | Load Level | Cover Type |
FTUPR-100 | L*Wi*Hi=1000*100*(120~180) | L*Wo*Ho=1000*130*(140~200) | A15 | Stainless Steel Linear/Steel Grating/Cast Iron/*PC |
FTUPR-150 | L*Wi*Hi=1000*150*(140~280) | L*Wo*Ho=1000*190*(160~300) | B125 | *Stainless Steel Linear/*Steel Grating/Cast Iron/PC |
FTUPR-200 | L*Wi*Hi=1000*200*(160~380) | L*Wo*Ho=1000*240*(180~400) | C250 | Stainless Steel Linear/*Steel Grating/*Cast Iron/PC |
FTUPR-250 | L*Wi*Hi=1000*250*(210~390) | L*Wo*Ho=1000*290*(230~410) | D400 | Stainless Steel Linear/*Steel Grating/*Cast Iron/PC |
FTUPR-300 | L*Wi*Hi=1000*300*(280~460) | L*Wo*Ho=1000*340*(300~480) | E600 | Stainless Steel Linear/*Steel Grating/*Cast Iron/PC |
FTUPR-400 | L*Wi*Hi=1000*400*480 | L*Wo*Ho=1000*440*500 | A15-F900 | *Stainless Steel Linear/*Steel Grating/*Cast Iron/*PC |
Full Integrated Drainage Systems
About Polymeric concrete Drain Channels
1) Polymeric concrete is a durable channel with high strength and chemical resistance. It is long lasting and has no hazard to environment, so can widely used for drainage systems.2) All our channels are made of polymer concrete, 1000mm long and the CO (internal width) is from 100mm to 400mm with variety external height, comply with EN1433, class from A15 to F900. About the Cover's material we usually use Nodular Cast Iron,Stainless Steel,Polymeric concrete and Galvanized Steel.
Polymeric Concrete Property:
Pressure Resistance:>1423kg/cm2
Breaking Resistance:>348kg/cm2
hydroscopicity:<0.05%
Density:2.1-2.44kg/dm3
Permeability:0mm
Pressure Resistance:>1423kg/cm2
Breaking Resistance:>348kg/cm2
hydroscopicity:<0.05%
Density:2.1-2.44kg/dm3
Permeability:0mm
Application Areas
√Car Parks √Shopping Centre √Pathways √Driveways √Petrol Forecourts √Footpaths √Retail Parks √Office Blocks √Garden Centre √Stadiums √Sport Tracks √Leisure Centre √Colleges √Warehouses √Garages √Plazas √Courtyards√Residential area √Pedestrian areas √Loading Docks √Airport runways and so on
√Car Parks √Shopping Centre √Pathways √Driveways √Petrol Forecourts √Footpaths √Retail Parks √Office Blocks √Garden Centre √Stadiums √Sport Tracks √Leisure Centre √Colleges √Warehouses √Garages √Plazas √Courtyards√Residential area √Pedestrian areas √Loading Docks √Airport runways and so on
Features:
1)Light weight, and strong bearing capacity.
2)Smooth surface, low water absorption permeability.
3)U-shaped section can increase drainage capacity and strengthen self-cleaning function.
4)High strength, grind resistance, solid and reliable, strong practicality.
5)Good drainage performance, rapid drainage and discharge of sediment.
6)Ageing resistance, good stability.
7)Chemical resistance, protect water source.
7)Chemical resistance, protect water source.
8)Easy installation, shorten the construction period.
9)Zero penetration, no risk of frost cracking
Load Class
Load Class
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Hebei Qiqian Metal Wire Mesh Manufacturer Co.,ltd has rich experience in the wire mesh industry.Our company own production equipment and adopt the first class melting and welding and have passed ISO9001:2015 international quality system certificate.Our main products include bar grating,Polymeric concrete drain channel,composite steel grating,stair tread,drain trench cover and etc.We can supply Plain type,Serrated type and I type grating , and composite steel grating according to customers' requirements,Besides,we are making great efforts to researching and developing new different types of fiberglass grating,wire meshes,fence,which are widely used in highway,railway,airport and ect.
FAQ
1. who are we?
We are based in Hebei, China, start from 2015,sell to Domestic Market(80.00%),Eastern Asia(20.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Steel Grating/Fence,Expanded Metal Mesh/Gabion Box/Barbed Wire/Polymer Conctete Drain Channel
4. why should you buy from us not from other suppliers?
17 years manufacture experience for steel grating
R&D department
SGS quanlity standard
Favorable price
Thoughtful 24th service
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
We are based in Hebei, China, start from 2015,sell to Domestic Market(80.00%),Eastern Asia(20.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Steel Grating/Fence,Expanded Metal Mesh/Gabion Box/Barbed Wire/Polymer Conctete Drain Channel
4. why should you buy from us not from other suppliers?
17 years manufacture experience for steel grating
R&D department
SGS quanlity standard
Favorable price
Thoughtful 24th service
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
