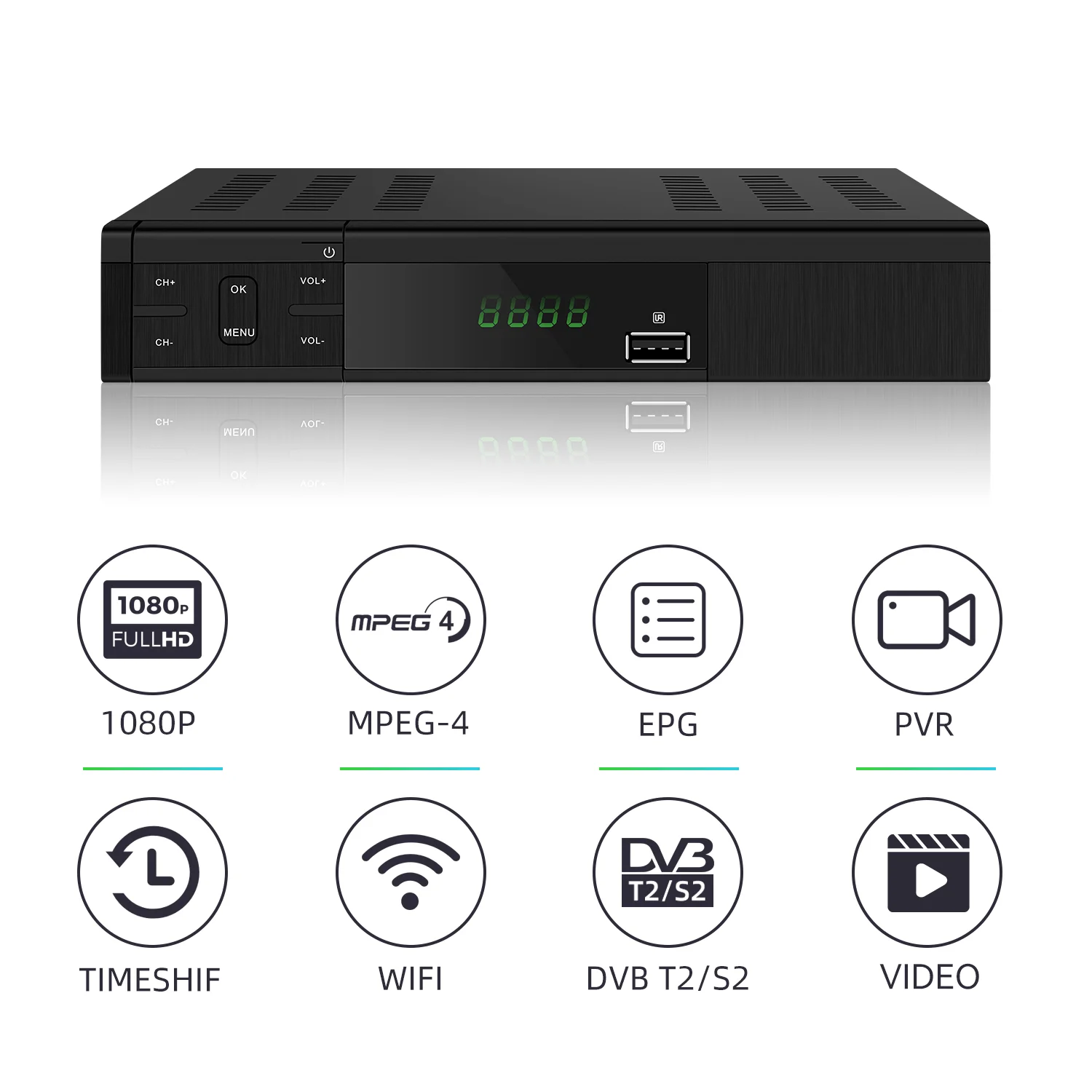

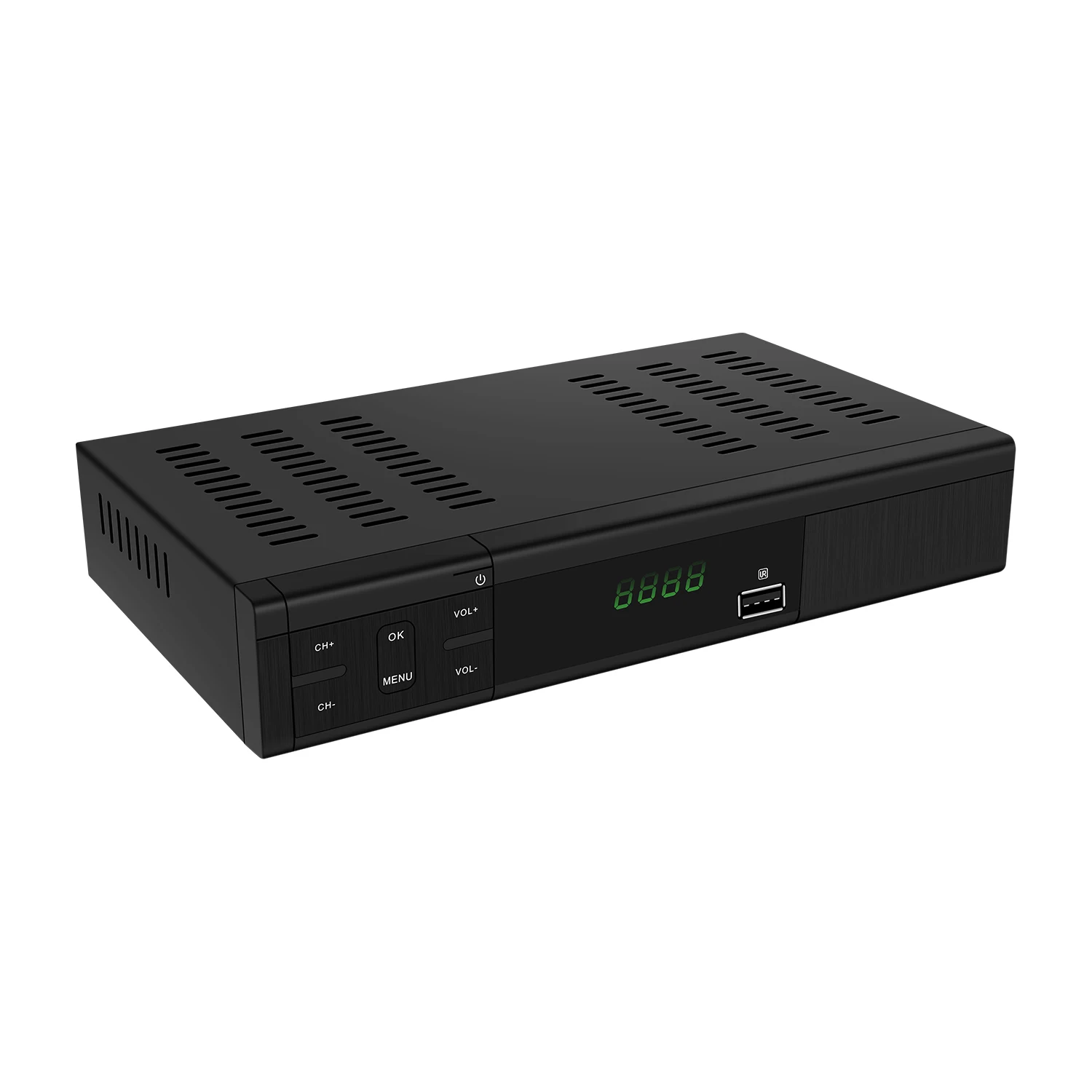

Dvb T2 S2 Dvb-s2 GX6602S H.264/265 DVB комбинированный приемник DVB-S2 DVB-T2 комплект компьютерной приставки
- Категория: TV Receivers & Accessories >>>
- Поставщик: Shenzhen,Jucheng,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.12 $* | 0.4 $* |
| Aug-16-2025 | 0.28 $* | 0.32 $* |
| Jul-16-2025 | 0.77 $* | 0.87 $* |
| Jun-16-2025 | 0.7 $* | 0.6 $* |
| May-16-2025 | 0.56 $* | 0.71 $* |
| Apr-16-2025 | 0.74 $* | 0.72 $* |
| Mar-16-2025 | 0.69 $* | 0.85 $* |
| Feb-16-2025 | 0.36 $* | 0.1 $* |
| Jan-16-2025 | 0.54 $* | 0.1 $* |
Характеристики
| SPECIFICATION | |
| General Features | CPU Related Features |
| Targeted for High Definition DVB-S2 T2 set top box solution | Chipset:GX6605S |
| 3.3V/1.5V/1.8V/1.1V Power supply | Optimized 5 stage pipeline |
| Power down control | Internal operating frequency up to 609MHz |
| Power save mode for every module | Performance up to 730 DMPIS (1.2 DMPIS/MHz) |
| Dual high performance ALI CPU up to 600MHz | Supports non-blocking load operation |
| Built-in Audio HW accelerator | |
| Memory and Bus Interfaces | |
| 16-bit DDR2/DDR3 DRAM interface | |
| Dram frequency up 1333 Mbps | |
| DDR density can be 64M bytes, 128M bytes, 256M bytes; 512M bytes | |
| Supports DRAM size up to 512MB for LQFP128 Package | |
| Support S-FLASH with different size: 4M bits, 8M bits,16M bits, 32 Mbts and up to128M bits | |
| Supports S-Flash size up to 32MB | |
| DVB-S2 | Video Decoder |
| Support Symbol Rate range: | MPEG1/2 |
| DVBS: 67.5M | Maximum bit-rate up to 80 Mbps |
| DVBS2 QPSK/8PSK/16APSK: 67.5M | Support HD resolution |
| DVBS2 32APSK: 54M | Support4:0:0 4:1:1 4:2:0 4:2:2 4:2:2T 4:4:4 JPEG |
| Supports Multiple Stream | H264 MPEG4 |
| Supports DVB-S2 QPSK/8PSK/16APSK/32APSK | ISO/IEC 14496-2 (MPEG4) compliant, |
| Supports DVB-S2 pilot signal | supports SP@L3 to ASP@L5 |
| Integrates digital timing and | 1X decode speed for 1920x1088 @ 30fps |
| carrier recovery loop with wide capture range | Real Video, VC-1, AVS/AVS+ |
| Supports fast channel blind search | Display Engine |
| Low power standby mode | High quality scaling for both HD and SD outputs |
| Up to32bit aRGB true color and CLUT graphic planes input | |
| Audio Processing | HDMl lnterface |
| MPEG-1/2 Layer I/II | Supports high-definition video |
| AAC/HEAAC v1/v2 | with scalable bandwidth: 0.25-1.48 Giga-pixels/ sec |
| 2-channel PCM, and compressed (encoded) audio | |
| data(AC3, DD, DD+ and MPEG Audio) using IEC 61937 format | |
| Mute, Fade and Volume control support | Powerdown modes |
| Supports 3D video format | |
| USB2.0 | |
| Supports Real Time Clock | Support: Biss Key Function |
| Supports IR/KEY/CEC standby/resume | Support LAN |

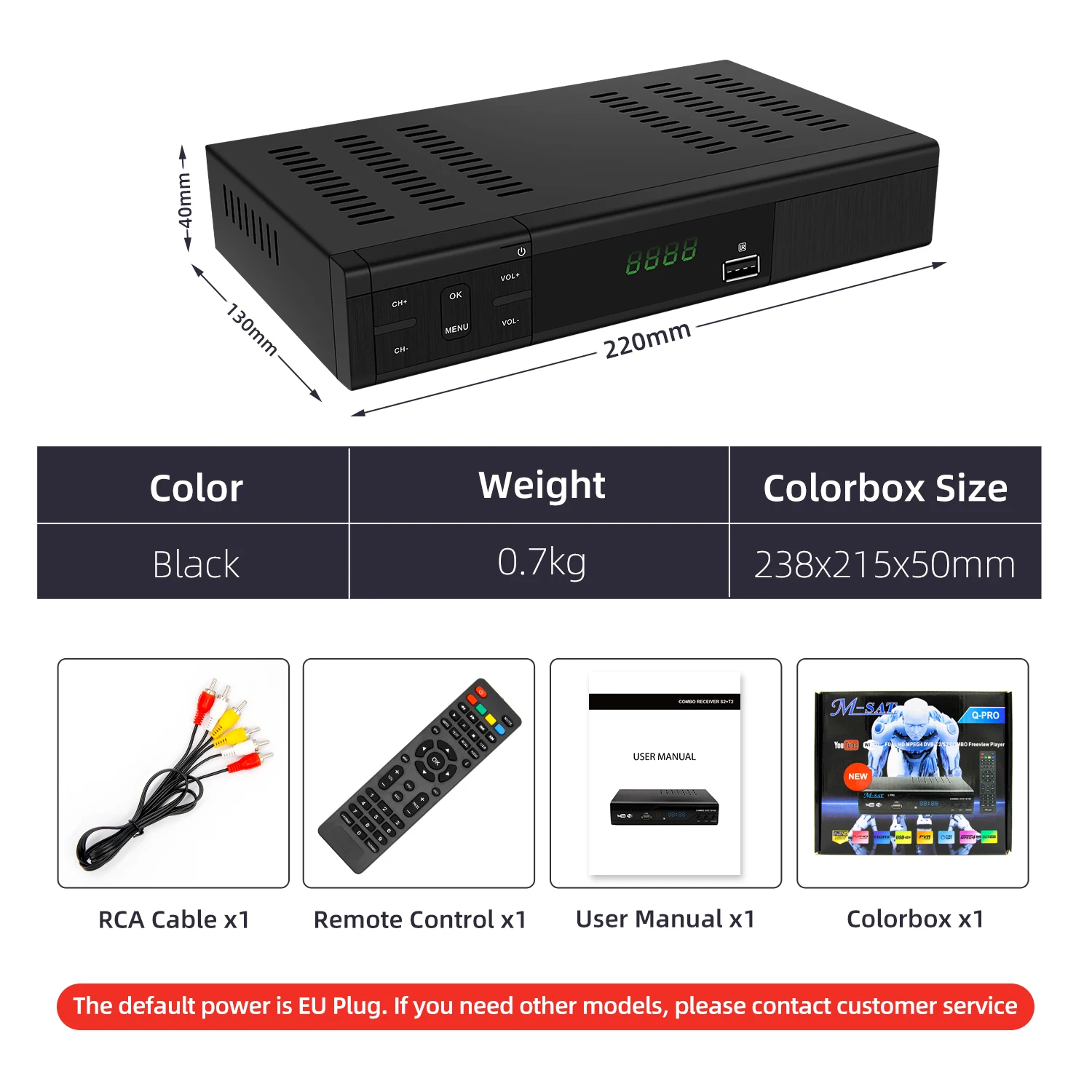

| Accessories | |
| 1* HD mini DVB-S2 1* HD-MI cable 1* User Manual 1* Remote Controls 1*IR cable |
|
