Характеристики
Products Description

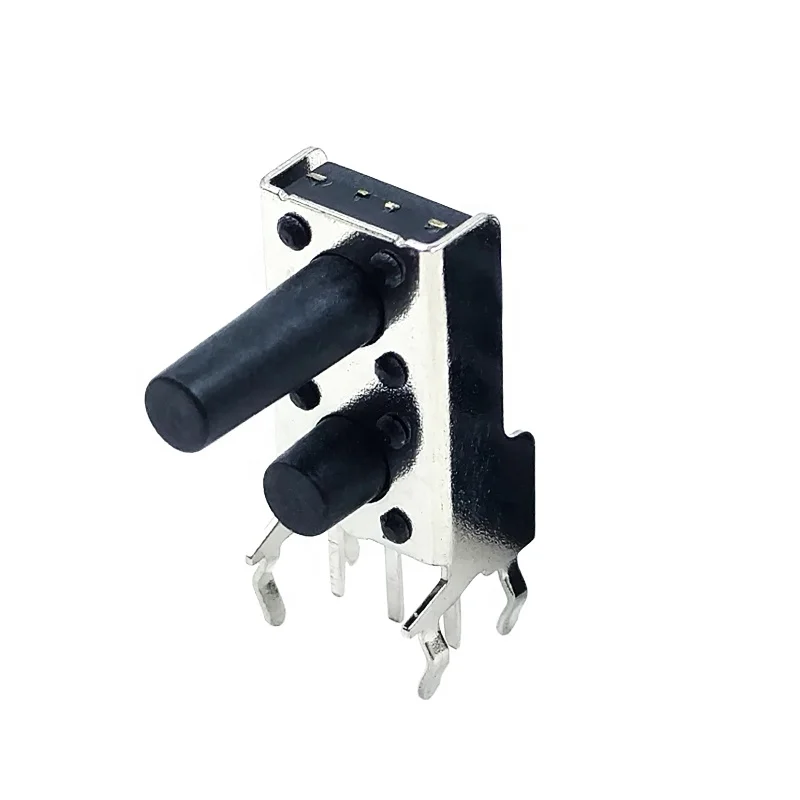

6.0x6.0mm Double Stacked Tactile Switch
The tactile switches are double stacked tact switches that can save space on the PC board. They have a sharp tactile feel and the tactile buttons have 0.25mm of travel. This tactile switch has right angle, through hole mount
design. These space-saving tactile switches are operational at temperatures ranging from -20°C to 70°C. The TL2243 tact switch has a life expectancy of 30,000 cycles.
design. These space-saving tactile switches are operational at temperatures ranging from -20°C to 70°C. The TL2243 tact switch has a life expectancy of 30,000 cycles.
Stable Dome Contact Technology
This tact switch is made up cover, plunger, contact dome, base, contact and terminals. Among them, the application of dome contact technology in the miniature push button switch is a revolutionary great creation. In the sectional view on the right, it can be clearly seen that the driving stem is pressed to the contact in the center of the dome under the action of pressure to make the circuit connected. When the pressure is released, the dome rapidly bounces off the contact by virtue of its own elasticity, disconnects the circuit.
Specification
Model Number: | TS-6060RM |
Rating | 50mA 12V DC |
Travel | 0.90±0.1mm |
Operating Temperature | -30oC - +85oC |
Life Time | 100,000 Cycles |
Certifications | RoHs, Reach |
Initial Contact Resistance | 500 mΩ Max |
Insulation Resistance | 100MΩ min 100V DC |
PCB mounting pattern
Circuit diagram
