Тактильный переключатель Centermcx с двойным действием тактильный из
- Категория: >>>
- Поставщик: Shenzhen,Centermcx,Tech.,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.0 $* | 0.43 $* |
| Aug-19-2025 | 0.16 $* | 0.7 $* |
| Jul-19-2025 | 0.56 $* | 0.45 $* |
| Jun-19-2025 | 0.85 $* | 0.70 $* |
| May-19-2025 | 0.22 $* | 0.74 $* |
| Apr-19-2025 | 0.72 $* | 0.35 $* |
| Mar-19-2025 | 0.5 $* | 0.77 $* |
| Feb-19-2025 | 0.42 $* | 0.19 $* |
| Jan-19-2025 | 0.13 $* | 0.42 $* |
Характеристики
Products Description

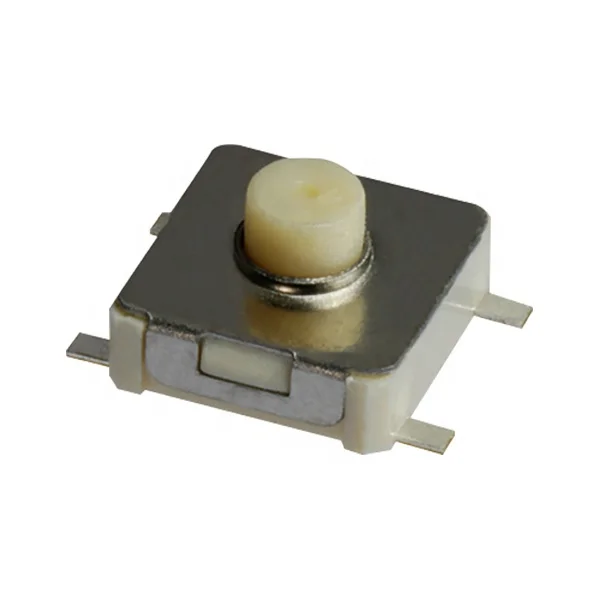

6.2x6.5mm double action tactile switch
It is a double action button switches, with silicone rubber button and compact size. The double action means that push the button firstly, the 2 terminal can be connected, and continue to push again, the other two terminal can be connected. In particular, multiple actuator height and up to 23mm and operating force options offers designers with more options.
Stable Dome Contact Technology
This tact switch is made up cover, plunger, contact dome, base, contact and terminals. Among them, the application of dome contact technology in the miniature push button switch is a revolutionary great creation. In the sectional view on the right, it can be clearly seen that the driving stem is pressed to the contact in the center of the dome under the action of pressure to make the circuit connected. When the pressure is released, the dome rapidly bounces off the contact by virtue of its own elasticity, disconnects the circuit.
Specification
Model Number: | TS-6265S |
Rating | 50mA 12V DC |
Travel | 0.55±0.1mm |
Operating Temperature | -30oC - +85oC |
Life Time | 100,000 Cycles |
Certifications | RoHs, Reach |
Initial Contact Resistance | 500 mΩ Max |
Insulation Resistance | 100MΩ min 100V DC |
PCB mounting pattern
Circuit diagram
Recommend Products
Company Profile

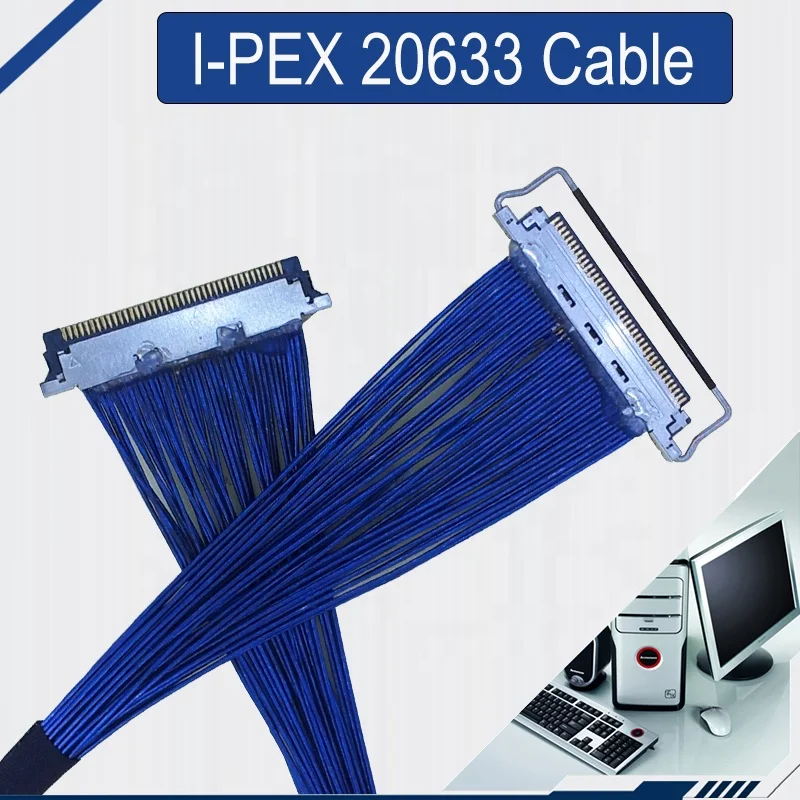

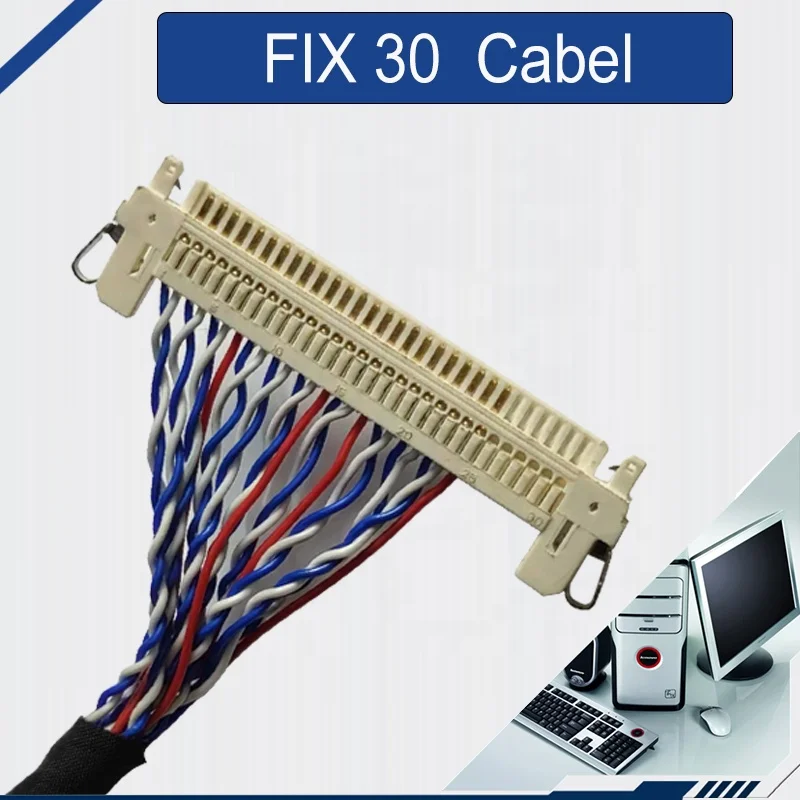

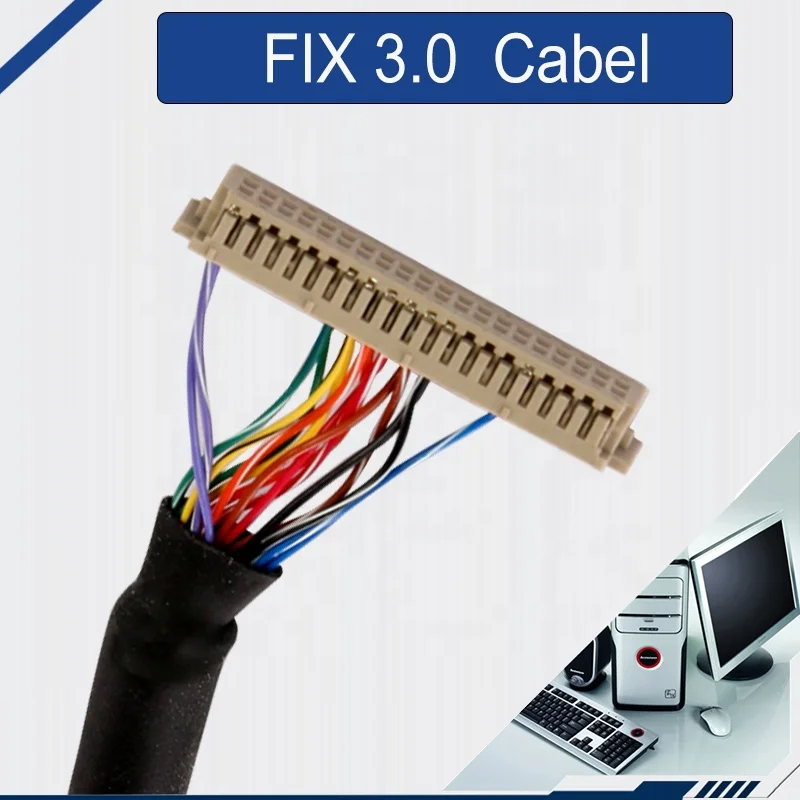

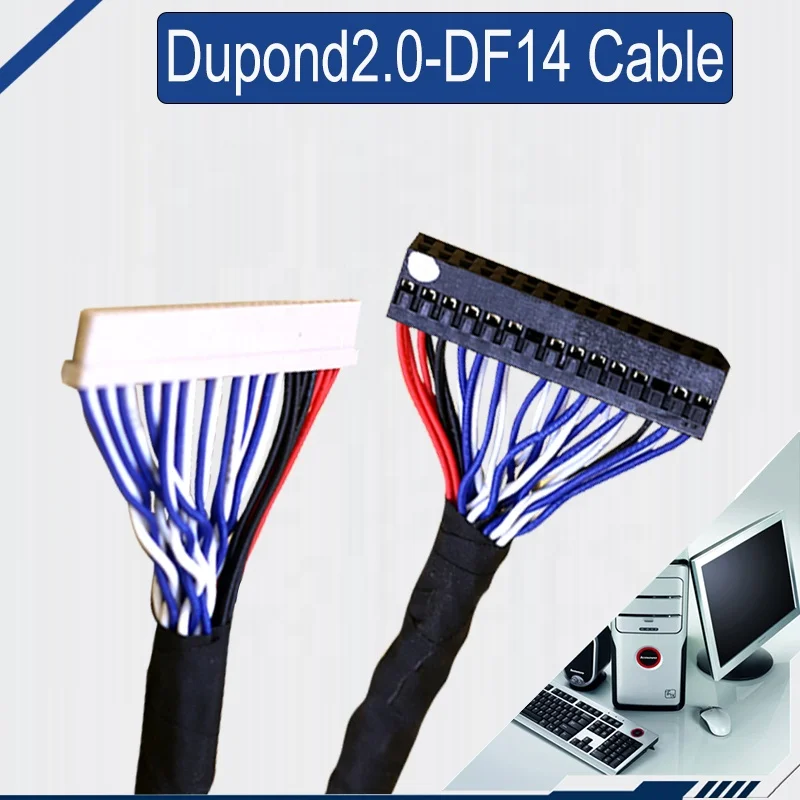

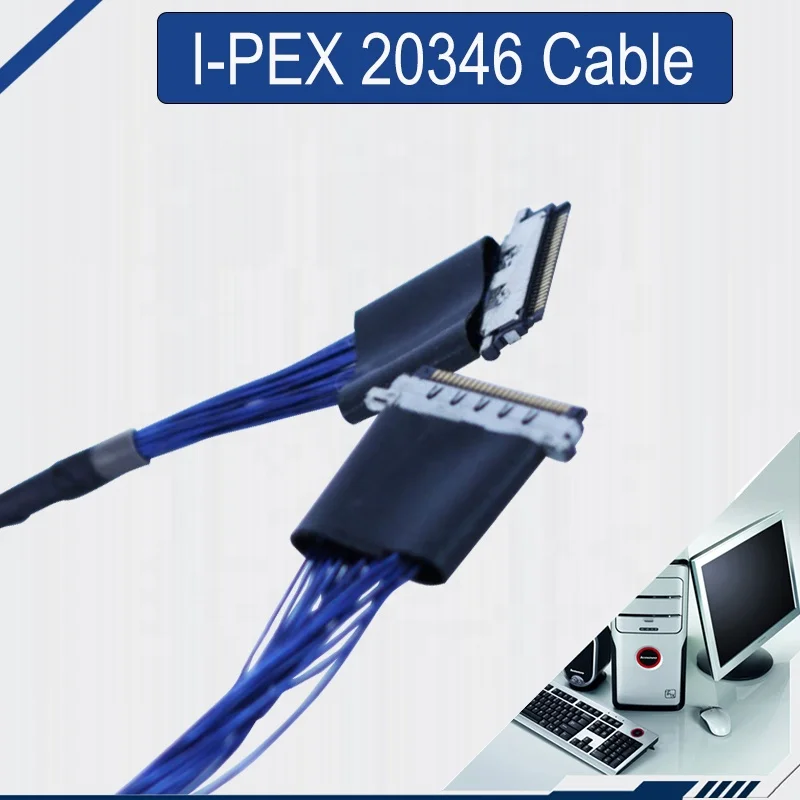

Shenzhen Centermcx Technology Co., Ltd.established in 2009, is specializing in the tactile switch, mini connector the micro coaxial cable assy, low-voltage differential signal LVDS wire harness,FPC flat flexible printed circuit cable, and so on. All products have passed the CE, CQC and REACH, and other safety certification and environmental protection materials. The company has now formed a comprehensive service system integrated by the R&D, production and domestic trade and export. We satisfy all customers with advanced products, competitive prices, and fast delivery. Welcome to inquiry.
Our Advantages
Certifications
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
