I-644A4TB velcon
US $130.00-$175.00
Усиленный перфорированный сетчатый экран на основе проволочной
- Категория: Filter Supplies >>>
- Поставщик: Xinxiang,Oasis,Oil,Tools,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 74.88 $* | 78.76 $* |
| Aug-20-2025 | 73.64 $* | 77.54 $* |
| Jul-20-2025 | 61.58 $* | 64.72 $* |
| Jun-20-2025 | 72.35 $* | 76.25 $* |
| May-20-2025 | 63.31 $* | 66.53 $* |
| Apr-20-2025 | 71.25 $* | 75.32 $* |
| Mar-20-2025 | 70.49 $* | 74.4 $* |
| Feb-20-2025 | 69.82 $* | 72.21 $* |
| Jan-20-2025 | 69.82 $* | 72.74 $* |
Характеристики
Product Description
Perforated Pipe Based Wire Wrapped Strainer Screen are used for deep water well application and oil field application. It is used for sand control in wells with high pressure and high traction value due to the depths.
Pipe based well screens consist of base pipe, all-welded wedge wire screen and supporting rod. The base pipe is perforated or slotted API casing pipe. The base pipe can be stainless steel or carbon steel API 5CT casing. The all-welded wedge wire screens are welded together with base pipe by supporting rod.Having the API casing inside a wire wrap screen jacket is supporting the screen and enhance the cabapities and high tensile strength Loads. Pipe base can be made from API pipe Seamless casing spiral or stainless steel casing. Opening area for the base pipe is up to 15% and for the jacket is up to 30%. Jacket slot size is between 0.15mm to 3mm.
Product Name | Perforated Pipe Based Wire Wrapped Strainer Screen |
Material | Perforated Base Pipe: API Casing or stainless steel Jacket Screen: Stainless Steel |
Size | 8 5/8" or from 100-1500mm |
Standard | DIN4935, API 5CT, SL154-2013 |
Hole diameter | 11mm, 16mm, 19mm or other customized sizes |
Length | Range LengthR1(4.88-7.62M), R2(7.62-10.36M), R3(10.36-14.63M) Or fixed length 5.8m, 6m |
Connection type | API Threads(LTC, STC, BTC), Welding rings, Flange |
Used | Water/Oil well drilling or related fields service |
Products Show
Our Service
Pipe Based Well Screen
Wedge Wire Wrapped Water Well Screen
Perforated Base Well Pipe
Our Company
Factory
Our Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Team
Our Team
Packing & Delivery
Packing Details : Bubble bag, wooden stripes, wooden structure
Delivery Details : 3-30 days after receiving the advance payment
Perforated Base Pipe
Screen Jacket Wedge Wire Wrapped Water Well screen

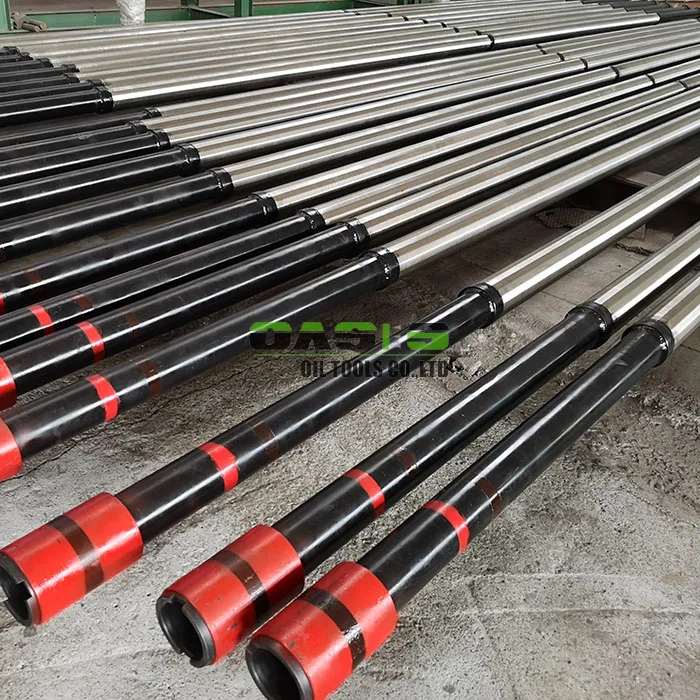

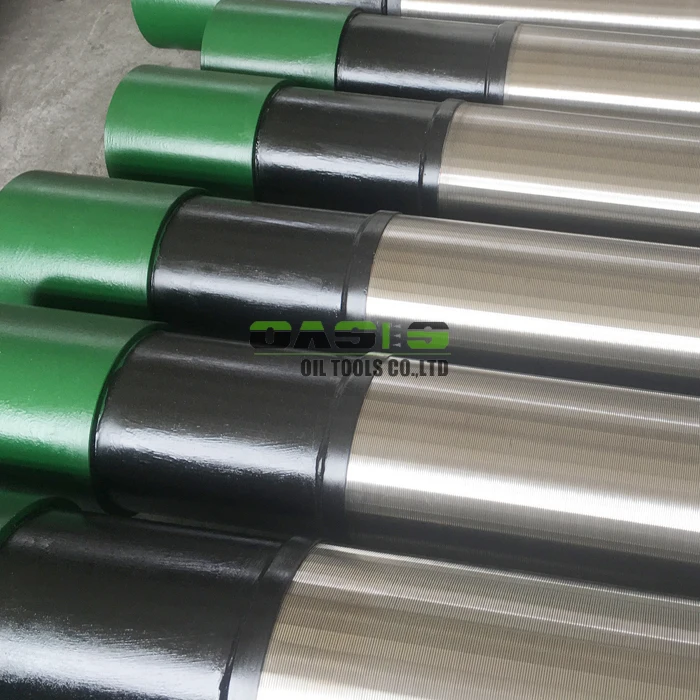

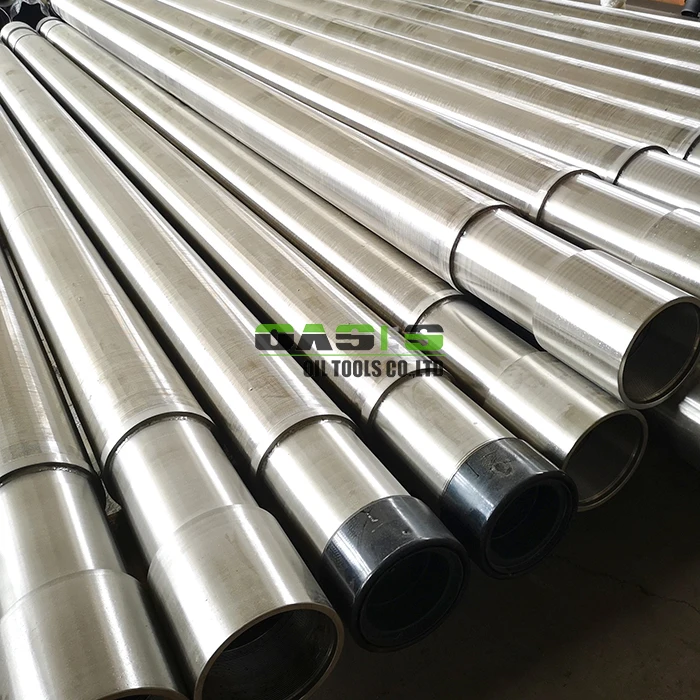

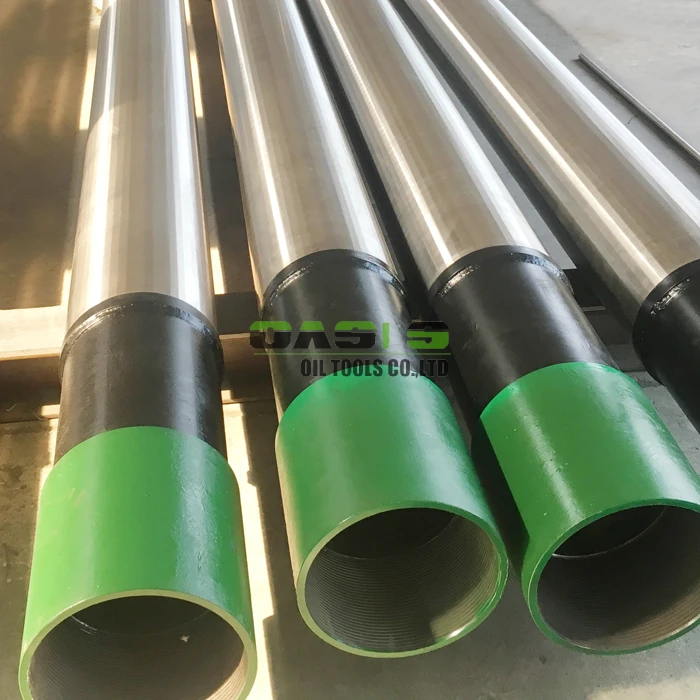

Finished Pipe Based Well Screen
Perforated Base Pipe packed with wooden strips
Pipe Based Screen loading into Container
Pipe Based Screen Shipped by Container
Our Certifications
OASIS MAIN PRODUCTS
FAQ
Q: Are you trading company or manufacturer of perforated pipe base screen?
A: We are factory.
Q: How long is your delivery time pipe based wire wrapped screen?
A: Generally it is 3-10 days if the goods are in stock. or it is 7-30 days if the goods are not in stock, it is according to the real specification and quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=10,000.00 USD, 100% in advance. Payment>=10,000.00USD, 30% T/T in advance ,balance after inspection and before shipment.
B. L/C are also acceptable
If you have another question, pls feel free to contact us as below:
Contact person: Sarah Liu
Mobile/Whatsapp/Wechat: 0086 18737338498
QQ: 2394722522
