Характеристики
Product Overview
WP160B hydraulic butt fusion welding machine
HDPE, PE, PP pipes have been used extensively around the world. Butt fusion welding is an effective, trouble free connectingmethod for PE, HDPE pipes. In pressurized piping applications, butt fusion welding can provide excellent performance, just like awhole pipe.
To achieve a good jointing, a steady, precise, robust butt welding machine is critical. WELPING had been developing, manufacturing and distributing various butt fusion welding machine since 2005. It's our pleasure to help you build reputation in the piping project.

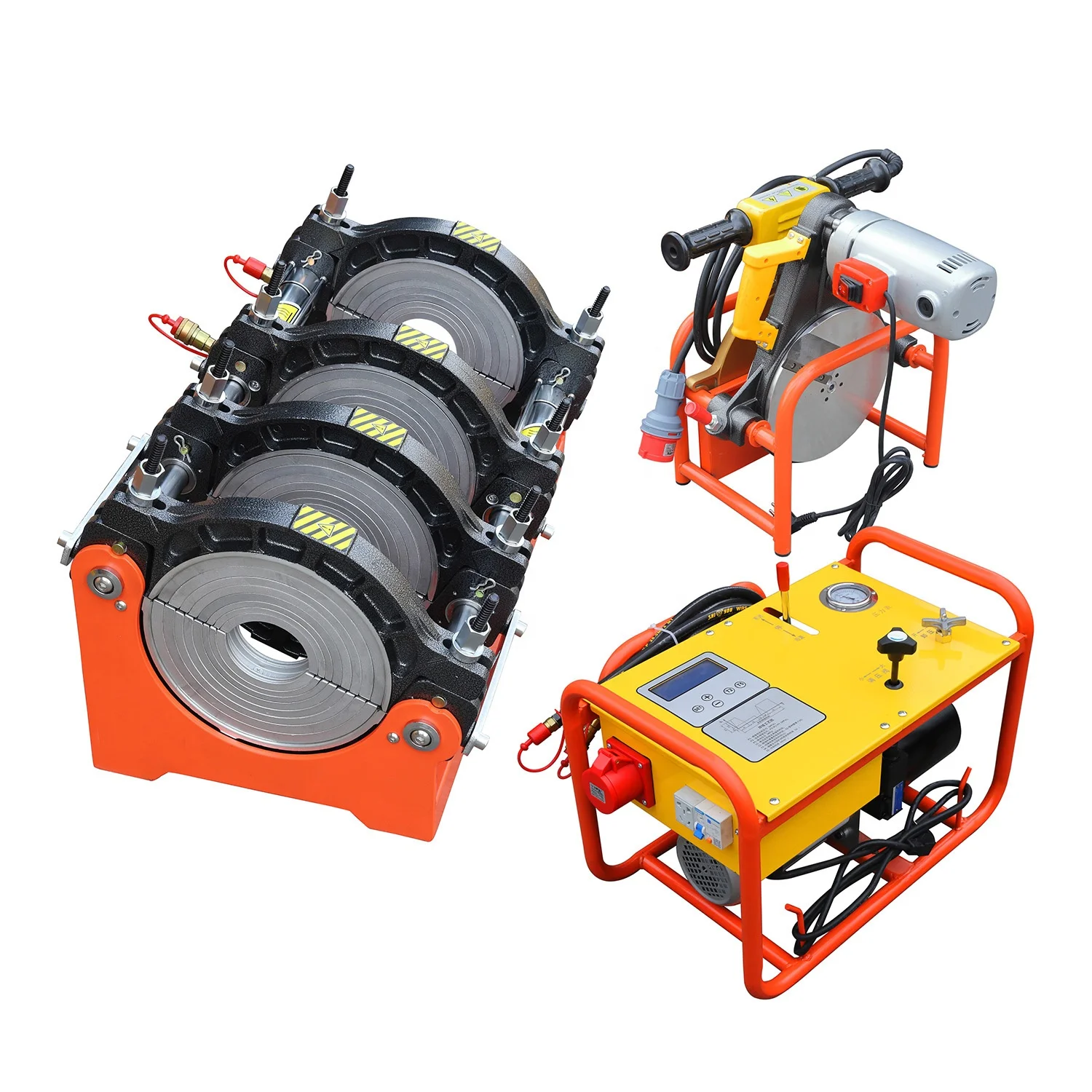

The Hydraulic butt fusion welding machine, mainly consists of 3 major parts: Carriage (also called frame or base), planing tool(also called trimmer or facer) and heater, hydraulic station with control device. Carriage for precise face joint and steady pipe clamping, planing tool and heater responsible for accurate trimming and heating, hydraulic station provides actuation and control.
To achieve a good jointing, a steady, precise, robust butt welding machine is critical. WELPING had been developing, manufacturing and distributing various butt fusion welding machine since 2005. It's our pleasure to help you build reputation in the piping project.
The Hydraulic butt fusion welding machine, mainly consists of 3 major parts: Carriage (also called frame or base), planing tool(also called trimmer or facer) and heater, hydraulic station with control device. Carriage for precise face joint and steady pipe clamping, planing tool and heater responsible for accurate trimming and heating, hydraulic station provides actuation and control.
Productiion Specifications
Model | WP160B |
Suitable materials | PE,PP, PB. PVDF |
Range | 63-75-90-110-125-140-160 mm |
Power supply | 110V/220V |
Frequency | 50HZ |
Total power | 3.25 KW |
Heating plate | 1.5 KW |
Planing tool | 1.0KW |
Hydraulic station | 0.75 KW |
Pressure adjusting range | 0-16 Mpa |
Hydraulic oil | L-HM46 |
Max.Temperature of heating plate | 270ºC |
Temp.Deviation in Surface | ±5ºC |
Total Weight | 111kg |
Net weight | 91kg |
Basic Frame & planing tool & heating plate （plywood case） | 84*45.5*60.5cm |
Hydraulic Unit （plywood case） | 54*43*55cm |
WP160B hydraulic butt fusion welding machine
Our Machines And Tools Accept Customizing Requirement, Such As Color, Different Parts Combination, Even Minor StructureModifications.
Our Sales Representatives And Experienced Engineers Can Help You Decide The Optimized Options.We Provide Standard 18 Months Warranty For Complete Machines And Tools, And Still Provide Service After Warranty.
Product Features

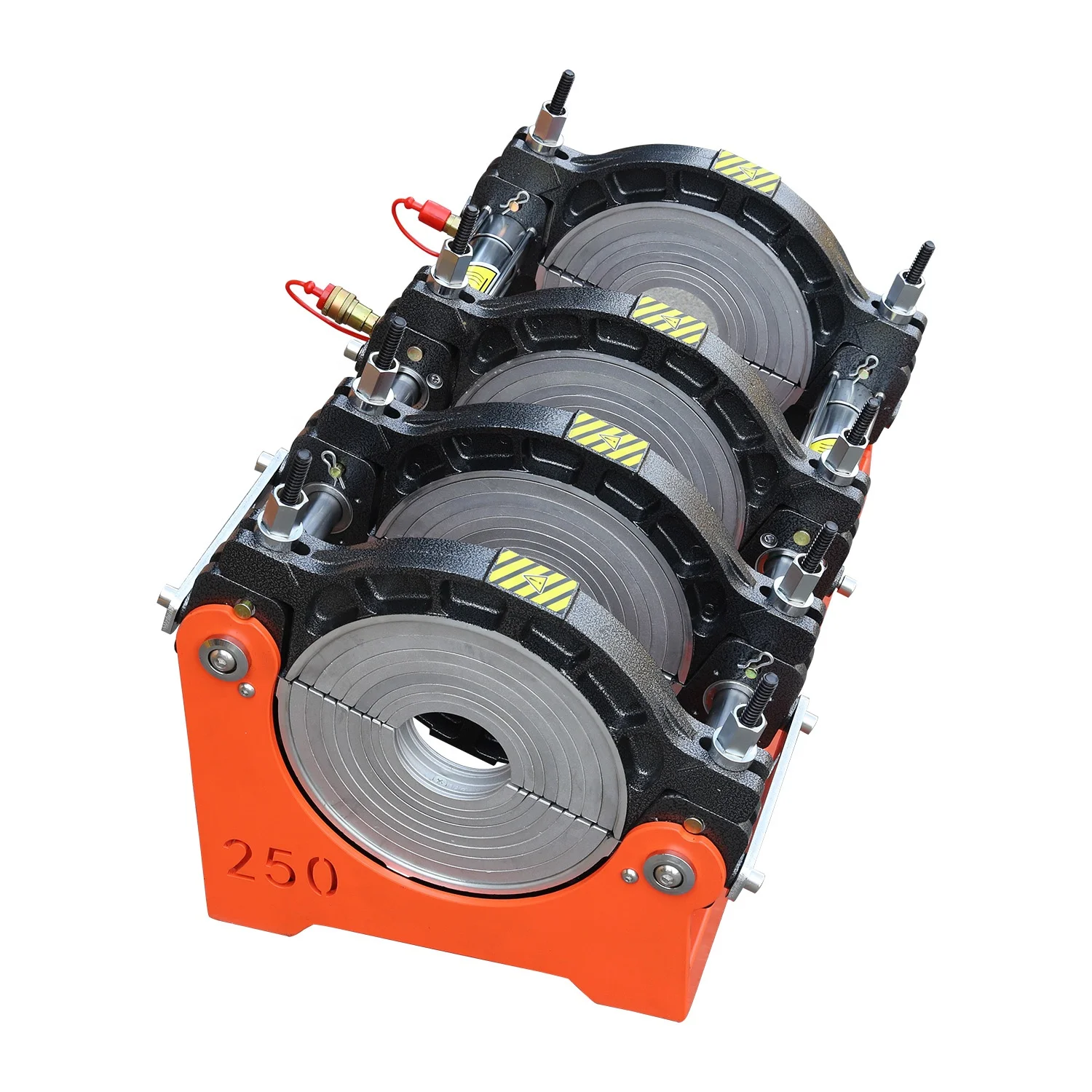

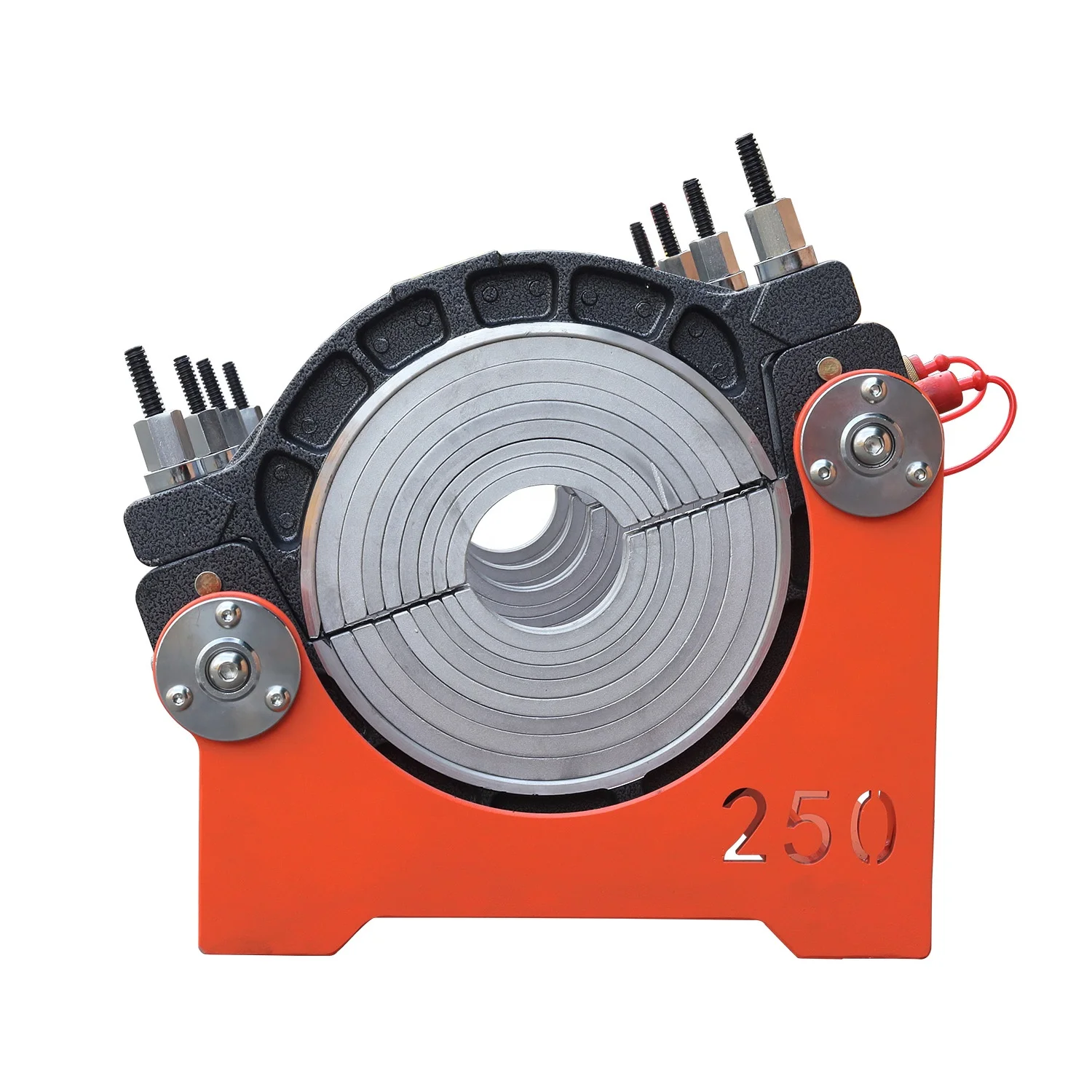

- Italy DNP quick coupler
- Chromated hydraulic cylinder
- Chromated integral shaft steel
- Cast aluminum clamps
- Frame made of square pipe & sheet metal
- Chromated hydraulic cylinder
- Chromated integral shaft steel
- Cast aluminum clamps
- Frame made of square pipe & sheet metal

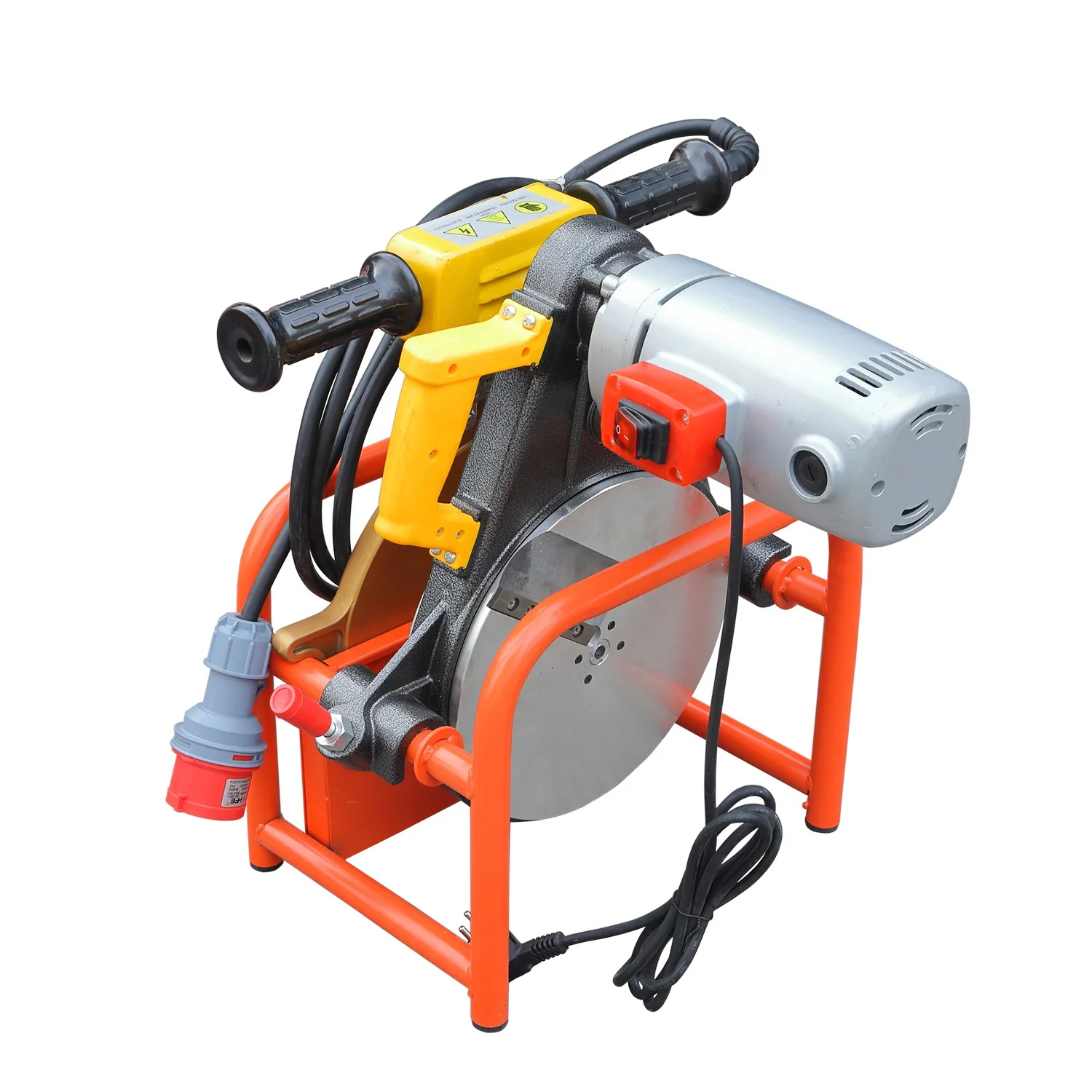

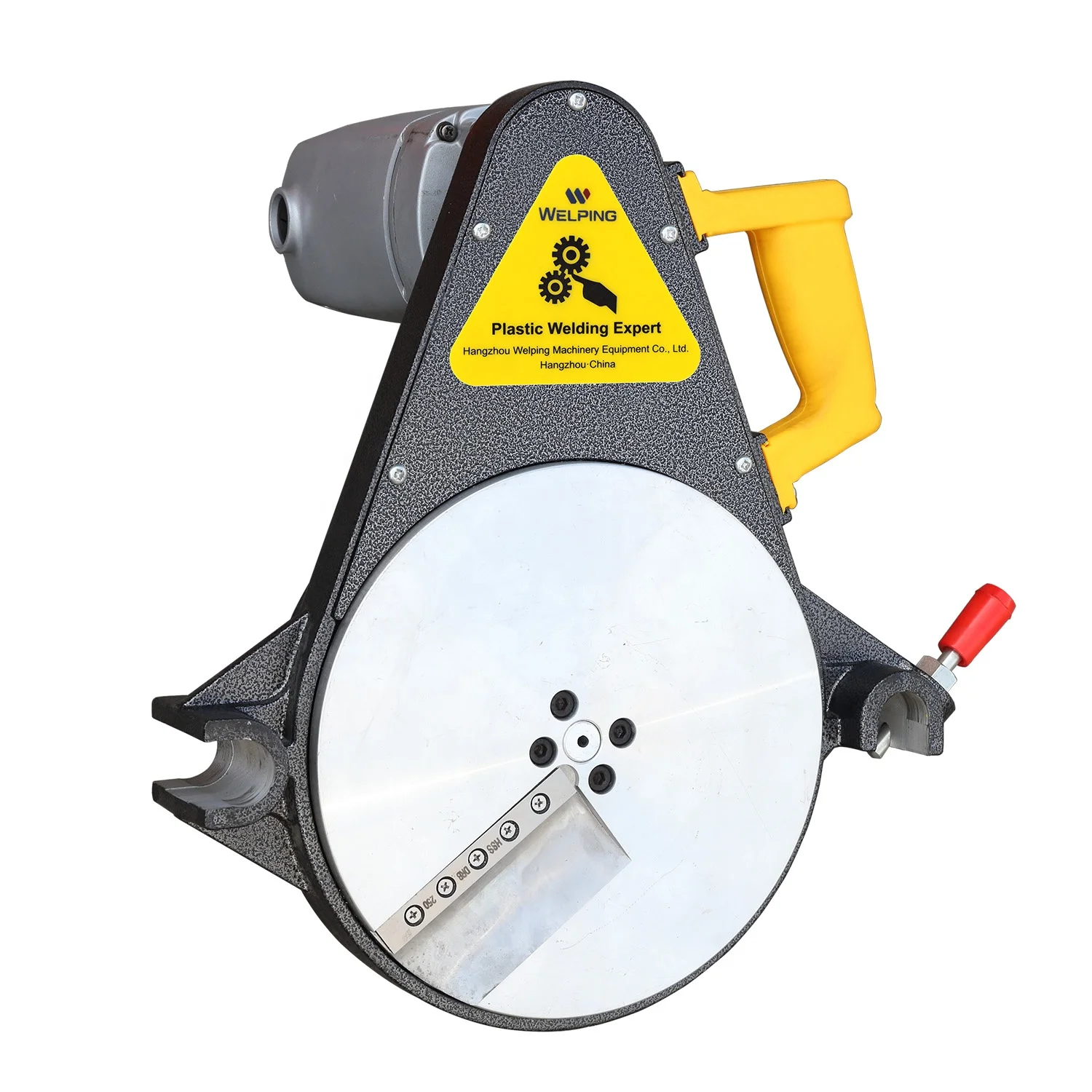

- HSS blade with double edge
- Casting aluminum trimmer plate, durable and anti-corrosion
- Casting aluminum trimmer plate, durable and anti-corrosion
- Gear transmission instead of chain
- Motor with pure copper wiring
- Motor with pure copper wiring
Heating Plate
- Bakelite handle with high insulating property and thermal insulation
- Thermocouple temperature sensor
- Heating element
- Teflon Coating from Daikin in Japan
- Aviation plug
- Thermocouple temperature sensor
- Heating element
- Teflon Coating from Daikin in Japan
- Aviation plug

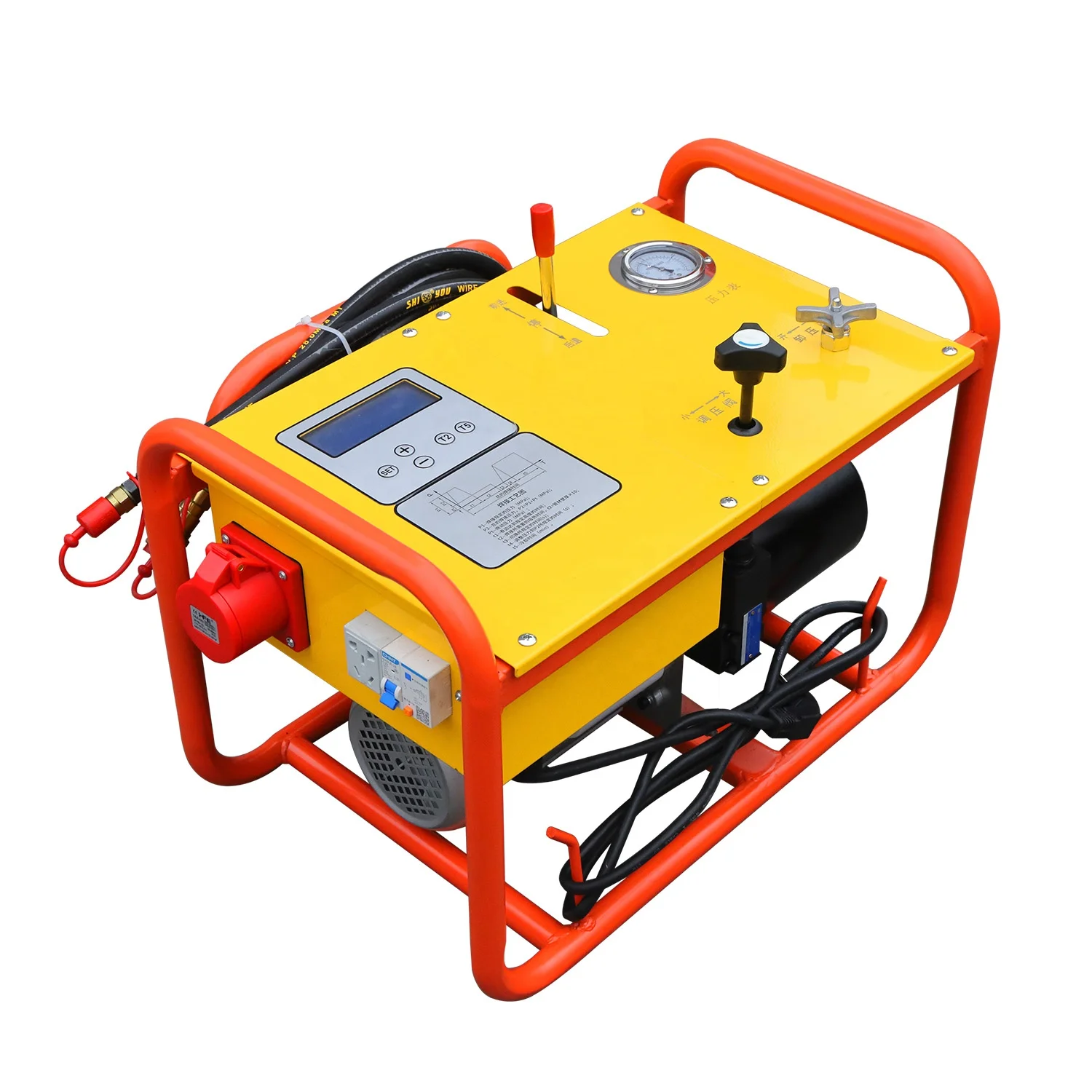

- Open design structure
- Electricity leakage protection switch
- 220V asynchronous motor
- Precise valve
- Integrated LCD display and control
Product packaging
WP160B butt welding | Length (cm) | Width (cm) | Height (cm) | N.W. | G.W. |
package 1 | 84 | 45.5 | 60.5 | 53 | 63 |
package 2 | 54 | 43 | 55 | 38 | 48 |
Applications
Series Product
SN | Model | Standard Welding Range (mm) | Optional Reducers (mm) | Power Supply |
1 | WP160B | 63-75-90-110-125-140-160 | — | 220V-50Hz |
2 | WP200B | 63-75-90-110-125-140-160-180-200 | — | 220V-50Hz |
3 | WP250B | 90-110-125-140-160-180-200-225-250 | 63-75 | 220V-50Hz |
4 | WP315B | 90-110-125-140-160-180-200-225-250-280-315 | — | 220V-50Hz |
5 | WP355B | 160-180-200-225-250-280-315-355 | 110-125-140 | 220V-50Hz 380V-50Hz |
6 | WP400B | 180-200-225-250-280-315-355-400 | — | 380V-50Hz |
7 | WP450B | 200-225-250-280-315-355-400-450 | 180 | 380V-50Hz |
8 | WP500B | 250-280-315-355-400-450-500 | 180-200-225 | 380V-50Hz |
9 | WP630B | 315-355-400-450-500-560-630 | — | 380V-50Hz |
