Электрическая самоходная платформа для аэроработ на продажу буксируемый подъемник с шарнирной стрелой 8 ~ 20
- Категория: Lift Tables >>>
- Поставщик: SHANDONG,REACT,MACHINERY,CO.,LTD.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 5950.47 $* | 6248.62 $* |
| Aug-16-2025 | 5900.61 $* | 6195.25 $* |
| Jul-16-2025 | 4950.61 $* | 5198.80 $* |
| Jun-16-2025 | 5800.14 $* | 6090.33 $* |
| May-16-2025 | 5050.46 $* | 5303.26 $* |
| Apr-16-2025 | 5700.24 $* | 5985.44 $* |
| Mar-16-2025 | 5650.42 $* | 5933.18 $* |
| Feb-16-2025 | 5600.78 $* | 5880.17 $* |
| Jan-16-2025 | 5550.62 $* | 5828.91 $* |
Характеристики
Product Overview
Hydraulic Control Scissor Lift
Product introduction: The fully automatic self-propelled lifting platform is a self-propelled aerial work platform. It has the function of automatic walking. It can walk at a slow speed under different working conditions. , steering, etc.
Main features: The user can control the mechanical lifting and walking without going down the lifting platform, and can control the equipment to drive to other working places on the platform. The equipment itself has the functions of walking and steering, without manual traction or external power supply. It is flexible and convenient to move, making aerial work convenient and fast, and it is an ideal aerial work equipment for modern enterprise production.
Use place: suitable for a wide range of operations such as airport terminals, stations, wharfs, shopping malls, stadiums, residential properties, factories and mines.
Main features: The user can control the mechanical lifting and walking without going down the lifting platform, and can control the equipment to drive to other working places on the platform. The equipment itself has the functions of walking and steering, without manual traction or external power supply. It is flexible and convenient to move, making aerial work convenient and fast, and it is an ideal aerial work equipment for modern enterprise production.
Use place: suitable for a wide range of operations such as airport terminals, stations, wharfs, shopping malls, stadiums, residential properties, factories and mines.

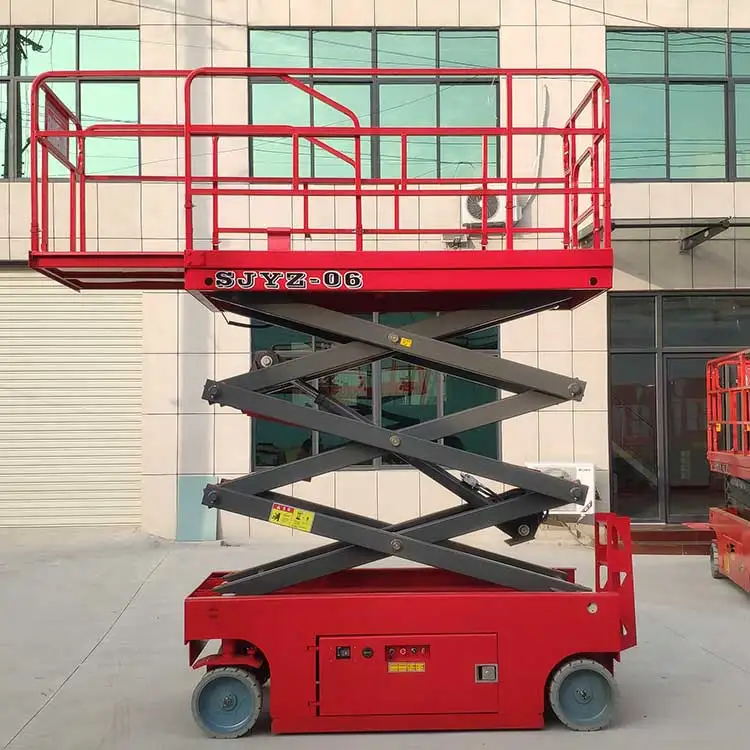

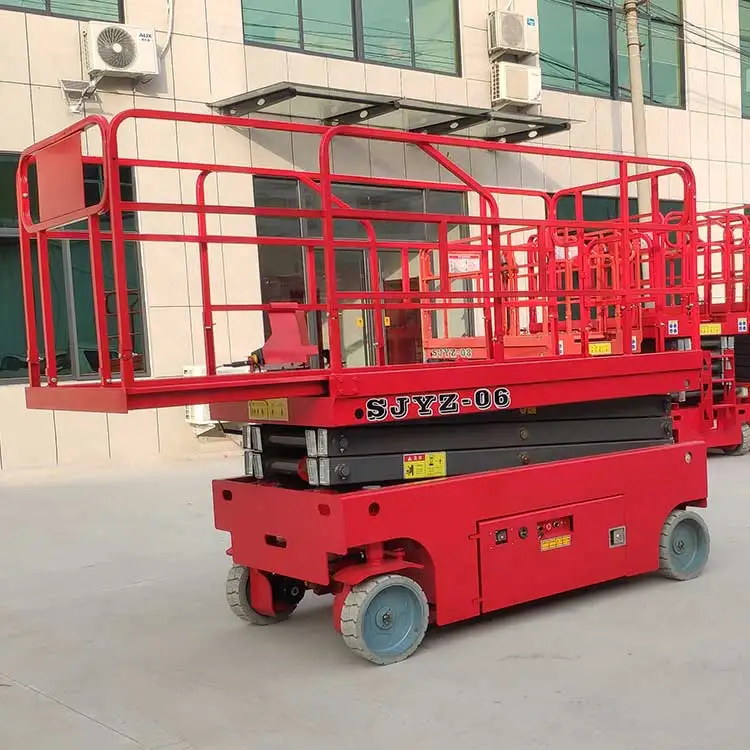

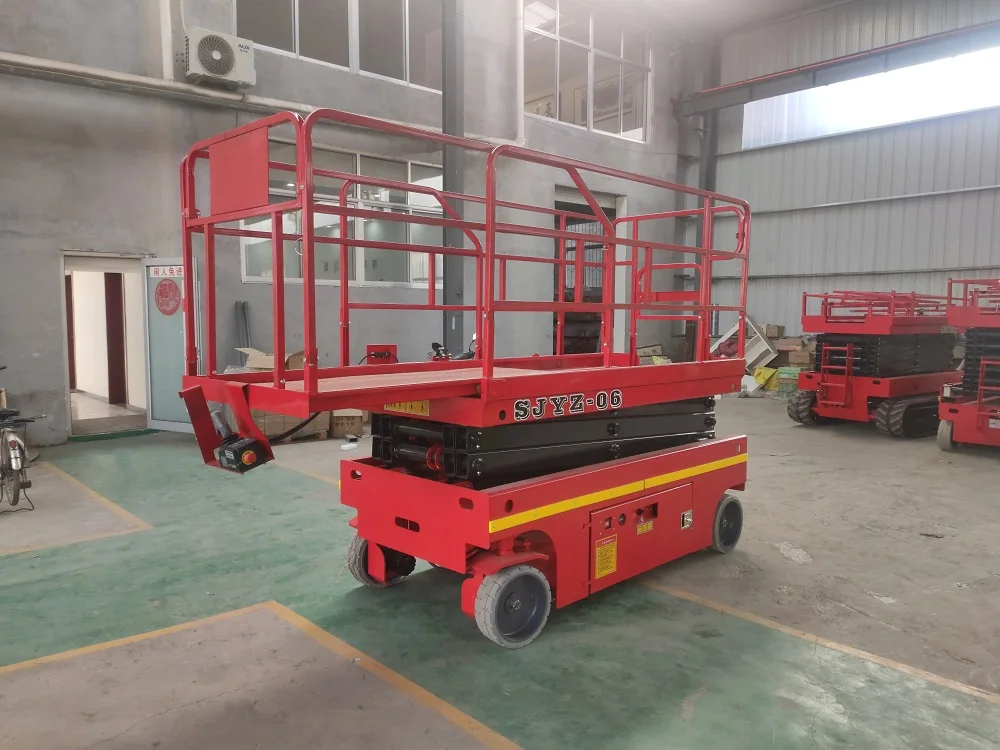

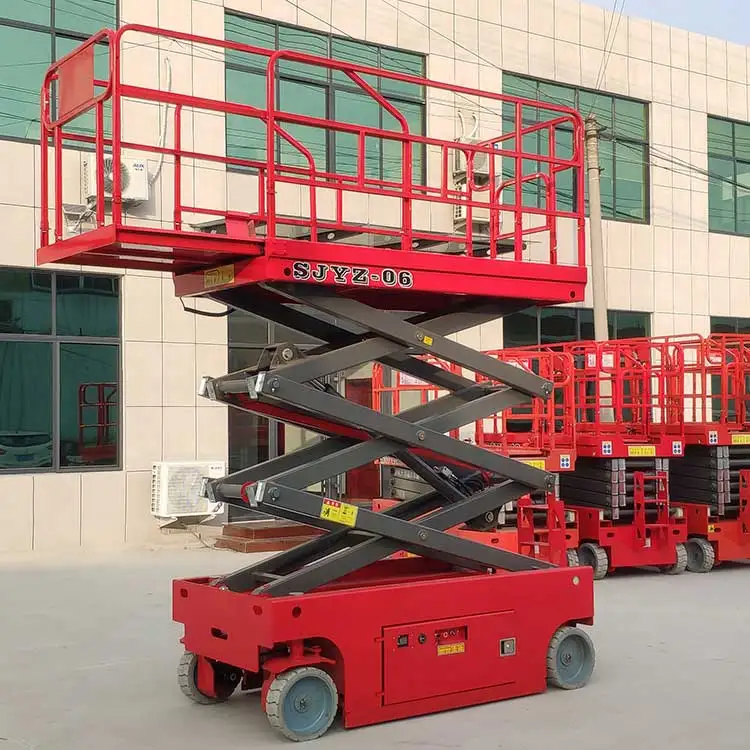

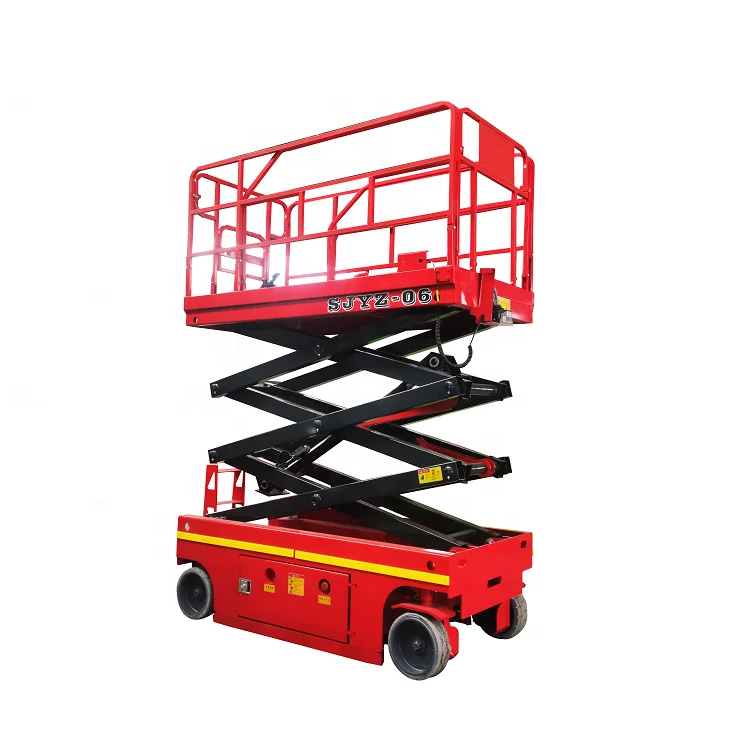

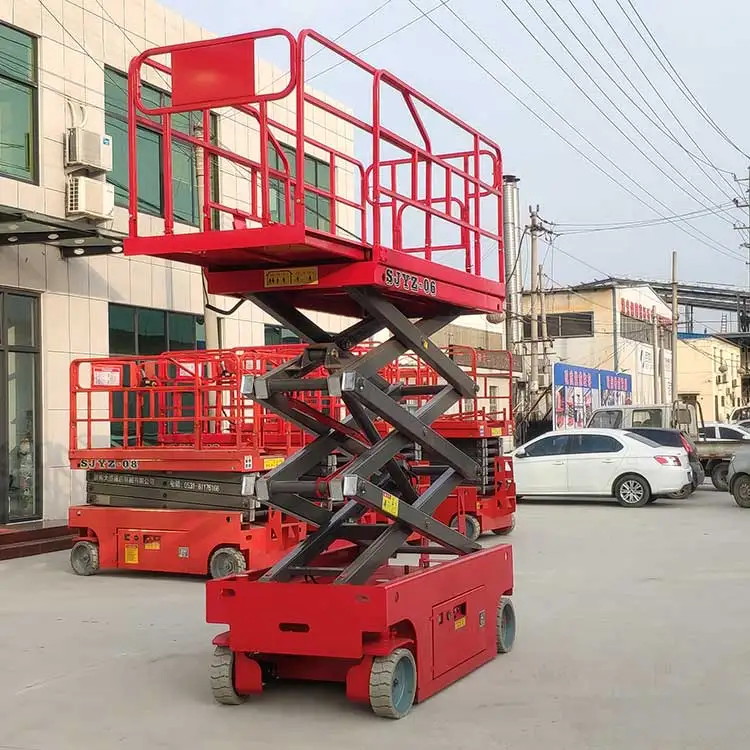

Detail Images
Parameter
Model | HTLP0.3-4 | HTLP0.3-6 | HTLP0.3-8 | HTLP0.3-10 | HTLP0.3-12 | HTLP0.3-14 |
Safe working load | 320kg | 320kg | 320kg | 320kg | 320kg | 320kg |
Safe working load of extension | 113kg | 113kg | 113kg | 113kg | 113kg | 113kg |
Max number of worker | 6m | 8m | 10m | 12m | 14m | 16m |
Max platform height | 4m | 6m | 8m | 10m | 12m | 14m |
Overall length | 2600mm | 2600mm | 2600mm | 2600mm | 2600mm | 3200mm |
Overall width | 1170mm | 1170mm | 1170mm | 1170mm | 1170mm | 1500mm |
Overall height | 2160mm | 2280mm | 2400mm | 2520mm | 2640mm | 2210mm |
Working platform size | 2400* 1170mm | 2400* 1170mm | 2400* 1170mm | 2400* 1170mm | 2400* 1170mm | 2800* 1400mm |
Platform extension size | 0.7m | 0.7m | 0.7m | 0.7m | 0.7m | 0.7m |
Min ground clearance | 0.1m | 0.1m | 0.1m | 0.1m | 0.1m | 0.1m |
Wheelbase | 1.89m | 1.89m | 1.89m | 1.89m | 1.89m | |
Min turning radius | 2.20m | 2.20m | 2.20m | 2.20m | 2.20m | 2.20m |
Lifting motor/driving motor | 24V/4.0KW | 24V/4.0KW | 24V/4.0KW | 24V/4.0KW | 24V/4.0KW | 24V/4.0KW |
Machine travel speed | 0.8KM/H | 0.8KM/H | 0.8KM/H | 0.8KM/H | 0.8KM/H | 0.8KM/H |
Battery | 6V/230AH | 6V/230AH | 6V/230AH | 6V/230AH | 6V/230AH | 6V/230AH |
Machine weight | 2000kg | 2200kg | 2400kg | 2600kg | 2800kg | 3500kg |
Company Profile
Contact us
