Description:
Q900 is an ultra portable full frequency full mode SDR radio. Its receiving frequency is 300kHz-1.6GHz, and the amateur transmitting band covers 160m~70cm. All amateur segments are locked at the factory. If you need an experimental test, open it in the setting menu on the premise of complying with local regulations.

Q900 operation modes include FT8, SSB, CW, AM, FM, RTTY and DMR. It includes all the advanced functions and features of all radio stations.

Q900 is designed with three power supply modes, including built-in battery, USB port power supply and DC port power supply. The power supply voltage range is 5VDC~32VDC. At the same time, all power ports support anti-reverse connection protection.

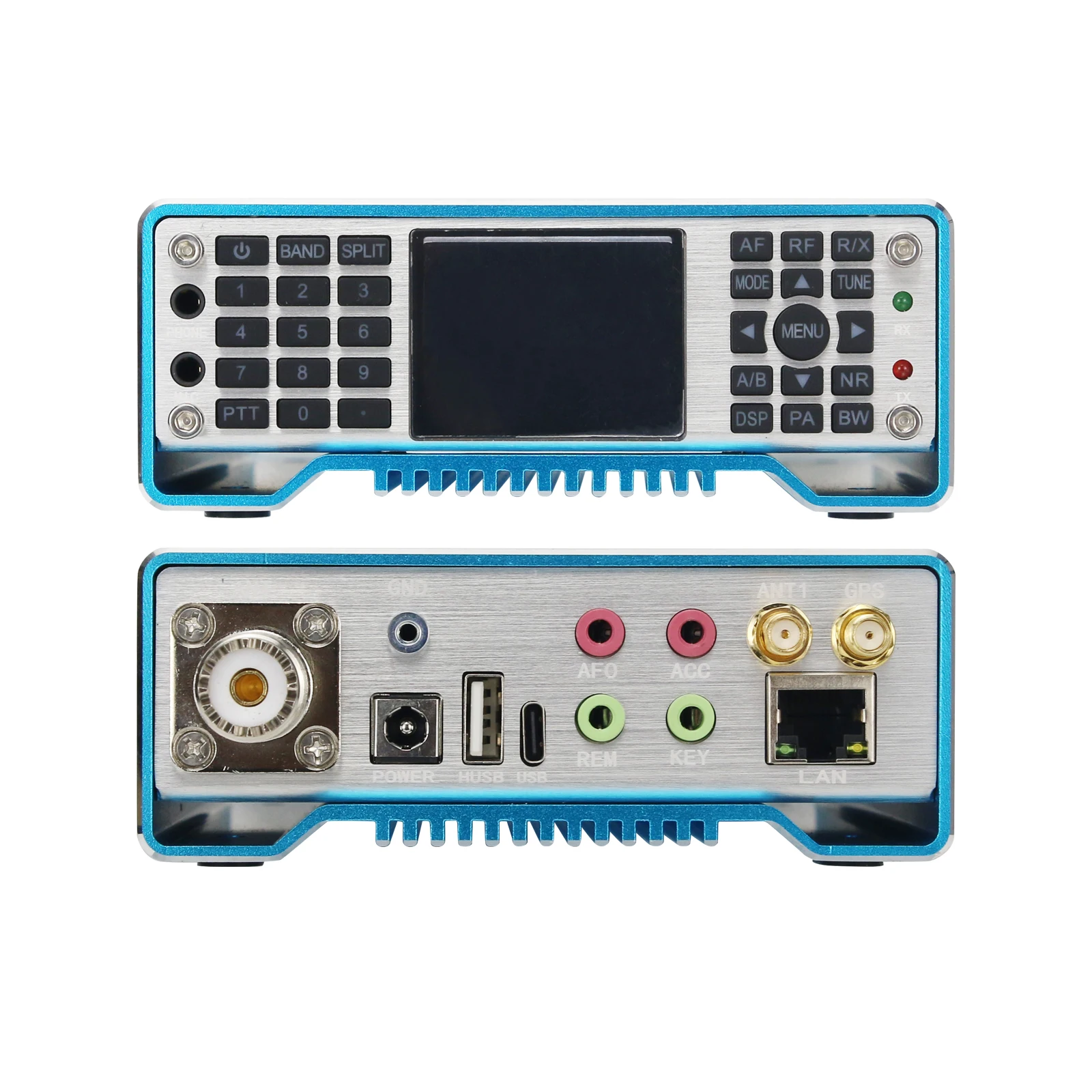

The display adopts high-resolution LCD with adjustable backlight brightness, which can be clearly displayed outdoors. The panel adopts full keyboard design to facilitate various operations. The keyboard backlight is adjustable, which can operate the radio station in dark environment.

QRadioBLE mobile app can remotely control the radio station, making the radio station operation more convenient and fast. It has built-in Blue  -tooth module, USB cable, integrated sound card and serial port. One USB cable can control the radio station.

The Q900 has many advanced functions that are only available in large base stations. The machine has dual VFO mode, different frequency working function, IF offset adjustment, receiving frequency fine adjustment, IF noise suppression, AGC speed selection, RF gain adjustment, squelch control, pre-attenuator, AM broadcast reception, built-in telegraph automatic key, automatic key point ratio adjustment, built-in CTCSS analog sub tone, automatic shutdown function (APO), transmission timeout function (TOT), connection with computer, computer-aided control function, and copy function, etc.

In addition, the Q900 has a wide range of options.

Features:
1. Real time spectrum
2. Waterfall map
3. Doppler frequency tracking
4. Software Defined Radio (SDR) technology is adopted, and the full frequency band supports FT8, SSB, CW, RTTY, am and FM
5. Dual frequency conversion circuit structure
6. IF width and IF displacement hardware and software can be modified to provide strong  if  interference suppression
7. DSP digital noise reduction
8. Built-in (6~160m) high-speed automatic antenna tuner
9. Built-in electronic key controller, all parameters can be set flexibly
10. Built-in sound card with IQ and audio output
11. Internal 4.9ah battery
12. USB typec3.1 interface for power supply and connection to the computer
13. High precision TXCO ± 0.5ppm (-10℃ to 60℃)
14. Ultra wide working voltage range: 5VDC ~ 32vdc, partial voltage emission is limited
15. Anti reverse connection protection of power supply
16. Built in GPS/compass, GSM and electronic compass (acceleration and angle sensor) (optional)
17. GPS timing (Optional. GPS module is required)
18. UTC clock can be set
19. Voltage display
20. Ultra light weight: ≤ 2kg
21. Blue  -tooth wireless remote control

Package Included:
- 1 x Q900 Main Unit
- 1 x Power Cable
- 1 x USB Cable
- 1 x Handheld Mic
- 1 x Carry Case

Note:
- Compass, GPS, DMR power supply and antenna are optional. If you want to buy these accessories, please contact us to pay extra fees. Thank you!

Attention:
- Special frequencies can be customized in batches. If it is needed, please contact us.
