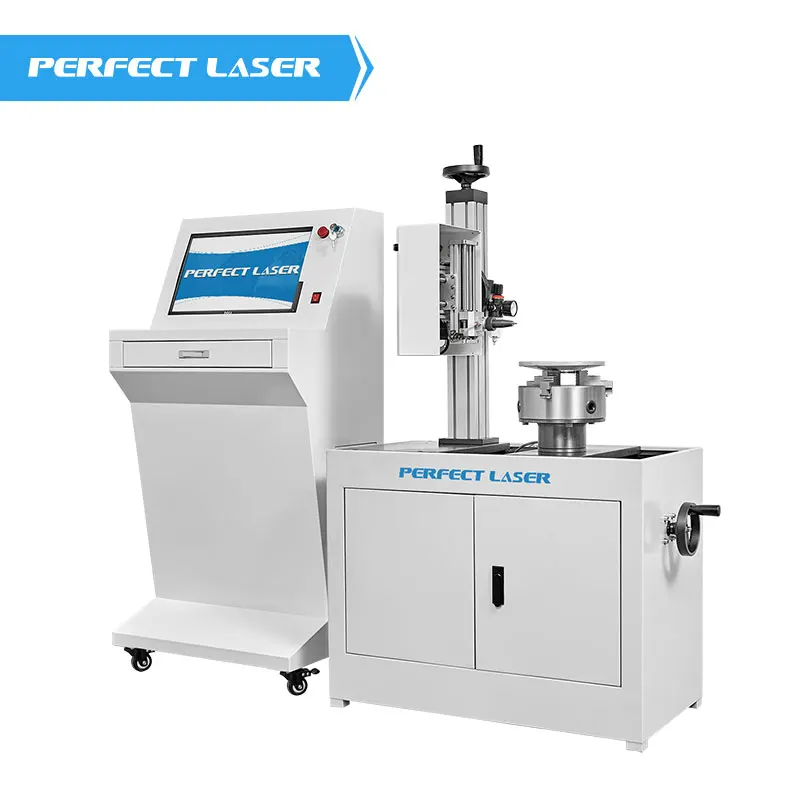

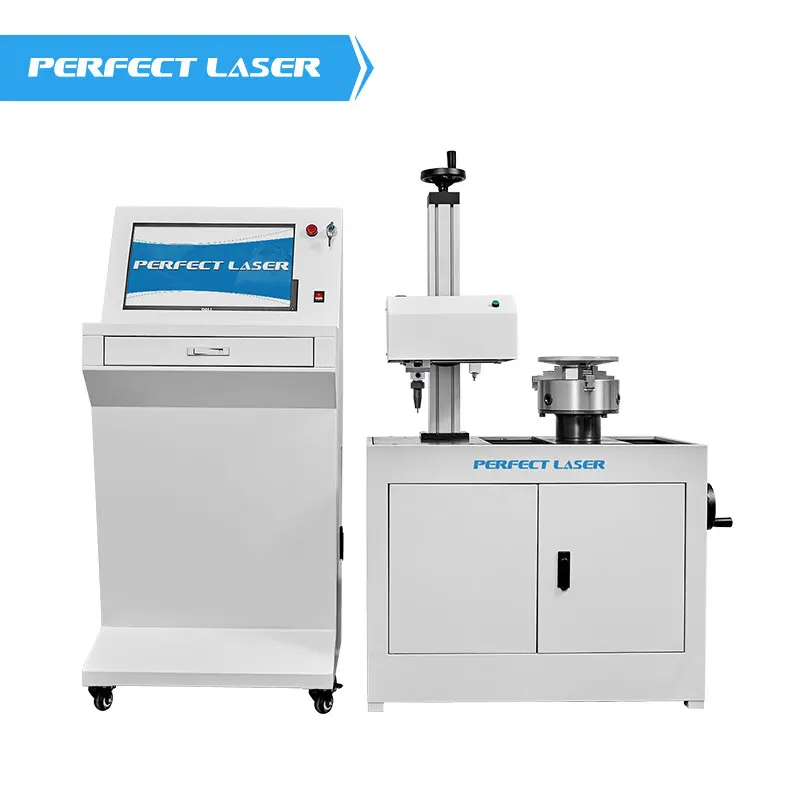

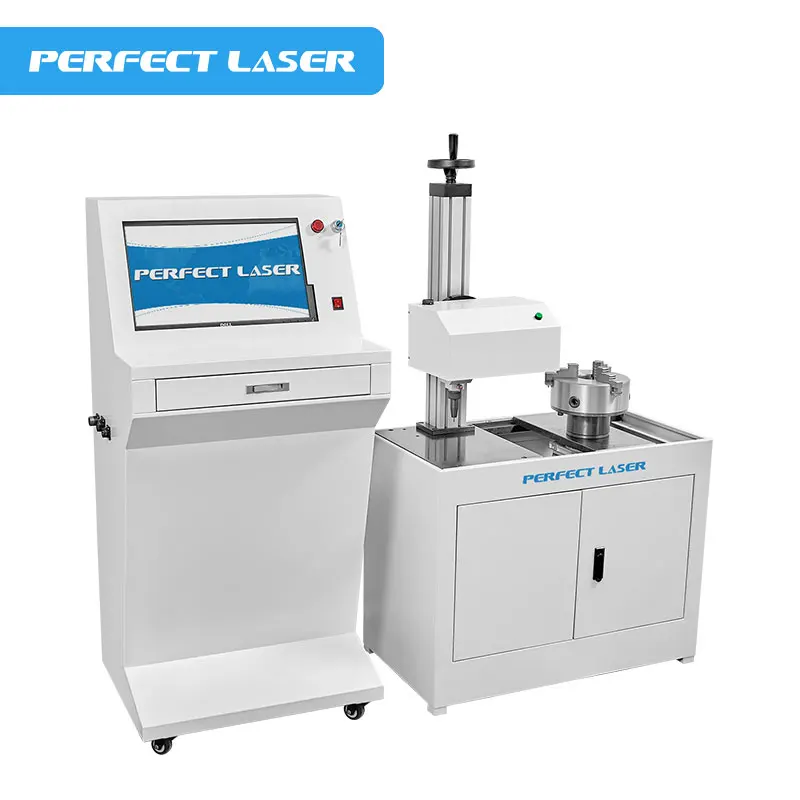

Perfect Laser-Flat round surface design Flange Edge pneumatic Dot Peen Marking Machine
(Model:PEQD-250E)
Contact: Sara Wechat/Whatsapp: +8613971657490 Email :sales021@perfectlaser.net
Product Description
Perfect Laser Flange Edge Dot Peen Marking Machine Special Design for Both Flat Surface and Circumference Marking ,This type of dot pin marking machines are special design for both flat surface marking and circumference marking.

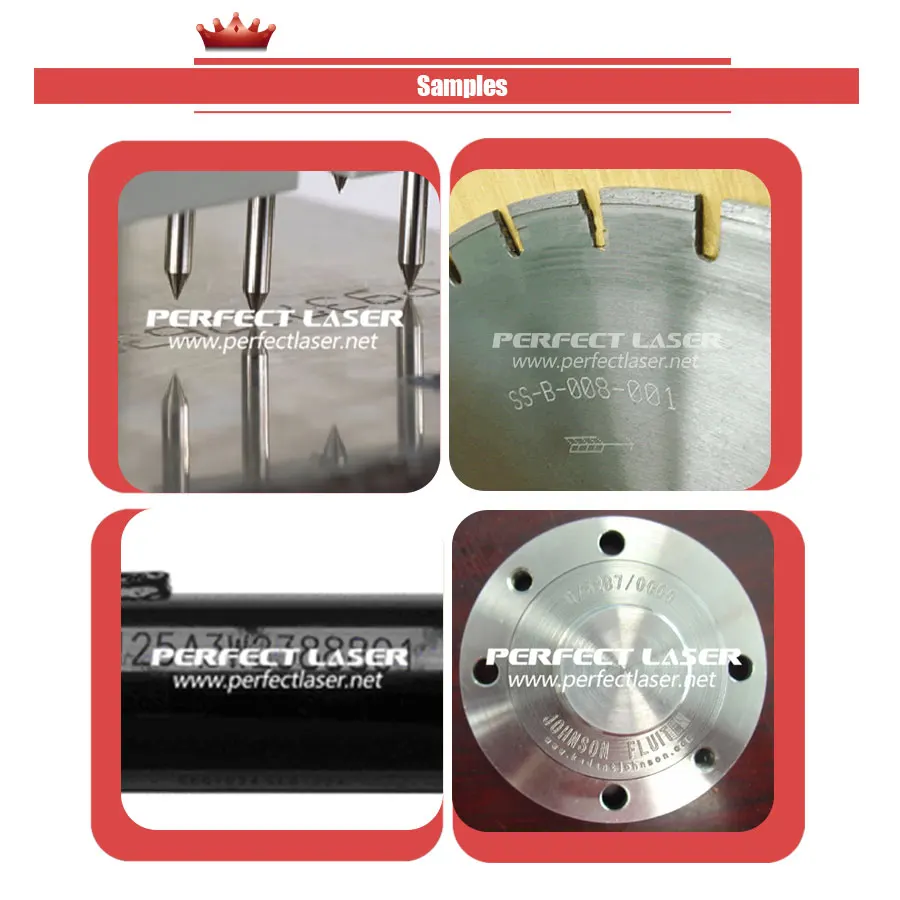

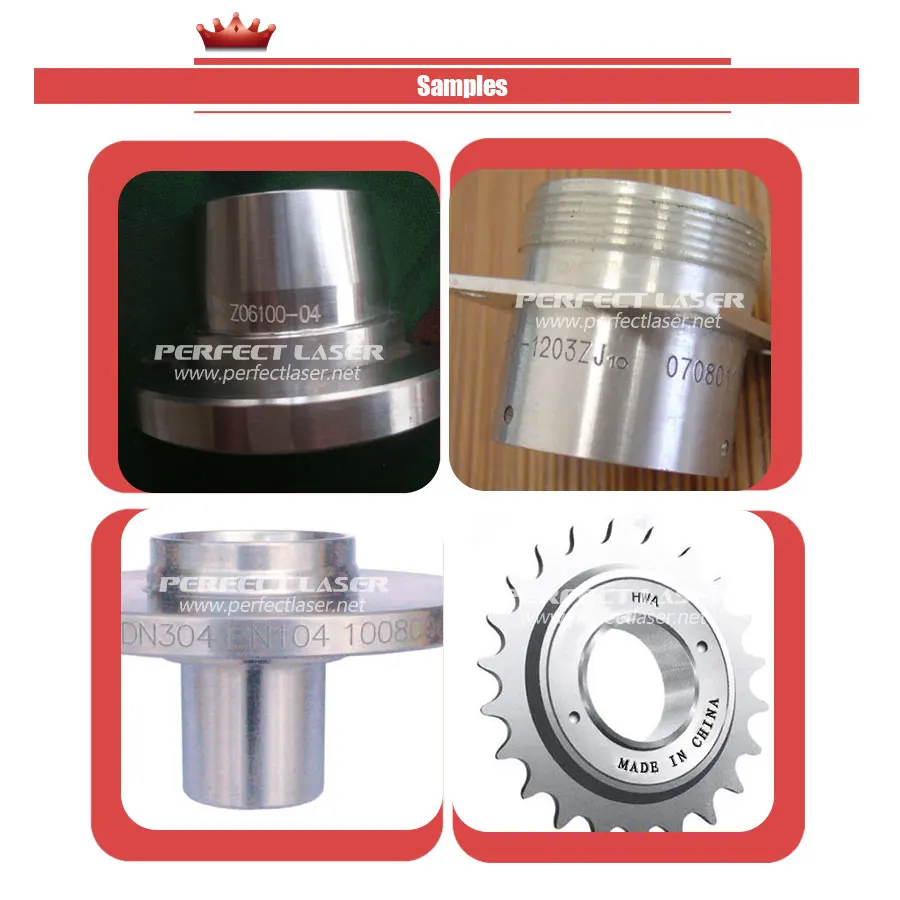

The dot pin marking systems can perform well in circumference marking on the edge of flange, flywheel and automobile brake.
The flange marking machine can also mark on variety of metallic or non-metallic cylindrical, conical, spherical circumference of the work piece.
The dot pin marking machines is suitable for marking the surface of non-metallic materials such as plastic materials and metal materials such as iron and steel, and is mainly used in the production fields of automobiles, aerospace, motorcycles, and electrical appliances industries.
Technical Data
Machine Name | Flange and Flywheel Edge Dot Peen Marking Machine | ||
Model | PEQD-250E | ||
Working Area | 150mm×100mm, 200mm×100mm | ||
Marking Depth | 0.01~2mm | ||
Marking Speed | ≤50mm/second (for characters height of 3mm or 3-4 numbers /second) | ||
Lifting Range | 0-300 mm | ||
Chuck Diameter | Standard 200mm; Optional: 125mm/160mm/300mm | ||
Repeated Accuracy | 0.01 mm | ||
Pin Hardness | HRC 92 | ||
Power Supply | 220V±10％, 50Hz | ||
Air Pressure | 0.2-0.6 Mpa | ||
Machine Power | ≤400 W | ||
Working Environment | -5～40 ℃ | ||
Weight | 200 Kgs | ||
Dimensions (L×W×H) | Controlling Cabinet | 1200×580×560(mm) | |
Pin Head | 920×420×1300(mm) | ||
Machine Details
Company Introduction
Perfect laser is 20 years industrial laser equipment manufacturer, our machine has been exported to more than 180 countries and regions. Due to our machines' reliable quality and affordable price, we have been certified by European CE, ISO9001:2000 quality system.
