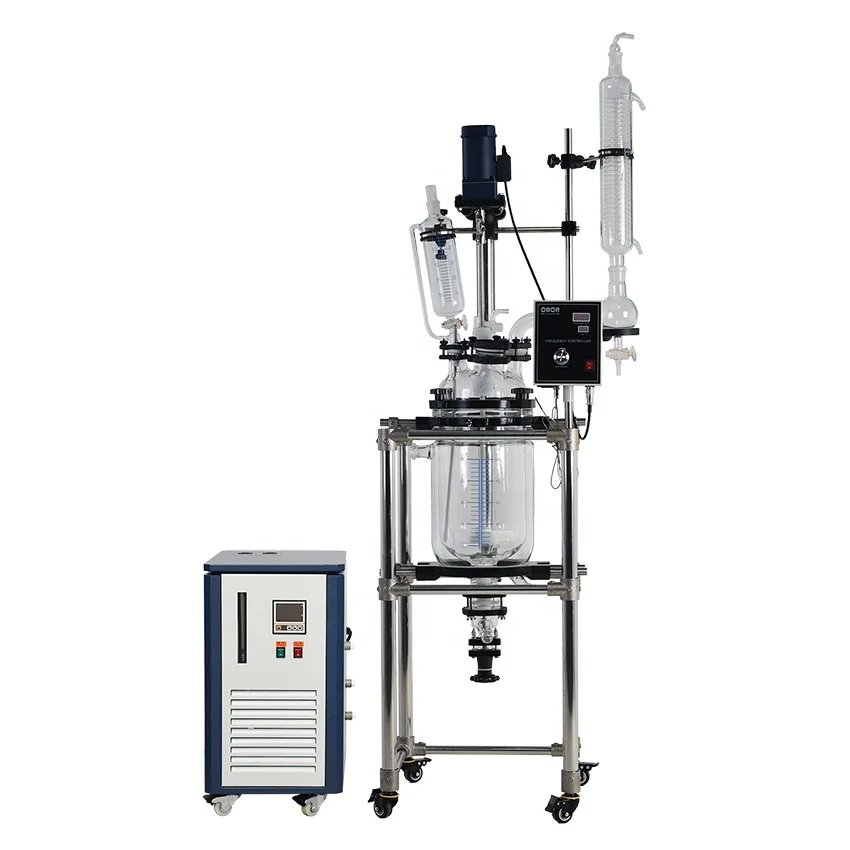

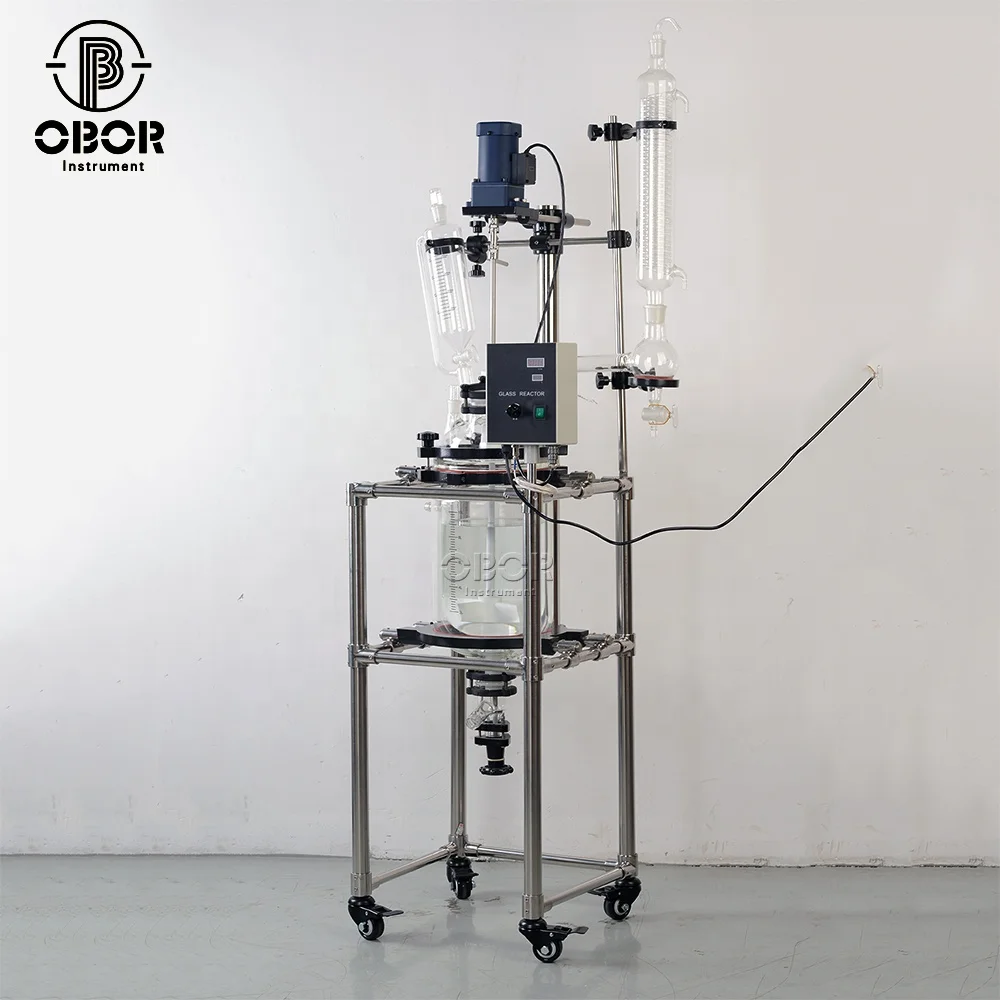

Индивидуальный лабораторный высокоэффективный конденсаторный стеклянный реактор 10л с
- Категория: Reactors >>>
- Поставщик: Zhengzhou,Obor,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.97 $* | 0.46 $* |
| Aug-16-2025 | 0.10 $* | 0.40 $* |
| Jul-16-2025 | 0.62 $* | 0.85 $* |
| Jun-16-2025 | 0.13 $* | 0.59 $* |
| May-16-2025 | 0.43 $* | 0.33 $* |
| Apr-16-2025 | 0.51 $* | 0.82 $* |
| Mar-16-2025 | 0.33 $* | 0.33 $* |
| Feb-16-2025 | 0.40 $* | 0.16 $* |
| Jan-16-2025 | 0.19 $* | 0.20 $* |
Характеристики
Principle & Application
The working principle of the reactor is that the reaction solvent can be stirred in the inner layer, and the interlayer can be heated or cooled by different cold and heat sources (freezing liquid, hot water or hot oil) for cycle heating or cooling reaction. The materials in the reactor are heated or cooled by injecting constant temperature (high temperature or low temperature) hot solution media or cooling media. At the same time, stirring reaction can be carried out under normal pressure or negative pressure according to the requirements of use. After the reaction, the material can be released from the outlet of the bottom of the reactor, and the operation is extremely convenient.
Reactor is widely used in petroleum, chemical industry, rubber, pesticide, dye, medicine, food, used to complete vulcanization, nitrification, hydrogenation, alkylation, polymerization, condensation and other processes of pressure vessels, such as reactor, reaction pot, decomposition pot, polymerization kettle.
Technical Parameter
Model | JGR-10L | |||
Reaction capacity | 2L~10L | |||
Jacketed volume | 3.6L | |||
*Voltage | 220V/50Hz【110V/60Hz optional】 | |||
*Motor power | 120W (1:3) | |||
Rotating speed | 0-600rpm | |||
Controller | Temperature, speed LCD digital display, speed knob adjustment, with PT100 probe | |||
Control precision | ±1℃ | |||
Temperature range | -120℃~300℃ | |||
Working pressure | -0.1Mpa~0.1Mpa | |||
Kettle lid With *Six port φ265mm | Material | Glass | ||
Stirring | 50 Flange | |||
Reflux/Condenser | 50# ball-mill joint / 40# standard ground joint | |||
Drop funnel | 40# standard ground joint | |||
Liquid adding valve | 34# standard ground joint | |||
Thermometer tube | DN25 Flange | |||
Soild adding port | 80 Flange | |||
PTFE mixing seal | PTFE+Oil Seal+O-Ring+Bearing | |||
Condenser | Spherical condenser, 0.42㎡ | |||
Reflux Head | 500ml | |||
Constant pressure drop funnel | 1L | |||
Multi-function manual valve | Used for adding liquid, venting air or filling nitrogen | |||
Thermometer tube | Stainless steel wrapped PTFE | |||
*Frame | SS304 | |||
*Discharge valve | PTFE; No blind Angle; ID23mm, OD32mm | |||
*Stirrer blade type | PTFE, Four-blade | |||
Inlet/outlet oil port | DN25 Ball-mill Joint with 4‘ adapter | |||
Hexagon wrench | Some | |||
Machine size | 670L*650W*1920Hmm | |||
Remark: The parameters with"*"have more selectivity; Other parameters support customization | ||||
Optional Functions
Ex-proof Motor&Controller Insulation clothes Built in stop flow board Multiple stirring blades
Receiving flask PTFE coating Explosion proof baffle Sand core filtration
Details and Features

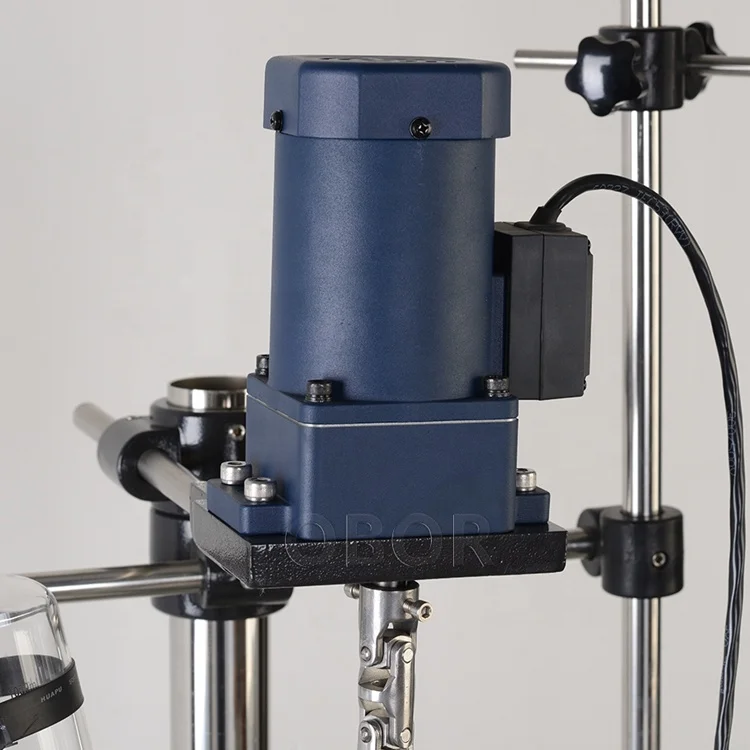

DECELERATION BOOSTER MOTOR
It is driven by AC variable frequency motor, and the gear shaft is equipped with reducer. The speed ratio is 1:3, and the mixing force is increased

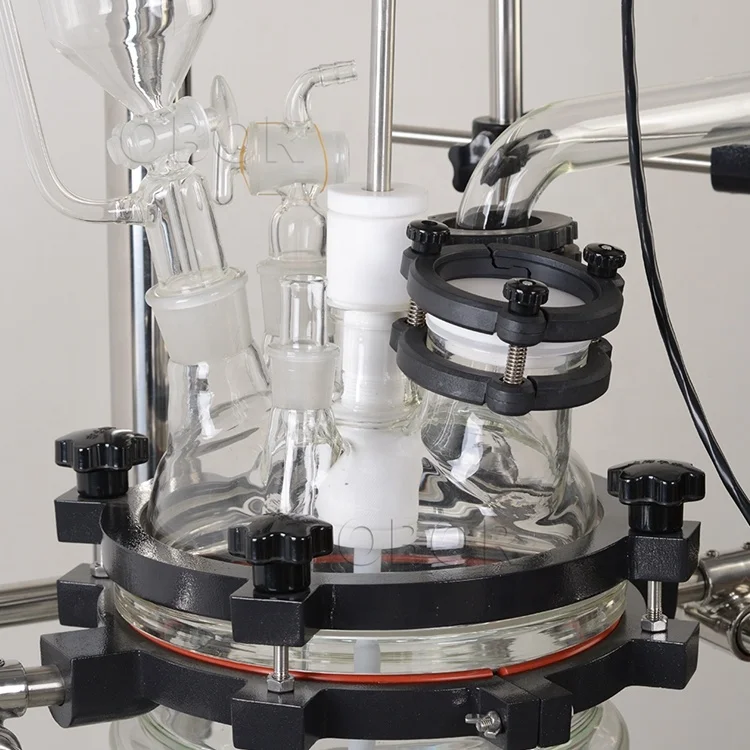

GLASS KETTLE COVER
With SIX port kettle cover, Meet most of the experimental requirements.
Can be customized.
HIGH EFFICIENCY CONDENSER
High efficiency double-layer serpentine coil condenser has large condensation area and high recovery efficiency

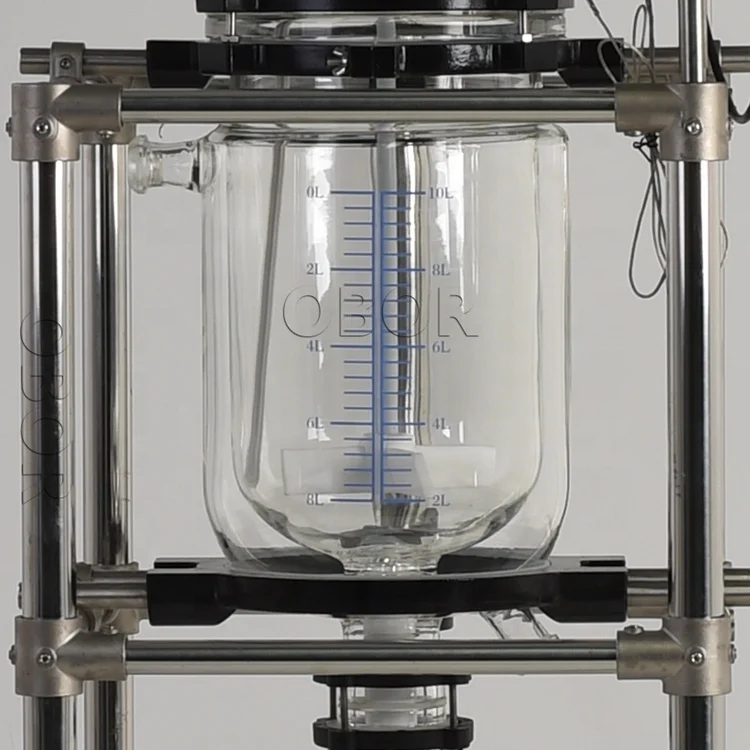

In the double-layer reactor, the interlayer is connected with a heat source or cold source to heat or cool the internal materials

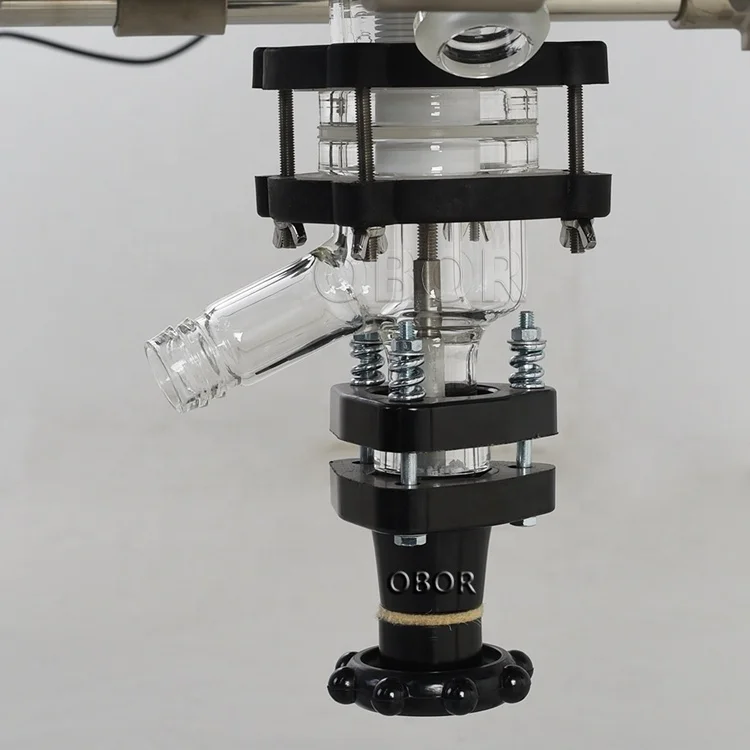

Discharge valve without dead chamber design, the valve core is made of PTFE, which is corrosion-resistant, easy to clean and easy to discharge
Auxiliary Equipment Recommendation
At the same time of material mixing, which can be heated or cooled at constant temperature by circulating hot solution or coolant through the jacketed layer. When the material is heated, the evaporation efficiency can be improved under vacuum condition (vacuum device should be connected). The condenser with a chiller to work together, the cooling effect will be better. Before choose the device, please inform us of the purpose of use and target temperature, so that we can recommend the suitable model for you.
Company Profile
Our company is located in Gongyi City, Zhengzhou, Henan Province, with beautiful scenery. It is a scientific research, design, sales and maintenance company with a variety of technology. The company will take quality as the foundation, credibility for survival, and service for development as its goal. We will work hard both physically and mentally, and cooperate with all the employees to abide by the contract and guarantee the quality of the products. With a variety of operation features and the principle of profit and consumption, We will treat each client equally, establish a win-win system, complement each other's advantages with the society and create glory at the same time!
After-sales service: - One year for whole instrumen from the delivery date - Lifetime service for whole equipment - 18 hours technical support by e-mail or video call or calling service - Transport breakage, photo confirmation, free replacement | Customized Service: - Tell us your work flow and special requirements - Solution+Drawing - Poduction+Test |
OEM Service - Your company information and requirements - Design label+ Discussion - Confirmation+Print | Shipping Service - Export wooden cases or carton case - Fumigation certification, certification of original - We can ship goods by sea, by air, by train, smaller goods or spare parts will be shipped by express - You can choose to use your own forwarder |
Manufacturing Technique
Our Advantage
1.Plant direct supply, Highly competitive prices2.The experienced staff will give you a good shopping experience
3.Strict quality control, professional merchandisers to the factory for inspection
4.Effective OEM&ODM service
5.Diversification of products and services
Packaging & Shipping
Our company's glass and other fragile parts are wrapped with cushioning bubbles, stainless steel and other accessories are wrapped with winding film, and then placed in the wooden box. The wooden case is filled with pearl cotton around and the parts and accessories are separated again with pearl cotton, which is enough to protect the safety of products. If the glass products are damaged due to the transportation，which undertaken by our company, please submit it to us within three days after receiving the goods and keep the original packaging and debris for future reference, and replace them free of charge after verification. (except for transportation carried by customers)
FAQ
Q1. Are you manufacturer or trading company?
We are professional manufacturer of glass reactor(Single layer glass reactor, jacketed glass reactor, three layer glass reactor, Custom reactor), stainless steel reactor, rotary evaporator, short path distillation and match equipment(chiller, heater, high and low temperature circulating device), ect.
Q2. How to guarantee the quality of your products?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
We are professional manufacturer of glass reactor(Single layer glass reactor, jacketed glass reactor, three layer glass reactor, Custom reactor), stainless steel reactor, rotary evaporator, short path distillation and match equipment(chiller, heater, high and low temperature circulating device), ect.
Q2. How to guarantee the quality of your products?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
Q3. How to choose suitable equipment?
You tell us your work flow and special requirements (Such as: capacity, temperature range, pressure,
You tell us your work flow and special requirements (Such as: capacity, temperature range, pressure,
power supply, etc ), we will recommend you suitable equipment according to your requirements, application experience and feedback from our clients.
Q4. How long is your date of delivery?
Generally it is within 7 working days after receiving the payment if the goods are in stock. Customized products need 10~15 working days, depending on order quantity.
Generally it is within 7 working days after receiving the payment if the goods are in stock. Customized products need 10~15 working days, depending on order quantity.
Q5. How to solve the equipment trouble during using?
Please send us email of the problem, pictures or a small video will be much better, we will find the problem and help you to solve it. If there is a broken, we will send you a new part and it is free in the
Please send us email of the problem, pictures or a small video will be much better, we will find the problem and help you to solve it. If there is a broken, we will send you a new part and it is free in the
warranty period.
Q6. Will you provide service beyond the warranty?
Yes. We provide lifetime service for our products, but there will be a corresponding cost beyond the warranty period.
Yes. We provide lifetime service for our products, but there will be a corresponding cost beyond the warranty period.
Q7. What is your terms of payment?
•Payment≤15,000USD, 100% in advance.
•Payment≤15,000USD, 100% in advance.
•Payment≥15,000USD, 50% T/T in advance, balance before shipment.
(If you are concerned about payment security for the first order, we advise you can place Trade Assurance Order via Alibaba. you will get 100% payment refund if we can't meet agreed delivery time.)
(If you are concerned about payment security for the first order, we advise you can place Trade Assurance Order via Alibaba. you will get 100% payment refund if we can't meet agreed delivery time.)
