Супер сильный стержневой магнит Неодимовый магнитный стержень
US $0.027-$0.99
Сильный Постоянный Неодимовый дисковый магнит N52 специальной формы на заказ цилиндрический стержень кубический блок кольцо
- Категория: Magnetic Materials >>>
- Поставщик: Shanghai,Taixiong,Magnetic,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.91 $* | 0.82 $* |
| Aug-15-2025 | 0.42 $* | 0.56 $* |
| Jul-15-2025 | 0.58 $* | 0.79 $* |
| Jun-15-2025 | 0.73 $* | 0.96 $* |
| May-15-2025 | 0.1 $* | 0.22 $* |
| Apr-15-2025 | 0.85 $* | 0.62 $* |
| Mar-15-2025 | 0.94 $* | 0.79 $* |
| Feb-15-2025 | 0.77 $* | 0.13 $* |
| Jan-15-2025 | 0.5 $* | 0.78 $* |
Характеристики
Product Paramenters
Type | Permanent Powerful Neodymium Magnets | ||
Material | Sintered Neodymium Magnets | ||
Coating | Ni, Zn, Epoxy, Parylene, Gold, Passivated, etc | ||
Shape | Block, Bar, Countersunk,Cube, Irregular,Disc, Ring, Cylinder, Ball, Arc, Trapezoid, etc | ||
Density | 7.5-7.6 g/cm³ | ||
Delivery date | 5-7 days for common samples,10-15 days for mass produciton | ||
Magnetic Grade & Working Temperature | Magnetic Grade | Working Temperature | |
N35-N45 | 80 ℃（176 ℉） | ||
N48-N52 | 60 ℃（160 ℉） | ||
35M-50M | 120℃（248 ℉） | ||
33H-48H | 150 ℃（302 ℉） | ||
30UH-40UH | 180 ℃（356 ℉） | ||
28EH-38RH | 200℃（392 ℉） | ||
28AH-33AH | 220 ℃（428 ℉） | ||
Product Show

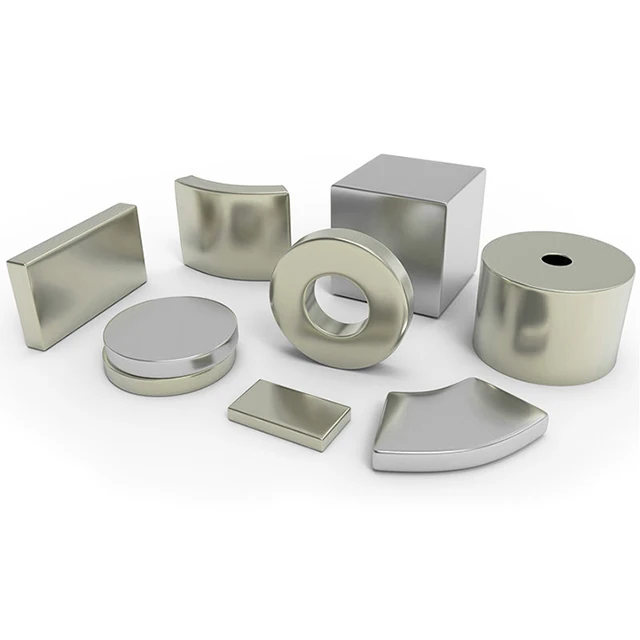

What grades & shapes are available for neodymium magnets?
Grades N35, N38, N40, N42, N48, N50, and N52 ( M, H, SH, UH, EH, AH series ) are available for all shapes & sizes of NdFeB magnets.
We can customize magnets to meet your requirements, just send us your Request and we'll supply you the most economical solution for your project.
Neodymium Magnet Block
Common range of diamension:
Common range of diamension:
Maximum: B200x200x50
customized according to your request.
customized according to your request.
Direction of Magnetization:
Neodymium Magnet Block/Rectangle shape can be magnetized through Thickness, Length or Width.
Maximum extent of magnetization is 60mm.
Maximum extent of magnetization is 60mm.
Lead Time:
5-7 days for samples;
10-15 days for mass production.
10-15 days for mass production.
Neodymium Magnet Disc
Common range of diamension:
Common range of diamension:
Maximum: D200x50mm
can be customized according to your request.
can be customized according to your request.
Direction of Magnetization:
Neodymium Magnet Disc shape can be magnetized Axially or Diametrically.
Maximum extent of magnetization is 60mm.
Maximum extent of magnetization is 60mm.
Lead Time:
5-7 days for samples;
10-15 days for mass production.
10-15 days for mass production.

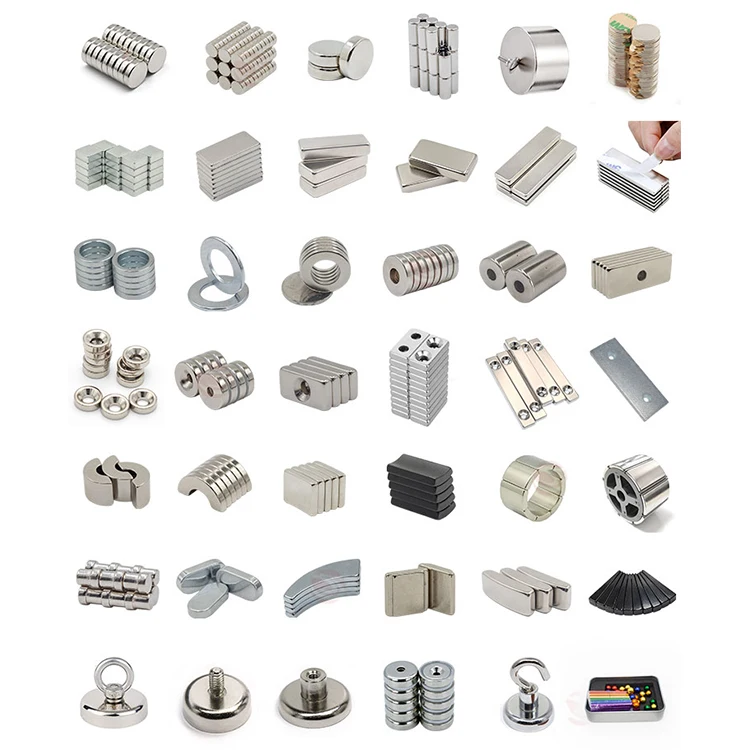

Neodymium Magnet Special Shape
Special size can be customized according to your requirements.

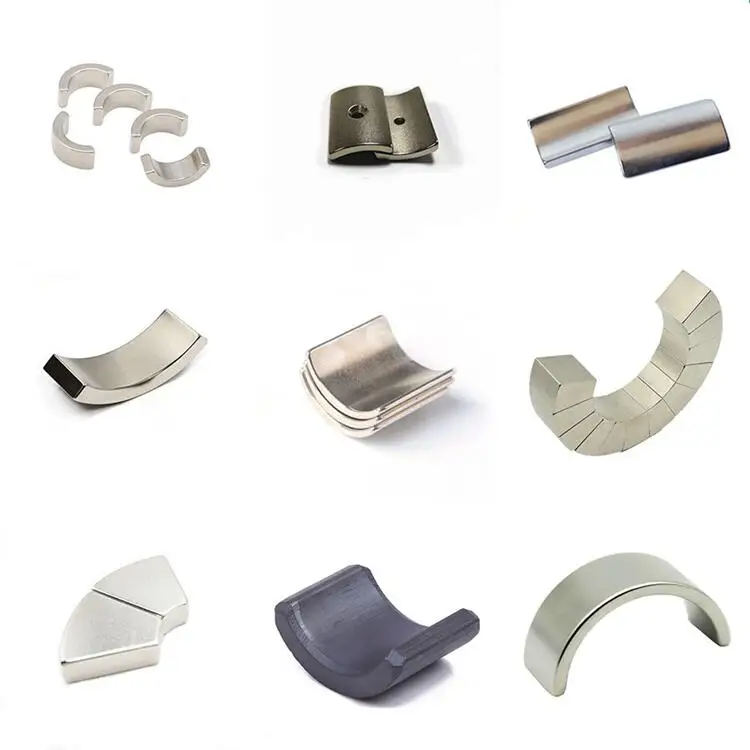

Neodymium Magnet Arc
Common range of daimension:
Common range of daimension:
Common range of daimension:
Cusomized Size according to your requirements
Direction of Magnetization:
Can be magnetized Diametrically, through Width or Thickness.
Maximum extent of magnetization is 60mm.
Lead time:
7-10 days for samples:
15-20 days for mass production.
Cusomized Size according to your requirements
Direction of Magnetization:
Can be magnetized Diametrically, through Width or Thickness.
Maximum extent of magnetization is 60mm.
Lead time:
7-10 days for samples:
15-20 days for mass production.
Neodymium Magnet Ring
Common range of daimension:
Common range of daimension:
Common range of daimension:
Cusomized Size according to your requirements
Direction of Magnetization:
Axially or Diametrically.
Maximum extent of magnetization is 60mm.
Lead time:
7-10 days for samples:
15-20 days for mass production.
Cusomized Size according to your requirements
Direction of Magnetization:
Axially or Diametrically.
Maximum extent of magnetization is 60mm.
Lead time:
7-10 days for samples:
15-20 days for mass production.
Why Choose Us
Common direction of magnetization showed in picture bellow:
1> Disc, cylinder and Ring shape magnet can be magnetized Axially or Diametrically.2> Rectangle shape magnets can be magnetized through Thickness, Length or Width.
3> Arc shape magnets can be magnetized Diametrically, through Width or Thickness.
Special direction of magnetization can be customized as required.
1> Disc, cylinder and Ring shape magnet can be magnetized Axially or Diametrically.2> Rectangle shape magnets can be magnetized through Thickness, Length or Width.
3> Arc shape magnets can be magnetized Diametrically, through Width or Thickness.
Special direction of magnetization can be customized as required.
1. FLOW CHART
From the raw material to finished product,
all the processes are completed in our factory,
and are under our strict control.
From the raw material to finished product,
all the processes are completed in our factory,
and are under our strict control.
2. QUALITY CONTROL
1> Magnet will be inspected strictly during the production of every process.
2> Every magnet will have a certificate before delivery.
3> Magnetic Flux report and Demagnetization Curve can be offered according to request.
1> Magnet will be inspected strictly during the production of every process.
2> Every magnet will have a certificate before delivery.
3> Magnetic Flux report and Demagnetization Curve can be offered according to request.
3. CORE ADVANTAGE
1> Cutting-Edge Technology
Self-Developed Key Equipment, Unique Manufacturing Process, Energetic R&D Team.
2> Full Scale Production
Capacity 200 tons, Specialized Factories.
3> The Integrated Industry Supply Chain.
4> Outstanding Product.
1> Cutting-Edge Technology
Self-Developed Key Equipment, Unique Manufacturing Process, Energetic R&D Team.
2> Full Scale Production
Capacity 200 tons, Specialized Factories.
3> The Integrated Industry Supply Chain.
4> Outstanding Product.
1> High Performance
N54, N52M, N50H, 46SH, 42UH, 38eh, 33AH etc.
2> High Working Temperature
The AH series with 40kOe super-high coercive force can replace SmCo magnets in most applications.
3> High Consistency
The Cpk of Remanence (Br) and Intrinsic Coercive Force (Hcj) are much higher than 1.67.The Consistency of the surface magnetic field and magnetic flux can be controlled at +/-1%.
4> High Anti-Corrosion
The salt spray test and humidity heat test of the high anti-corrosion coating Nickel+Copper+Epoxy is typically more than 500 hours.
5> Low Weight Loss
PCT: 130°C, humidity 100%, vapor pressure 2.7 bar,20 days, average low weight loss <2 mg/cm2.
4. DEMAGNETIZATION CURVE
N54 Demagnetization Curves
at Different Temperature
N52M Demagnetization Curves
at Different Temperature
N44SH Demagnetization Curves
at Different Temperature
N42UH Demagnetization Curves
at Different Temperature
N33AH Demagnetization Curves
at Different Temperature
N35EH Demagnetization Curves
at Different Temperature
Magnets are a special delivery product, which must be specially packaged before transportation to ensure that the products are well packed and that it can withstand the manhandling of shipping carriers.
Certifications
Company Profile
FAQ
Q1: Could I get samples?
A: Samples are available and free.
A: Samples are available and free.
Q:Are you a factory or trade company?
A: We are specific in produce of neodymium magnet over 15 years and now has 3 factories in China.
A: We are specific in produce of neodymium magnet over 15 years and now has 3 factories in China.
Q: Can I customize products?
A: Yes, Custom Magnets Are Available.
Please tell us the size, grade, surface coating and quantity of the magnet, you will get the most reasonable quotation quickly.
Q2: How about your delivery date?
A: 3-7 days for samples and 15-20 days for mass production.
Q3: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q4: What is the usual payment method?
A: T/T, Paypal, L/C, VISA, e-Checking,Western Union.
Q5: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
A: Yes, Custom Magnets Are Available.
Please tell us the size, grade, surface coating and quantity of the magnet, you will get the most reasonable quotation quickly.
Q2: How about your delivery date?
A: 3-7 days for samples and 15-20 days for mass production.
Q3: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q4: What is the usual payment method?
A: T/T, Paypal, L/C, VISA, e-Checking,Western Union.
Q5: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
