Характеристики
Eco-Friendly Quick Assemble Modern Ready Made Prefab Luxury Light Steel Structure House Villa
DFX residential system uses high-strength cold-formed thin-walled section steels to form wall load-bearing system, suitable for low-storey or multi-storey residences and commercial building, its wallboards and floors adopt new light weight and high strength building materials with good thermal insulation and fireproof performance, and all building fittings are standardized and normalized. Cold-formed thin-walled section steels adopted in structure load-bearing system of the house system have small sectional dimensions and light self-weight, which not only increases usable floor area, but greatly reduces foundation building cost. All building materials adopted in the DFX residential system are environment-friendly products, in which the health of residents is fully considered, in addition, recycling of natural resources is considered in the recyclable structural system.
Product Paramenters
Items | Specification | ||
Column | Galvanized Steel Frame | ||
Beam | Galvanized Steel Frame | ||
Purlin | C and Z purlin | ||
nee brace | Q235 Angle Steel | ||
Tie Rod | Q235 Circular Steel Pipe | ||
Brace | Q235 Round Bar | ||
Vertical and Horizontal Support | |||
Roof | Resin tile+Waterproof layer+(OSB) | ||
Wall | Medium density fiberboard+(OSB)+Glass wall+(OSB)++Breathing paper+Wood keel+XPS+Metal carved board | ||
Window | Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window | ||
Door | Alloy sliding door/Wooden door | ||
Rainspout | PVC | ||
Live load on Roof | In 120kg/Sqm (Color steel panel surrounded) | ||
Wind Resistance Grade | 12 Grades | ||
Earthquake-resistance | 8 Grades | ||
Structure Usage | 70 years | ||
Finishing Options | Vast array of colors and textures available | ||
Paint Options | Alkyd paiting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized. | ||
Advantages of DFX Prefab House
1. Eco-friendly: Environmentally friendly construct process and materials, 70% recycle materials
2. Anti-seismic,wind resistant and durable: 70 years structure guarantee, anti-seismic performance for up to grade 9 seismic events,and resistance to grade 12 typhoons
3.Superior thermal and heat insulation: Premium insulation material used to form an insulation layer
4. Good sound insulation:\tWall sound insulation:45db or higher (four-star hotel standard);floor sound insulation:65db or less (five-star hotel standard)
5. Superior air humidity regulation: AAC panels are adopted to make the walls breathe,high strength
6. Short construction period: Fast construction reduces our construction period by 50% compared with traditional construction methods
7. Light weight,low foundation cost,increased usable area: With the enclosure wall thickness ranging from 14cm to 20cm,the usable floor area is 10% more than that of concrete structure buildings
8. Good compatibility of integrated buliding material:\tAdvanced solar energy system;Central vacuum system preventing pollution during dust suction;Household-based central air conditioning;Anti-theft system,video intercom system.
2. Anti-seismic,wind resistant and durable: 70 years structure guarantee, anti-seismic performance for up to grade 9 seismic events,and resistance to grade 12 typhoons
3.Superior thermal and heat insulation: Premium insulation material used to form an insulation layer
4. Good sound insulation:\tWall sound insulation:45db or higher (four-star hotel standard);floor sound insulation:65db or less (five-star hotel standard)
5. Superior air humidity regulation: AAC panels are adopted to make the walls breathe,high strength
6. Short construction period: Fast construction reduces our construction period by 50% compared with traditional construction methods
7. Light weight,low foundation cost,increased usable area: With the enclosure wall thickness ranging from 14cm to 20cm,the usable floor area is 10% more than that of concrete structure buildings
8. Good compatibility of integrated buliding material:\tAdvanced solar energy system;Central vacuum system preventing pollution during dust suction;Household-based central air conditioning;Anti-theft system,video intercom system.
Components Details

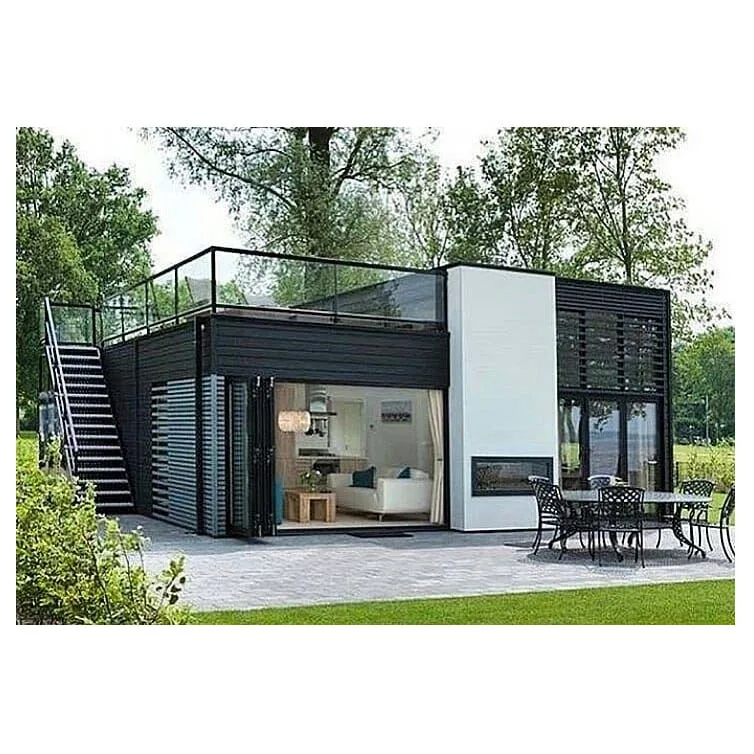

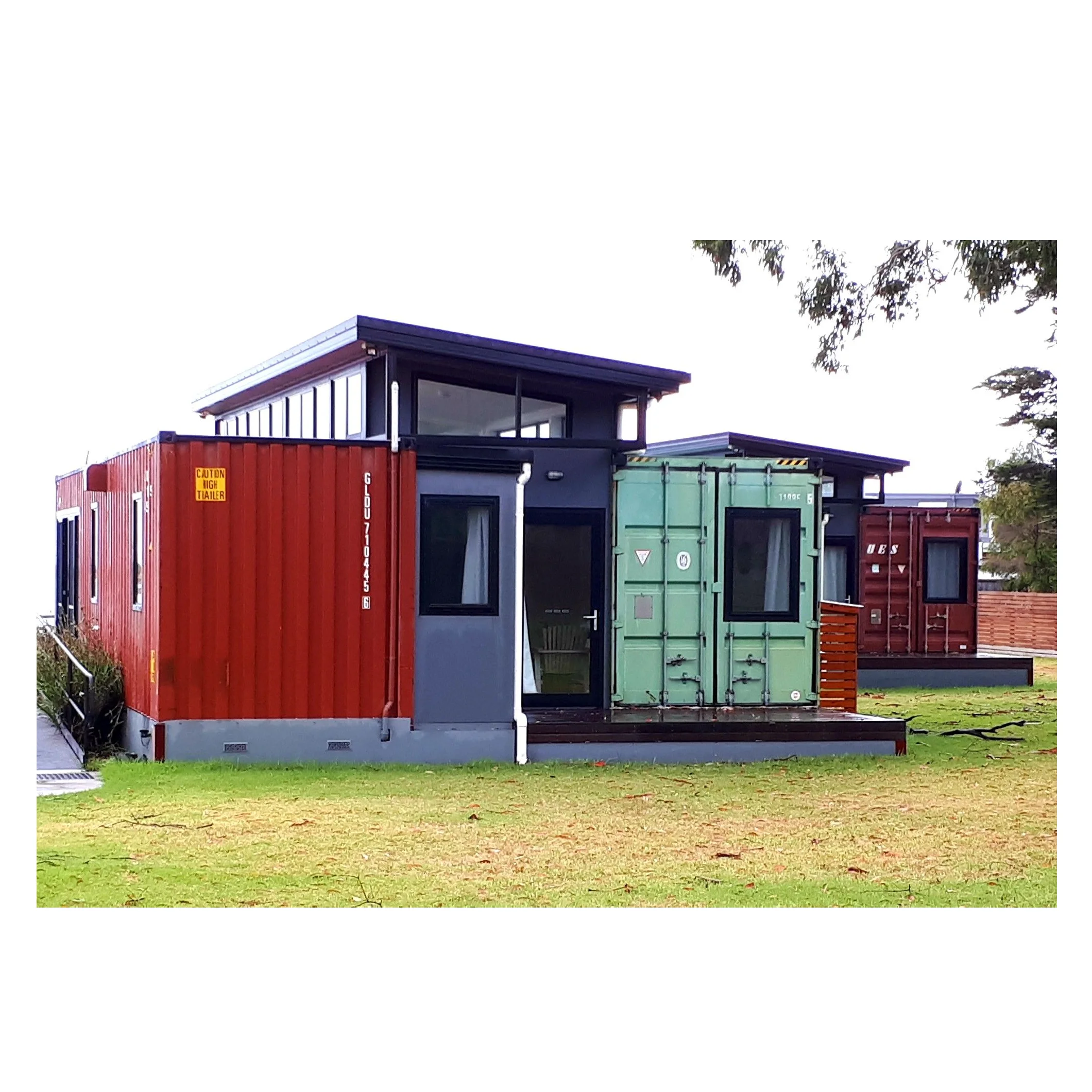

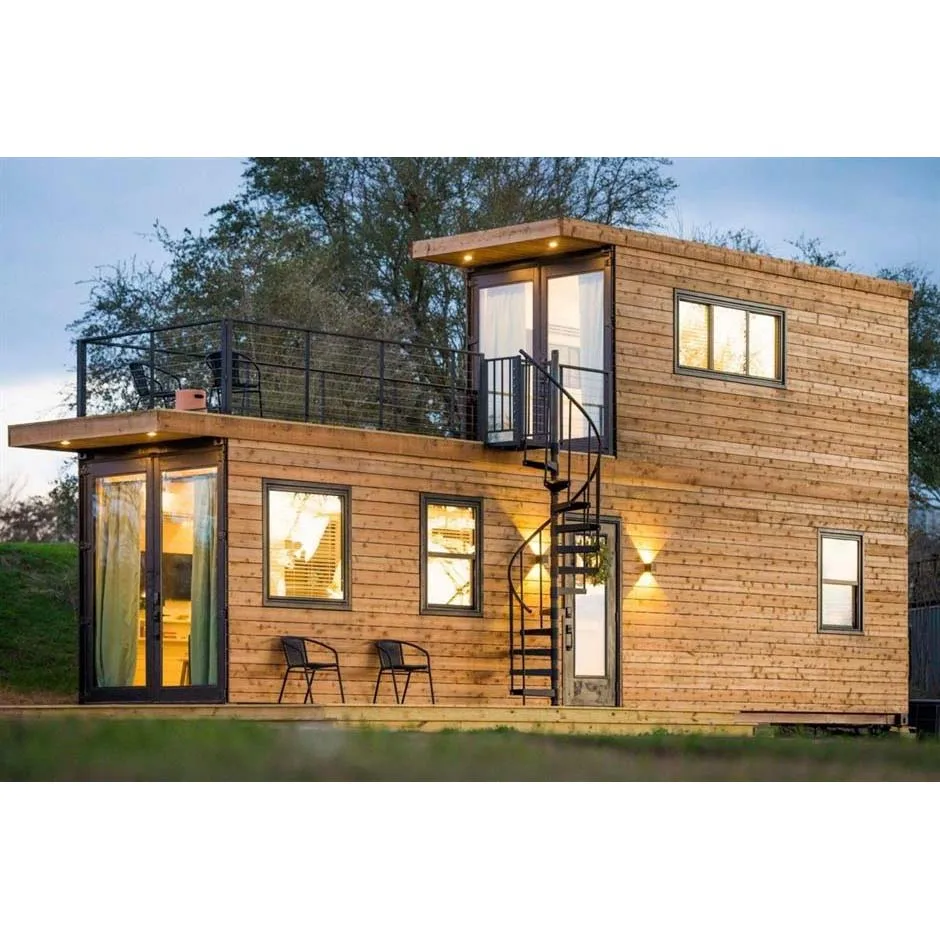

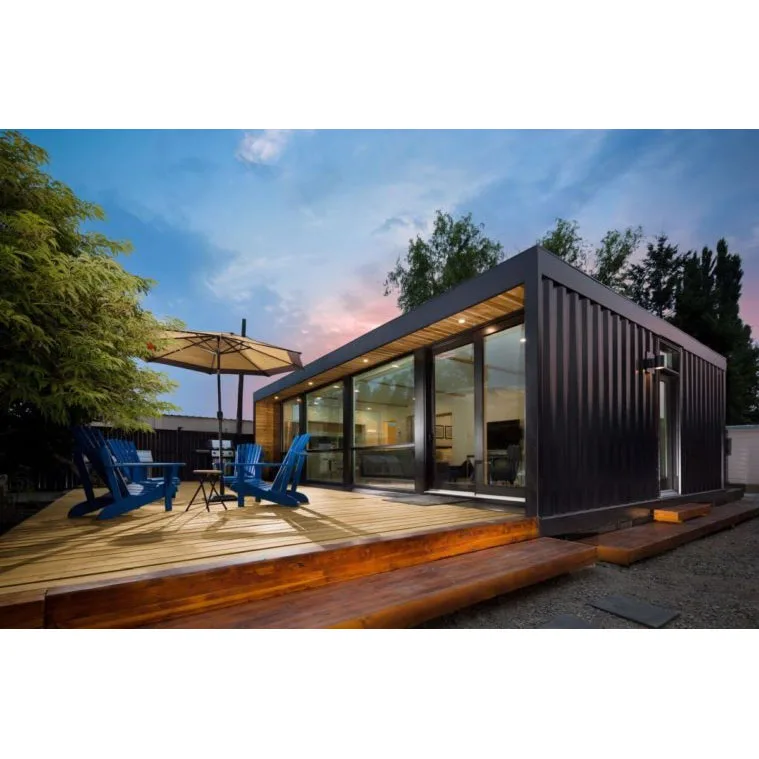

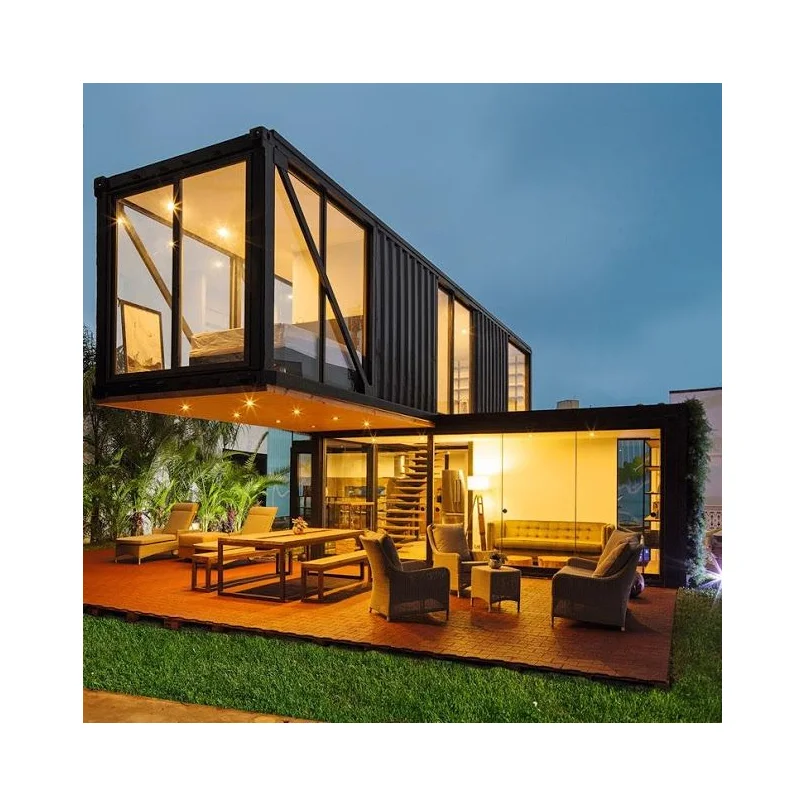

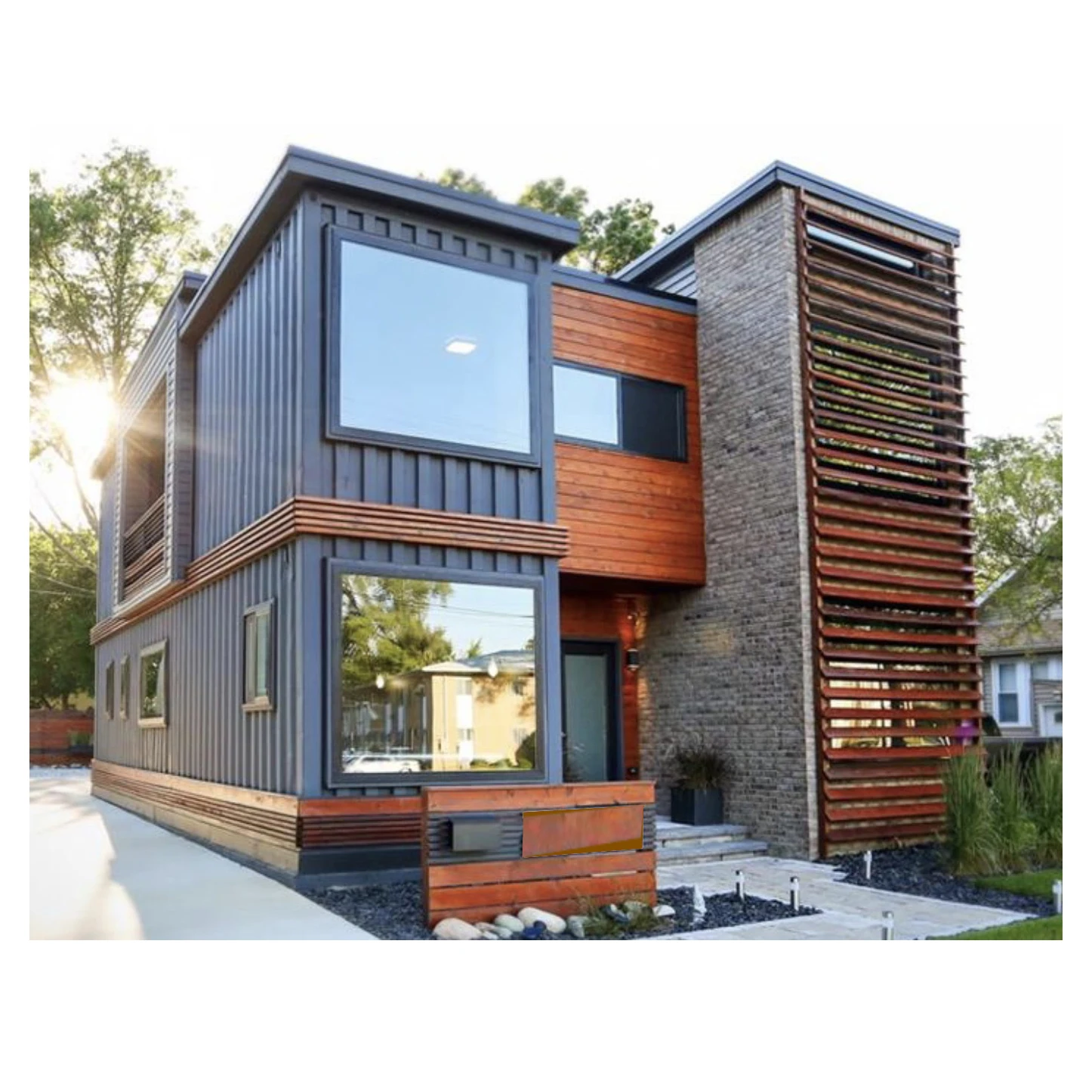

Finished Project Showing
Company Profile
Qingdao Director Steel Structure Co., Ltd.
Qingdao Director Steel Structure Co., Ltd. always based on the development and produce of steel structure buildings and prefab house, steel villa, container house, through efforts of all staff for 10 years, it has become a medium-sized private enterprise that specialized in the development, design, production and sales of steel structure buildings and prefab house. For now, the products have been exported to over 40 different countries around the world. We mainly deal in the export of steel structure buildings and prefab house, such as steel structure workshop, prefabricated steel structure warehouse, steel structure buildings, storage warehouse shed, prefab steel aircraft hangar, container house and prefab house etc.
Exhibition
Customer Photos
Marketing Campaign
FAQ
Q:Are You A Manufacturer Or A Trading Company?
A:We are a factory with import and export rights. We can import and export directly.
Q:What Is The Payment terms?
A:Usually 30% T/T advance payment, 70% T/T balance upon bill of lading copy. Of course, L/C is also acceptable.
Q:How long is your delivery time?
A:Usually 10-30 days,depends on your style and quantity.
Q:Can You Make Customized Products?
A:Yes, we mainly produce customized products. We will deepen the design and put into production according to the different needs of our customers.
Q:How to Install?
A:We will provide installation instruction and video to you,technicians will be sent to you if it is necessary.The visa cost,air
tickets,accommodation,wages will be provided by buyers.
tickets,accommodation,wages will be provided by buyers.
Q:Do You Have Stocks?
A:No. The standards in each country are different, so we cannot produce general-purpose products. However, we will prepare large amounts of raw materials, even custom produced products can be finished in a short period of time.
Q:What Is The Production Capacity Of Your Company?
A:Our monthly production capacity of flat pack containers is 900 units / month, and modified containers is 450 units/ month.
Q:Where Is Your Main Market?
North America,South America,Europe,Asia,Oceania.
