Цифровой аудиопроцессор YATAO 260 2 In/6 Out PA с стабильным

Цифровой аудиопроцессор YATAO 260 2 In/6 Out PA с стабильным

Категория: Professional Audio, Video & Lighting(old) >>>
Поставщик: Foshan,Yatao,Electronic,Co.,Ltd.

Цена:36,20 $ - 38,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	43.11 $*	45.41 $*
Aug-17-2025	42.30 $*	44.1 $*
Jul-17-2025	36.6 $*	38.31 $*
Jun-17-2025	42.95 $*	44.87 $*
May-17-2025	36.34 $*	38.94 $*
Apr-17-2025	41.80 $*	43.76 $*
Mar-17-2025	41.29 $*	43.48 $*
Feb-17-2025	40.19 $*	42.60 $*
Jan-17-2025	40.80 $*	42.37 $*

Характеристики

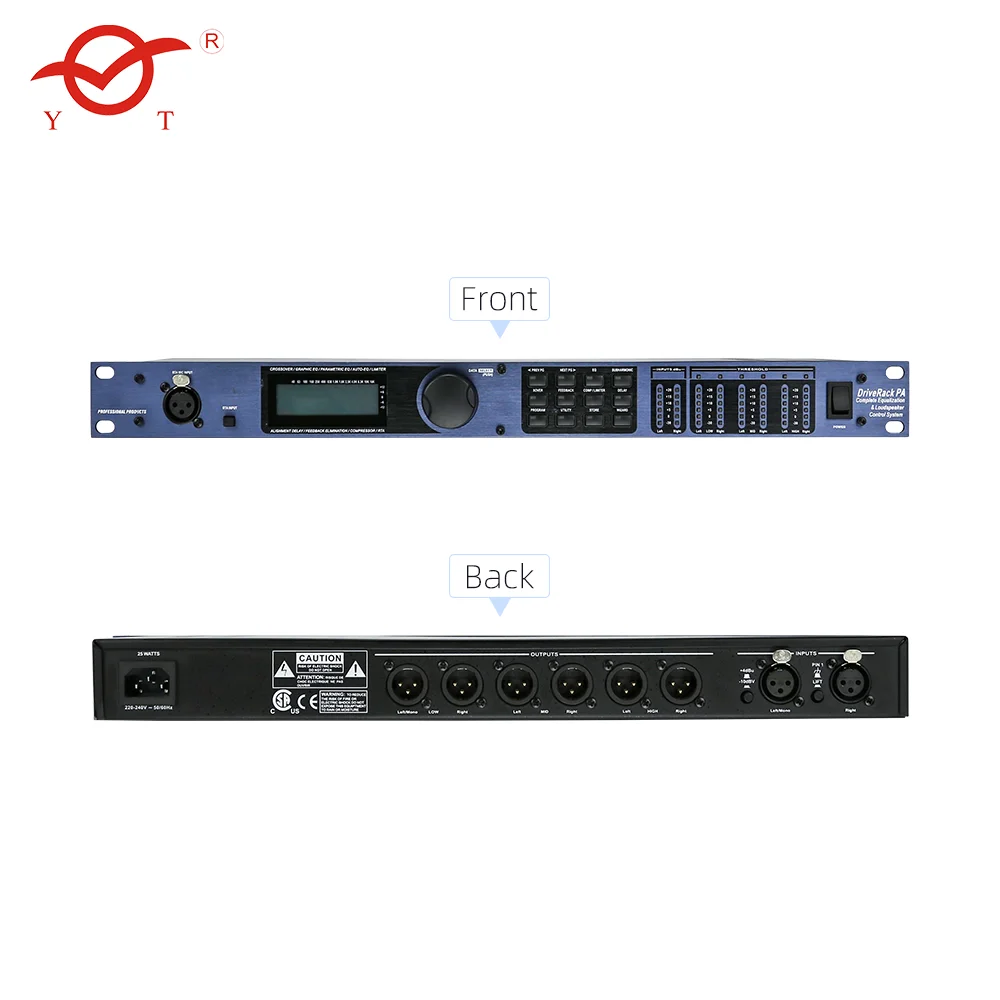

YATAO 260 2 In/6 Out PA 260 digital audio processor with stable quality

Using 24BIT data bus and 32BIR DSPMUSIC input channel has 7 parameter equalization
YMIC input channel has 15 parameter equalization
Main output has 5 parameter equalization
Center output, rear output and subwoofer are equipped with 3 parameters of the balance
Microphone Level 3 Feedback Suppression Can store 16 modes
Main output, the home output, subwoofer output, rear output are equipped with pressure and delay function
Internal manager mode and user mode: user mode can not be stored after adjustment parameters

Stereo Feedback Suppressor 2 x 12 Fast Tracking Notch Filter Pink noise generator
Double 28-band graphic equalizer
Auto-EQ Automatic Room Equalization Compensation
120A sub harmonic synthesizer
Set the JBL speaker and Crown amplifier Setup Wizard (set navigation elf) function
2 x 3,2 x 4, 2 x 5,2 x 6 frequency combination selection
25 factory preset / 25 user settings program memory
Stereo multi - segment parametric equalizer
2 groups of inputs, 6 groups of outputs
Stereo output limiter
RTA-M real-time spectrum analysis recommended microphone input set in the panel, with phantom power
Speakers fine-tune the delay
24 - Bit A / D converter provides dynamic range greater than 110dB

Input impedance: 50 KΩ balanced, 25 KΩ unbalanced
Input level select: +4dBu/-10dBu switchable
Output impedance: 60 KΩ balanced, 30 KΩ unbalanced
Max input level: +21dB(balanced or unbalanced)
Frequency response : 0.35Hz-200KHz +0/-3dB
Noise threshold: variable (off-10dBu)
SNR: >-95dB
Harmonic distortion: 0.04% typically @+4dBu, 2KHz, gain1
Auto start time: typ.15ms@10dB, 5ms@20dB,3ms@30dB
Compression ratio: variable (1:1-00:1)
Start time: <1ms/100dB
Release time: 100ms/100dB
Working voltage: 220V
Auto release time: program dependent, typ.125 dB/ sec
Output: variable (-20-+20 dB)

TRS or XLR difference balanced input and output
Selectable stereo or subwoofer summed by the left and right channel
Two channels have *10 elected range switch
Two channels have 40Hz high pass filter (low cut)
All outputs with phase reverse switch
Output level on all bands can be independently adjusted
Stereo/ mono status indication LED lights indicate the selected operating mode
Crossover point between the high and low frequency can be adjusted continuously
Working voltage: 220V

Input resistance : 22KΩ
Frequency response : 20Hz-20KHz +0/-12dB
Balanced gain : +12dB
Signal to noise ratio: >90 dB
Output resistance : 200Ω
Number of equalization segments : Double 15
Total harmonic distortion : 0.05% (1KHz)
Operating Voltage : 220V-50Hz-60Hz

Input impedance: balanced 40 KΩ, 20 KΩ unbalanced
Output impedance: balanced 200 KΩ, 100 KΩ unbalanced
Max input level: >+21dBu, balanced or unbalanced
Dynamic range: 109dB, 115dB
Band width: 20Hz-20KHz(+0.5dB/-1dB)
SNR: 95dB, 100dB
Power Supply: 220V 24W
Total Harmonic Distortion: <0.005%
Channel Isolation: >90dB

Q:What are our main products？

Home amplifier，public address amplifier，karaoke amplifier，professional amplifier，mixer amplifier，car amplifier，ceiling Speaker and karaoke speaker,etc.

Q:What does our product support?

Support opotional BT/FM/SD/USB/MIC/AUX/ECHO/LED DISPLAY function.

Q:What services can we provide?

We can provide online consulting service, one-year warranty service and product customization service and so on.

Q:Can I pay by Paypal, T/T,western union or Credit card?

Yes, you can! we accept the payment sent by Western Union, Paypal, credit card and T/T.It is better place the order via Trade Assurance order on Alibaba,Which your payment can be assured.
