продать 2500-7000 тонн цемента в день стоимость производства портландцемента завод для
- Категория: Cement Making Machinery >>>
- Поставщик: Henan,Turui,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.33 $* | 0.38 $* |
| Aug-19-2025 | 0.37 $* | 0.50 $* |
| Jul-19-2025 | 0.57 $* | 0.90 $* |
| Jun-19-2025 | 0.30 $* | 0.83 $* |
| May-19-2025 | 0.27 $* | 0.19 $* |
| Apr-19-2025 | 0.28 $* | 0.31 $* |
| Mar-19-2025 | 0.59 $* | 0.56 $* |
| Feb-19-2025 | 0.6 $* | 0.23 $* |
| Jan-19-2025 | 0.60 $* | 0.79 $* |
Характеристики
Products Description

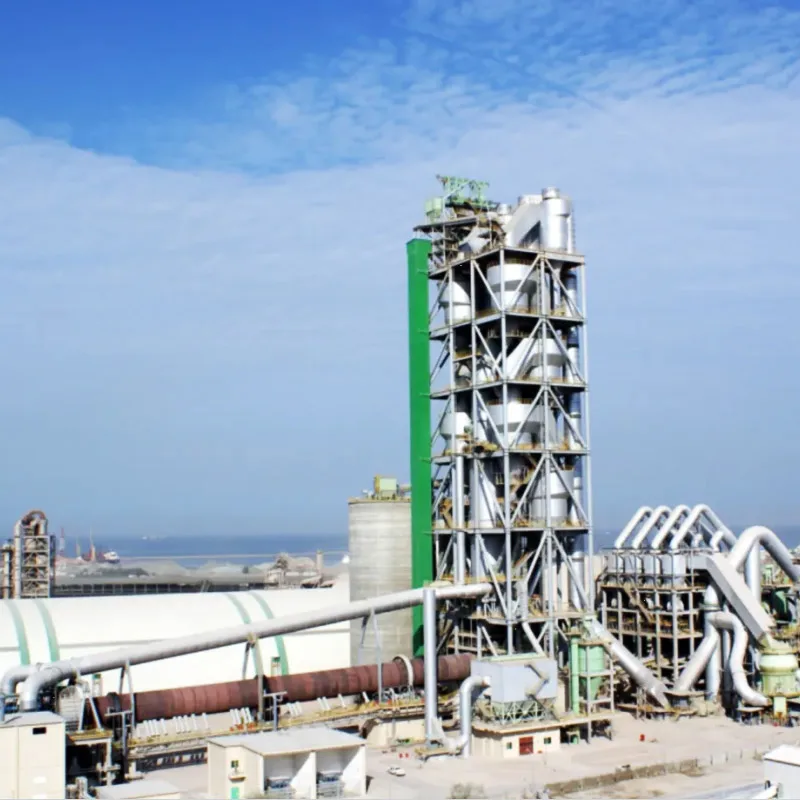

Large Cement Production Plant
In contrast to mini cement plants, we usually call the cement plant with a clinker production capacity of more than 2,500 TPD as the large cement plant.
As a manufacturer who specializes in cement technology development and equipment upgrading and has over decades of cement machinery manufacturing experience, Turui has the ability to design and build large cement plants with clinker production of up to 10,000 tons per day.
As a manufacturer who specializes in cement technology development and equipment upgrading and has over decades of cement machinery manufacturing experience, Turui has the ability to design and build large cement plants with clinker production of up to 10,000 tons per day.
Main Equipment
Turui large cement plants are best suited for manufacturing cement by dry process. The cement-making machines in our large cement plants include cement crushers, cyclone preheating systems, rotary kilns, cement mills, and other auxiliary equipment.
We could install four types of crushers in our large cement plants for the raw material preparation process: hammer crushers, jaw crushers, cone crushers, and impact crushers.
The purpose of raw material preparation in the dry process of cement manufacturing is to reduce large-sized raw materials to the proper size and mix them into homogenized raw meals. We will install the most suitable crushing machinery in the cement plant according to the raw materials and production requirements of customers, so as to achieve economic and green production as much as possible.
Jaw Crusher
Cone Crusher
Impact Crusher
Hammer Crushers
Cement Mill
Cement mills are used for raw material reduction and cement grinding in the cement manufacturing process. The cement grinding process is the final manufacturing stage at a cement plant. After this process, the clinker will become fine cement powders and ready to be packed.
The most used cement mills in our large cement plants are cement ball mills and vertical roller mills. Both of them can well undertake the task of cement grinding, we will take their production efficiencies, power consumptions, investment costs, product particle shapes and sizes, maintenance fees, and other elements into account and decide which one to use when designing a cement plant.
The most used cement mills in our large cement plants are cement ball mills and vertical roller mills. Both of them can well undertake the task of cement grinding, we will take their production efficiencies, power consumptions, investment costs, product particle shapes and sizes, maintenance fees, and other elements into account and decide which one to use when designing a cement plant.
Cement Mill
Vertical Cement Grinding Mill
Rotary Kiln
The rotary kiln is where the burning phase of the cement manufacturing process takes place; it is the core part of a cement plant. The raw meal in the rotary kiln will be heated to 1,500℃ during the burning process to form cement clinker.
The production capacity of a cement plant is directly determined by the capacity of the rotary kiln. Our large rotary kilns can fully meet the requirement of bulk cement production. Together with the advanced preheating system, our rotary kilns could achieve high rotary speed and high output per unit volume. The good sealing effect of our rotary kilns allows them to fully recycle the waste heat and produce high-quality clinker.
The production capacity of a cement plant is directly determined by the capacity of the rotary kiln. Our large rotary kilns can fully meet the requirement of bulk cement production. Together with the advanced preheating system, our rotary kilns could achieve high rotary speed and high output per unit volume. The good sealing effect of our rotary kilns allows them to fully recycle the waste heat and produce high-quality clinker.
Cyclone Preheater
The application of the cyclone preheating system in cement plants hugely reduces the heat loss and fuel consumption in the clinker burning process, and also significantly reduces the floor area and pollution emission of the whole plant.
in the preheater to preheat.
Our Advantages
Large Cement Plant Advantages
For large-scale cement companies, mini cement plants with low output are difficult to support their high sales, so they usually prefer to build large cement plants with greater production capacities.
Compared with mini cement production lines, large cement plants have higher energy consumption. But taking into account their output, they actually have a higher energy utilization rate and production efficiency, which can save production costs for cement manufacturers in the long run. Also, the operating efficiencies of large plants are high. The fuel consumption is around 650 – 700 kcal/kg clinker; power consumption is between 65-80 kWh/ton, and man-hours required per ton of cement are as low as 0.15.
With the increase of plant scale and production capacity, the size and capacity of the crushers, cement mills, rotary kilns, and other machines in the cement plant also increase correspondingly. Therefore, the increase of plant scale should be accompanied by the growth and development of cement manufacturing machinery so as to maintain or even improve the efficiency and productivity of cement plants.
Compared with mini cement production lines, large cement plants have higher energy consumption. But taking into account their output, they actually have a higher energy utilization rate and production efficiency, which can save production costs for cement manufacturers in the long run. Also, the operating efficiencies of large plants are high. The fuel consumption is around 650 – 700 kcal/kg clinker; power consumption is between 65-80 kWh/ton, and man-hours required per ton of cement are as low as 0.15.
Product Paramenters
No. | Workshop name | Main equipment | Work plan | Quantity |
1 | Limestone crushing | Single-Stage Hammer Crusher Feeding size: <600mm Capacity: 120t/h Discharging size: 90% <25mm | 6d/w×7h/d | 1 |
2 | Mixed material crushing | High-Efficiency Crusher Feeding size: <215mm Capacity: 50t/h Discharging size: 90% <20mm | 1d/w×7h/d | 2 |
3 | Raw material grinding | Ball Mill Feeding size:≤25mm Finished fineness:Feeding moisture:≤ 8% Finished moisture:<1% Capacity: 50 t/h | 7d/w×20h/d | 1 |
4 | Clinker calcination | Rotary Kiln Heat consumption: ≤950kCal/kg Capacity: 800t/d(33.3t/h) Power: 220kW Fuel: gas | 7d/w×24h/d | 1 |
5 | Cement grinding | Cement Mill Feeding size:≤20mm Finished fineness:Capacity: 45 t/h PC32.5 Power: 1600kw | 7d/w×22h/d | 1 |
6 | Cement packing | Rotary Packing Machine Capacity: 100t/h With cement bulk machine | 6d/w×12h/d | 1 |
Product delivery

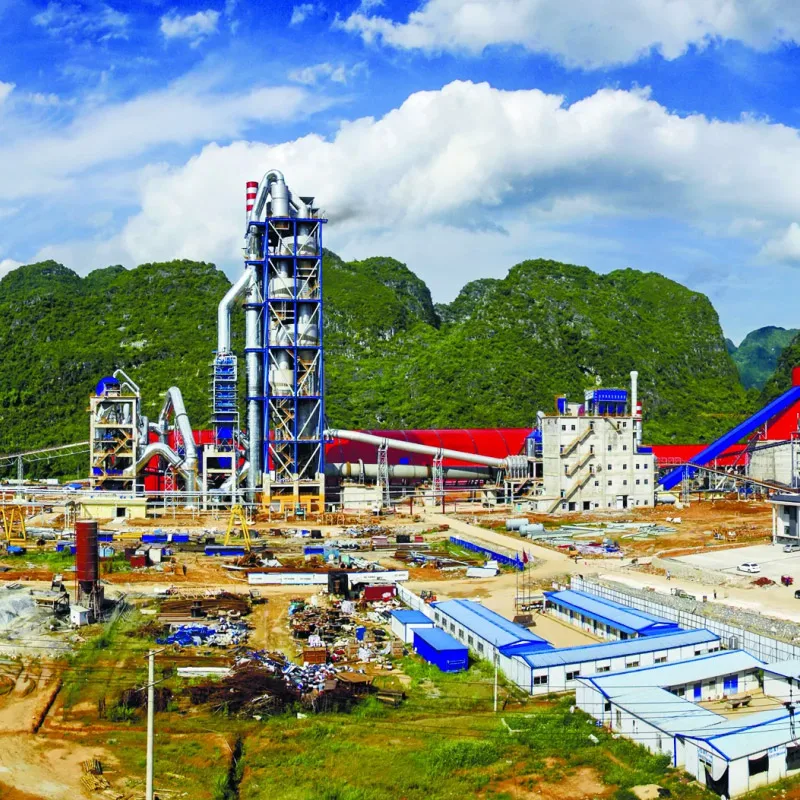

Project Cases
Turui Cement Works, Muddapur
Situated near Muddapur village of Taluka- Mudhol, district Bagalkot (Karnataka, the unit has the latest state of the art technology to manufacture 3.0 Million tonnes of cement per annum.
Turui Cement Works, Aligarh
Situated in Aligarh, UP, this greenfield split cement grinding unit was set up with a capacity of 1.5 MnTPA, With the commissioning of the unit, Turui Cement forged stronger footprints in its roadmap to success.
Company Profile
Henan Turui Machinery Co., Ltd is a professional manufacturer of different mining machinery. It integrates the design, research,production, sales and installation together, guaranteeing the reliable and stable quality.
Its main products includes calcining equipment, ore dressing equipment, crushing and screening equipment, drying and cooling equipment, and grinding equipment. There are more than hundred of customers using our products all over the world, such as in south-east Asia, south-Asia, middle Asia, middle-east area, Africa, Australia, South America. The company covers an area of 40,000 square meters, building area of 10,000 spare meters. There are more than forty sets of boring-milling machine, gear hobbling machine, vertical lathe, and travelling crane at the workshop.
Now the company has more than one hundred employees, including 8 professional engineers. Seventy-five percent of the employees have participated the professional technical training, which makes sure high-efficient pre-sales and after-sale service.
Its main products includes calcining equipment, ore dressing equipment, crushing and screening equipment, drying and cooling equipment, and grinding equipment. There are more than hundred of customers using our products all over the world, such as in south-east Asia, south-Asia, middle Asia, middle-east area, Africa, Australia, South America. The company covers an area of 40,000 square meters, building area of 10,000 spare meters. There are more than forty sets of boring-milling machine, gear hobbling machine, vertical lathe, and travelling crane at the workshop.
Now the company has more than one hundred employees, including 8 professional engineers. Seventy-five percent of the employees have participated the professional technical training, which makes sure high-efficient pre-sales and after-sale service.
Why Choose Us
Comprehensive Technical Support
We have professional maintenance services team, adequate inventory of spare parts, standardized after-sales service workflow, perfect customer return visit management mechanism, mature and comprehensive service skills to improve the training system for our customers and provide the quickest, most comprehensive service.
