Вакуумное подъемное устройство с вилочным креплением стеклянный вакуумный
- Категория: Lifting, Pulling & Positioning >>>
- Поставщик: Henan,Eternalwin,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 1190.64 $* | 1250.43 $* |
| Aug-18-2025 | 1180.8 $* | 1239.73 $* |
| Jul-18-2025 | 990.68 $* | 1040.42 $* |
| Jun-18-2025 | 1160.35 $* | 1218.66 $* |
| May-18-2025 | 1010.35 $* | 1061.60 $* |
| Apr-18-2025 | 1140.30 $* | 1197.47 $* |
| Mar-18-2025 | 1130.93 $* | 1187.92 $* |
| Feb-18-2025 | 1120.11 $* | 1176.12 $* |
| Jan-18-2025 | 1110.55 $* | 1166.87 $* |
Характеристики
Products Description ···

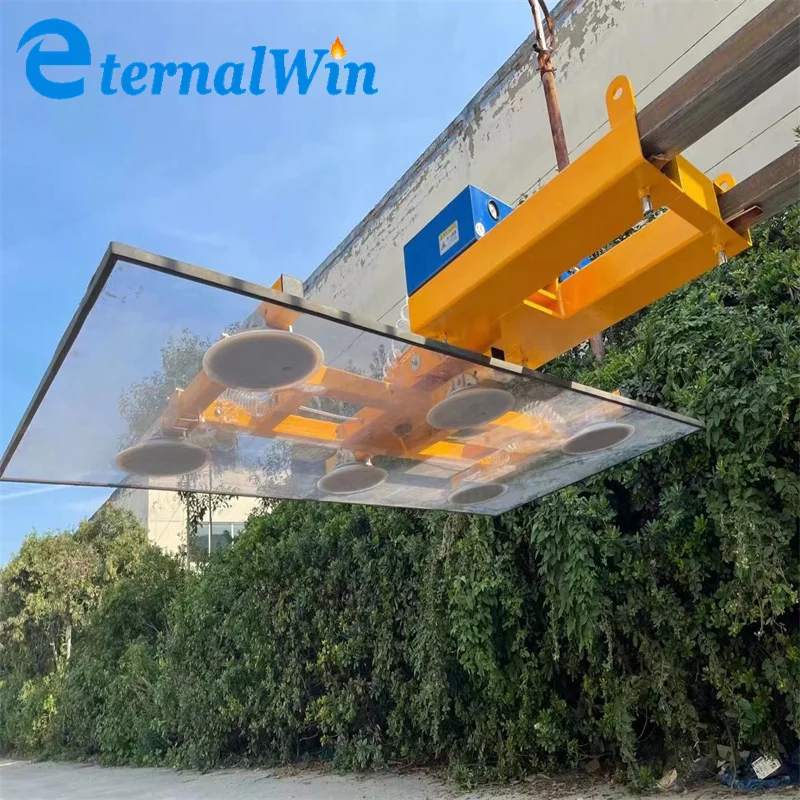

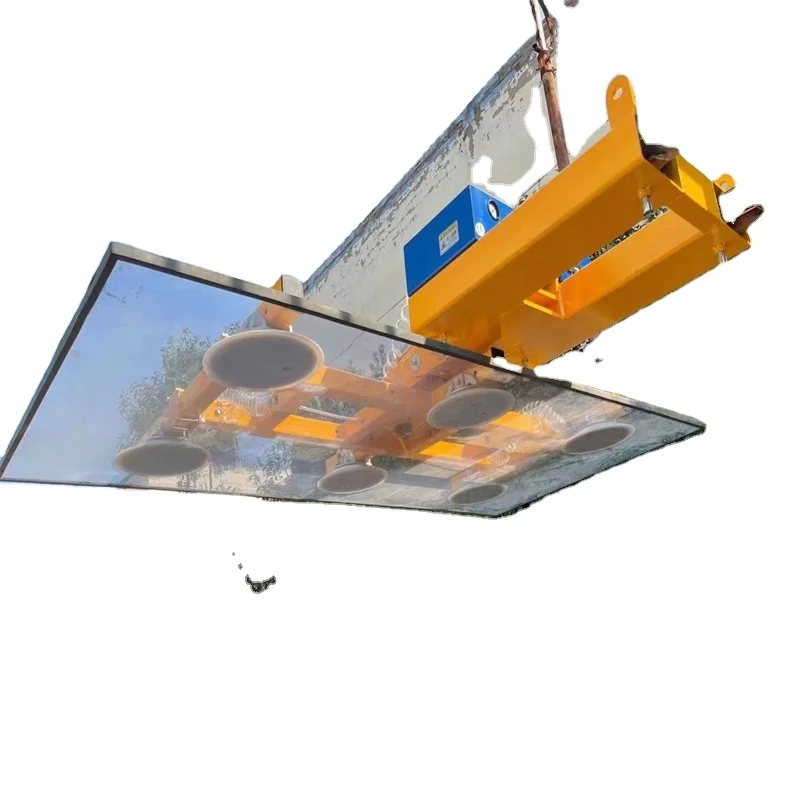

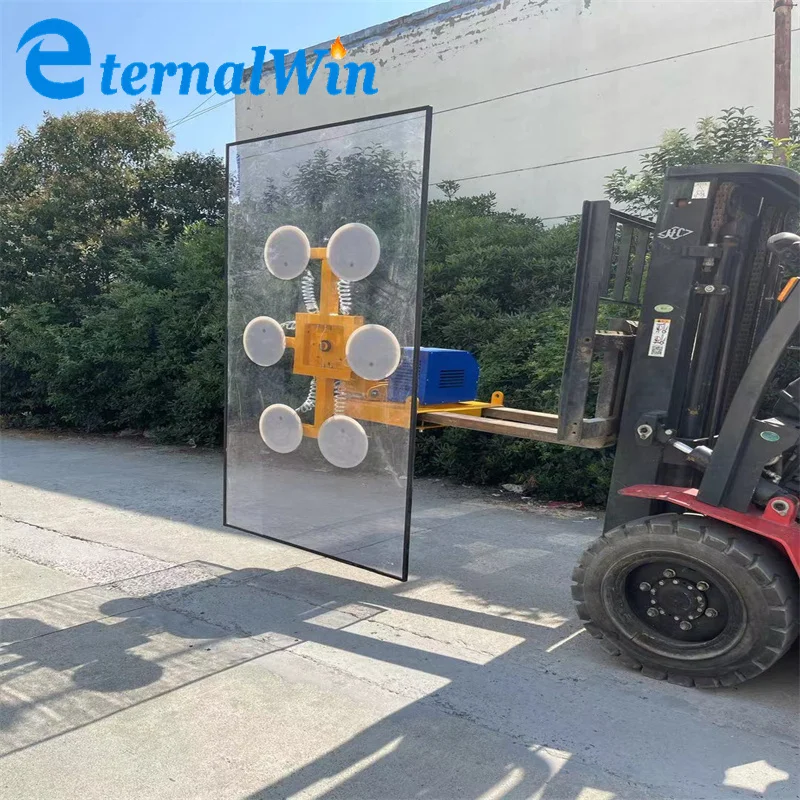

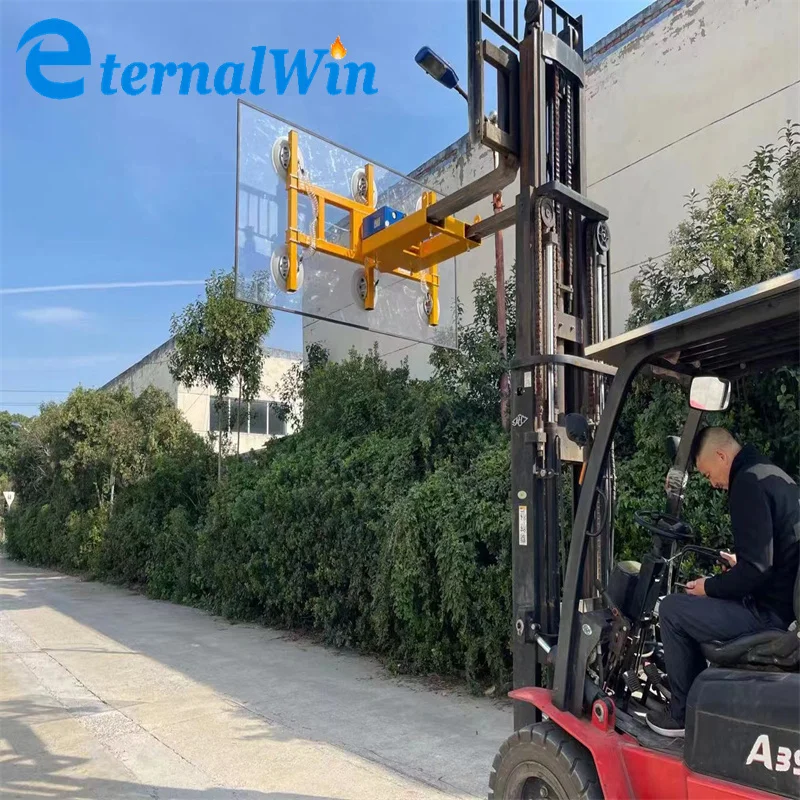

Fork Mounted Vacuum Lifter - Battery self powered Vacuum lifting attachments can safely and easily be attached directly to the end of the fork, to make a practical installation device for for glass, metal, concrete slabs, plastics and laminates etc.Widely used in the factory, warehouse or on site to allow for safe and efficient glazing of glass and windows weighing up to 800kg.
Product Features
1.Battery self powered, fully integrated and independent power supply to drive the equipment

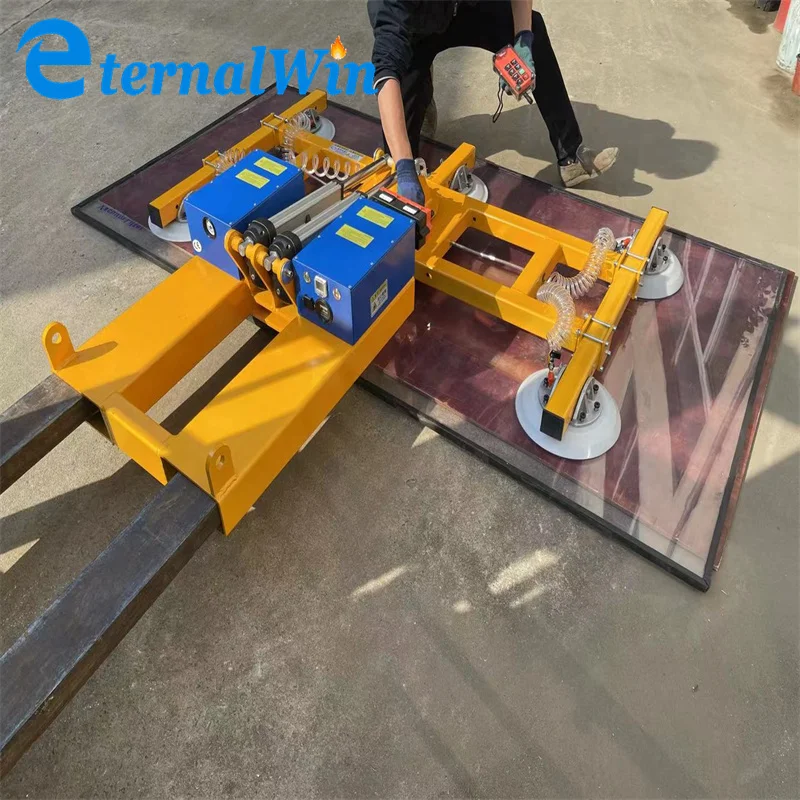

2.With 4 pcs long screw to fix the adaptor, Easily secured to forks.For added safety, securing chains supplied for optional to secure the attachment back to the forklift mast.
3.No installation required
4.Adjustable position suction pads
5.Radio control operation for 90° tilt , release and suction
6.Manual and Powered 360°rotation and Side turning for optional
7.Easy to maintain and repair on site
1.Battery self powered, fully integrated and independent power supply to drive the equipment
2.With 4 pcs long screw to fix the adaptor, Easily secured to forks.For added safety, securing chains supplied for optional to secure the attachment back to the forklift mast.
3.No installation required
4.Adjustable position suction pads
5.Radio control operation for 90° tilt , release and suction
6.Manual and Powered 360°rotation and Side turning for optional
7.Easy to maintain and repair on site
Name | / | Fork Mounted Vacuum Lifer | ||||||||
Lifting capacity | kg | 300 | 400 | 500 | 600 | 800 | ||||
Sucker size/quantity | mm/pcs | Φ250*6 | Φ300*4 | Φ300*6 | Φ300*6 | Φ300*6 | ||||
Size of sucker frame | mm | 1000*800 | 1000*800 | 1350*1000 | 1350*1000 | 1350*1000 | ||||
Suction cup holder extension size | mm | 1000*800 | 1000*800 | 2110*1000 | 2110*1000 | 2110*1000 | ||||
Battery | V/AH | 12/20 *2 | 12/20 *2 | 12/20 *2 | 12/20 *2 | 12/20 *2 | ||||
Charger | V/A | 24/6 | 24/6 | 24/6 | 24/6 | 24/6 | ||||
Flip mode | / | Electric flip 90° | ||||||||
Rotation mode | / | Manual/electric 360° | ||||||||
More Products
There are many specifications of accessories,which are shipped according to customer needs.
This model adapted electricity battery with continuous 360°rotation, suited for big size glass handling in workshop and heavy-duty installation outdoors glass and windows. It is able to turn right/left and horizontal adjusting.
Product Advantages:
1. Adopt American THOMAS DC vacuum pump and maintenance-free battery, no need to connect air source or power source, convenient and practical, and high safety.
2. It adopts rear-wheel drive and rear-wheel steering, which makes walking and direction adjustment more convenient.
3. Adjustable suction cup distance, suitable for various sizes of glass.
4. Large capacity battery, continuous working time up to 24 hours.
5. The operating parts are all hydraulic, stable and reliable, and the movement speed can be controlled according to the
operating lever.
6. The lateral movement adjustment specially designed for glass installation can realize the left and right fine adjustment of the glass.
7. Lateral twisting function, can pass through narrow aisles or porches.
8. The large-size tires ensure good passing performance and can easily cope with rugged roads.
1. Adopt American THOMAS DC vacuum pump and maintenance-free battery, no need to connect air source or power source, convenient and practical, and high safety.
2. It adopts rear-wheel drive and rear-wheel steering, which makes walking and direction adjustment more convenient.
3. Adjustable suction cup distance, suitable for various sizes of glass.
4. Large capacity battery, continuous working time up to 24 hours.
5. The operating parts are all hydraulic, stable and reliable, and the movement speed can be controlled according to the
operating lever.
6. The lateral movement adjustment specially designed for glass installation can realize the left and right fine adjustment of the glass.
7. Lateral twisting function, can pass through narrow aisles or porches.
8. The large-size tires ensure good passing performance and can easily cope with rugged roads.
Glass lifter | / | RYG | ||||||||
Maximum load | Kg | 300 | 350 | 400 | 500 | 600 | ||||
Manual rotation angle | ° | 360 | 360 | 360 | 360 | 360 | ||||
Maximum lift height | mm | 3500 | 3500 | 3500 | 3500 | 3500 | ||||
Operation method | / | Walking | ||||||||
Battery | V/A | 2x12/80 | 2x12/90 | 2x12/100 | 2x12/120 | 2x12/120 | ||||
charger | V/A | 24/12 | 24/12 | 24/15 | 24/18 | 24/18 | ||||
Walking motor | V/W | 24/1200 | 24/1200 | 24/1200 | 24/1500 | 24/1500 | ||||
Lifting motor | V/W | 24/2000 | 24/2000 | 24/2000 | 24/2200 | 24/2200 | ||||
Body width | mm | 840 | 840 | 840 | 840 | 840 | ||||
Body length | mm | 2660 | 2660 | 2660 | 2800 | 2800 | ||||
Drive wheel size | mm | 250*80 | 250*80 | 250*80 | 300*100 | 300*100 | ||||
Suction cup size | mm | 300 | 300 | 300 | 300 | 300 | ||||
The picture below shows the H-shaped glass suction cup
Load | kg | 800 | 1000 | 1200 | 1400 | |||
Number of suction cups | / | 8 | 10 | 12 | 14 | |||
Suction cup size | mm | 300 | 300 | 300 | 300 | |||
Single suction cup load | kg | 100 | 100 | 100 | 100 | |||
Spin | / | 360° Manual rotation | ||||||
Flip | / | 90° Manual flip | ||||||
Voltage | V | DC12 | ||||||
charger | V | AC220/110 | ||||||
weight | kg | 110 | 120 | 130 | 140 | |||
Package Size | mm | 2440*1050*390 | ||||||
Extension arm length | mm | 720 | ||||||
The picture below shows the X-shaped glass suction cup
Load | kg | 400 | 600 | 800 | 1000kg | 1200kg | ||||||
model | / | SSURY400 | SSURY600 | SSURY800 | SSURY1000 | SSURY1200 | ||||||
Suction cup size | mm | 300 | 300 | 300 | 300 | 300 | ||||||
Single suction cup load-bearing | kg | 100 | 100 | 100 | 100 | 100 | ||||||
Rotation function | / | 360°Manual rotation | ||||||||||
Flip function | / | 90°Manual flip | ||||||||||
Voltage | V | DC12 | ||||||||||
charger | V | AC220/110 | ||||||||||
weight | kg | 70 | 90 | 100 | 110 | 120 | ||||||
Dimensions of suction cup | mm | 850*750*300 | 1800*900*300 | 1760*1460*300 | 1900*1410*300mm | 1900*1580*300mm | ||||||
Extension rod | mm | 590 | ||||||||||
Control System | / | Integrated control cabinet design, equipped with remote control | ||||||||||
Regular glass weight calculation formula: length*width*thickness*2.5/1000000=glass weight | ||||||||||||
There are many ways of permutation and combination of suction cups, simple as follows.
