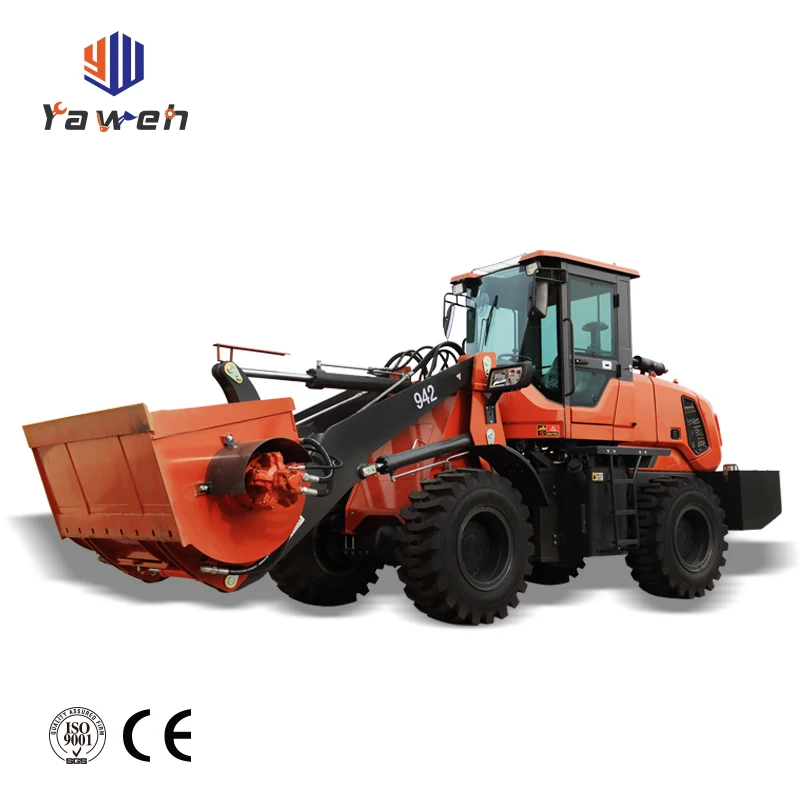

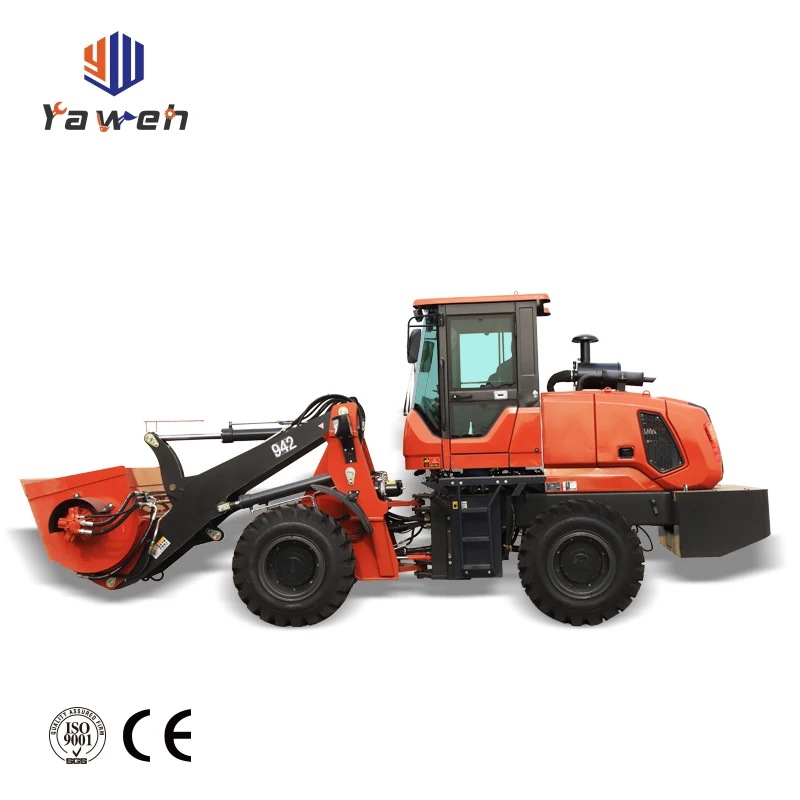

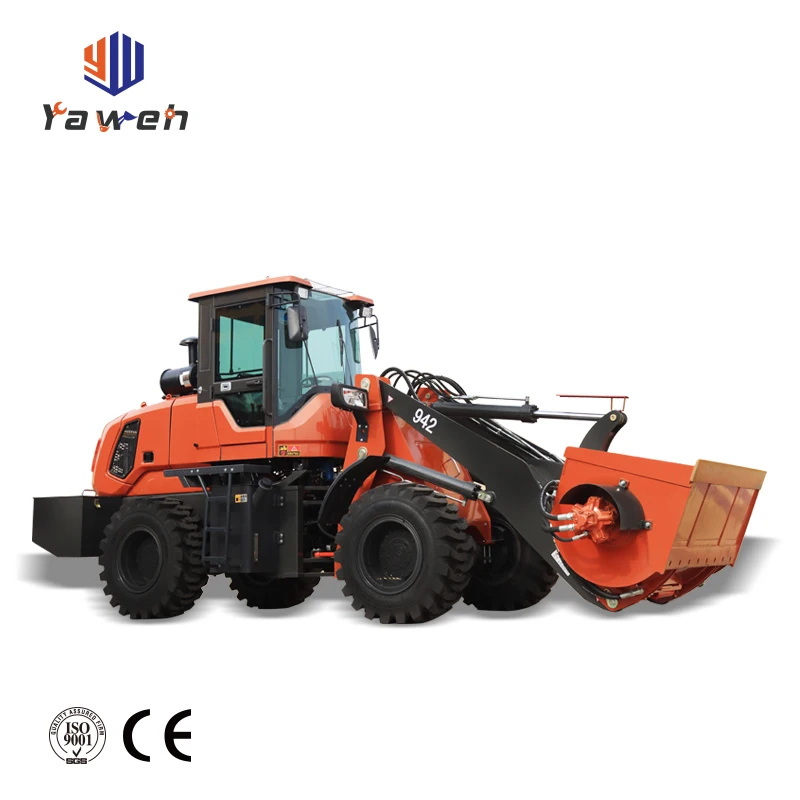

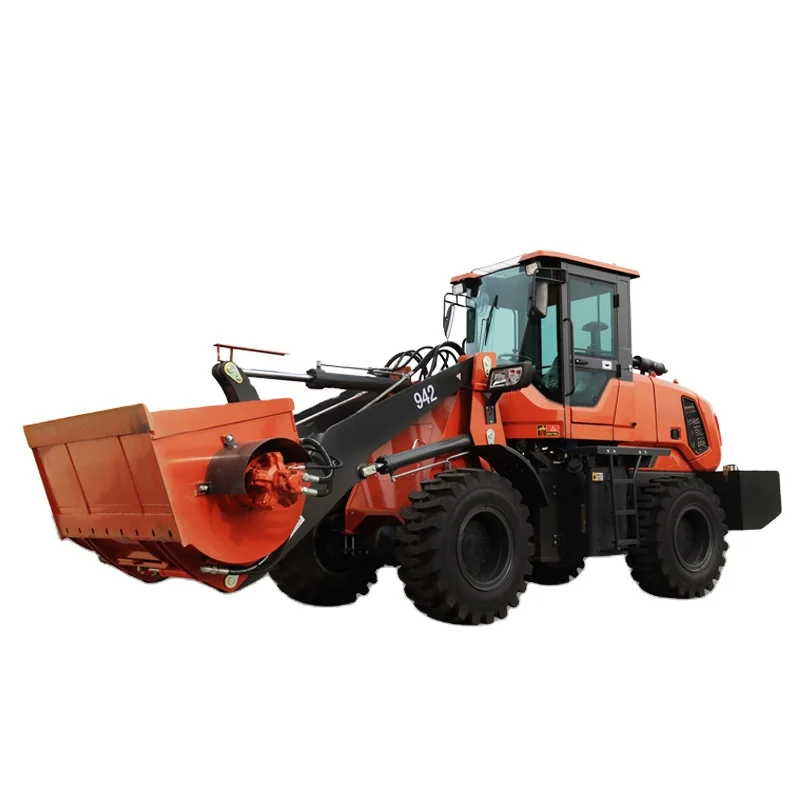

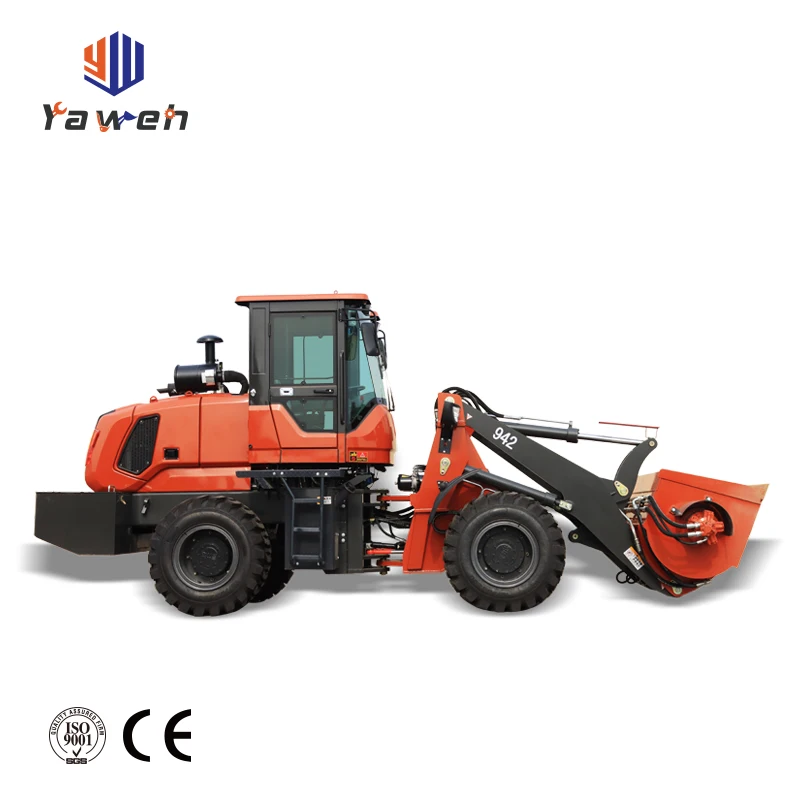

Yaweh гидравлический шарнирный мини-колесный погрузчик 942 новый маленький

Цена:10 000,00 $ - 12 000,00 $*

Количество:

About Our Company

Details Images

Yaweh Heavy Industries Telescopic boom loader parameters
Overall dimensions					Engine
1	Dimension（mm)	*630020002900*	1	Model	Yunnei 4102 supercharged
2	Wheelbase（mm）	2550	2	Form	Turbocharged
3	Wheelbase（mm)	1570	3	Power Rating（KW)	76
4	Minimum Ground Clearance（mm)	270	4	Rated speed（r/min)	2400
Performance Parameters					5	Cylinder bore	102
1	System pressure（Mpa)	18	Drivetrain
2	Weight of the whole machine（kg)	6600	1	Transmission	Powershift
3	Maximum speed（Km/h)	38	2	Number of gears	Front 2 and back 2
4	Maximum climbing capacity（°）	35	3	Torque converter model	280 split high and low speed
5	Minimum turning radius（mm)	4250	Axle
Loader parameters					1	model	Large wheel side bridge
1	Maximum lifting height（mm)	4700	Tires
2	Maximum unloading height（mm)	3500	1	Specification	16/70-20
3	Maximum unloading distance（mm)	900	2	Braking form	Brake disc brake
4	Bucket width（mm)	2000	3	Parking brake	Manual brake
5	Stirring torque	15000 N.m	Other parameters
6	Stirring speed	0-50 r/min	1	Drive form	Four-wheel drive
Steering System					2	Variable speed form	Hydraulic variable speed
1	Form	Fully hydraulic steering	3	Operating System	Electromagnetic hydraulic pilot system
2	Steering angle（°）	38
