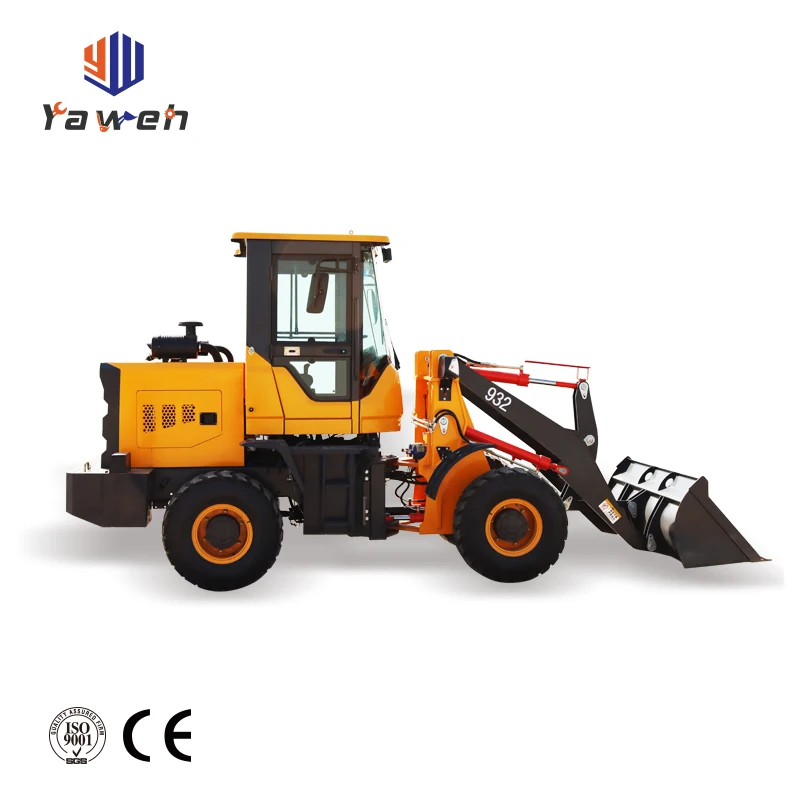

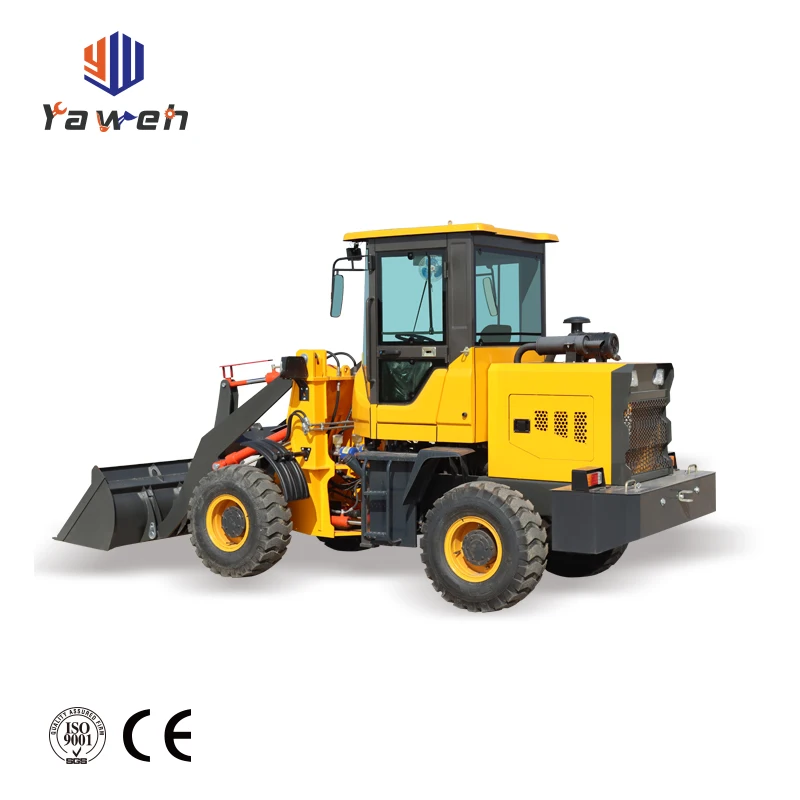

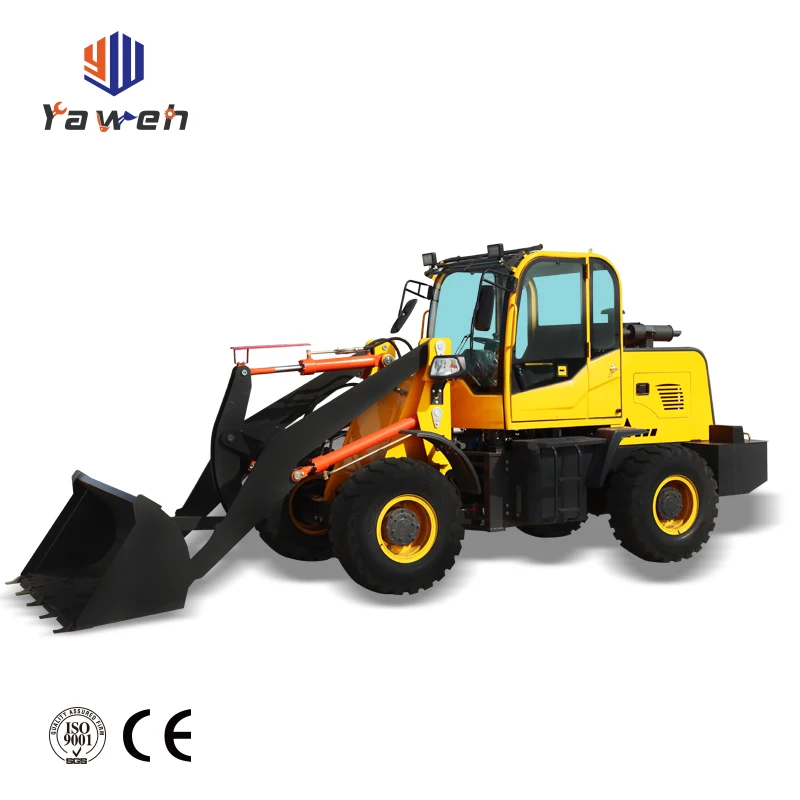

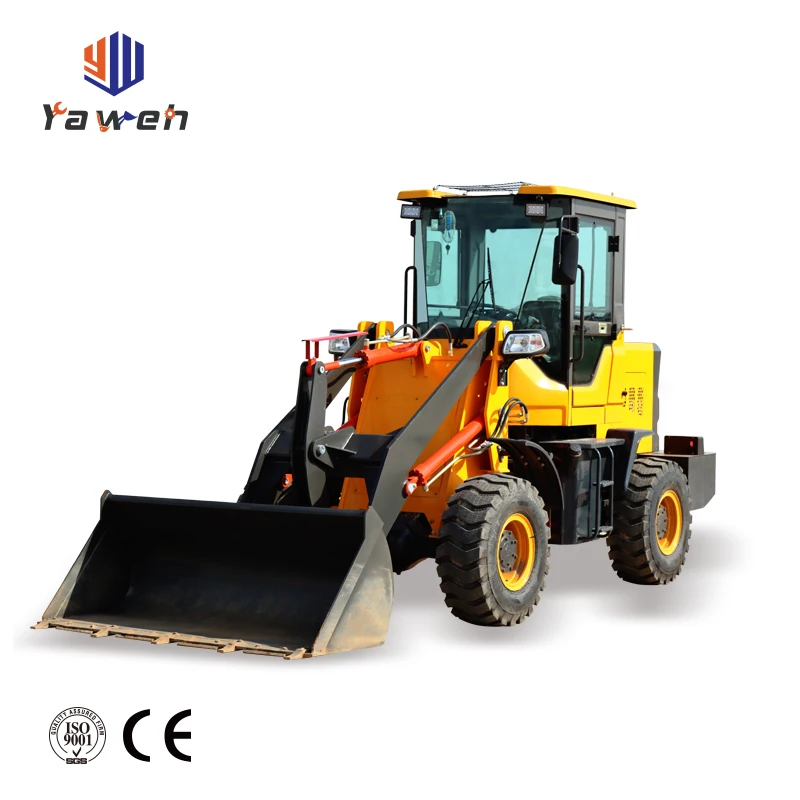

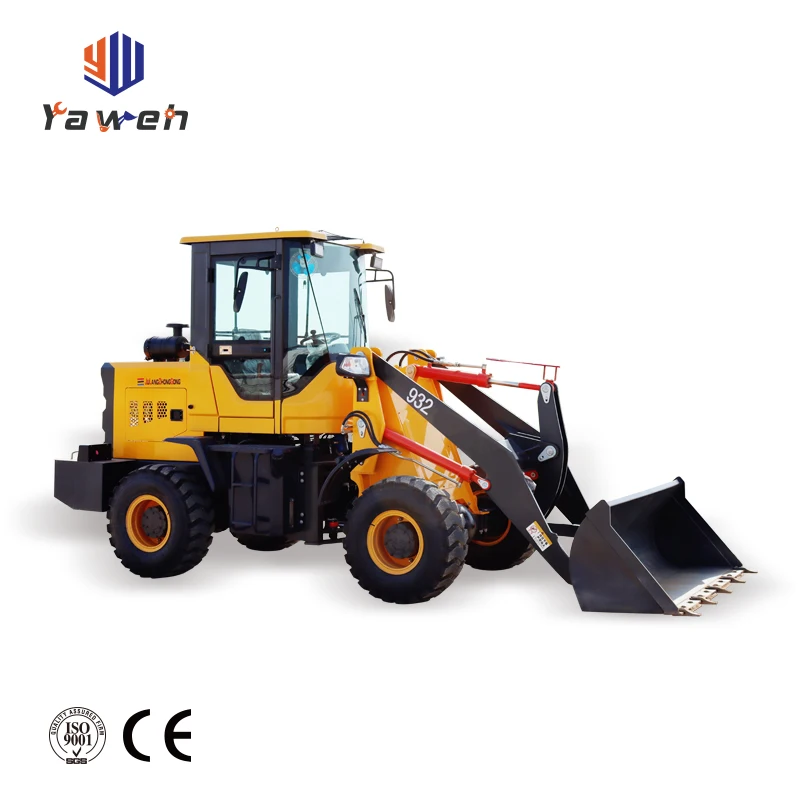

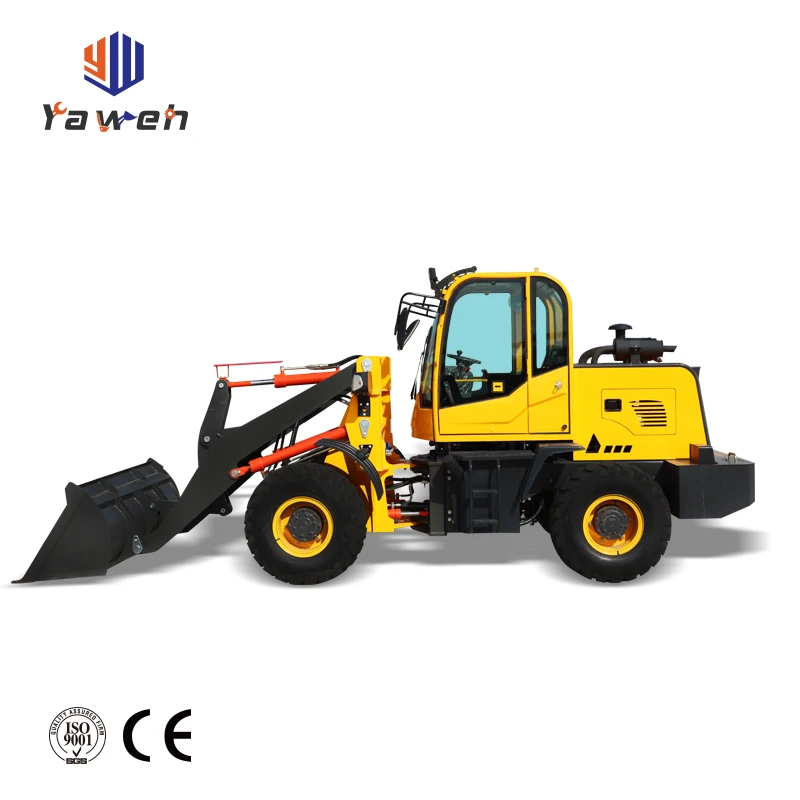

Китайский новый дизайн компактный трактор YAWEH 4x4 2500 кг экскаватор-погрузчик на 2 5 тонн
- Категория: >>>
- Поставщик: Shandong,Yaweh,Heavy,Industry,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 11900.0 $* | 12495.81 $* |
| Aug-16-2025 | 11800.6 $* | 12390.40 $* |
| Jul-16-2025 | 9900.17 $* | 10395.12 $* |
| Jun-16-2025 | 11600.89 $* | 12180.92 $* |
| May-16-2025 | 10100.23 $* | 10605.8 $* |
| Apr-16-2025 | 11400.14 $* | 11970.25 $* |
| Mar-16-2025 | 11300.23 $* | 11865.94 $* |
| Feb-16-2025 | 11200.97 $* | 11760.99 $* |
| Jan-16-2025 | 11100.76 $* | 11655.64 $* |
Характеристики
About Our Company
Details Images
Yaweh Heavy Industries Telescopic boom loader parameters | ||||||||||
Overall dimensions | Engine | |||||||||
1 | Dimension（mm) | 6300*2000*2900 | 1 | Model | Yunnei 4102 supercharged | |||||
2 | Wheelbase（mm） | 2550 | 2 | Form | Turbocharged | |||||
3 | Wheelbase（mm) | 1570 | 3 | Power Rating（KW) | 76 | |||||
4 | Minimum Ground Clearance（mm) | 270 | 4 | Rated speed（r/min) | 2400 | |||||
Performance Parameters | 5 | Cylinder bore | 102 | |||||||
1 | System pressure（Mpa) | 18 | Drivetrain | |||||||
2 | Weight of the whole machine（kg) | 6600 | 1 | Transmission | Powershift | |||||
3 | Maximum speed（Km/h) | 38 | 2 | Number of gears | Front 2 and back 2 | |||||
4 | Maximum climbing capacity（°） | 35 | 3 | Torque converter model | 280 split high and low speed | |||||
5 | Minimum turning radius（mm) | 4250 | Axle | |||||||
Loader parameters | 1 | model | Large wheel side bridge | |||||||
1 | Maximum lifting height（mm) | 4700 | Tires | |||||||
2 | Maximum unloading height（mm) | 3500 | 1 | Specification | 16/70-20 | |||||
3 | Maximum unloading distance（mm) | 900 | 2 | Braking form | Brake disc brake | |||||
4 | Bucket width（mm) | 2000 | 3 | Parking brake | Manual brake | |||||
5 | Stirring torque | 15000 N.m | Other parameters | |||||||
6 | Stirring speed | 0-50 r/min | 1 | Drive form | Four-wheel drive | |||||
Steering System | 2 | Variable speed form | Hydraulic variable speed | |||||||
1 | Form | Fully hydraulic steering | 3 | Operating System | Electromagnetic hydraulic pilot system | |||||
2 | Steering angle（°） | 38 | ||||||||
