Centermcx 3 3x4 5 мм Прямоугольный Тактильный кнопочный сенсорный
- Категория: >>>
- Поставщик: Shenzhen,Centermcx,Tech.,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.16 $* | 0.97 $* |
| Aug-19-2025 | 0.12 $* | 0.72 $* |
| Jul-19-2025 | 0.29 $* | 0.24 $* |
| Jun-19-2025 | 0.84 $* | 0.4 $* |
| May-19-2025 | 0.84 $* | 0.72 $* |
| Apr-19-2025 | 0.19 $* | 0.68 $* |
| Mar-19-2025 | 0.17 $* | 0.12 $* |
| Feb-19-2025 | 0.26 $* | 0.39 $* |
| Jan-19-2025 | 0.17 $* | 0.50 $* |
Характеристики
Products Description

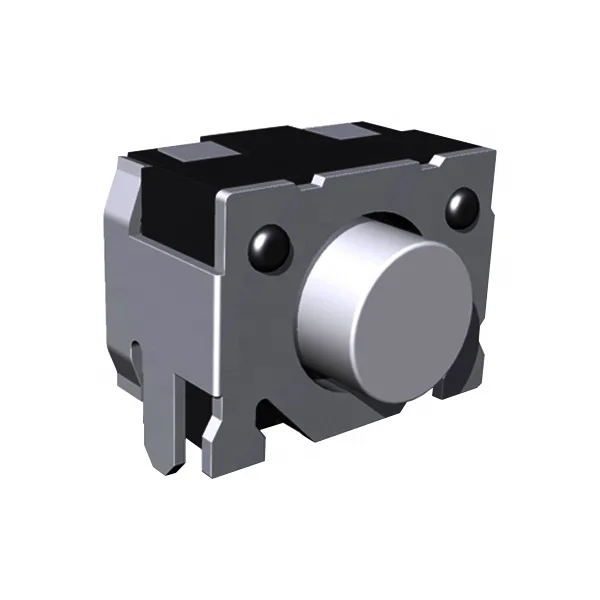

3.4x4.5mm Right Angle Tactile Switch
The push button switches is a surface mount and side push sealed right angle tactile switch with 3.4x4.5mm compact size and 4 SMD J bend terminals and multiple height option. Side push and 0.2mm stroke make it extraordinary sensitivity and stability. Smallest footprint and thickness, make it widely used in a variety of fields, including wearable Technology, medical equipment, and so on.
Right Angle Tactile SwitchThis is a PCB horizontal drive SMD tactile switch, also known as the right angle tactile switch. To ensure the stability of installation and operation, there are two positioning piles on the underside of the switch. The internal structure of this tact switch can be learned in the component diagram on the right. (1) Film for dust cover, is made of kapton; (2) Cover, is made of stainless steel; (3) Actuator stem, is made of nylo; (4) Metal Contact Dome, is made of stainless steel; (5) Mounting Bass, is made of Nylon.
Specification
Model Number: | TS-3345C |
Rating | 50mA 12V DC |
Travel | 0.50±0.1mm |
Operating Temperature | -30oC - +85oC |
Life Time | 100,000 Cycles |
Certifications | RoHs, Reach |
Initial Contact Resistance | 500 mΩ Max |
Insulation Resistance | 100MΩ min 100V DC |
Recommend Products
Company Profile
Shenzhen Centermcx Technology Co., Ltd.established in 2009, is specializing in the tactile switch, mini connector the micro coaxial cable assy, low-voltage differential signal LVDS wire harness,FPC flat flexible printed circuit cable, and so on. All products have passed the CE, CQC and REACH, and other safety certification and environmental protection materials. The company has now formed a comprehensive service system integrated by the R&D, production and domestic trade and export. We satisfy all customers with advanced products, competitive prices, and fast delivery. Welcome to inquiry.
Our Advantages
Certifications
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
