Products Description

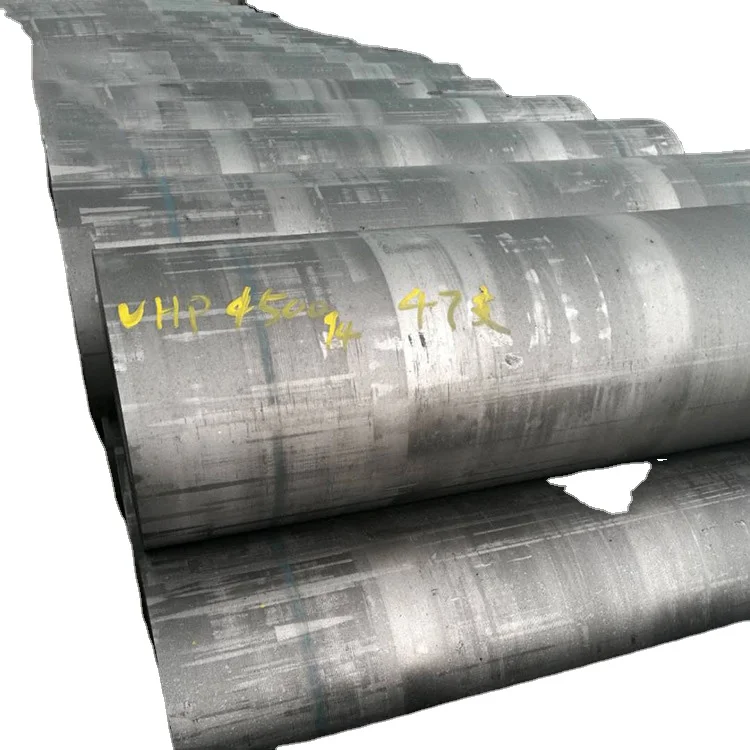

large diameter UHP graphite electrode 700mm for steel plant

Graphite electrode

Raw Material:petroleum coke, needle coke and coal pitch (as binder)
Grade:UHP,HP,RP
Diameter:100-700mm
Length:1500-2700mm

Product Advantage

* High output,guarantee delivery date

Annual output: 80,000 tons

* Low resistivity

* Good thermal conductivity and electrical conductivity

* Low ash (UHP:0.3%max; HP:0.2%max; RP:0.5%max)

* Low graphite electrode consumption.

* Good oxidation resistance

* Needle coke content accounts for 80%

Graphite electrode, mainly petroleum coke, needle coke as raw material, coal pitch as binder, calcination, ingredients, kneading,molding, baking and graphitization, machining and made, which is released in electric arc furnace in the form of arc conductor of electricity to heat melting furnace charge, with low resistivity, good conductivity, low ash, uniform and compact structure, good oxidation resistance, high mechanical strength, etc.

Application：
1. Electric arc steelmaking furnace.

For steelmaking.
2. Ore-heating furnaces.
To produce ferroalloys, pure silicon, yellow phosphorus, matte and calcium carbide, etc.
3. Resistance furnaces.

Specification

Item			Unit	RP
				φ75-φ800mm
Resistivity	Electrode	μΩm	7.0-10.0
			Nipple		4.0-4.5
Modulus of Rupture	Electrode	Mpa	8.0-10.0
			Nipple		19.0-22.0
Young's Modulus	Electrode	GPa	7.0-9.3
			Nipple		12.0-14.0
Bulk Density	Electrode	g/cm3	1.53-1.56
			Nipple		1.70-1.74
CTE (100-600℃)	Electrode	10-6/℃	2.2-2.6
			Nipple		2.0-2.5
Ash			%	0.5

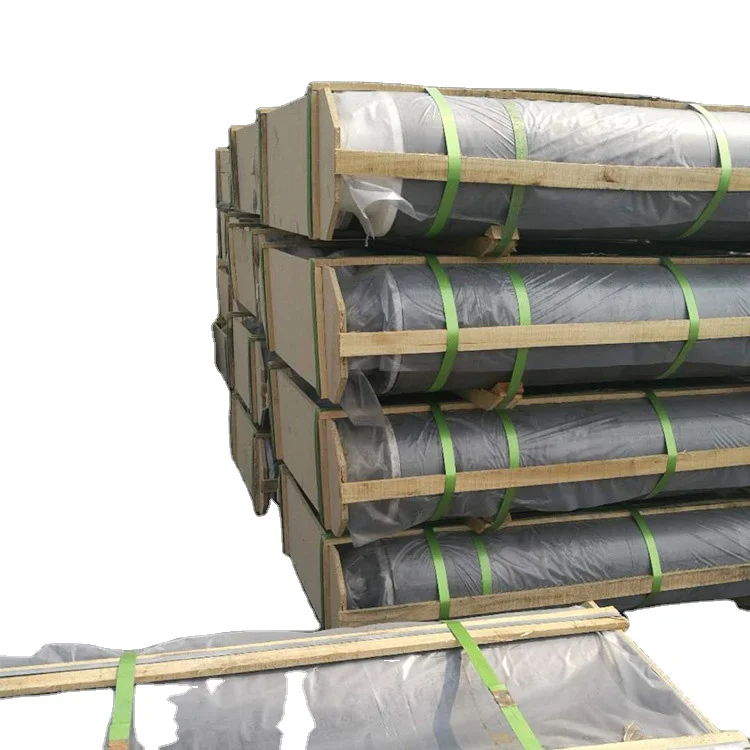

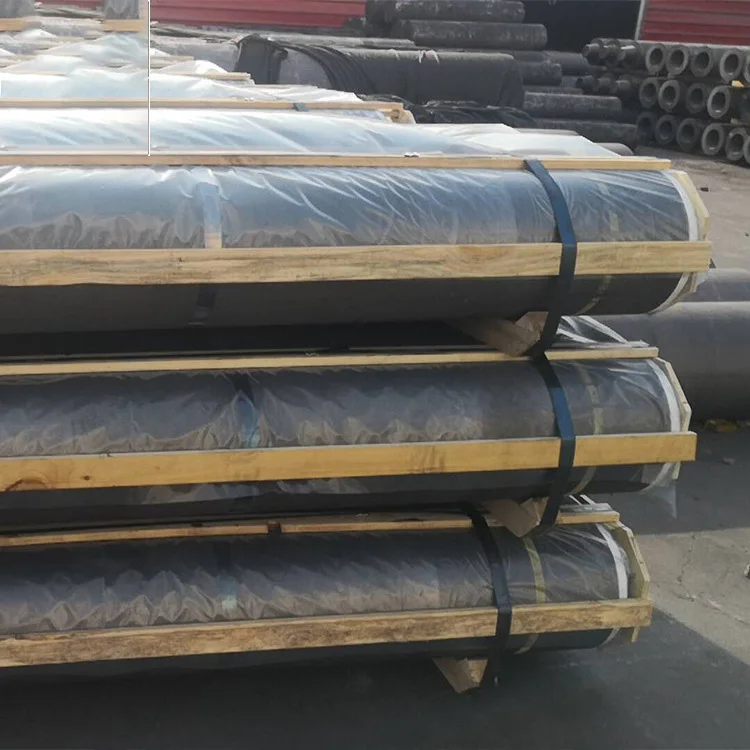

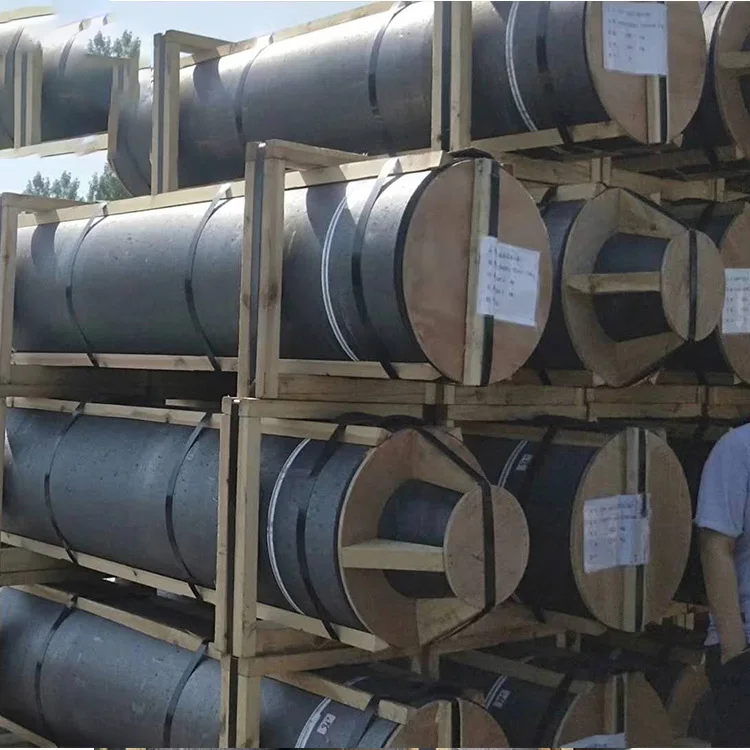

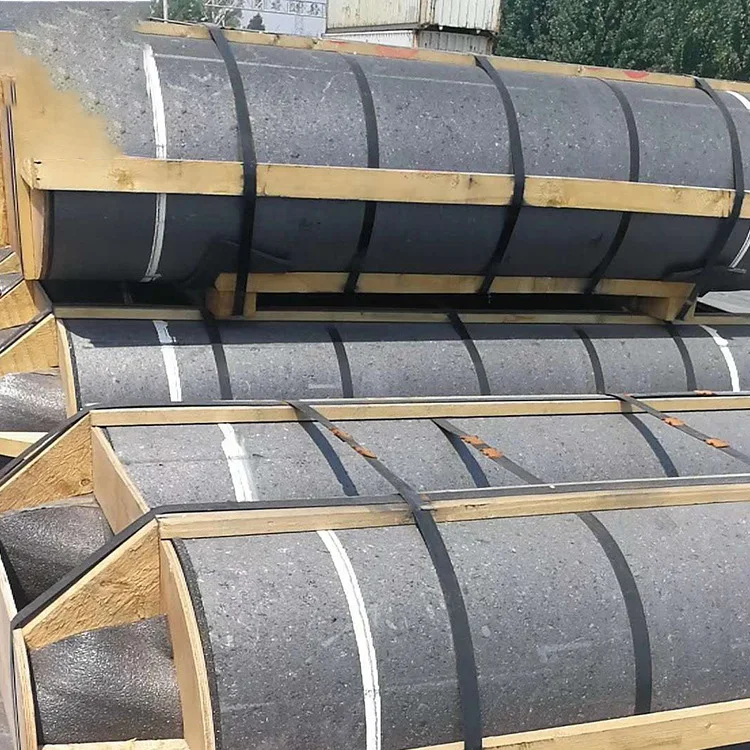

Product packaging

wooden box packing or according to customers requirements
