Внутренняя стеновая панель из сосновой древесины
US $2.71-$2.73
100 мм сборная стальная конструкция каменная вата стеновая крыша изолированные
- Категория: Building Boards >>>
- Поставщик: Shandong,Shanghe,Economic,And,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 7.17 $* | 7.91 $* |
| Aug-15-2025 | 7.95 $* | 7.25 $* |
| Jul-15-2025 | 6.62 $* | 6.20 $* |
| Jun-15-2025 | 7.32 $* | 7.76 $* |
| May-15-2025 | 6.9 $* | 6.92 $* |
| Apr-15-2025 | 7.19 $* | 7.60 $* |
| Mar-15-2025 | 7.11 $* | 7.26 $* |
| Feb-15-2025 | 7.97 $* | 7.98 $* |
| Jan-15-2025 | 7.64 $* | 7.72 $* |
Характеристики

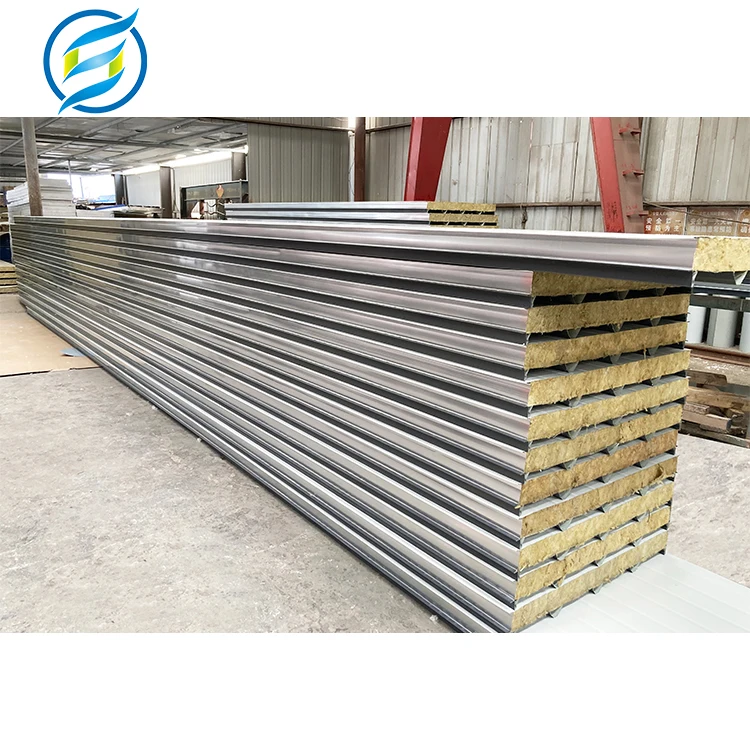

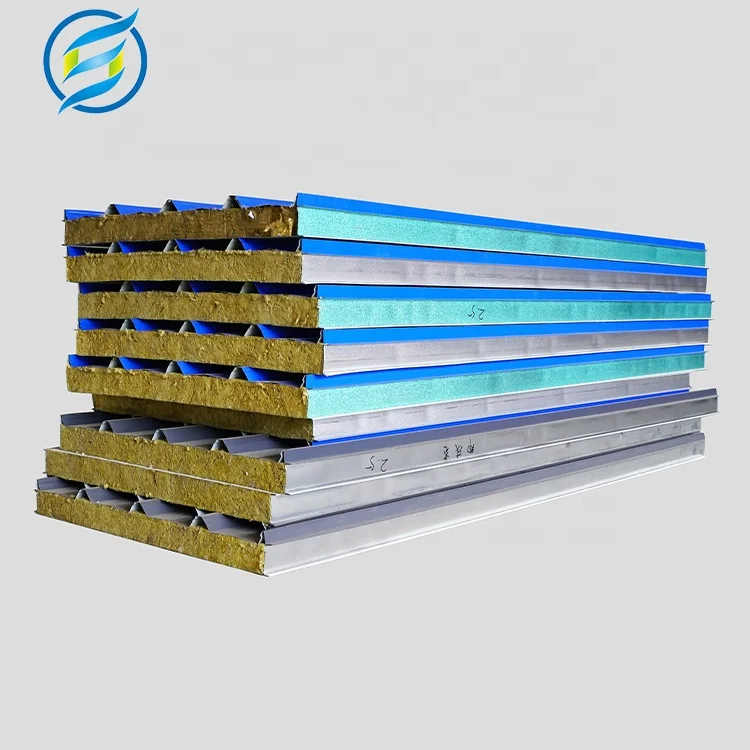

100mm Prefabricated Steel Structure Rock wool Wall Roof Insulated Sandwich Panels
Rock wool sandwich panel is a sandwich panel made of rock wool. Rock wool sandwich panels give full play to the unique properties of rock wool core materials, and have significant effects in fire prevention, thermal insulation, sound absorption and sound insulation. It is suitable for steel structure workshops, roofs and walls of simple mobile houses, ceilings and partitions of air clean rooms, etc.
Product Name | 100mm Prefabricated Steel Structure Rock wool Wall Roof Insulated Sandwich Panels | |||||
Standard width: | 1000mm | Standard thickness: | 50mm/75mm/100mm/150mm/200mm | |||
Combustion performance: | Grade A,non-ignitable | Insulation performance: | Heat transfer coefficient ≤0.04W (M.K) | |||
Core material density: | 100-140KG/m³ | noise reduction performance： | Average isolation volume ≥37dB (50mm) | |||
durability： | Unparalleled chemical stability | Operating temperature: | -268℃-700℃ | |||
*We can select the thickness of internal and external steel plate, coating and steel plate manufacturer according to customer demand. | ||||||
Product Details
Features/Advantages:
Fire resistance: The rock wool core material is a non-combustible material with a sintering temperature of over 1000C, which can effectively block the spread of the flame in a fire and minimize the fire.
Insulation and energy saving: rock wool has low thermal conductivity (λ = 0.043w/m·k), and good thermal insulation performance. Excellent node design ensures sealing performance and thermal insulation effect.
sound insulation: sound insulation ≥ 30dB, effectively reducing the interference of external noise.
Water tightness/air tightness: The unique interlocking joint between the plates prevents the intrusion of water: The end connection of the plates is sealed inside to maintain good air tightness.
Sturdy and durable: High-quality rock wool material with high water repellency, supplemented by rigid polyurethane foam filling on both sides of the tongue and groove, enhances the overall strength and makes the building more durable and stable.
Beautiful façade: screw hidden node design, high flatness of the board surface, rich color of the paint coating, long-lasting color.
Wall Panel system
What is the difference between polyurethane edge-sealed rock wool panel and ordinary rock wool panel?
Polyurethane rock wool board, also known as polyurethane material side-sealed rock wool insulation board, flexibly utilizes the thermal insulation properties of polyurethane materials and the fire safety properties of rock wool boards. It is a new sandwich panel integrating thermal insulation and fire safety.
A. Heat transfer coefficient: Polyurethane material side sealing rock wool insulation panel: ≤0.025W/m-·k—General rock wool insulation panel: ≤0.043W/m·k
B. Tensile strength: Polyurethane material side sealing rock wool insulation board: ≥150KPA—General rock wool insulation board: ≥100KPA
C. Flame retardant grade: Pu edge-sealed rock wool board: Class A non-combustible - General rock wool insulation board: Class A non-combustible
D. Relative density:PU edge-sealed rock wool insulation board: 80-120KG/m³—General rock wool insulation board: 40-60KG/m³
E.airtight moisture resistance:
PU edge-sealed rock wool thermal insulation panel:Polyurethane material double-sided sealing rock wool sandwich panel adopts the production line processing technology, and then uses the excellent moisture resistance of polyurethane products to get rid of the defect of easy moisture absorption and deliquescence of rock wool panels, and reasonably increases the service life of the product in terms of process
PU edge-sealed rock wool thermal insulation panel:Polyurethane material double-sided sealing rock wool sandwich panel adopts the production line processing technology, and then uses the excellent moisture resistance of polyurethane products to get rid of the defect of easy moisture absorption and deliquescence of rock wool panels, and reasonably increases the service life of the product in terms of process
performance.
General rock wool insulation panel: There are no edges on both sides, and water is very easy to penetrate into the panel to cause deformation of the panel.
General rock wool insulation panel: There are no edges on both sides, and water is very easy to penetrate into the panel to cause deformation of the panel.
F.plate-shaped steel bar lap:
PU edge-sealed rock wool thermal insulation panel: built-in steel bar lap joint, reasonable increase of service life - general rock wool thermal insulation panel: open nail type installation, exposed external nails are easy to corrode G, environmental protection characteristics.
PU-wrapped rock wool insulation panel: Polyurethane material edging reasonably avoids the exposure of the rock wool board—General rock wool insulation board: No urethane material edging causes the rock wool panel to be exposed.
PU edge-sealed rock wool thermal insulation panel: built-in steel bar lap joint, reasonable increase of service life - general rock wool thermal insulation panel: open nail type installation, exposed external nails are easy to corrode G, environmental protection characteristics.
PU-wrapped rock wool insulation panel: Polyurethane material edging reasonably avoids the exposure of the rock wool board—General rock wool insulation board: No urethane material edging causes the rock wool panel to be exposed.
Roof Panel System
This new rock wool sandwich panel is divided into two types: roof and panel wall. It can be widely used in flat roofs, walls and interior decoration partitions in industrial production and industrial buildings with fire safety, sound insulation, thermal insulation regulations, especially New items with high fire safety regulations.

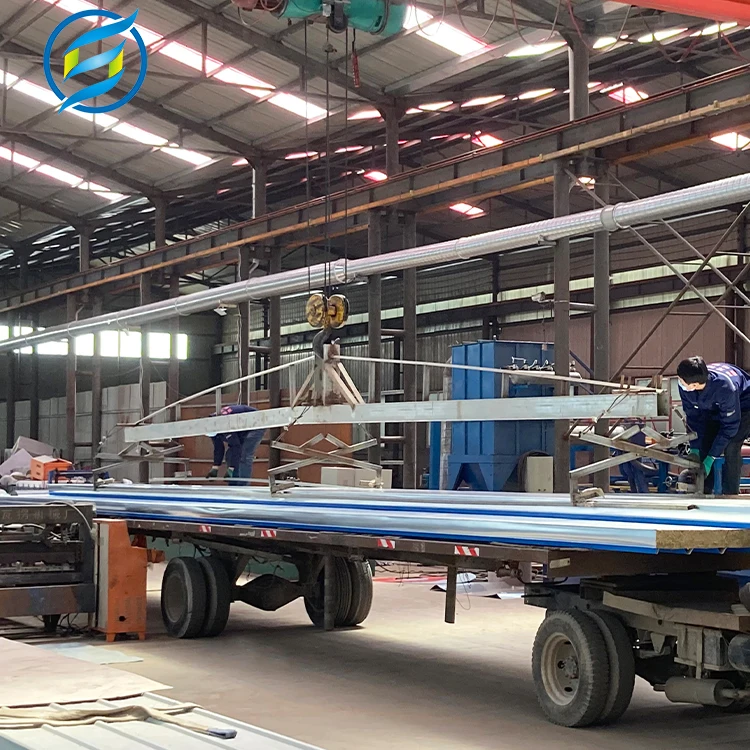

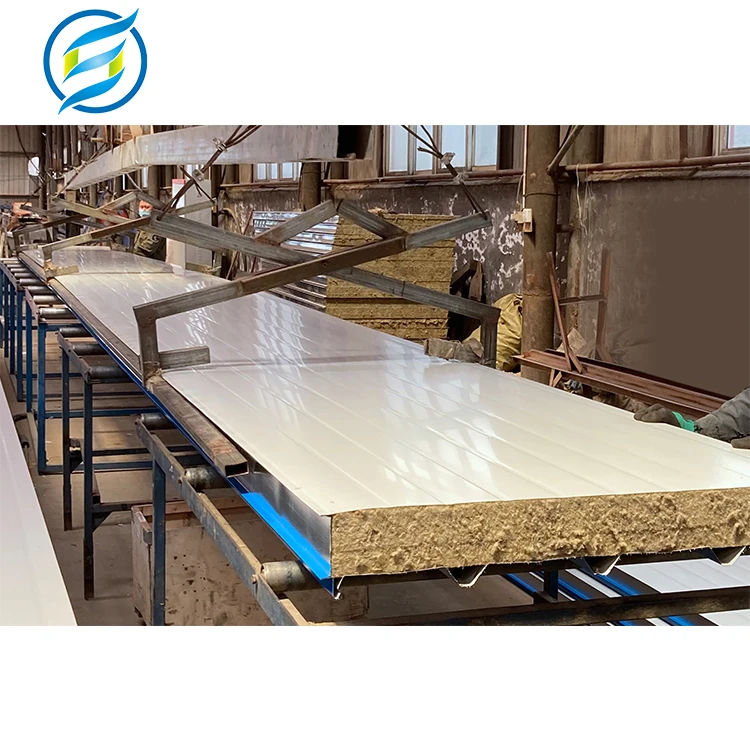

Production Workshop
The new fire safety rock wool sandwich panel is made of double-layer high-quality colorful plated thick steel plate or other high-precision profiled metal sheet material as the control panel. Rotate around 100 degrees, and use the rock wool panel of vertical flocculent chemical fiber as the core board, so that the chemical fiber vertically bisects the left and right double-layer thick steel plates. The high-quality rock wool panel and the metal material control panel are super-strongly bonded to form a beautiful, flat, rigid and tough engineering building board.

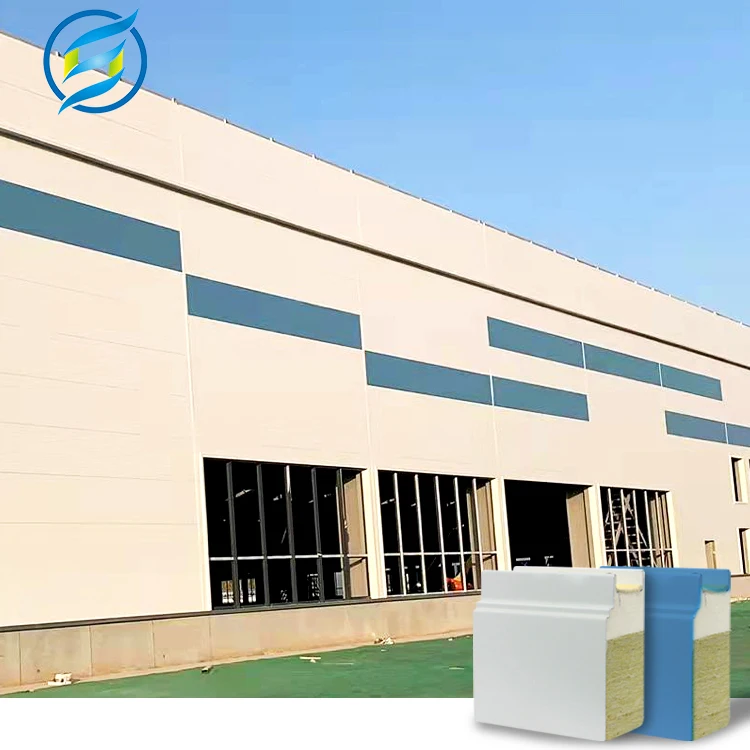

Product Application
The formed panels have high-quality fire safety, thermal insulation, environmental protection and other characteristics, providing an excellent choice for public building envelope system software.
The new fireproof and safe polyurethane edge-sealed rock wool panel and its production process are the best inventions at the present stage. , and then changed the previous method that the rock wool insulation board needs to be compounded on the spot. Under the premise of considering the requirements of building heat insulation, sound insulation, fire safety and other regulations, it has achieved high quality, high efficiency, reliability and safety. overall goal.
The new fireproof and safe polyurethane edge-sealed rock wool panel and its production process are the best inventions at the present stage. , and then changed the previous method that the rock wool insulation board needs to be compounded on the spot. Under the premise of considering the requirements of building heat insulation, sound insulation, fire safety and other regulations, it has achieved high quality, high efficiency, reliability and safety. overall goal.
Products are widely used in steel structure workshops, power plants, power equipment companies, automobile exhibition halls, cement warehouses, steel structure offices, airport terminals, railway stations, stadiums, large supermarkets, logistics centers and other steel structure buildings.
Certificates
At present, we have established good partnerships with buyers all over the world. Mainly exported to Southeast Asia, South America, North America, Europe and West Africa. We have a wide range of buyers, builders, dealers and Amazon sellers.We do our best to serve every customer and constantly open up new areas.Looking forward to cooperating with you.
FAQ
Q：How long it lasts outside without bleaching？
A：The outer metal layer can not rust for 45 years, and the paint color can not fade for 15 years.
A：The outer metal layer can not rust for 45 years, and the paint color can not fade for 15 years.
Q：Will water seep in rainy days?
A：The excellent self-structure and the compact concave-convex plug-in and buckle-groove installation method between the plates avoids the structural damage caused by the cycle of rain, snow, freezing, thawing, dry and wet, and eliminates the worry of water seepage on the wall after installation. , effectively avoid the phenomenon of mold on the indoor wall.
Q：Is there sound insulation effect?
A：The core material in the middle is a thermal insulation and sound insulation layer composed of high-density polyurethane foam, and its interior is an independent closed cell structure, which has a good sound insulation effect.
Q：Can I get samples for inspection?
A：We will provide free samples to you before order confirmation.
Q：How long can it be stored?
A：As long as it is placed in a flat, dry and ventilated place, it can be stored for at least 50 years.
A：The excellent self-structure and the compact concave-convex plug-in and buckle-groove installation method between the plates avoids the structural damage caused by the cycle of rain, snow, freezing, thawing, dry and wet, and eliminates the worry of water seepage on the wall after installation. , effectively avoid the phenomenon of mold on the indoor wall.
Q：Is there sound insulation effect?
A：The core material in the middle is a thermal insulation and sound insulation layer composed of high-density polyurethane foam, and its interior is an independent closed cell structure, which has a good sound insulation effect.
Q：Can I get samples for inspection?
A：We will provide free samples to you before order confirmation.
Q：How long can it be stored?
A：As long as it is placed in a flat, dry and ventilated place, it can be stored for at least 50 years.
Q: Compared with other wall panels, what advantages does it have?
1. Thermal insulation and energy saving 2. Easy installation and cost saving 3. Lightweight, earth-saving, shock-resistant and crack-resistant Strong more options.4. The sheet is flame-retardant, waterproof and moisture-proof 5. Sound and nois reduction Quiet and comfortable 6. Green environmental protection Durable 7. Strong decoration More options 8. Wide range of applications.
1. Thermal insulation and energy saving 2. Easy installation and cost saving 3. Lightweight, earth-saving, shock-resistant and crack-resistant Strong more options.4. The sheet is flame-retardant, waterproof and moisture-proof 5. Sound and nois reduction Quiet and comfortable 6. Green environmental protection Durable 7. Strong decoration More options 8. Wide range of applications.
