QSMOTOR 12inch 3000W 72V 70kph Hub Motor with EM72100SP controller and kits for electric Scooter

For 12inch 3000W motor kits, it could be used for electric motorcycle, which could be 72V 70KPH.

e.g. Electric motorcycle

E-motorcycle weight, approx 100kg+2*80kg

Speed: peak 70km/h

Climbing slope: 15 degree@260kg

Battery: 72V30Ah

Tire: 120/70-12



One set including below kits

1. 1pcs X QSMOTOR 12x3.5inch 3000W electric wheel hub motor

2. 1pcs X Votol EM72100SP sine wave motor controller with standard CAN-BUS

3. 1pcs X DKD LCD speedometer

4. 1pcs X Z6 throttle with combination switch



Key Features

1). Simplify to make a electric-bicycle. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%





Product Description

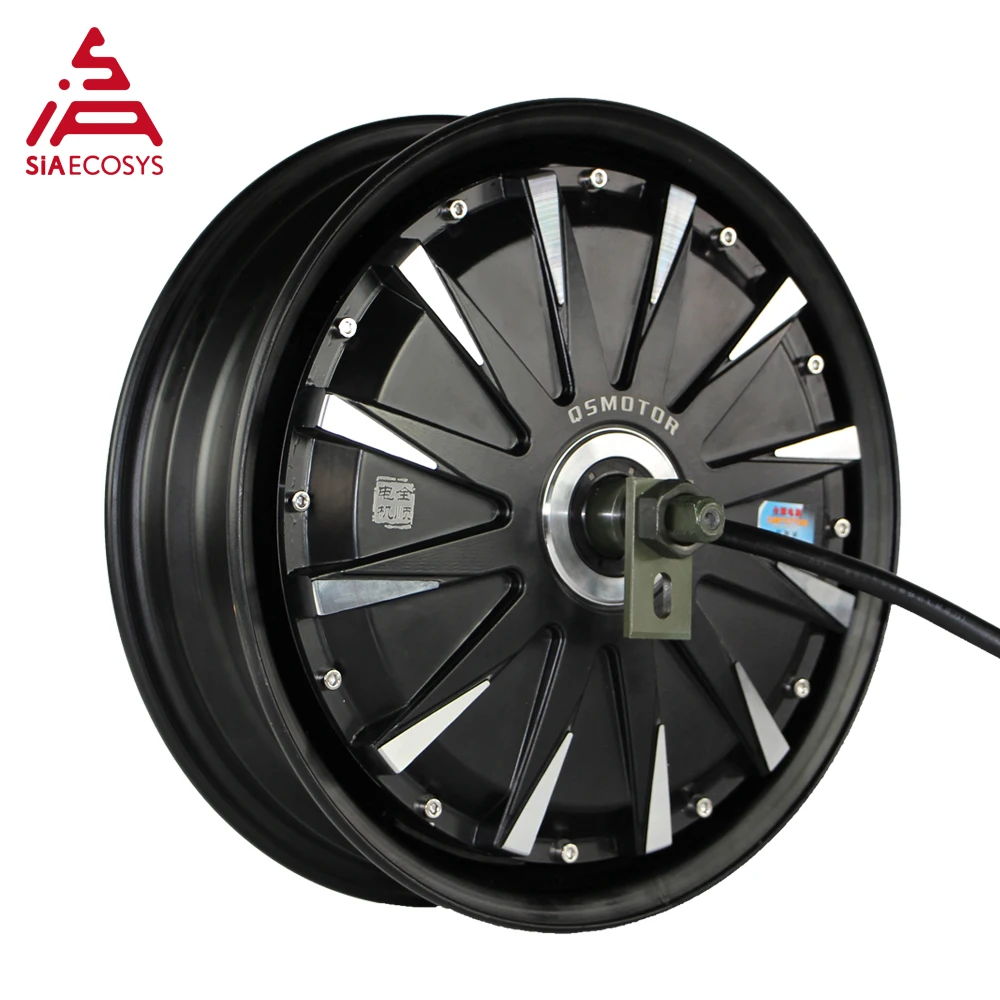

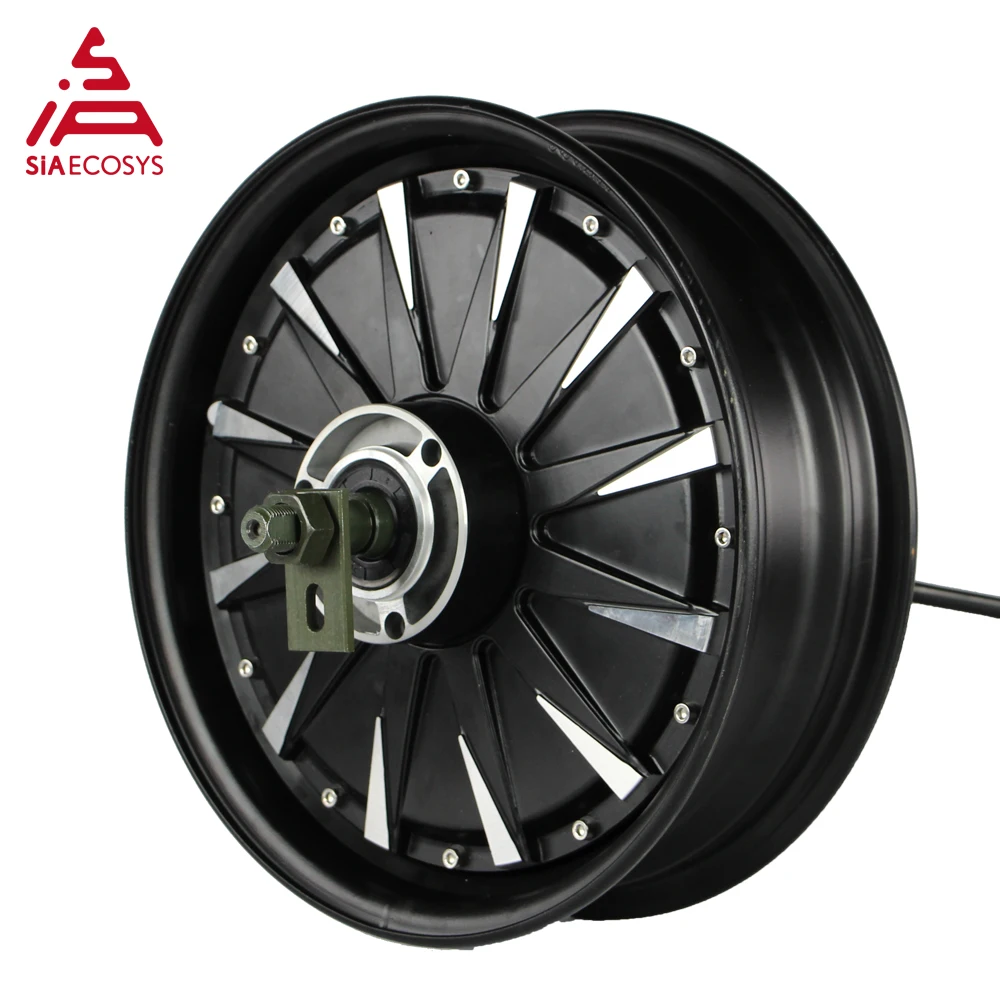

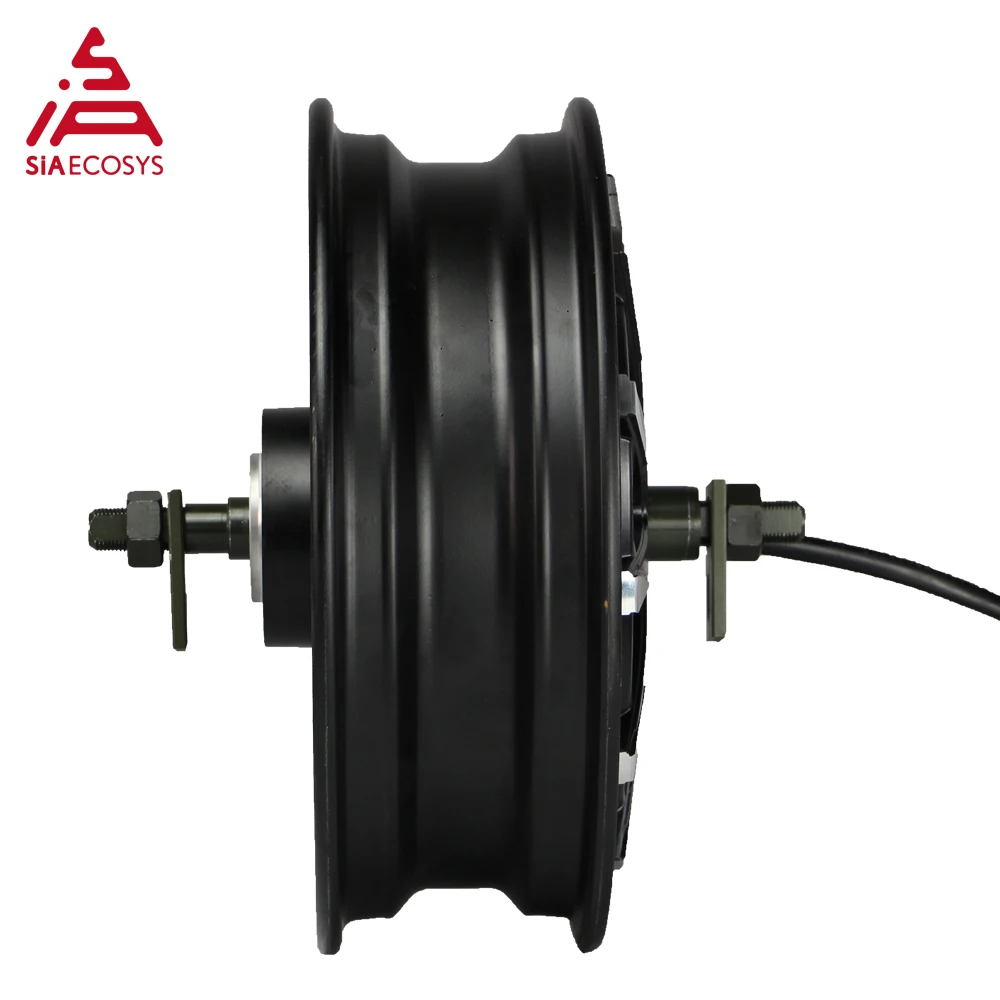

1. QSMOTOR 12X3.5inch 3000W V1.12 Electric Scooter Hub Motors

Specification

·Motor Type: BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor

·Brand: QS Motor,QSMOTOR

·Motor Design: double axle without rim

·Matched Tire/wheel: 120/70-12

·Stator: Steel Core

·Rated Power: 3000W (6000kW peak in few seconds)

·Rated Voltage: 72V

·Speed: 740RPM

·Max Torque: approx 190N.m

·Max Efficiency: above 84%

·Continuous Battery Current: 43A (72V)

·Peak Battery Current: 85A (72V)

·Suggest Peak Phase Current: /A

·Thermal Probe: KTY83/122 (as default, optional)

·Working Temperature: 70-110℃ , peak 120 ℃

·Brake type: Disc brake, PCD3*80mm

·Drop-outs/Rear Fork Width for installation: 200 mm

·Single Hall Set with waterproof connectors

·8mm² Cross Section of Phase Wire (not include insulation layer)

·Hall Sensor Phasing angle: 120 degree

·Waterproof Grade: IP65

·Color: Black

·N.W./G.W.: 14.5kg/16g

·Package Dimension: 43cm*43cm*34cm/piece



Drawing

Test Report



2. EM72100SP 72V sinusoidal wave BLDC motor controller, with CAN BUS

Specification

·Sine wave controller, programmable, with regen function

·Rated Current:100A

·BOOST Current:130A

·Peak Current:330A

·Max.Power:7200W

·Flux Weakening Ratio:100~250%

·Max.Efficiency:88~93%

·Net weight: 1650g

·Waterproof IP67



Drawing

3. DKD LCD speedometer, can-bus(optional, LIN as default)

It display D N R, P, S gear, and battery current X5/10.

P.s.: If the working battery doesn't have can-bus communication, then the can-bus speedometer will shows lack of electricity always.

So, we suggest to do the speedometer as Line communication version if client can't get can-bus battery.

4. Z6 throttle with combination switch

With Reverse, Parking button( throttle on/off), 3 slide switch gear, s/boost button, Light and Horn.

It match with VOTOL controller well.

Please noted:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.
