VIPPAI 2023 упаковочная машина для изготовления четырехсторонних детских

VIPPAI 2023 упаковочная машина для изготовления четырехсторонних детских

Категория: Wet Wipe Making Machines >>>
Поставщик: Wenzhou,Weipai,Machinery,Co.,Ltd.

Цена:13 200,00 $ - 15 400,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	15708.13 $*	16493.41 $*
Aug-15-2025	15576.15 $*	16355.66 $*
Jul-15-2025	13068.93 $*	13721.52 $*
Jun-15-2025	15312.59 $*	16078.42 $*
May-15-2025	13332.50 $*	13999.7 $*
Apr-15-2025	15048.50 $*	15800.38 $*
Mar-15-2025	14916.1 $*	15662.35 $*
Feb-15-2025	14784.67 $*	15523.60 $*
Jan-15-2025	14652.3 $*	15385.38 $*

Характеристики

Machine Feature

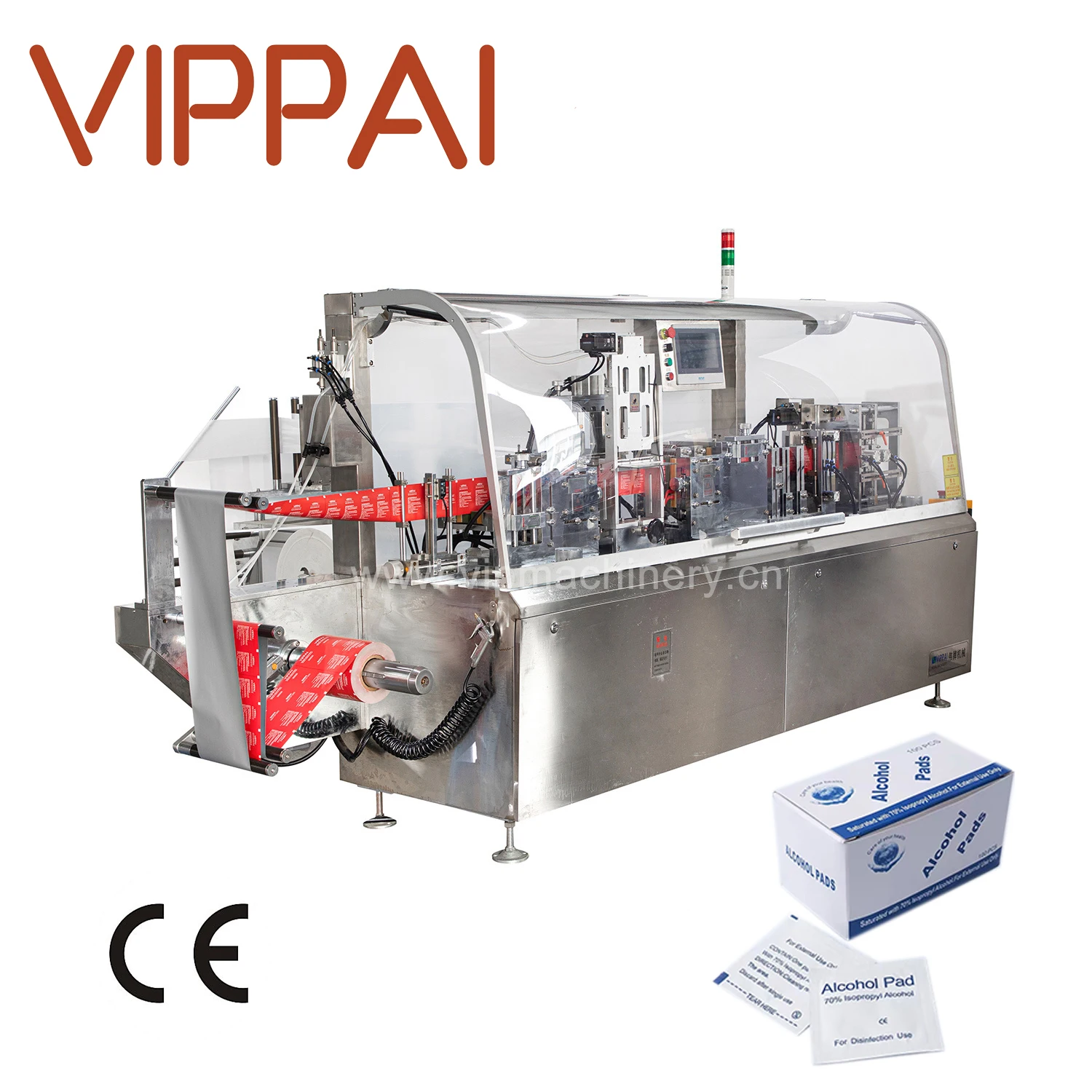

VPD-250 General Speed Right Angle Single Wet Wipe Machine

1. VPD-250 uses Taiwan Delta servo motor and Siemens PLC, Intelligent touch screen, servo motor control system, full automatic machine make stable run and convenient operation.
2. This machine adopts adjustable mould, it can produce (40-140) *(40-110) mm(L*W) wet tissue without changing mould.
3. Manufacturers can choose single pack or double pack at will when outputting.（only need to replace the dotted line knife part）
4. Non-woven fabrics can be folded according to different types. Up to 10 vertical folds and 4 horizontal folds, which can be freely folded by unfolding the width and length of the non-woven fabric.
5. Two heat seals is to avoid liquid leakage.
6. The speed is 80-110 bags/min.
7. The edging form of package bag can be “-”or “v”.

8. Machine and all main electrical parts strictly passes CE standard.

9. Glass cover to ensure safe and clean operation.

Successful Case

Product Application

Bag Type: 4 Side Seal Right Angle

Speed: 80-110 bags/min
Power: 8.8KW
Product Size: (40-140) *(40-110) mm(L*W)

VPD-250 is the general speed right angle wet wipes/tissue machine. Our single wet wipes machine is widely used in cosmetics, healthcare and pharmaceutical industry. It can produce makeup remover wipes, skin cleaning wipes, men’s maintenance wipes, women care wipes, alcohol pad/swabs and so on. Single sachet wet wipes making machine makes one piece wet wipes that is easy to carry out and hygienic.

Products Description

Model	VPD 250
Packing Form	horizontal four side sealing with right angle device
Packing Material	PET/AL/PE, PET/AL/PE, Paper/ PE/AL/PE, PET/PE, BOPP/PE/AL/PE, PET/AL/NY/PE
Inner Material	30-80g/m2 air laid paper, nonwoven, spun lace nonwoven fabric etc
Packing Size	L: 40-140 MM, W: 40-110 MM
Packing Speed	80-110 BAGS/MIN
Folding Way	max 10 folding vertical and 4 folding horizontal
Liquid Adding Range	0-5 ML(according to product)
Power Supply	single phase-two wire 220 V 50/60 HZ / three phase four wires 380V 50/60Hz
Total Power	8.8 KW
Air Supply	air pressure 0.6-1.0 MPA, air consumption 300-500 L/MIN
Machine Noise	≤80 db(a)
Overall Dimension	330022001600 MM
Weight	1100 KG

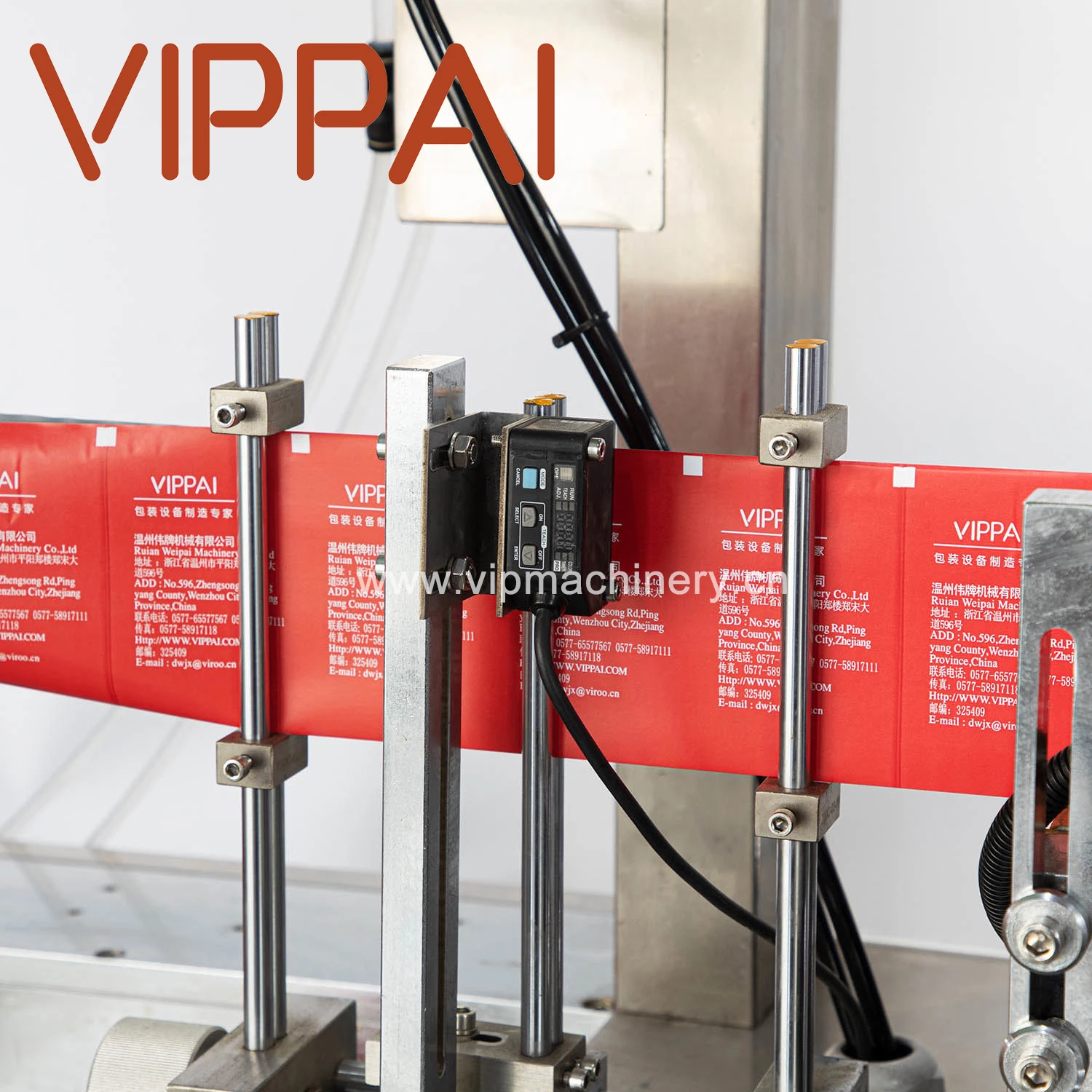

Part Name: Color Code Tracking System
Brand: Japan Panasonic
Fold the packing film in half and use the photo eyes to detect the color mark to ensure the precise packing.

Part Name: Non-woven Folding Shelf
Place the non-woven fabric, the maximum is 10-fold vertical and 4-fold
horizontal folding.It can be folded according to customers requirement.

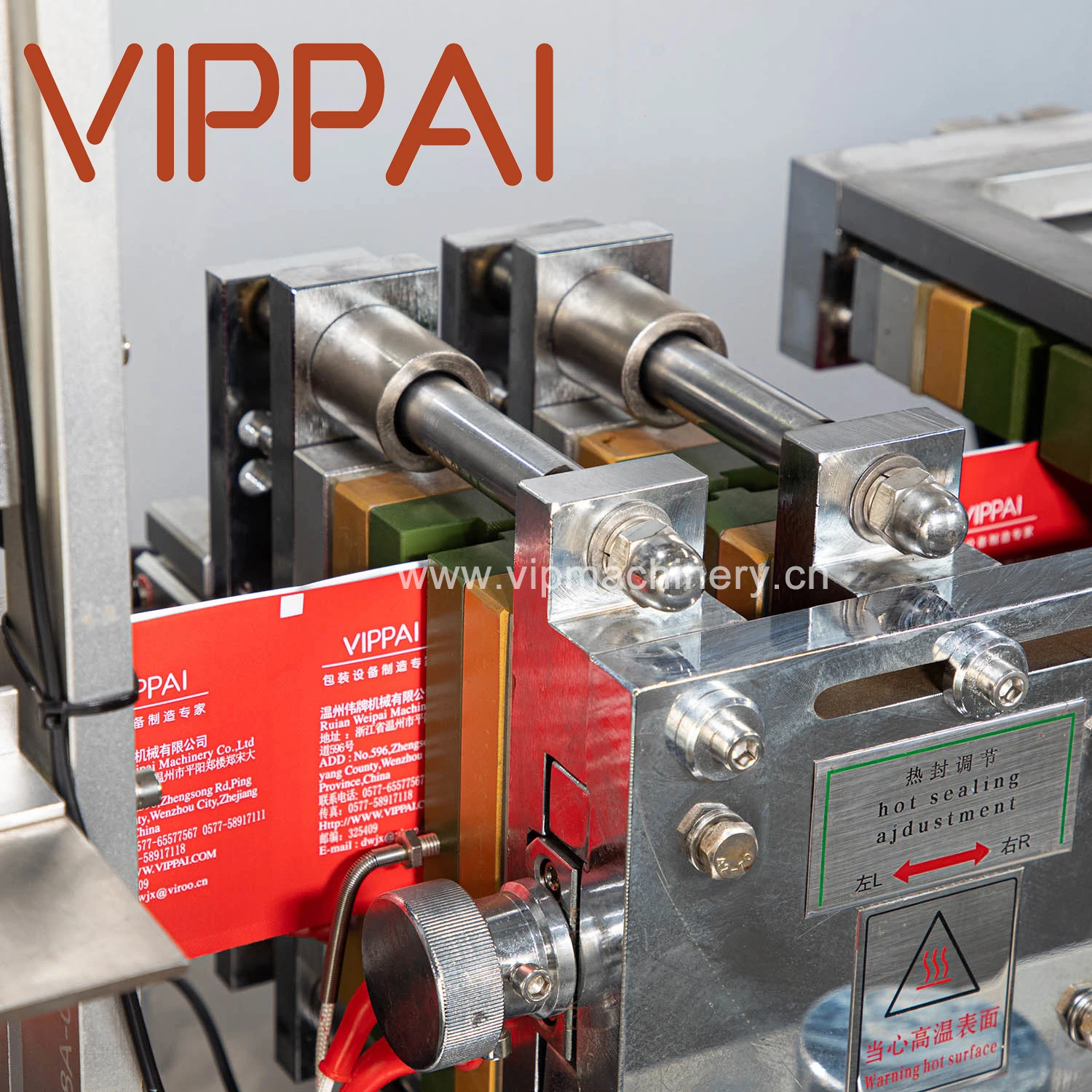

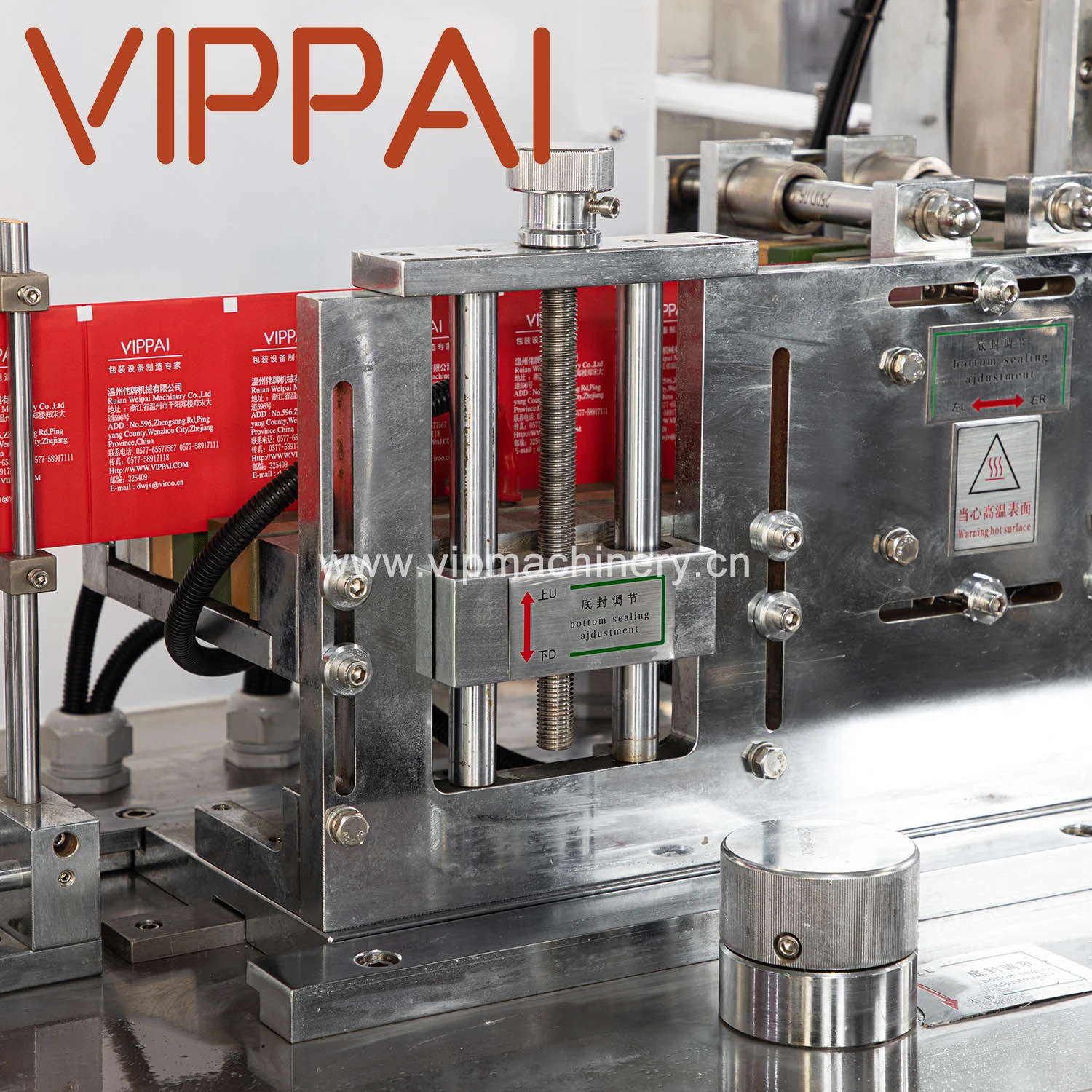

Part Name: Heat Sealing

Adopt four-side sealing design, adjustable mold.
The mold coated with Teflon, it is anti-stick also protects the mold mesh and prolongs the service life.

Part Name: Printing Date Numbers and Easy Tear System
The users can change the steel letters to control the date and codes print on the products the tear mouth have two types
for select 'V' or ''-“.

Part Name: Right Angle Device
It cuts the right angle package bag and intelligent mechanical manipulator for wet wipe output control.

Part Name: Metering Pumps
Brand: IWAKI Japan
The IWAKI metering pump ensures the high precision when adding the essence.

About Us

Wenzhou WEIPAI Machinery Co.,ltd has specialized in Packaging Machinery Industry since 2003.

During 19 years development, we became a leading brand, having a group of senior technical team. Our main products are Wet Wipes Packing Machine, Swab Packing Machine, Face Mask Making Machine, Cartoning Machine, Bagging Machine and so on. Our machines are suitable for Pharmaceutical, Foods, Cosmetics, Health Care Industries.

In addition, we have researched and achieved lots of national technical patents:
for example: A packaging bag slitting and discharging device
Mask Corner Conveying Mechanism
A folding device

A traction device
No displacement hollow placement conveyor and so on.

Meanwhile, we are cooperating with global famous manufacturers such as SAMSUNG, KFC, LF BEAUTY, and having further relationship with suppliers Siemens, Taiwan Weinview, Delta, Japan Yaskawa and so on. Our machines are sold well among Western Europe, Middle East, Southeast Asia and other more than 20 countries and regions.

Exhibition

Certifications

After-sales Service

VIPPAI not only sales customers one machine, but our professional service and technical support.

1. When the machine is delivered, we will provide videos of the installation and operation of the machine, to make sure customers use machine as soon as possible.
2. All electrical parts of our machines have a one-year warranty, and we will replace them if they fail.

3. When your machine fails, our engineers will provide professional online after-sales service to help you solve the problem.
4. If the problem cannot be solved online, we will arrange an engineer to repair it.

Packing&Shipping

FAQ

Q1:Are you a factory or a trading company?

A1:We are the manufacturer and factory, specialized in packaging machinery industry since 2003.

Q2:Where is your factory? How can I get there?
A2:Our factory is located in Pingyang County, Wenzhou City, Zhejiang Province, China.
Q3:What’s your main market?
A3:Our machine is sold well in 30 provinces and cities and enjoy high reputation in China. At the same time,
it has been widely exported to more than 20 countries, such as Korea, India, Bangladesh, Russia, Pakistan, Brazil, USA, U.A.E, Kazakhstan etc.
Q4:How is your factory doing in quality control?
A4:Quality is the most important principle. There are at least twice test before shipment, the first is by our factory, the second is together with customer. And also we will offer whole-life service. What's more, all machinery has been passed CE testing. Strictly testing the machine and arranging delivery after 100% confirmation of no problem are what we always do.

Q5:How about after sales service？
A5:During the special period of epidemic, we will offer all support online via video 24h per day. Before shipment, we will test machine from A to Z, and then send all videos from installation to production for customers. Full set of manual and instruction in English will be sent with machine together. And if customers need the engineer to offer support in their factory, the cost and visa should be paid and prepared by customers.
