Зеркальная шлифовальная машина большая для прямоугольной шлифовки стекла обработки

Зеркальная шлифовальная машина большая для прямоугольной шлифовки стекла обработки

Категория: Glass Processing Machinery >>>
Поставщик: Henan,Minko,Machinery,Co.,Ltd.

Цена:3 200,00 $ - 3 300,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	3808.27 $*	3998.65 $*
Aug-16-2025	3776.0 $*	3965.31 $*
Jul-16-2025	3168.37 $*	3326.99 $*
Jun-16-2025	3712.86 $*	3898.12 $*
May-16-2025	3232.6 $*	3394.9 $*
Apr-16-2025	3648.70 $*	3830.40 $*
Mar-16-2025	3616.61 $*	3797.24 $*
Feb-16-2025	3584.35 $*	3763.71 $*
Jan-16-2025	3552.8 $*	3730.54 $*

Характеристики

Products Description

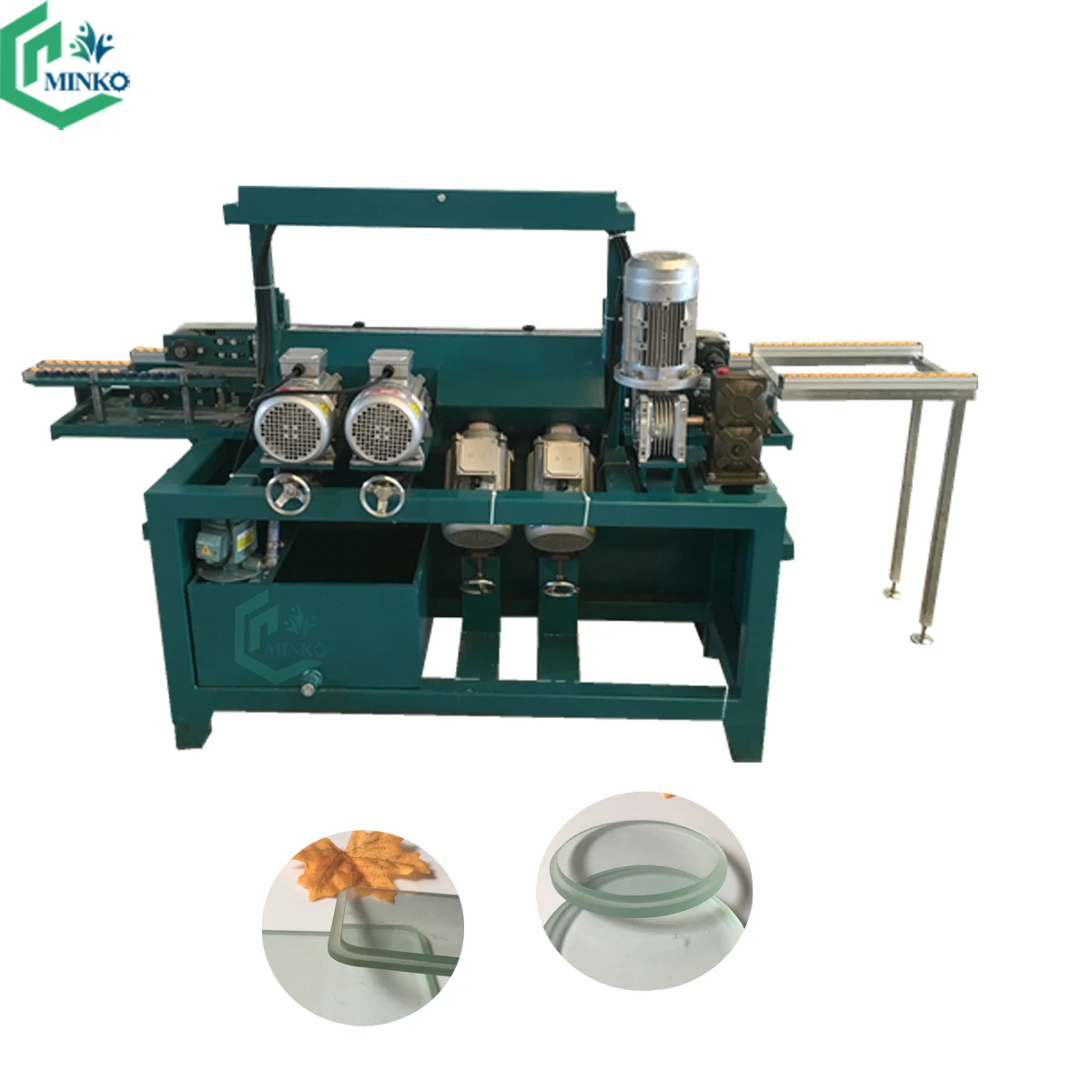

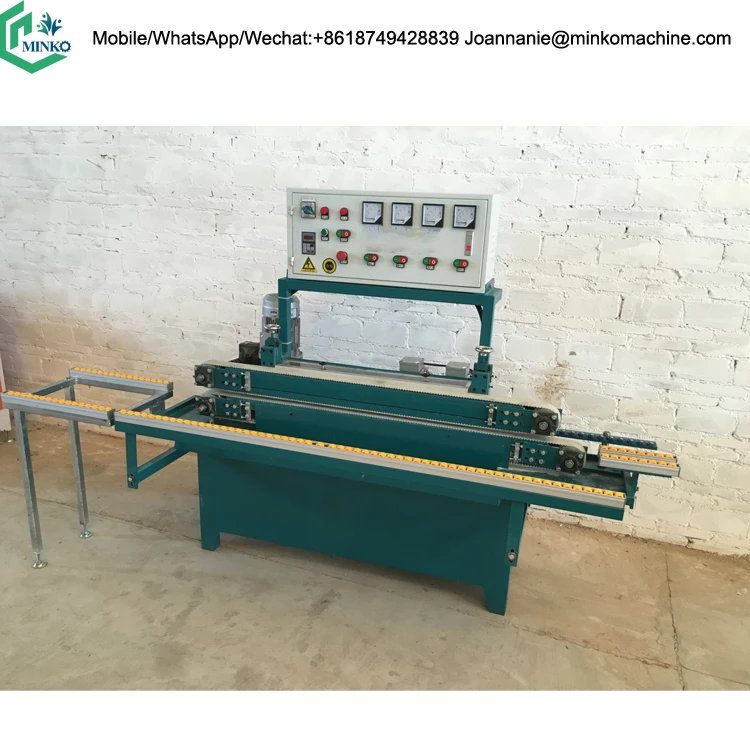

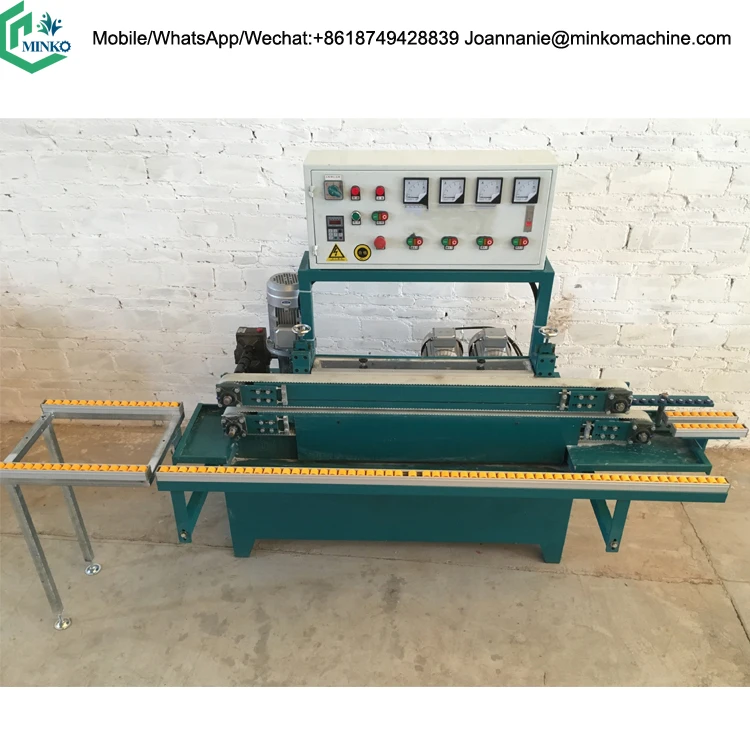

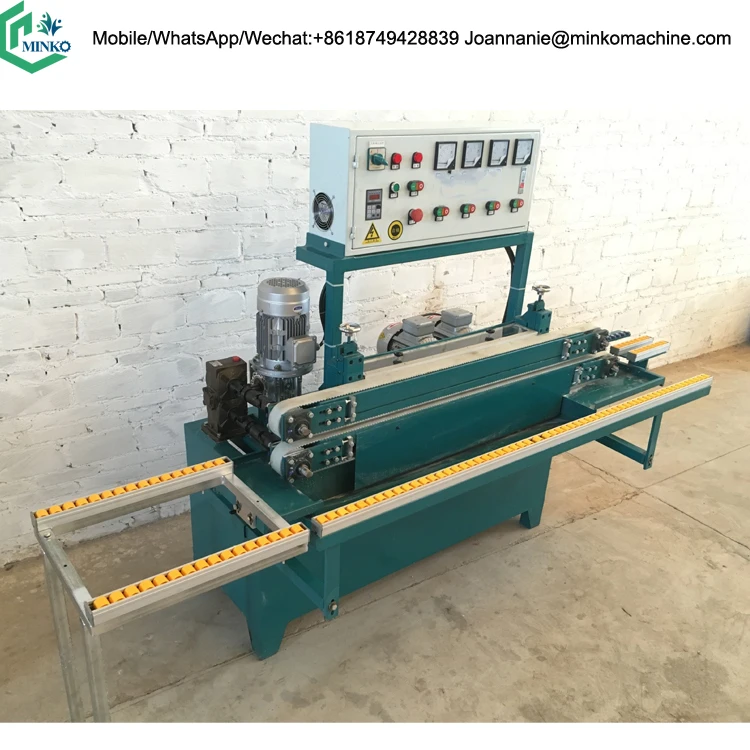

Intelligent high speed glass edging polishing machine automatic straight line edging machine.

1. This machine is mainly composed of five major systems, control system, grinding system, clamping and conveying system, cooling system and receiving system. The overall structure is compact, the layout is reasonable, and the appearance is harmonious and unified.

2. Control system: select AC contactor and thermal relay protection system and ammeter display operation system, with

phase failure, overload, overcurrent protection functions.

3. Grinding system: use high-speed three-phase AC motor to ensure thecontinuous stability of the machine's performance during long-term use.

4. The clamping part adopts imported timing belt, and the surface is adhered with PU glue, which reduces the glass breakage rate during the clamping and conveying process.

5. Cooling system: Circulating water is adopted, which not only saves water but also guarantees the cooling water quantity.

6. Undertaking system: Can choose to use row wheel undertaking frame.

The scope of application of this machine:

straight-line edging of small glass handicrafts;

straight-line edging of home improvement glass and furniture glass;

straight-line edging of architectural glass and frameless glass doors;

edging and chamfering of glass for kitchen cabinet doors and stainless steel doors.

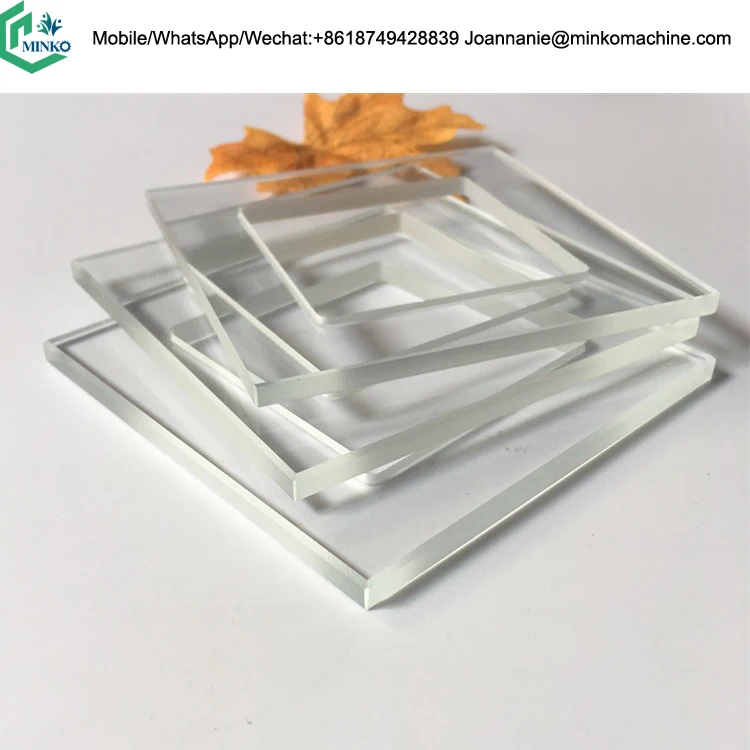

Straight edge grinding of flat glass and rough grinding, fine grinding, polishing of 45 degree angle straight bevel edge.

Details Images

Model	MKGE-170
Input voltage	380V 50hz customizable
Machine power	7.5KW
Processing speed	0-5m/min
Minimum machining size	40*40mm
Chamfer Angle	45 degrees
Machined thickness	1-20mm
Total machine weight	650kg
External dimension	190510001400mm
The function of the machine can be customized according to your requirements
