Ac Dc 90 градусов прямоугольный редукторный двигатель
US $22.50-$23.00
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 38.7 $* | 40.74 $* |
| Aug-16-2025 | 38.45 $* | 40.59 $* |
| Jul-16-2025 | 32.16 $* | 34.23 $* |
| Jun-16-2025 | 37.95 $* | 39.85 $* |
| May-16-2025 | 32.0 $* | 34.94 $* |
| Apr-16-2025 | 36.12 $* | 38.66 $* |
| Mar-16-2025 | 36.85 $* | 38.93 $* |
| Feb-16-2025 | 36.43 $* | 38.43 $* |
| Jan-16-2025 | 36.10 $* | 38.53 $* |
Характеристики
Product Description

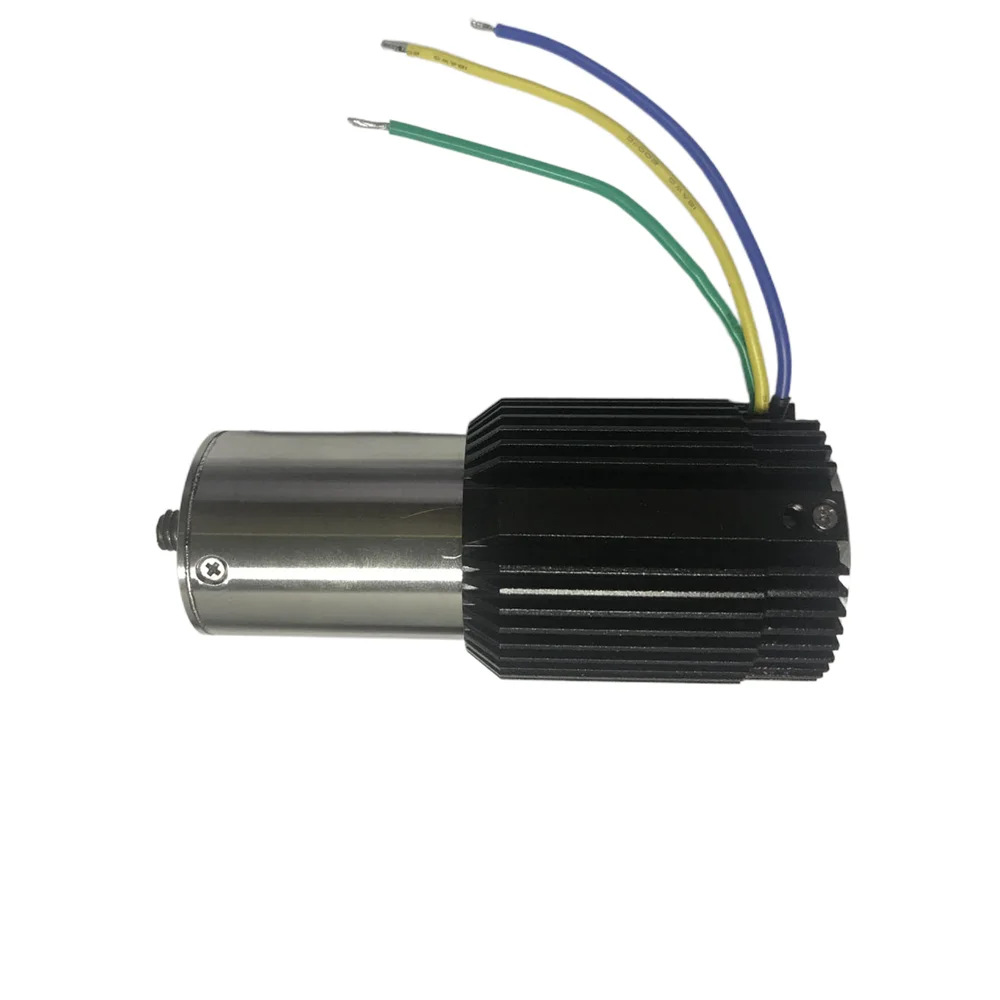

EC1646 high precision slotless dc motor brushless
Characteristics:
- Cup-shaped winding stator, without cogging effect, friction torque is very small
- Nd-Fe-B magnet, high power density
- NMB & NSK ball bearing
- Hall sensor inside, easy to drive
- Aluminium alloy shell, excellent heat dissipation, lower temperature rise
- Novel structure for the covers and frame combination, ensure the installation precision
Specifications:
| Product Name: | Slotless brushless dc motor |
| Dimensions: | Φ38mm x 110mm |
| Shaft Diameter: | 8mm |
| Input Voltage: | DC 12V 24V 30V 36V |
| Life Time: | 20,000 hours |
| Operation Temperature: | -30℃ to 85℃ |
| Storage Temperature: | -30℃ to 105℃ |
| Number of Pole Pairs: | 1 |
| Number of Phase: | 3 |
| Electrical Connection | 3 or 8 lines |
Product Application
