Б/у Бетономешалка Mitsubishi Fuso 8 куб. М
US $6000-$7000
Новые тележка конкретного насоса ZOOMLION 22H-3Z бетон сточных
- Категория: Used Engineering & Construction Machiner >>>
- Поставщик: Achieve,Innovations,(Changsha),Co.,Ltd.Achieve,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.90 $* | 0.80 $* |
| Aug-20-2025 | 0.44 $* | 0.88 $* |
| Jul-20-2025 | 0.38 $* | 0.26 $* |
| Jun-20-2025 | 0.3 $* | 0.17 $* |
| May-20-2025 | 0.48 $* | 0.4 $* |
| Apr-20-2025 | 0.56 $* | 0.3 $* |
| Mar-20-2025 | 0.29 $* | 0.22 $* |
| Feb-20-2025 | 0.54 $* | 0.78 $* |
| Jan-20-2025 | 0.17 $* | 0.30 $* |
Характеристики
Truck Mounted Pumps 22M HOWO
Zoomlion telescopic boom lifts are engineered to enhance working efficiency and offer greater horizontal outreach than any other type of aerial work platform. These units feature stable extension and great gradeability in rough terrain, offering a dual lift capacity of 300 kg unrestricted and 454 kg restricted. It is ideal for outdoor construction and industrial applications.
ZT20J features modularized design, light weight, commonalization and intelligence and provides a large lift capacity and high reliability. Four-wheel drive and oscillating axle system greatly improves off-road performance. With a gradeability of 45%, these machines are perfect for work in construction and industrial applications with limited access. Lubrication-free boom system minimizes equipment holding costs. Swing-out engine tray makes regular maintenance more convenient. Remote Monitoring and Rental Management System realizes on-board diagnosis, POST (power on self test), and maintenance alert for efficient fleet management.
ZT20J features modularized design, light weight, commonalization and intelligence and provides a large lift capacity and high reliability. Four-wheel drive and oscillating axle system greatly improves off-road performance. With a gradeability of 45%, these machines are perfect for work in construction and industrial applications with limited access. Lubrication-free boom system minimizes equipment holding costs. Swing-out engine tray makes regular maintenance more convenient. Remote Monitoring and Rental Management System realizes on-board diagnosis, POST (power on self test), and maintenance alert for efficient fleet management.
Key Features
• Accurate pumping control technology(APC):Great leap of pumping accuracy and adaptability, improving pump efficiency.
•Adaptive concrete material pumping technology: Specially designed for poor concrete with easy segregation and big viscosity, and
auto-adaptive pumping mode, reducing the block rate by more than 50%.
•Adaptive concrete material pumping technology: Specially designed for poor concrete with easy segregation and big viscosity, and
auto-adaptive pumping mode, reducing the block rate by more than 50%.

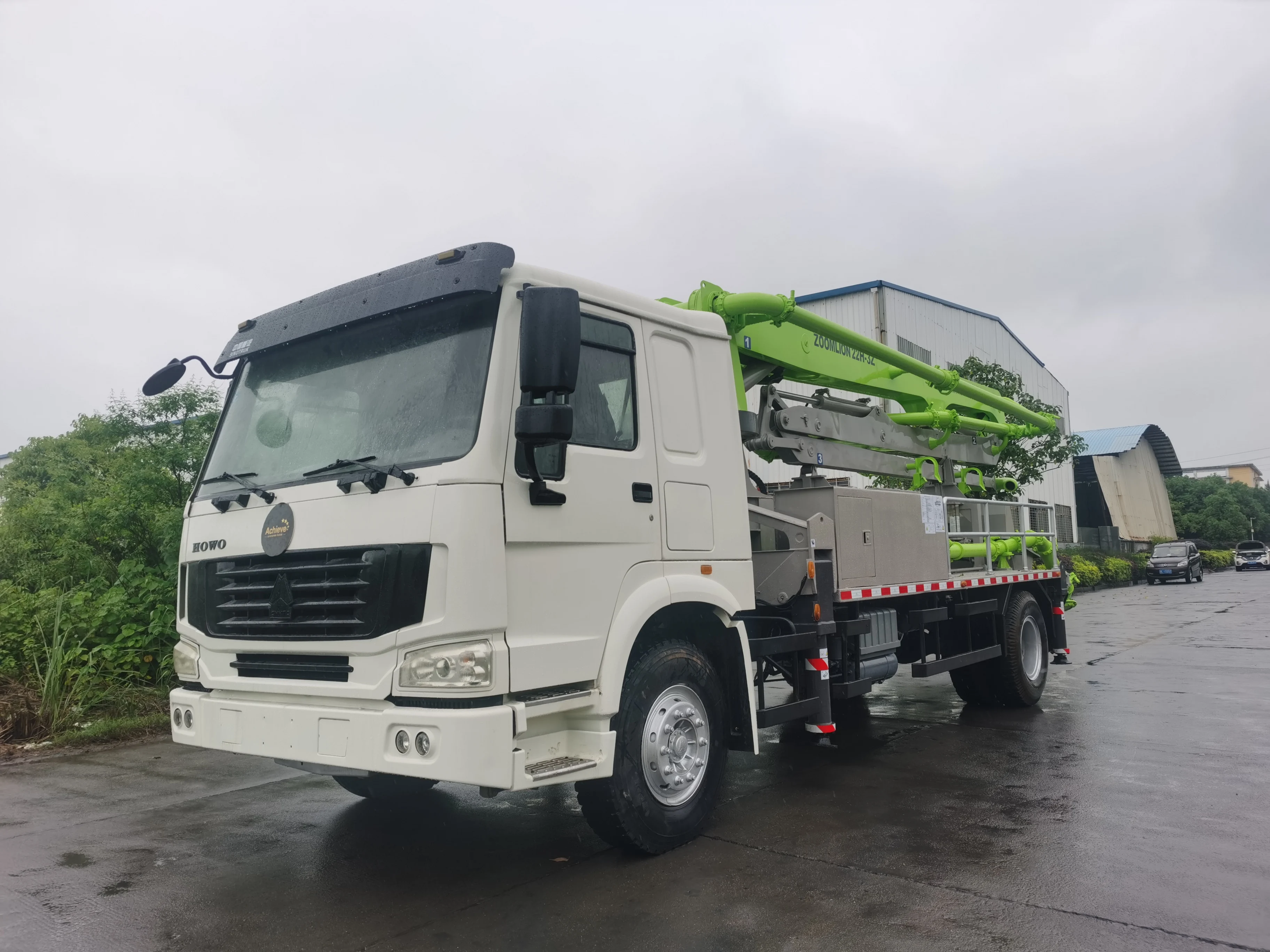

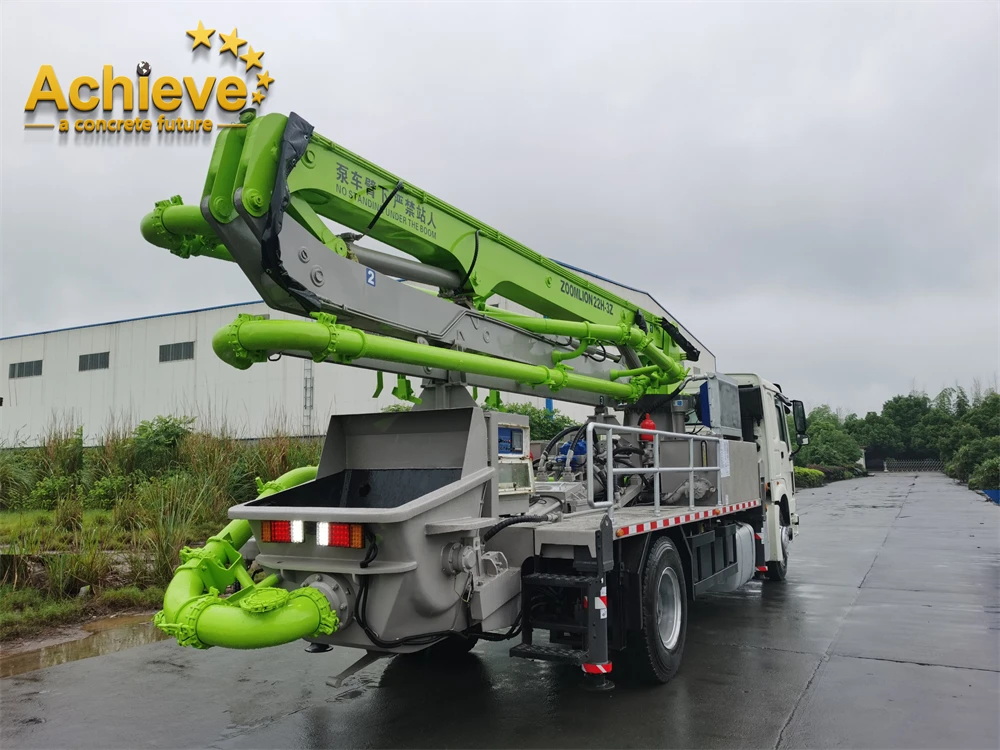

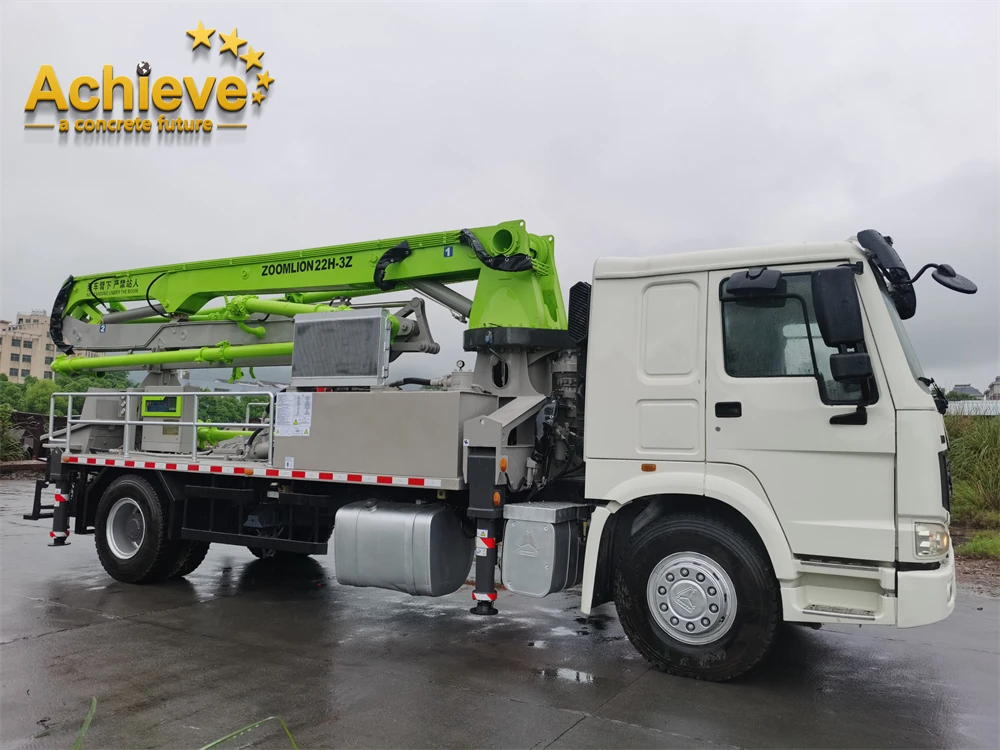

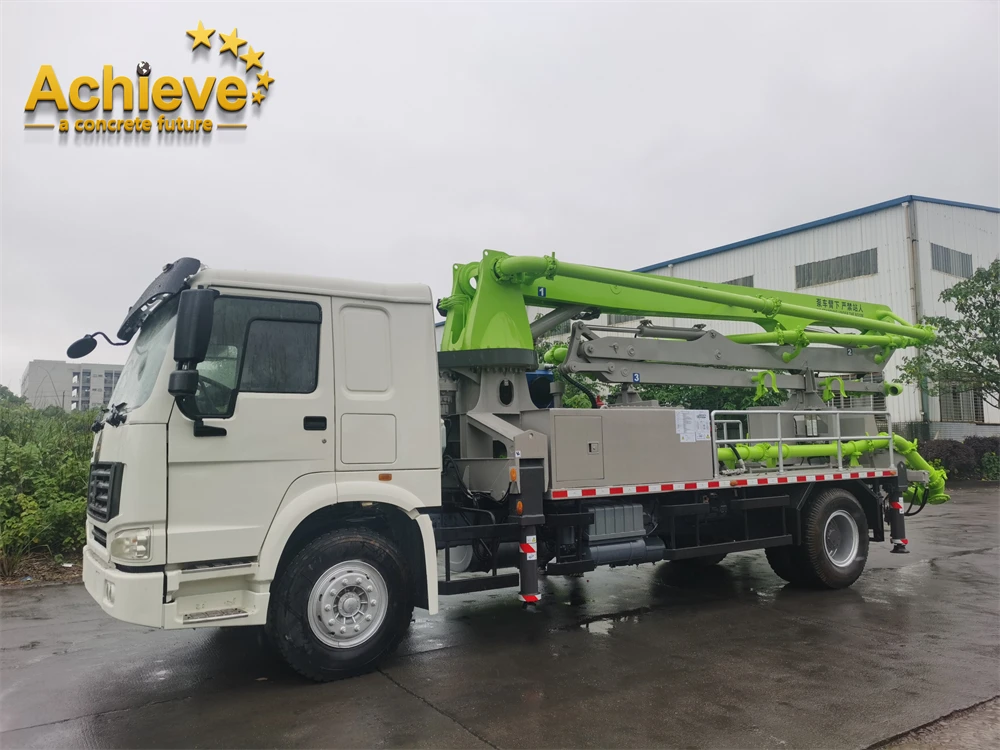

TRUCK MOUNTED PUMPS 22H-3Z
Energy Saving: Self-adaptive variable power distribution control technolog
High-Efficiency: Good site adaptability (one side support)
High-Reliability: 8 years or 400,000 m³ without crack, making it equivalent to European standard.
Intelligence: Full self-diagnosis before, after and during pumping to ensure working safely.
Easy maintenance: Advanced easy-maintenance technologies, making maintenance time reduced by 50-75%.
High-Efficiency: Good site adaptability (one side support)
High-Reliability: 8 years or 400,000 m³ without crack, making it equivalent to European standard.
Intelligence: Full self-diagnosis before, after and during pumping to ensure working safely.
Easy maintenance: Advanced easy-maintenance technologies, making maintenance time reduced by 50-75%.
• Compact in design, 22m pump mounted on 2-axle truck, total weight is less than 16 tons.
• Efficient pump unit, ideal for medium jobs.
• Agile placing boom with 3 arms and unfolding height 6.41m only, which gives a wide work range in narrow jobsite.
• Controller is designed for heavy duty use, with a monitor, it monitors the pump intelligently on working data management,
real-time diagnostics, alarm logging, and service interval notice.
• Rich in configurations and high quality components.
• Agile placing boom with 3 arms and unfolding height 6.41m only, which gives a wide work range in narrow jobsite.
• Controller is designed for heavy duty use, with a monitor, it monitors the pump intelligently on working data management,
real-time diagnostics, alarm logging, and service interval notice.
• Rich in configurations and high quality components.
Right elevation
Front elevation
Left elevation
Model | ZOOMLION22H-3Z | ||||
Pumping system | Max. Theor. output | m3/h | 100/60 | ||
Max. Theor. concrete output Pressure | MPa | 8/12 | |||
Rated working pressure | MPa | 35 | |||
Pumping frequency | min-1 | 14/23 | |||
Hopper capacity | L | 550 | |||
Filling height | 1540 | ||||
Hydraulic system type | Open loop | ||||
Distribution valve | S valve | ||||
Oil cylinder dia.×stroke | mm | Φ140mm×1700mm | |||
Concrete cylinder dia.×stroke | mm | Φ230mm×1700mm | |||
Hydraulic oil cooling | Air cooling | ||||
Recommended concrete slump | cm | 12~23 | |||
Max. aggregate dimension | mm | 40 | |||
Placing boom | Structure type | 22H-3Z | |||
Placing depth | m | 21.6 | |||
Horizontal distance | m | 18.2 | |||
Placing depth | m | 11.4 | |||
Slewing angle | 365° | ||||
Boom number | 3 | ||||
The length of boom section | mm | 6900/5700/5600 | |||
Sections folding angle | 90°/180°/250° | ||||
Pipe diameter | mm | 125 | |||
End hose length | mm | 3000 | |||
Min. height of opening placing boom | mm | 6410 | |||
Outriggers span (front×rear×side) | mm | 3500×2290×5300 | |||
Boom kit | Total weight | kg | 10380 | ||
Overall dimensions | mm | 7990×2500×3205 | |||
Others | Lubrication mode | Automatic lubrication | |||
Oil tank volume | L | 800 | |||
Control mode | Manual+remote control | ||||
Maximum water pressure | MPa | 7 | |||
Water tank volume | L | 400 | |||
Pipe cleaning mode | Water cleaning/dry cleaning | ||||
→ A reliable supplier in the Concrete Machinery lndustry for Premium Quality China-made products
→ Specializing in Reconditioned Concrete Pumps & Batching Plants & Parts
→ A professional team with more than 15 years experience in Concrete Machinery lndustry
→ Qualified supplier of CEMEX and HANSON group
→ All team members are from ZOOMLION & SANY
→ Exported to 50+ countries
→ Specializing in Reconditioned Concrete Pumps & Batching Plants & Parts
→ A professional team with more than 15 years experience in Concrete Machinery lndustry
→ Qualified supplier of CEMEX and HANSON group
→ All team members are from ZOOMLION & SANY
→ Exported to 50+ countries
VR
Q1:Are you a manufacture or a trading company?
A1:We are a trading company since 2018 year.
Q2:What is your advantage? More than a decade,We have been focusing on concrete pump since.
A2:-Professionally and Highly remanufactured standard for used concrete pump machines.
-Providing competitive price for customer.
-Professional sales service availably.
Q3:What is your main products?
A3:Truck-mounted concrete pump, Concrete pump truck , Concrete line pump,Concrete mixer truck, and Concrete pump spare parts, Crane and Lubricate oil .we have the whole series products you need.
Q4:What kind terms of payment can be accepted?
Q5:What about the deliverv time?
A5:7-30 days after receving the deposit.
Q6:What about the warranty time?
A6:12 months after shipment or 2000 working hours.
Q7:What about the Minimum Order Quantitv?
A7:The MOQ is 1 pcs.
A1:We are a trading company since 2018 year.
Q2:What is your advantage? More than a decade,We have been focusing on concrete pump since.
A2:-Professionally and Highly remanufactured standard for used concrete pump machines.
-Providing competitive price for customer.
-Professional sales service availably.
Q3:What is your main products?
A3:Truck-mounted concrete pump, Concrete pump truck , Concrete line pump,Concrete mixer truck, and Concrete pump spare parts, Crane and Lubricate oil .we have the whole series products you need.
Q4:What kind terms of payment can be accepted?
A4:Normally we can work on T/T term or L/C term.
Q5:What about the deliverv time?
A5:7-30 days after receving the deposit.
Q6:What about the warranty time?
A6:12 months after shipment or 2000 working hours.
Q7:What about the Minimum Order Quantitv?
A7:The MOQ is 1 pcs.
