Moresense MS58-1414D20M4-W маленький размер радарный датчик белого цвета для освещения умные устройства 5 8 ГГц микроволновый радар
- Категория: Sensors >>>
- Поставщик: Shenzhen,Moresense,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.80 $* | 0.34 $* |
| Aug-18-2025 | 0.69 $* | 0.74 $* |
| Jul-18-2025 | 0.76 $* | 0.44 $* |
| Jun-18-2025 | 0.61 $* | 0.39 $* |
| May-18-2025 | 0.32 $* | 0.42 $* |
| Apr-18-2025 | 0.74 $* | 0.11 $* |
| Mar-18-2025 | 0.69 $* | 0.77 $* |
| Feb-18-2025 | 0.83 $* | 0.26 $* |
| Jan-18-2025 | 0.7 $* | 0.59 $* |
Характеристики
Product Description
High Performance Solution Radar Sensor
Product Type Name:MS58-1414D20M4
Detecting object's movement/micro-movement
Induction Direction:
a.Hanging 3M Sening Radius
b.Linear Sensing Distance
Module Parameter
Type | Parameter | Value |
RF Parameter | Certification Standards | FCC/CE/SRRC/RoHS |
Frequency Range | 5.725GHz-5.875GHz | |
Transmit Power | -4dBm | |
Antenna | Built-in;Flat Antenna | |

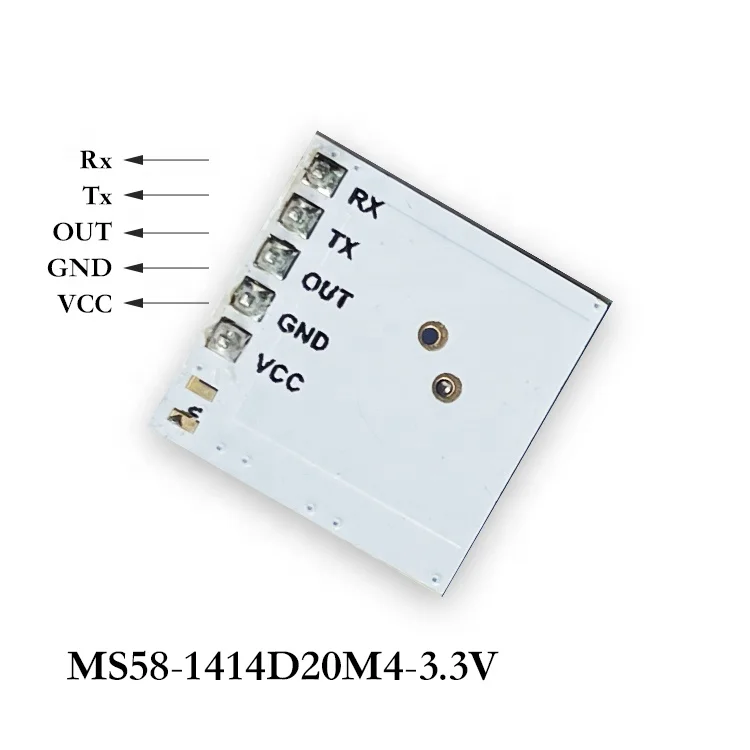

Hardware Parameter | Data Interface | GPIO/IIC |
Operating Voltage | 4.5-5.5V/3.0-3.6V | |
Operating Current | 23mA(Typical Value) | |
Operating Temperature | -40℃- 85℃ | |
Storage Temperature | -40℃- 150℃ | |
Humidity | <85% | |

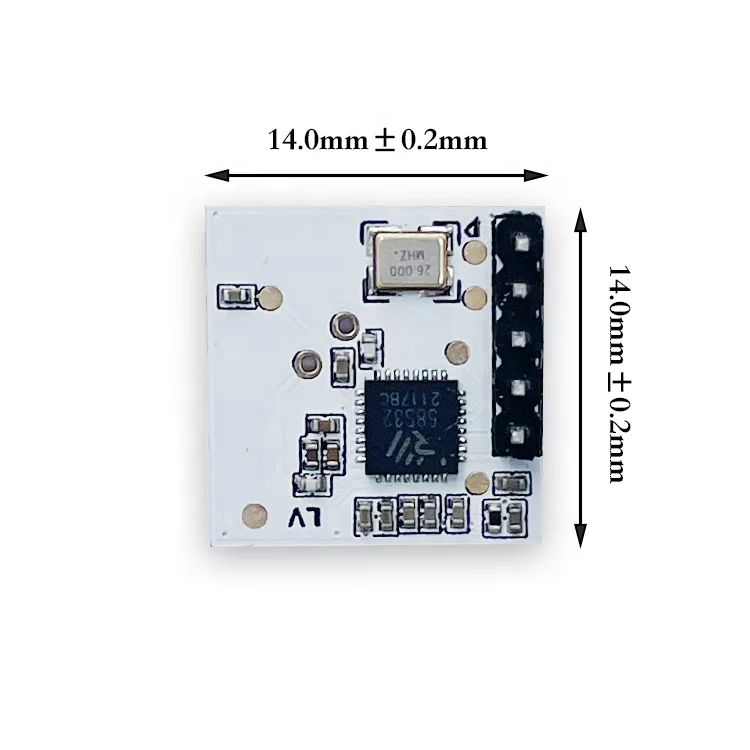

Dimension | 14mm x 14mm | |
Power-On Self-Test Time | 2s | |
Sensing Output Level | 5V | |
Silent Output Level | 0V | |
Sensing Output Time | 2s | |
Inducting Distance | About 8m | |
Customizing the Largest Sensing Distance | 13m | |
Max. Induction Radius with Hanging Height 3m | 5m | |
Setting Parameter Method | COM or IO |
Features:
a Working Frequency Band:5.8G ISM Frequency Band;
b Microwave sensor based on Doppler effect;
c Sensing distance and delay time can be adjusted flexibly according to different application;
d Using mature CMOS technology to achieve fully integration of ultra-cost-effective;
e The chip has a built-in LDO that supports wide-voltage power supply;
f Support standard UART, I2C interface,can be interconnected with other main control or sensors;
g With self-calibration function, it is not affected by external interference and supports dense distribution;
h Meet certification standards such as FCC, RED, CE, and ETL;
b Microwave sensor based on Doppler effect;
c Sensing distance and delay time can be adjusted flexibly according to different application;
d Using mature CMOS technology to achieve fully integration of ultra-cost-effective;
e The chip has a built-in LDO that supports wide-voltage power supply;
f Support standard UART, I2C interface,can be interconnected with other main control or sensors;
g With self-calibration function, it is not affected by external interference and supports dense distribution;
h Meet certification standards such as FCC, RED, CE, and ETL;
Product Packaging
Package Customization:Blister Box Or As Customers' Requirement
Customization
Company Introduction
333
Related Products
FAQ
Q1: Can I have free samples?
A:Yes,3 or 5 pcs free samples can be provided.But the shipping cost and another details shall be negotiated by both sides.
Q2: Can I customize the product?
A:Our 5.8ghz microwave radar sensor module,wifi module and BLE module can be customized as your requirement.Also we support the package customization. Pls kindly tell us the related parameter requirement.
Q3. How to order?
A. Inquiry → Quotation → Negotiation → Samples → PO/PI → Mass production →Shipment → Further.
Q4. What is the lead time for samples?For mass products?
A:For existing product type,the samples's lead time is about 3 days.For customizing(dimension,component...) products,the samples lead time is 1-2 weeks as usual.For mass products,the lead time is 3-4 weeks.
Q5:What's is your business purposes?
A:Guaranteed products' quality and good customer service with reasonable price.100% customer satisfaction is trying our best to meet.
