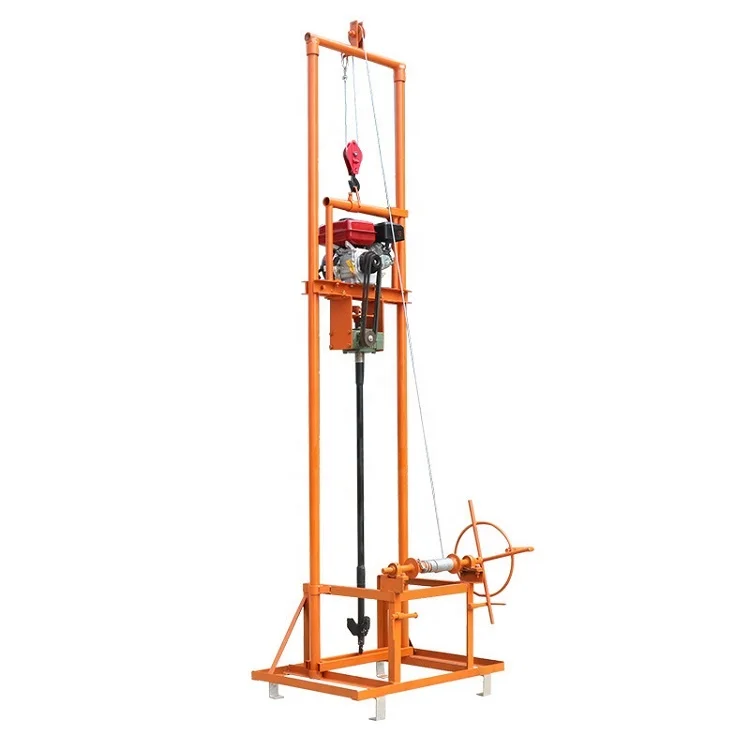

Small portable borehole drilling machines/water well drilling equipment

This machine mainly used for geothermal drilling, farm irrigation , house yard, gardens and water well drilling, drilling diameter is 70-300mm, and drilling depth is 60-80m. It also can be used in small building piling, like farmhouse or factory and so on, the drilling diameter can reach 500mm and depth can be more than 10m.



Main Feature:
1. Light weight. The main engine is only weighted 0.135tons ;
2. Unique design and simple drilling structure;
3. Easy to transport and can learn how to handle the machine in short time;
4. Can drill through hard stratum, unless thick rock layer ;
5. Can drill deep. Equipped with raser, reduce the labor intensity ;
6. High efficiency, the drilling speed can reach 20meters depth per hour, in plain area ;
7. Assure easily operation and long life span to save more labors and money for you;
8.The packing of the machine is wood box, the CBM is about 2.0m³, the total weight (complete set) is about 350KG



Main Parameter:

Parameter	unit	Gasoline drilling machine
Drilling depth	M	Ø100mm	160
		Ø220mm	80
		Ø300mm	30
Drilling rod diameter	mm	26,32,42,48
Drilling rod length	M	1,1.5,2
Pump pressure adapts to drilling depth	M	120
Drive the drill rod speed	r/min	150
Workbench footprint	m²	1
Drilling tower height	M	3.5
Unit part max weight	Kg	48
Unit part max length	M	3
Total weight		150(not including drilling rod)
Winding speed	M/s	0.5
Diesel engine model		TB188F
Power	Kw	7
