CenterMCX 6 35 мм аудиовход гнездо trrs
- Категория: >>>
- Поставщик: Shenzhen,Centermcx,Tech.,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.32 $* | 0.35 $* |
| Aug-19-2025 | 0.72 $* | 0.70 $* |
| Jul-19-2025 | 0.64 $* | 0.65 $* |
| Jun-19-2025 | 0.86 $* | 0.67 $* |
| May-19-2025 | 0.67 $* | 0.35 $* |
| Apr-19-2025 | 0.29 $* | 0.28 $* |
| Mar-19-2025 | 0.57 $* | 0.62 $* |
| Feb-19-2025 | 0.53 $* | 0.76 $* |
| Jan-19-2025 | 0.56 $* | 0.36 $* |
Характеристики
Product Description

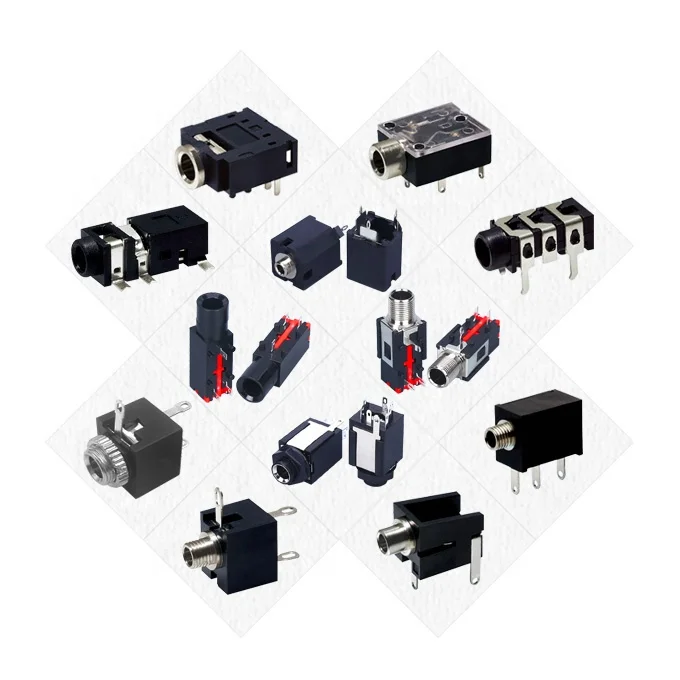

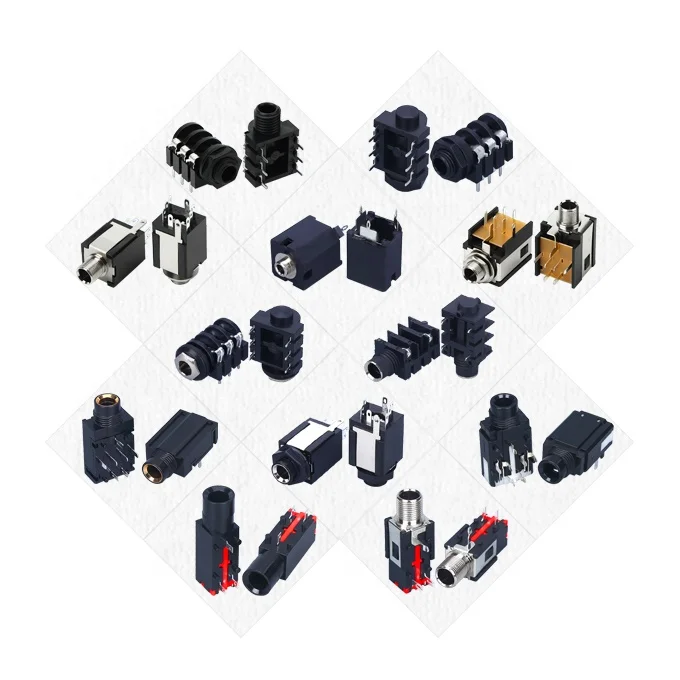

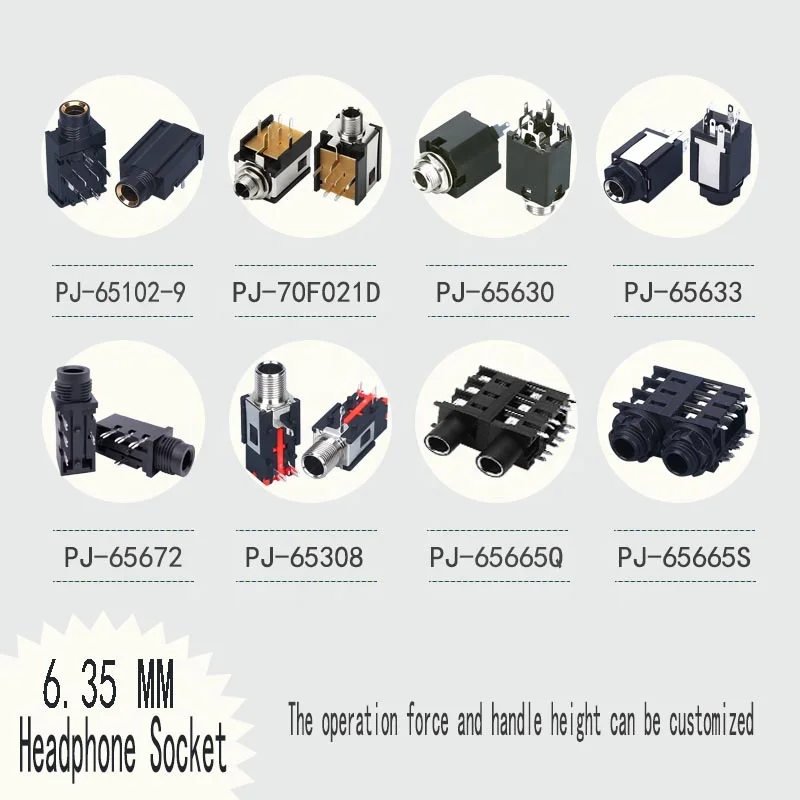

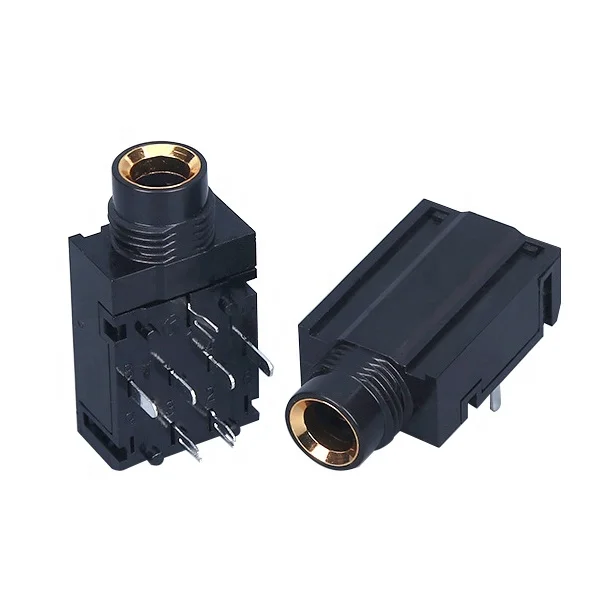

6.35mm Audio Jack Socket
The 6.35mm audio jack socket is made of high temperature resistant LCP. LCP is short for liquid crystal polymer. It has excellent electrical insulation, heat resistance and chemical resistance.
The 6.35 headphone jack sockets are widely used in audio equipment, electric Musical Instruments, entertainment equipment, TV etc, such as electric piano, electric guitar, audio box and so on.
Specification
Product Name | 6.35 Audio Jack |
Rating | 1.0A 30VDC |
Max Voltage | 50V DC |
Max Current | 3 A |
Insulation Resistance | ≥100MΩ |
Contact Resistance | ≤30mΩ |
Insertion Force | 0.3～3.0 Kgf |
Removal Force | 0.3～3.0 Kgf |
Recommend Products
Company Profile
Shenzhen Centermcx Technology Co., Ltd. established in 2009, is specializing in the audio connector, micro coaxial cable assy, low-voltage differential signal LVDS wire harness, mini slide switch, mini tactile switch and so on. All products have passed the CE, CQC and REACH, and other safety certification and environmental protection materials. The company has now formed a comprehensive service system integrated by the R&D, production and domestic trade and export. We satisfy all customers with advanced products, competitive prices, and fast delivery. Welcome to inquiry.
Our Advantages
Certifications
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
