Product Description
Circumferential Seam Welding Main Purpose and scope

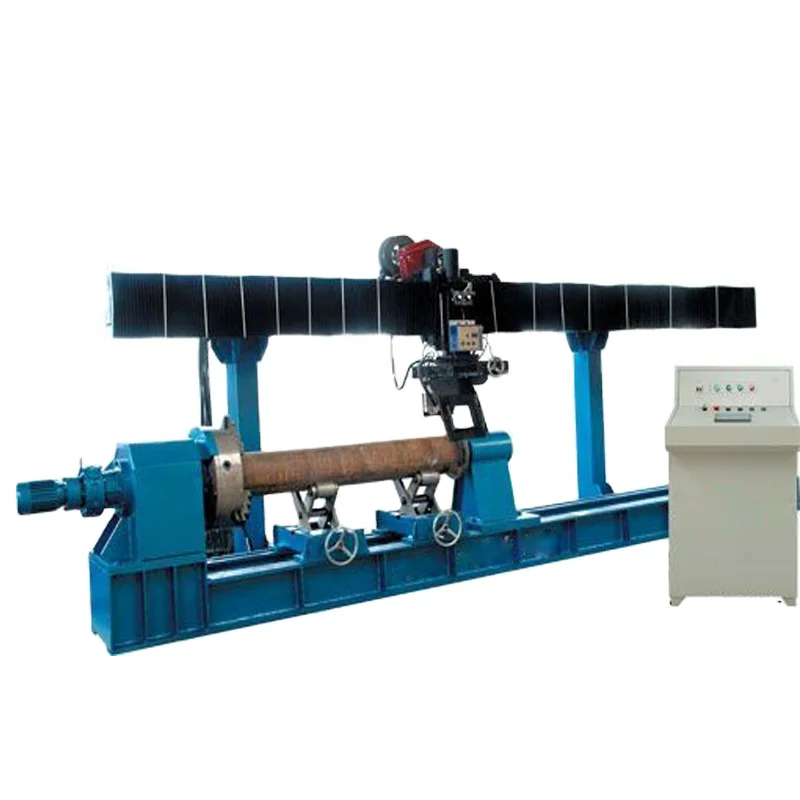

Hydraulic cylinder circumferential welding equipment is mainly used for girth weld of hydraulic cylinder and piston rod automatic multi-layer swing welding; the structure is horizontal bed type. According to the actual needs of users, it can be single or double torch welding, welding head axial movement is driven by servo motor. In order to adapt to different length of work piece, tailstock moving using manual and pneumatic jacking.
Weld appearance beautiful, uniform, penetration, weld width meets the requirements. Welding operation simple and flexible; work piece clamping convenient; reliable performance, convenient loading and unloading. high degree of automation, low labor intensity of workers.
DESCRIPTION

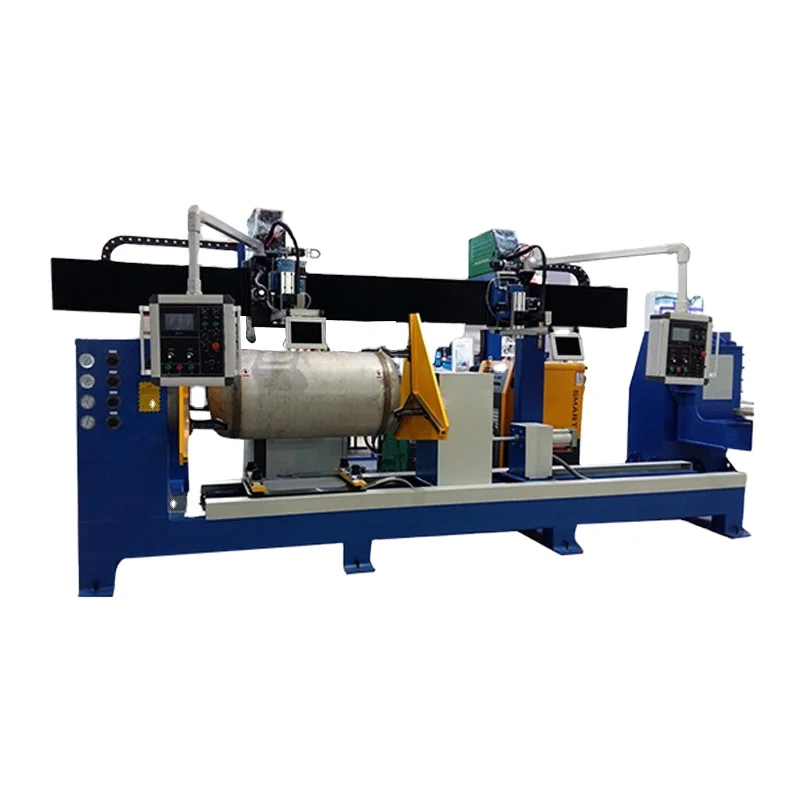

Circular seam welding machine mainly used for circular weld welding of carbon steel, stainless steel and other metal workpieces. It can weld similar workpiece appearance such as air reservoir, water heater, fire tube, drive shaft, shock absorber, muffler, container can, pipe butt joint, pipe flange, pipe elbow tee and other circular seam welding.
PERFORMANCE
The bed body adopts a horizontal structure, which is finished by annealing the welded structural parts to ensure that the bed rail is not deformed;The rotary head is driven by DC motor or AC variable frequency motor, and the speed is stable and reliable;A welding fixture or a three-jaw chuck is mounted on the end of the spindle for clamping and positioning the workpiece;The tailstock can be pneumatically or manually tightened, and the end can be selected according to different workpiece forms, different welding fixtures or movable tips.
Company Information
Main Technical Data
Input votage | (3-phase 5- wire) AC 380V /220V 50Hz | Torch angle | Adjustable 0-90 degree |
Input capacity | 35.8KVA | Torch up and down adjustment | 80mm |
Welding speed | 0.2~2r/min | Torch left and right adjustment | 80mm |
Rated output voltage range | 15-50V | Welding wire diameter | φ10~ φ1.2mm |
Rated output electric current range | 60~630A | Work piece diameter | φ100~ φ600mm |
No- load output voltage | 70V | Work piece length | ≤3000mm |
Motor total power | 2KW | Welding mode | Multilayer swinging or multilayerstep, spiral |

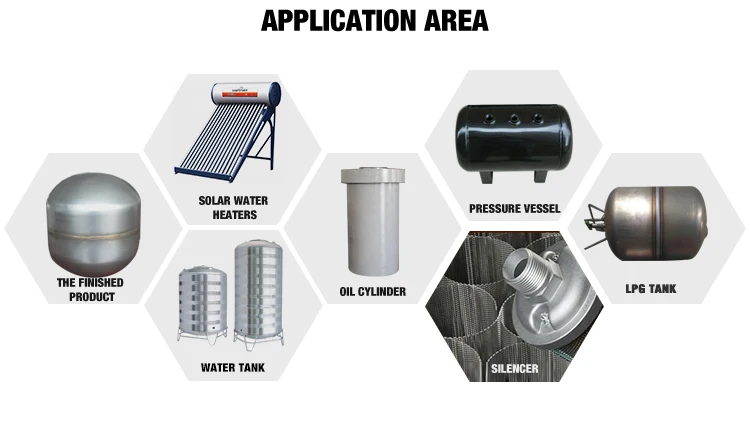

Equipment Application and Scope
1. Application:
304 stainless steel longitudinal and circumference seam welding
1. Application:
304 stainless steel longitudinal and circumference seam welding
cylinder diameter | 400mm-1200mm |
cylinder length | ≤ 2500mm |
cylinder wall thickness | 2mm-6mm |
2. Job status: work piece welding surface is smooth, the largest seam gap less than 2mm.
3. condition of work piece surface: no pollution, serious corrosion etc.
4. Work piece state before welding: before welding, workpiece are firmly spot welded, the joints are clean.
5. The equipment pneumatically clamps the head and tail of the work piece and turns the work piece automatically.
3. condition of work piece surface: no pollution, serious corrosion etc.
4. Work piece state before welding: before welding, workpiece are firmly spot welded, the joints are clean.
5. The equipment pneumatically clamps the head and tail of the work piece and turns the work piece automatically.
Flanges are welded on a welding positioner. Two sets of systems are using one power source, and the equipment can realize the switch between different welding spot.

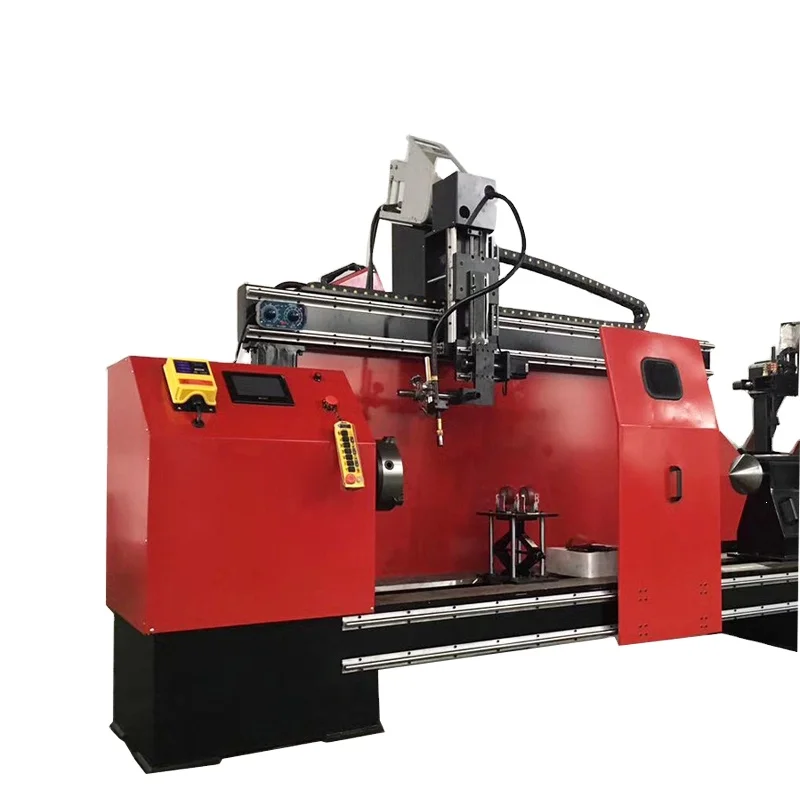

MACHINE SUMMARY
Using industry PLC, Touch screen interface, servo motor and AC frequency converter to realize automatic welding.
The machine has the following characteristics:
1. Industrial plc control the operation of the whole machine, the control is accurate and reliable; the operation is simple and convenient.
2. Adopts ac inverter to regulate speed. Realize welding speed steeples adjustment and the adjustment is convenient and reliable, large range, high precision, stable and reliable operation.
3. Using high definition color touch screen, easy to set all kinds of welding process parameters.
4. Plenty of welding process parameters, to acheive full functional automatic welding.
5. Using high quality water cooling push wire welding torch, welding torch with up and down, left and right adjustment and angle adjustment function.
6. Using mechanical positioning. Pneumatic jacking work piece, accurate positioning.
7. In welding process, torch swing, can realize surfacing. Built-up welding automatic multilayer welding process.
8. Process integration is powerful, user according to the work piece welding requirements, has flexible choices.
9. Improve the work eficiency, reduces the labor intensity of the worker.
The machine has the following characteristics:
1. Industrial plc control the operation of the whole machine, the control is accurate and reliable; the operation is simple and convenient.
2. Adopts ac inverter to regulate speed. Realize welding speed steeples adjustment and the adjustment is convenient and reliable, large range, high precision, stable and reliable operation.
3. Using high definition color touch screen, easy to set all kinds of welding process parameters.
4. Plenty of welding process parameters, to acheive full functional automatic welding.
5. Using high quality water cooling push wire welding torch, welding torch with up and down, left and right adjustment and angle adjustment function.
6. Using mechanical positioning. Pneumatic jacking work piece, accurate positioning.
7. In welding process, torch swing, can realize surfacing. Built-up welding automatic multilayer welding process.
8. Process integration is powerful, user according to the work piece welding requirements, has flexible choices.
9. Improve the work eficiency, reduces the labor intensity of the worker.
