Автоматический Открыватель раздвижных ворот с двигателем 24 В постоянного тока 800 кг резервным
- Категория: Automatic Door Operators >>>
- Поставщик: Bo,Hui,Electronics,Technology,(zhangzhou),Co.,Ltd.Bo,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.85 $* | 0.73 $* |
| Aug-16-2025 | 0.54 $* | 0.73 $* |
| Jul-16-2025 | 0.77 $* | 0.81 $* |
| Jun-16-2025 | 0.12 $* | 0.87 $* |
| May-16-2025 | 0.12 $* | 0.84 $* |
| Apr-16-2025 | 0.27 $* | 0.48 $* |
| Mar-16-2025 | 0.25 $* | 0.55 $* |
| Feb-16-2025 | 0.67 $* | 0.81 $* |
| Jan-16-2025 | 0.22 $* | 0.93 $* |
Характеристики
Product Description
Model | BG800 | BWH-880F | |||
Core Features | ▶ Can handle up to 800KG gates ▶ DC motor with extremely low noise and heat emission, highly adapted to frequent use scenarios, a better choice over oil-immersed motors ▶ 24V voltage ensures high safety ▶ Available for on-grid and off-grid use and mixed use ▶ With internal housing for 5Ah 24V lead acid Battery (Battery optional) ▶ Optional external battery case for capacity expansion ▶ Complete function settings including resistance rebound, soft start&stop, pedestrian passage, master-slave mode, etc. ▶ Integral interfaces for external devices such as photocell sensor, loop, manual button, alram lamp, etc. ▶ Fully compatible with smartphone door control system | ||||
Control Modes Available | RF Remote Control 2 remotes are attached with each motor by default | 30 meters traditional RF remote control | |||
WiFi/3G/4G/5G Control BoHui IP camera/controller required | No range limited control: mobile connects to motor through the Internet and controls gate using DoorWay app | ||||
Model | BG800 DC Sliding Gate Motor |
Capacity | 800KG（Max 900KG) |
Input Voltage | AC220/110V |
Output Votage | DC24V |
Motor Power | 110W |
Output Torque | 19N.m |
Rotation Speed | 1500RPM |
Gate Speed | 12m/min |
Limit Switch | Spring/Magnetic (NC/NO) |
Noise | ≤50dB |
Ambient Temperature | -45℃~+75℃ |

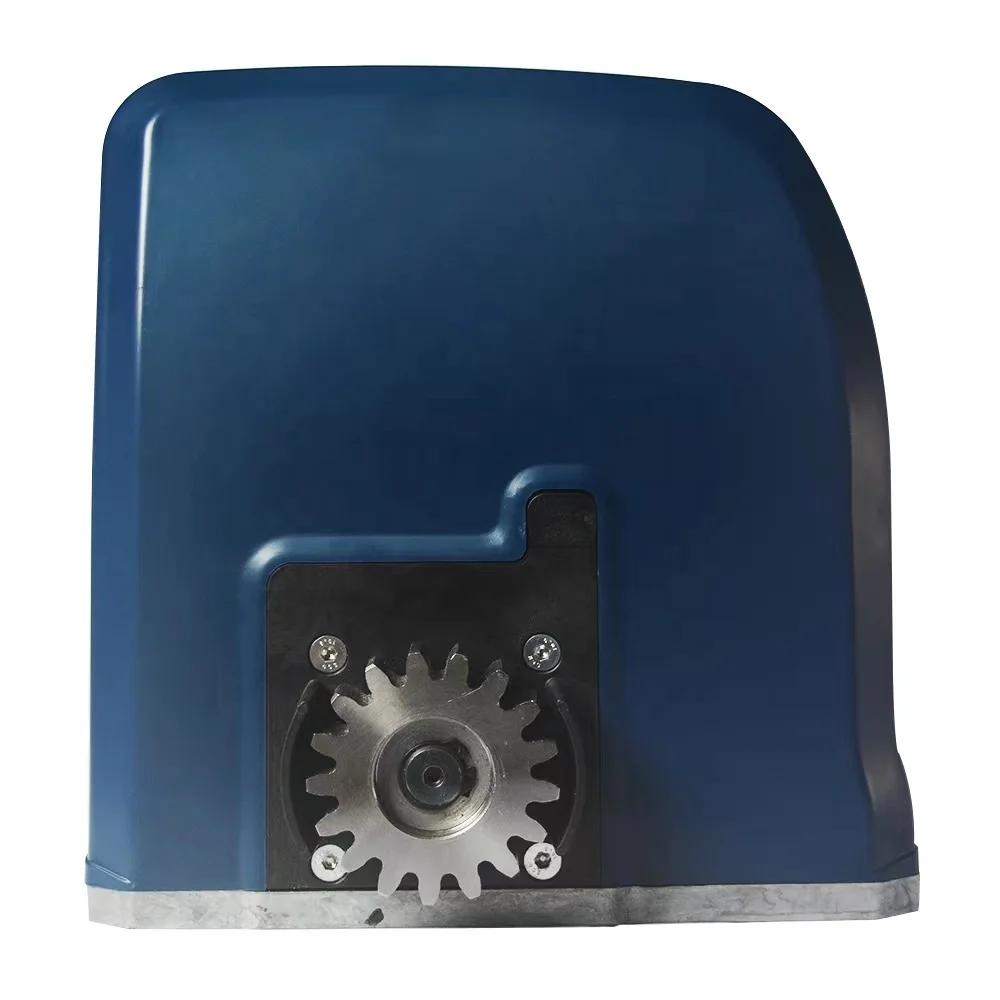

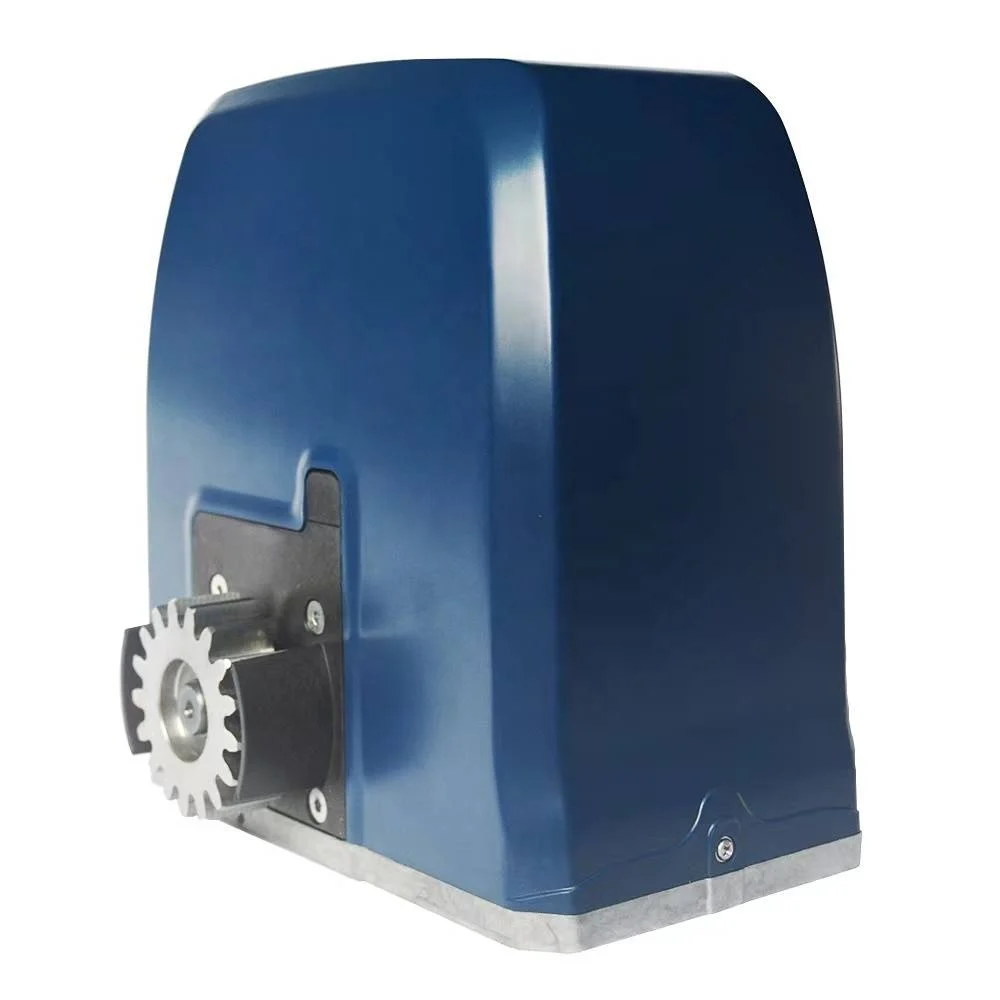

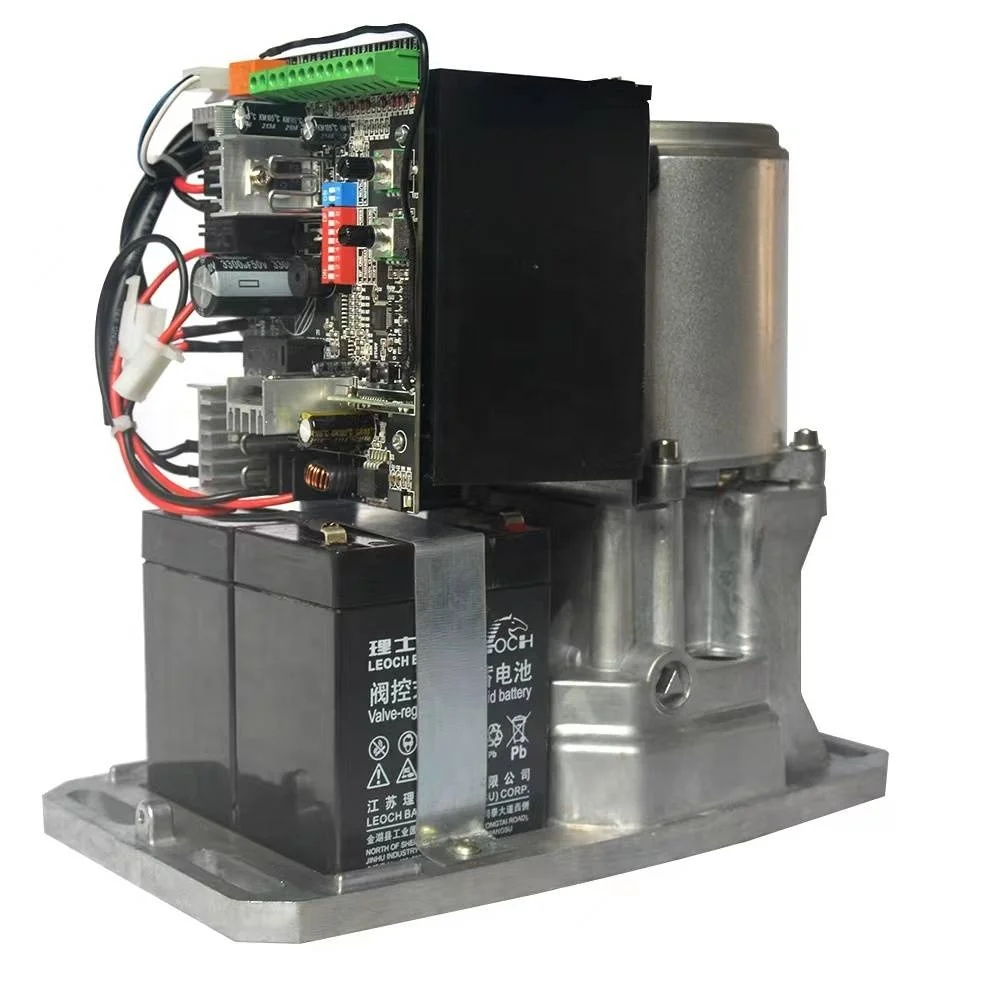

Detailed Images
Multiple Control Methods
Packing & Delivery

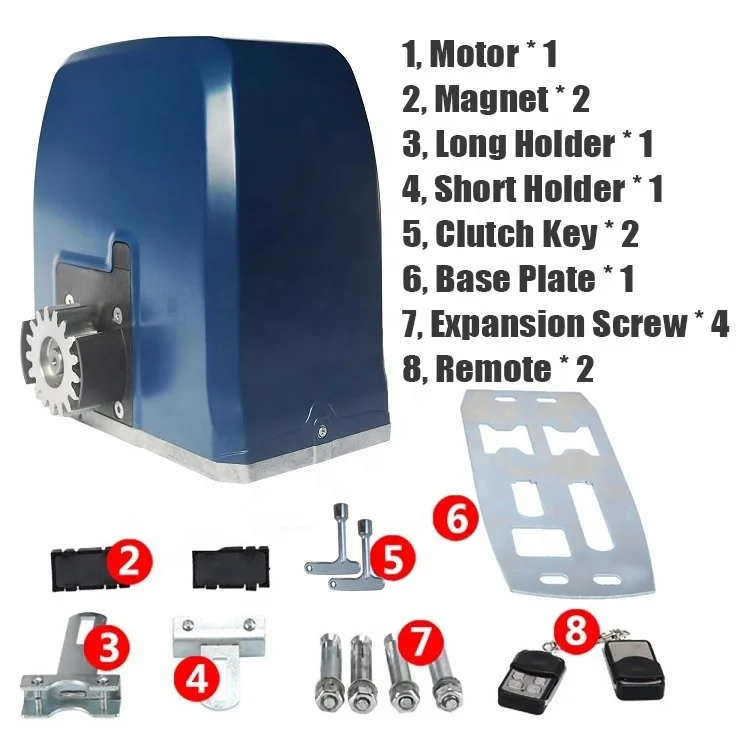

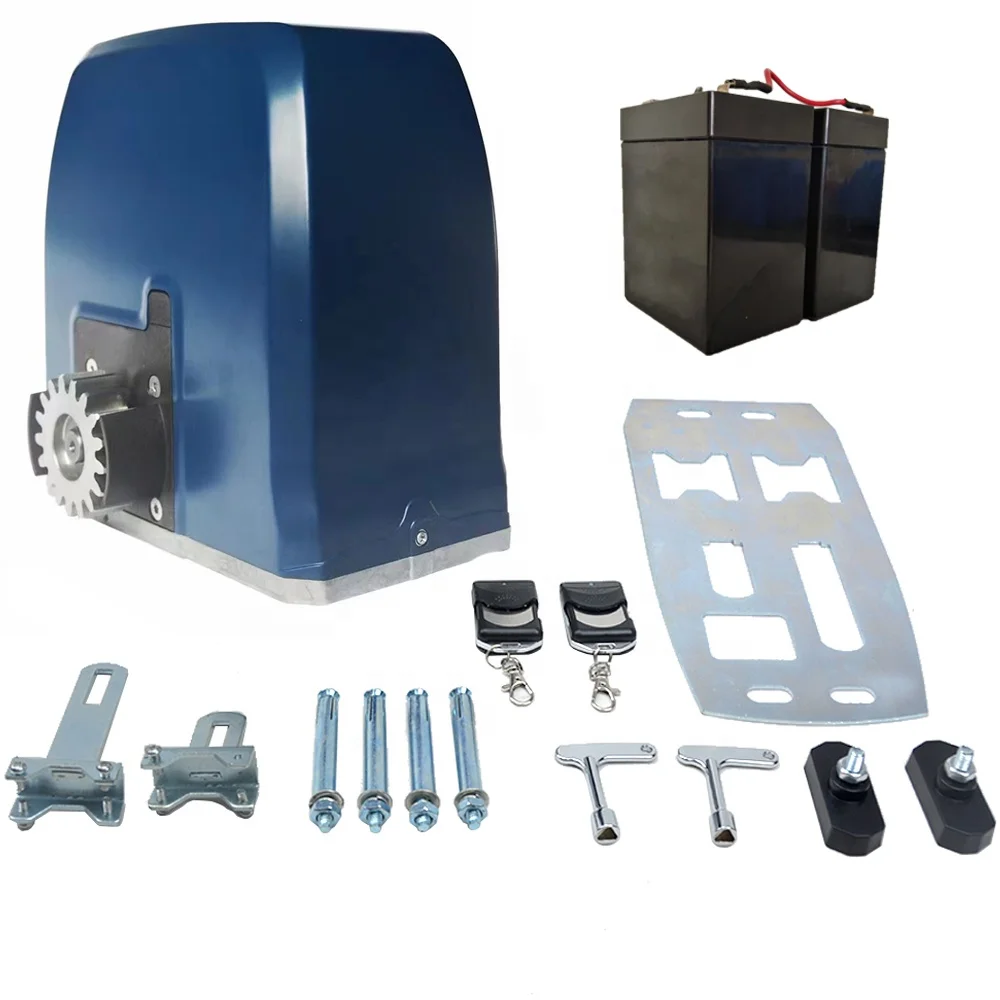

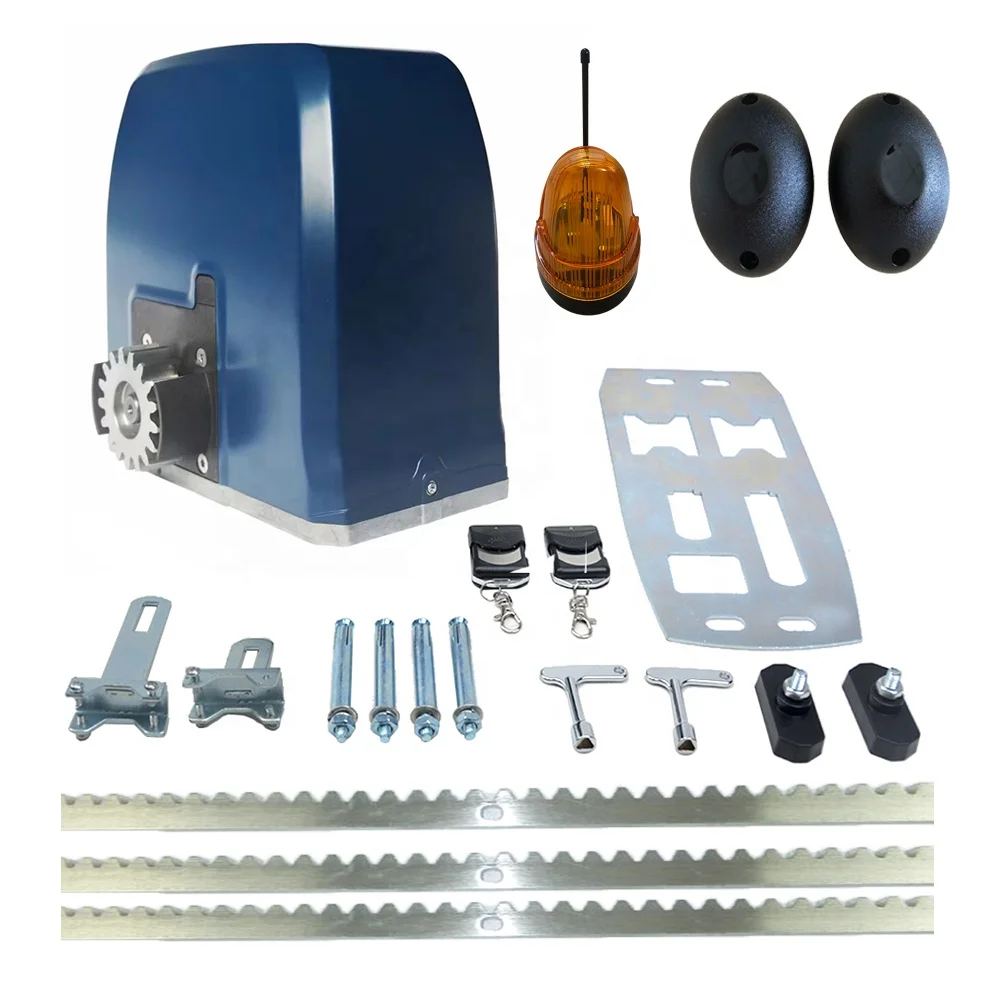

Package Inclusion | 1 * Motor 2 * Limit Magnet (Or Spring Limit Kit) 1 * Taller Magnet Holder (Or Spring Limit Kit) 1 * Shorter Magnet Holder (Or Spring Limit Kit) 2 * Clutch Key 1 * Base Plate 4 * Expansion Screw 2 * Remote Control 1 * User Manual |
Packaging | 1 set/ctn with foam |
Package Size | 37*36*25cm |
G.W. | 13~17kg |
Lead Time | 3-5 days for sample orders 5-30 days for bulk orders |
Shipping Way | Express (DHL, Fedex, UPS, TNT, EMS, liner, etc.) By sea By air |
