Оригинальная Подлинная горелка Riello G5LC G10LC G20LC G5 G10 G20
US $486.00-$745.00
Промышленная одноступенчатая горелка на природном газе 58 кВт газовая сжиженном для духовки с порошковым
- Категория: Boiler Parts >>>
- Поставщик: Hebei,Yongchun,Heating,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 259.89 $* | 272.71 $* |
| Aug-18-2025 | 257.79 $* | 270.71 $* |
| Jul-18-2025 | 216.24 $* | 227.46 $* |
| Jun-18-2025 | 253.40 $* | 266.73 $* |
| May-18-2025 | 220.3 $* | 231.27 $* |
| Apr-18-2025 | 249.56 $* | 261.85 $* |
| Mar-18-2025 | 246.26 $* | 258.4 $* |
| Feb-18-2025 | 244.52 $* | 256.75 $* |
| Jan-18-2025 | 242.60 $* | 254.32 $* |
Характеристики

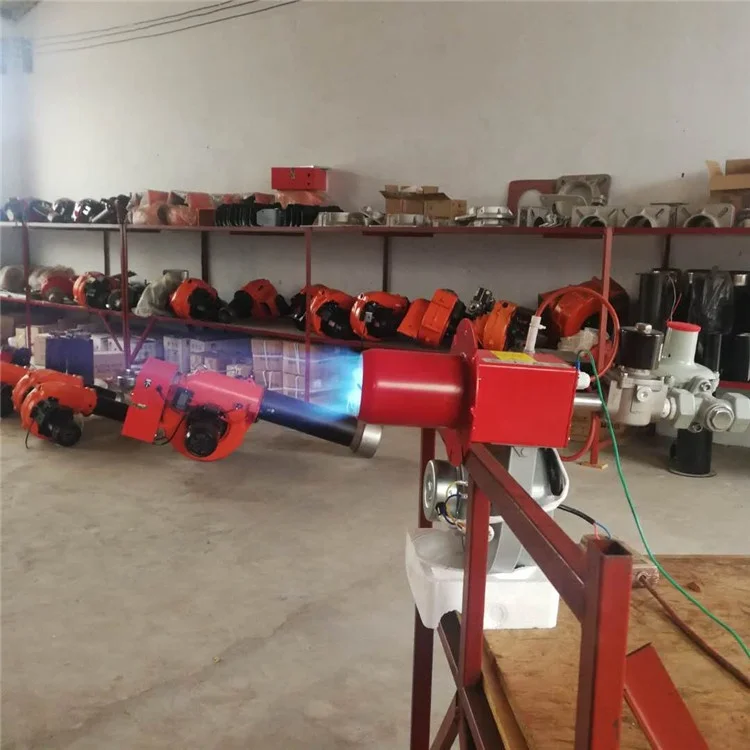

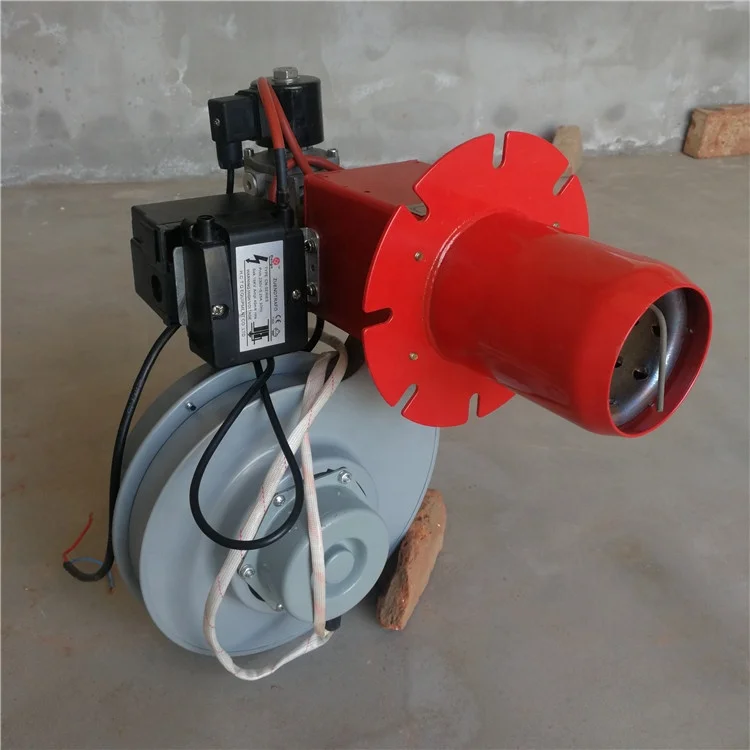

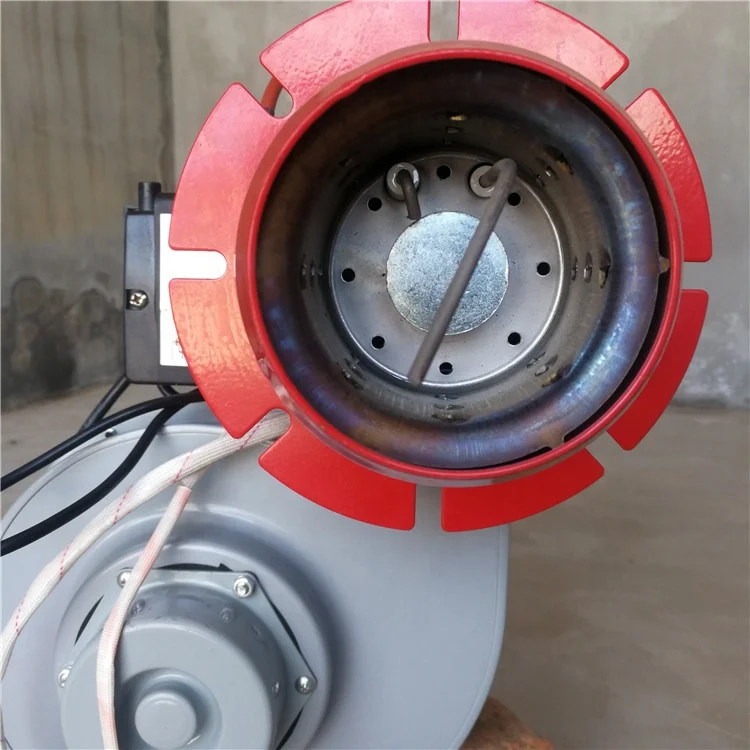

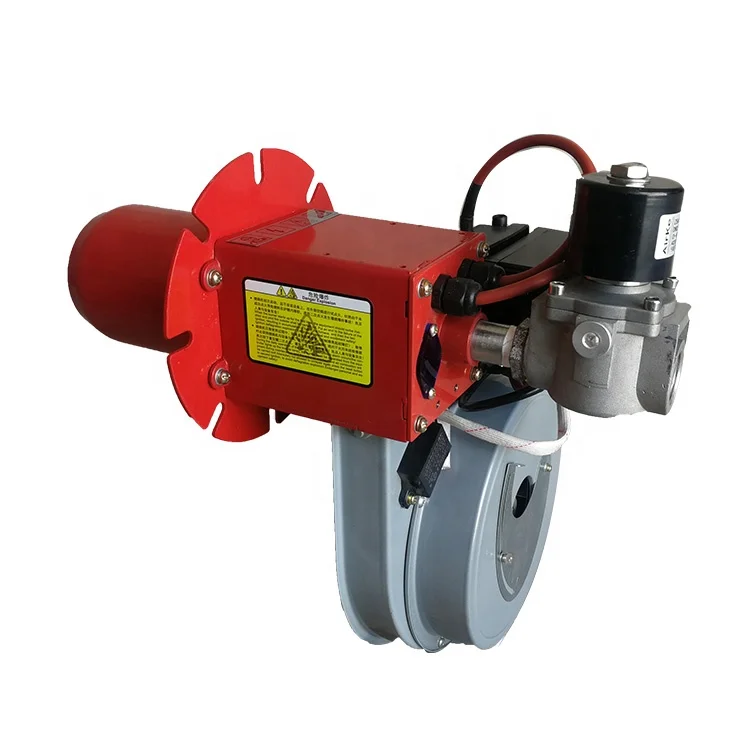

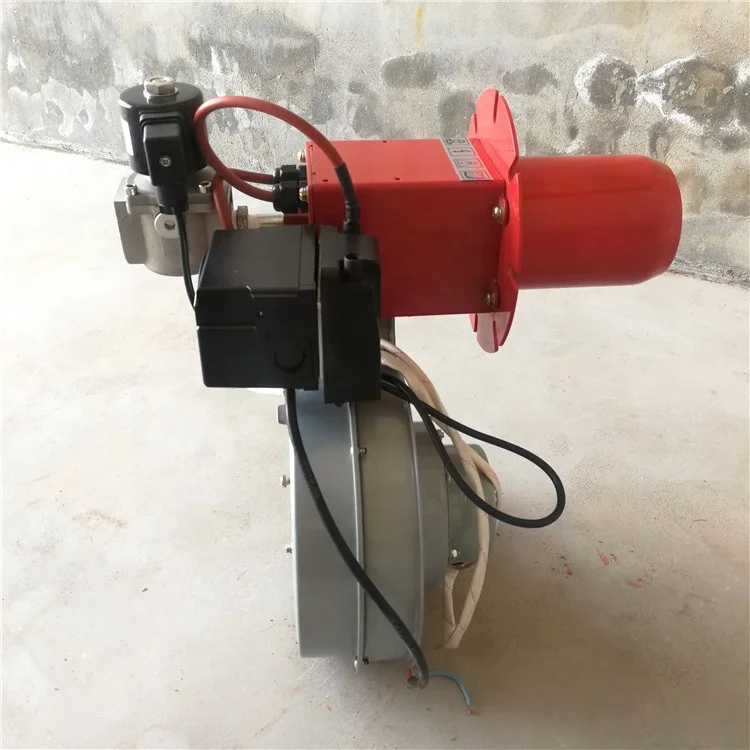

58kw Single Stage Fire Industrial Natural Gas Burner LPG Gas Burner For Powder Coating Oven
Product Description
| Technical Parameters | |||||||
| Model | JH-5-Q | JH-10-Q | JH-20-Q | JH-30-Q | JH-40-Q | JH-60-Q | |
| Output power | KW | 23-58 | 46-116 | 81-197 | 116-302 | 174-464 | 232-696 |
| 104Kcal/h | 2- | 4-10 | 7-20 | 10-30 | 15-40 | 20-60 | |
| Control mode | Fully automatic single stage flame control | Fully automatic two-stage flame control | |||||
| Applicable fuel | Nature gas | ||||||
| Fuel consumption | m³ | 5.9 | 11.8 | 23.5 | 35.3 | 47.1 | 70.6 |
| Adaptable pressure range | mbar | 30-50 | 50-150 | ||||
| Design fuel calorific value | Kcal/Nm³ | 35.53(8500Kcal/Nm³) | |||||
| Adapt to ambient temperature | ℃ | -15~60 | |||||
| Applicable power supply | AC220V/50Hz/1O | AC380V/50Hz/3O | |||||
| Motor power | KW | 0.08 | 0.18 | 0.18 | 0.37 | 0.75 | 1.1 |
| Safety Protection Level | IP | 55(The protection level can be improved according to the order requirement.) | |||||
| Flange Installation Form | Sliding adjustable flange | ||||||
| Fuel access port size | DN15 | DN15 | DN20 | DN20 | DN25 | DN40 | |
| Main Body Size of Burner (Length * Width * Height) | mm | 400*350*450 | 560*400*350 | 560*400*350 | 750*550*550 | 1150*760*500 | 1280*860*500 |
| Burner weight | kg | 6.1 | 15 | 15.7 | 21 | 44.5 | 64 |
Packaging & Shipping
Certifications
FAQ
1.Is your company a manufacturer or a distributor?
Answer: our company is a manufacturer with a complete sales, production, technology and after-sales service team.
2.What are the payment methods?
Answer: orders less than $500 can be remitted by Western Union, but only by international express, such as DHL, Fex, UPS, etc. large orders support T / T payment, and the final payment is settled before shipment.
