SPST с плоским верхом 4 Pin 12 мм Вт водостойкый LED мини пластиковые
- Категория: Push Button Switches >>>
- Поставщик: Zhejiang,Toowei,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 1.68 $* | 1.49 $* |
| Jul-16-2025 | 1.90 $* | 1.0 $* |
| Jun-16-2025 | 1.63 $* | 1.39 $* |
| May-16-2025 | 1.81 $* | 1.40 $* |
| Apr-16-2025 | 1.10 $* | 1.12 $* |
| Mar-16-2025 | 1.20 $* | 1.15 $* |
| Feb-16-2025 | 1.83 $* | 1.24 $* |
| Jan-16-2025 | 1.80 $* | 1.30 $* |
Характеристики
Products Description
A4126series waterproof push button switch, protection degree reach IP67, installation size is 12mm. According to the material, it has metal push button switch and plastic push button switch. All the switches has self-locking and momentary two different kinds. If equip with LED light, color can be customized based on the customer's request.
It widely used in beauty equipment, small yacht, lamps, medical equipment, military communication intelligent network equipment and the other instruments.
Product name | SPST Flat Top 4 Pin 12mm 12V Waterproof Mini Plastic Push Button Switch |
Part number | 4126.8117.38/4126.8217.38 |
Function | latching/momentary |
Installation size | 12mm |
Button top form | 3# top form |
Button color | green |
LED color | red |
Button Color Optional | Red, Black, Grey, Blue, Orange, Yellow, Green, White |
Light Color Optional | Red, Green, Yellow, Blue, White |
Shell material | Black plastic |

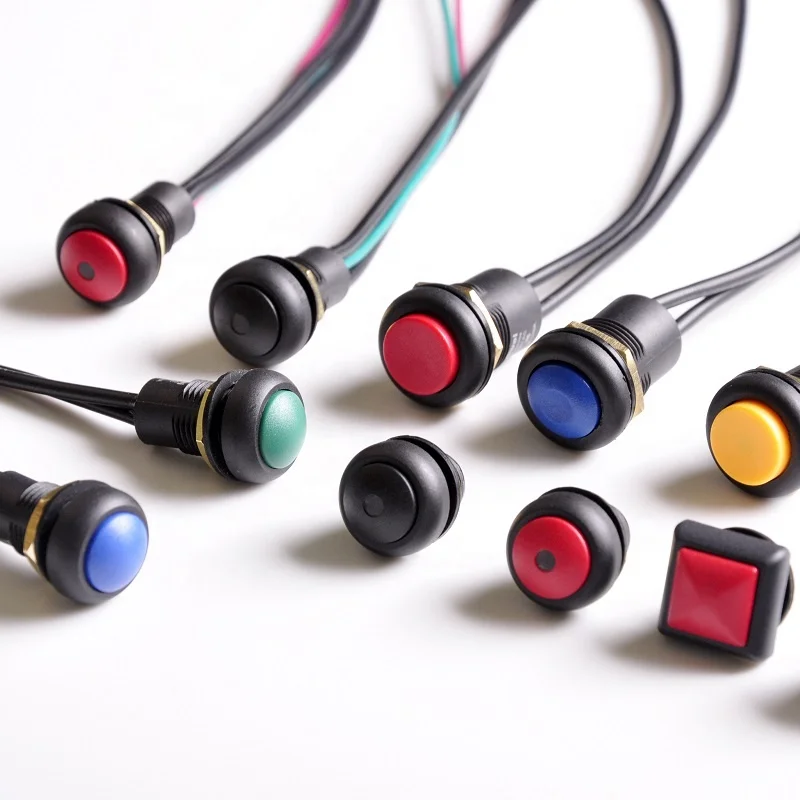

Details Images

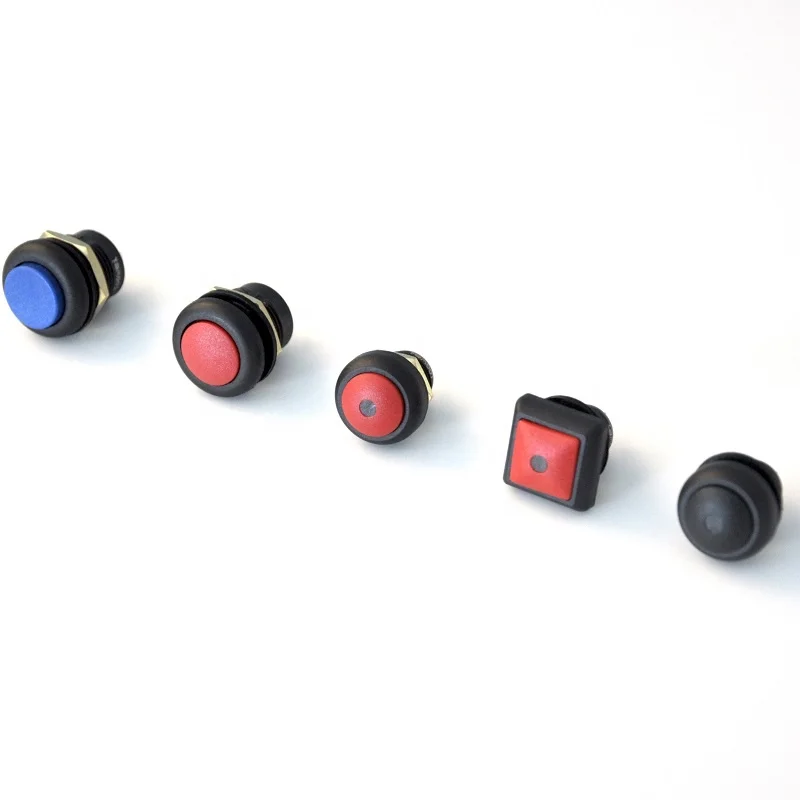

Four button shapes option
Two Terminal form option
Product Paramenters
2. Contact resistance ≤50m Ω
3. Rated current 3A, rated voltage 250VAC
4. Insulation resistance ≥100m Ω/min
5. Withstand voltage: AC 1000V(50~60hz)/min
6. Solderability: soldering iron 340°±5°/1-2s
7. Solder resistance: soldering iron 340°±5°/3-5s
8. Durability : Electrical life 50000 times, Mechanical life 100000 times
9. Protection degree: IP67
10. Base Material: Dupont Nylon PA66+20% glass fiber
11. Installation size: 12mm
12. Self-locking, momentary
