2022 Новый Диаметр 89 мм капсульный фильтр для
- Категория: Other Filter Supplies >>>
- Поставщик: Hangzhou,Tanvi,Filtering,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 21.4 $* | 22.92 $* |
| Aug-16-2025 | 21.18 $* | 22.13 $* |
| Jul-16-2025 | 18.81 $* | 19.45 $* |
| Jun-16-2025 | 21.7 $* | 22.16 $* |
| May-16-2025 | 18.21 $* | 19.96 $* |
| Apr-16-2025 | 21.8 $* | 22.7 $* |
| Mar-16-2025 | 20.49 $* | 21.82 $* |
| Feb-16-2025 | 20.62 $* | 21.19 $* |
| Jan-16-2025 | 20.80 $* | 21.41 $* |
Характеристики
Product Description

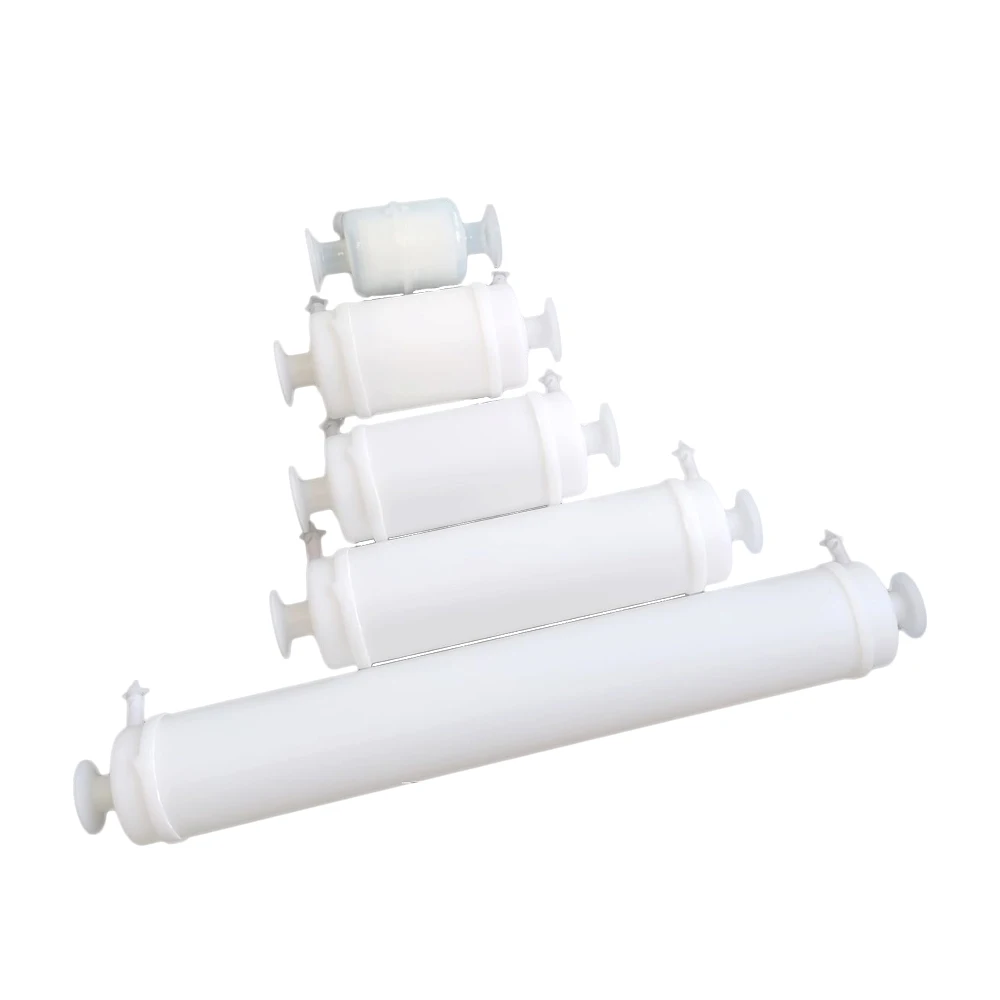

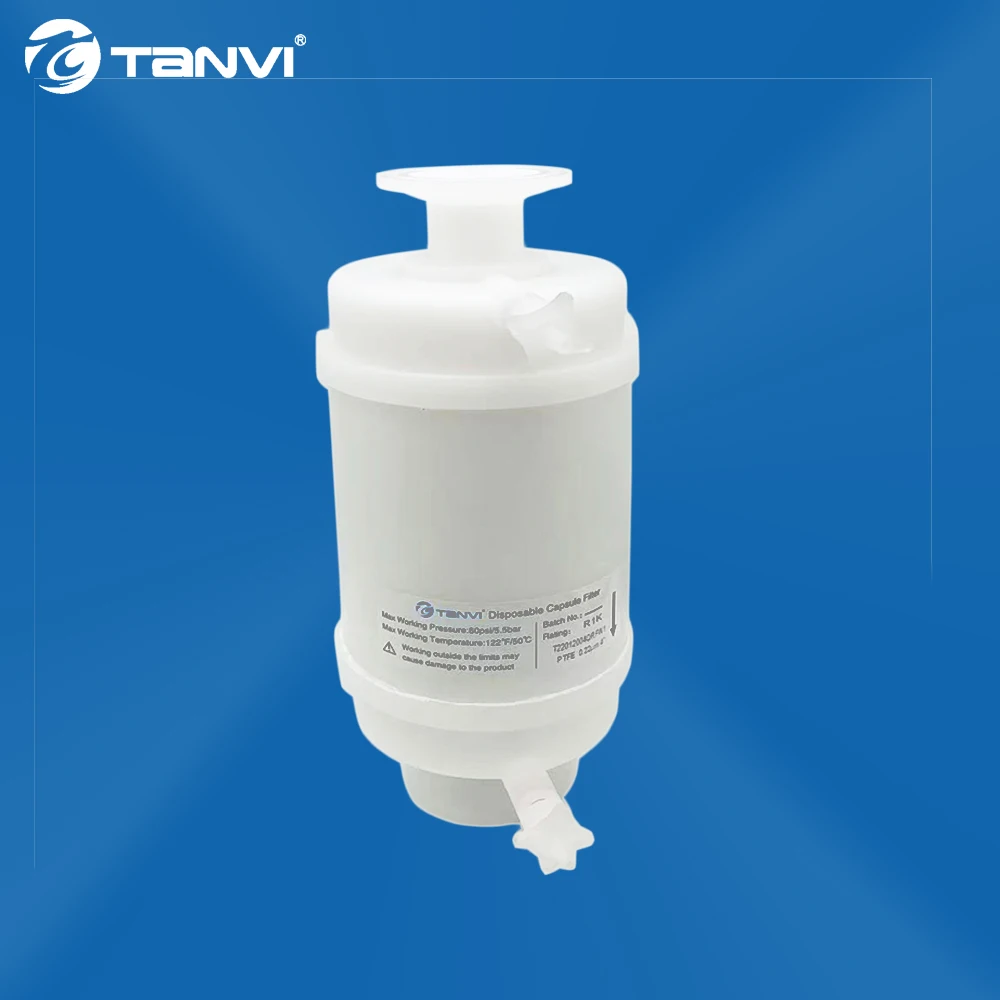

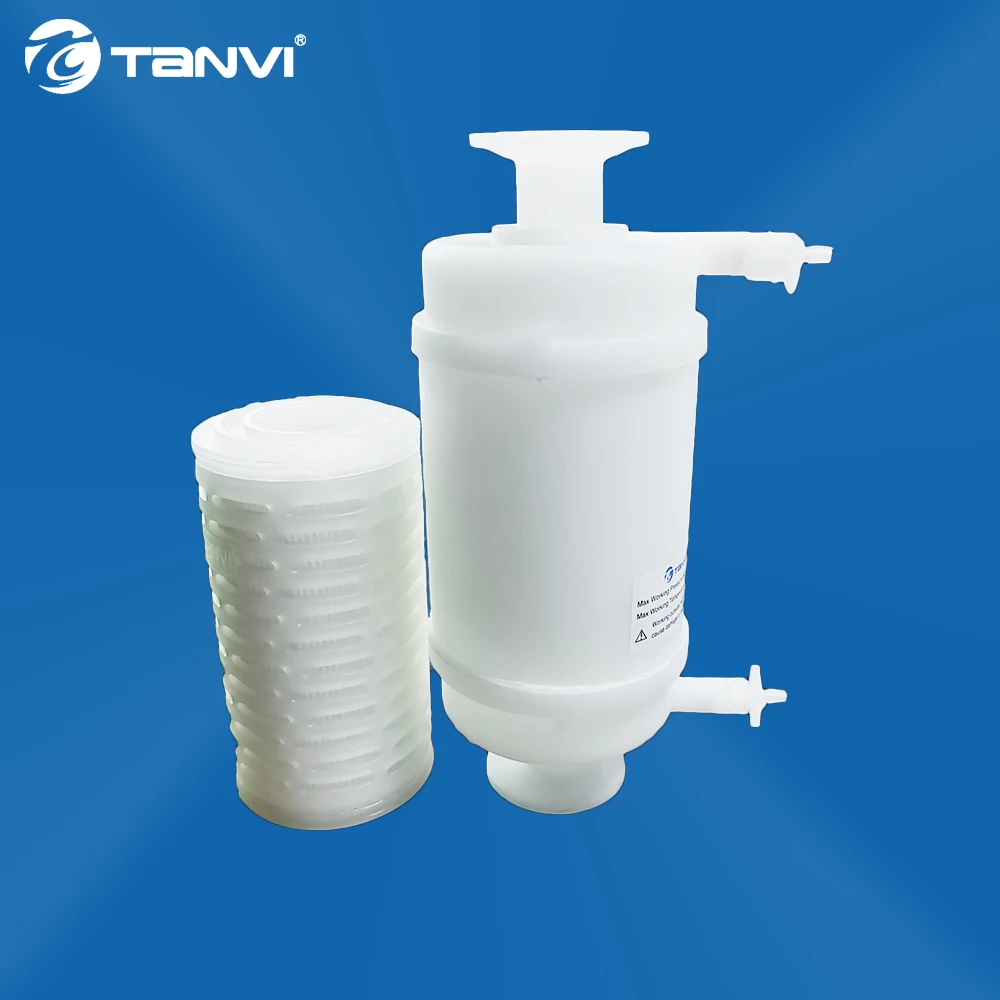

The Large Diameter Capsule Filter is a disposable filter unit fitted with a conventional 68mm diameter pleated filter element. Designed for final filtration and pre-filtration in the pharmaceutical, biotech, microelectronics, and food and beverage industries. The larger diameter allows it to provide larger filtration flow rates while meeting disposable filtration requirements. Compared with ordinary capsule filters, it has a larger filtering area, larger filtering flow, and longer service life. And the clamp interface is easy to connect with other equipment.
It can be used for sterile filtration of serum, tissue culture media, microbial growth media, and other viscous biological liquids in the pharmaceutical industry, as well as sterile tank venting. Also useful for filtration of metal and oxide CMP slurries, chemical rinse solutions, acids, bases, solvents, stripping solutions, deionized water, and storage tank vents in microelectronics manufacturing.
It can be used for sterile filtration of serum, tissue culture media, microbial growth media, and other viscous biological liquids in the pharmaceutical industry, as well as sterile tank venting. Also useful for filtration of metal and oxide CMP slurries, chemical rinse solutions, acids, bases, solvents, stripping solutions, deionized water, and storage tank vents in microelectronics manufacturing.
Features& Benefits
⚫ Integrated filter and filter element make replacement quick and easy while reducing operator contact with liquid
⚫ Equipped with regular diameter pleated filter element, easy to use and large total fluid flux
⚫ Minimum filtration area up to 0.3 square meters, high flow rate and long service life
⚫ Equipped with regular diameter pleated filter element, easy to use and large total fluid flux
⚫ Minimum filtration area up to 0.3 square meters, high flow rate and long service life
⚫ Optional lengths 5", 10", 20", 30", 40" for different flow requirements
⚫ A variety of membrane materials and rating are
available to meet various filtration needs
available to meet various filtration needs
⚫ Sanitary clamp joint, easy to detect, easy to connect with other equipment,
⚫ Compact structure, sanitary exhaust and drain valve, liquid residual
Specifications
Filter media: Polypropylene, PES, nylon, PTFE and glass-fiber, PVDF, ACF
Housing material: Polypropylene
Housing color: Opaque black and natural
Housing color: Opaque black and natural
Micron rating : 0.5μm, 1μm, 3μm, 5μm, 10μm, 20μm, 40μm and 60μm (absolute)
(additional ratings are available on request)
Max. Operating Temp: 60°C@ 2.1bar
Max. Operating Pressure: 4.1bar at ambient temp.
Max. Forward Differential Pressure: Liquid: 5.5 bar (80psi) at 77°F/25°C ● Gas: 4.1 bar (60psi) at 77°F/25°C
Min. Burst Pressure: 8.3 bar (120psi) at 77°F/25°C
Max. Forward Differential Pressure: 5 bar (72psi) at 68°F/20°C
Max. Reverse Differential Pressure: 3.0 bar (44psi) at 68°F/20°C
Max. Operating Temperature: 140°F/60°C
Max. Operating Pressure: 4.1bar at ambient temp.
Max. Forward Differential Pressure: Liquid: 5.5 bar (80psi) at 77°F/25°C ● Gas: 4.1 bar (60psi) at 77°F/25°C
Min. Burst Pressure: 8.3 bar (120psi) at 77°F/25°C
Max. Forward Differential Pressure: 5 bar (72psi) at 68°F/20°C
Max. Reverse Differential Pressure: 3.0 bar (44psi) at 68°F/20°C
Max. Operating Temperature: 140°F/60°C
Applications
▷ Cleaning/rinsing solutions
▷ Cosmetics and personal care products
▷ Decolorizing and oil clarification
▷ Ground water samples before dissolved metal analysis
▷ Cosmetics and personal care products
▷ Decolorizing and oil clarification
▷ Ground water samples before dissolved metal analysis
▷ Food and beverage
▷ Immunologicals
▷ Inks and pigments
▷ Instrument outlet exhausts
▷ Inks and pigments
▷ Instrument outlet exhausts
▷Particle counting
▷ Particulate removal from gases
▷ Removal of noxious odors, oil mists, and contaminants
▷ Serum pre-filtration
▷ Tissue culture media
▷ Vacuum pump protection
▷ Venting
▷ Viral suspensions
▷ Water, chemical, and reagent purification
Certifications
Related Products
Company Information
Hangzhou Tanvi Filtering Equipment Co., Ltd is a manufacturer of micro-filtration products. We offer a broad selection of high-performance filtration products for pharmaceutical, microelectronics, food and beverage, fine chemicals and water. As 11-year development, we are experienced in micro-filtration field. Not only manufacturing micro-filtration products, but also providing designing and solution to our worldwide customers.
Tanvi is located in a beautiful east city of China-Hangzhou, our factory covers 5000 squares meters, including production workshop, washing workshop, testing workshop, packing workshop and laboratory. All of our production and test facility are up-to-date. Besides, we have experienced technical team to provide solutions, installation direction and operating service,after-sales service according to the requirement of the customers.
Our goal is to deliver stable quality products on time while responding to the needs of customers with premier customer service and provide customers cost-effective products with reasonable prices.
Tanvi is located in a beautiful east city of China-Hangzhou, our factory covers 5000 squares meters, including production workshop, washing workshop, testing workshop, packing workshop and laboratory. All of our production and test facility are up-to-date. Besides, we have experienced technical team to provide solutions, installation direction and operating service,after-sales service according to the requirement of the customers.
Our goal is to deliver stable quality products on time while responding to the needs of customers with premier customer service and provide customers cost-effective products with reasonable prices.
