Product Overview

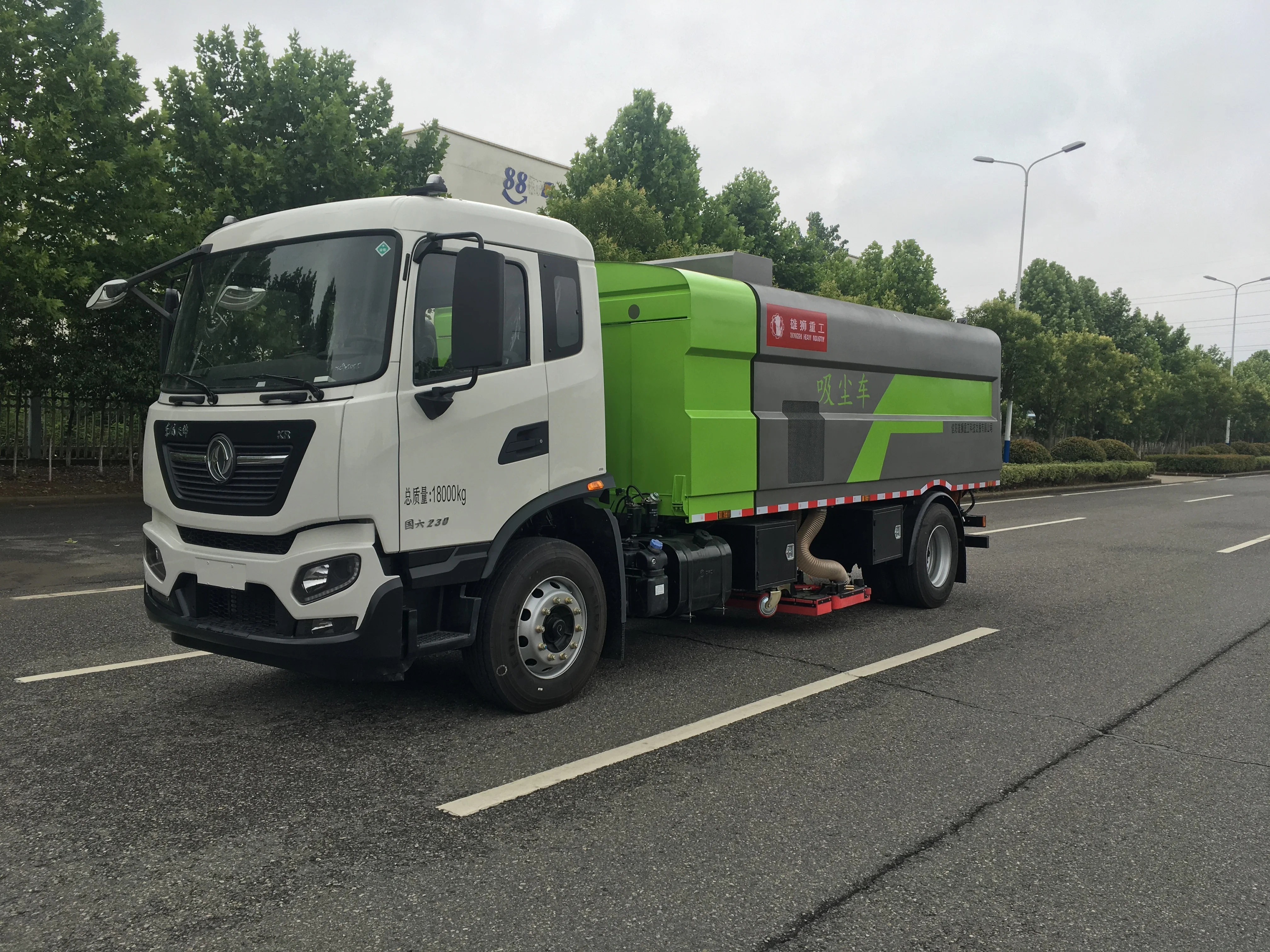

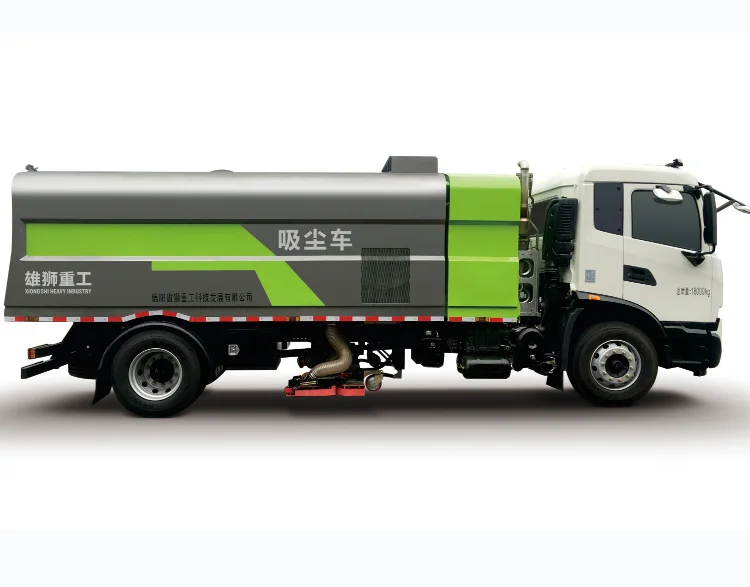

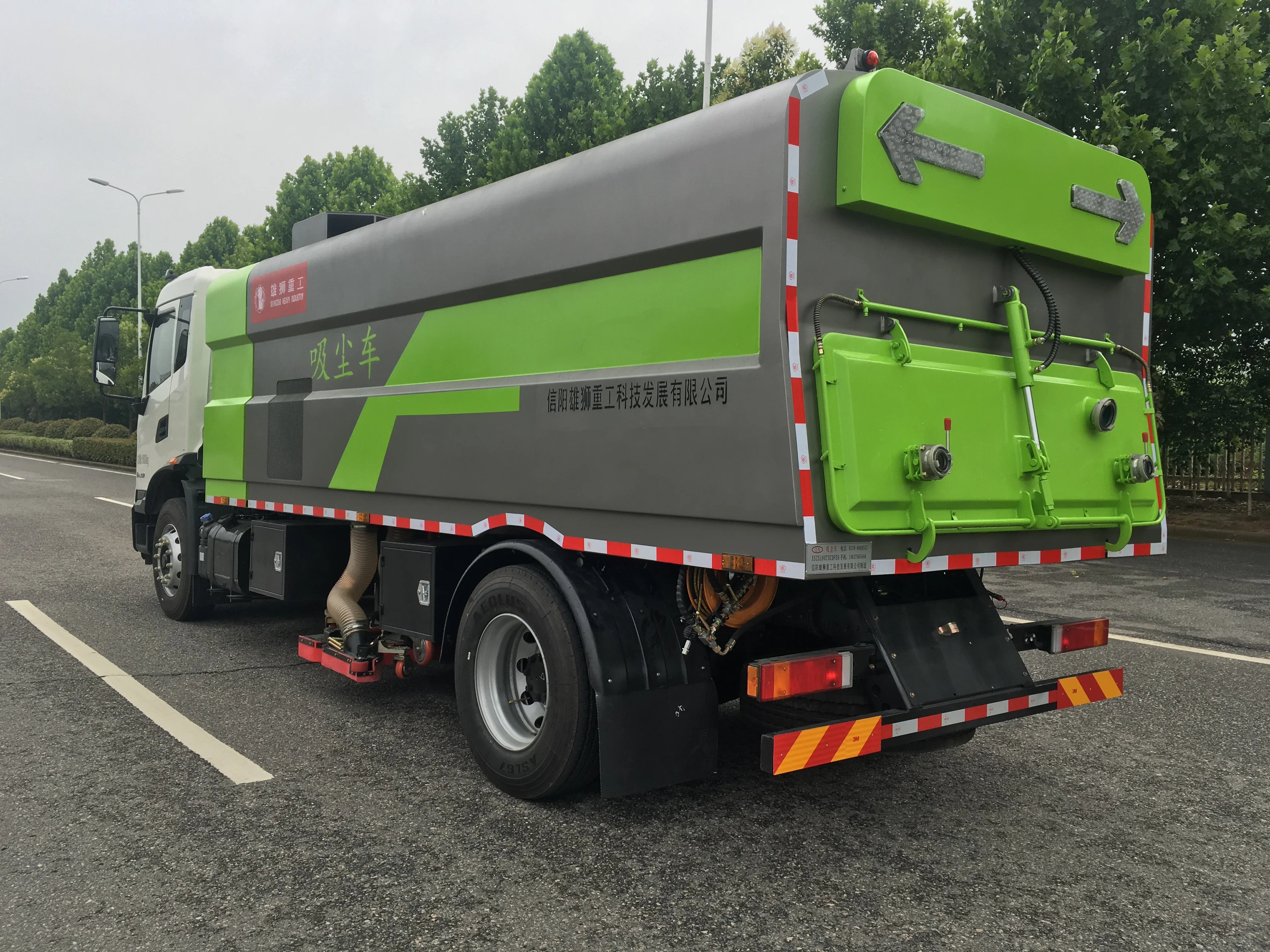

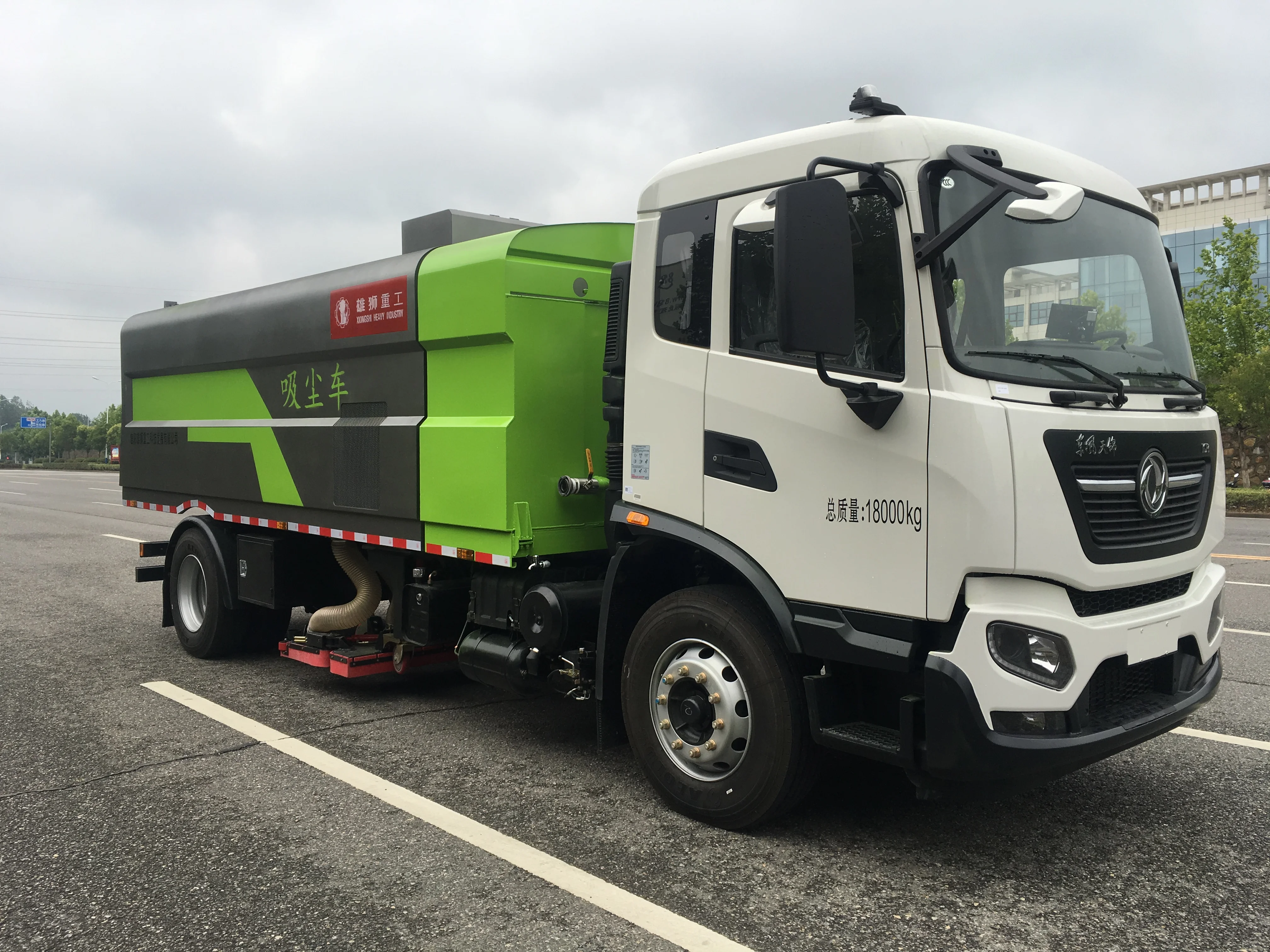

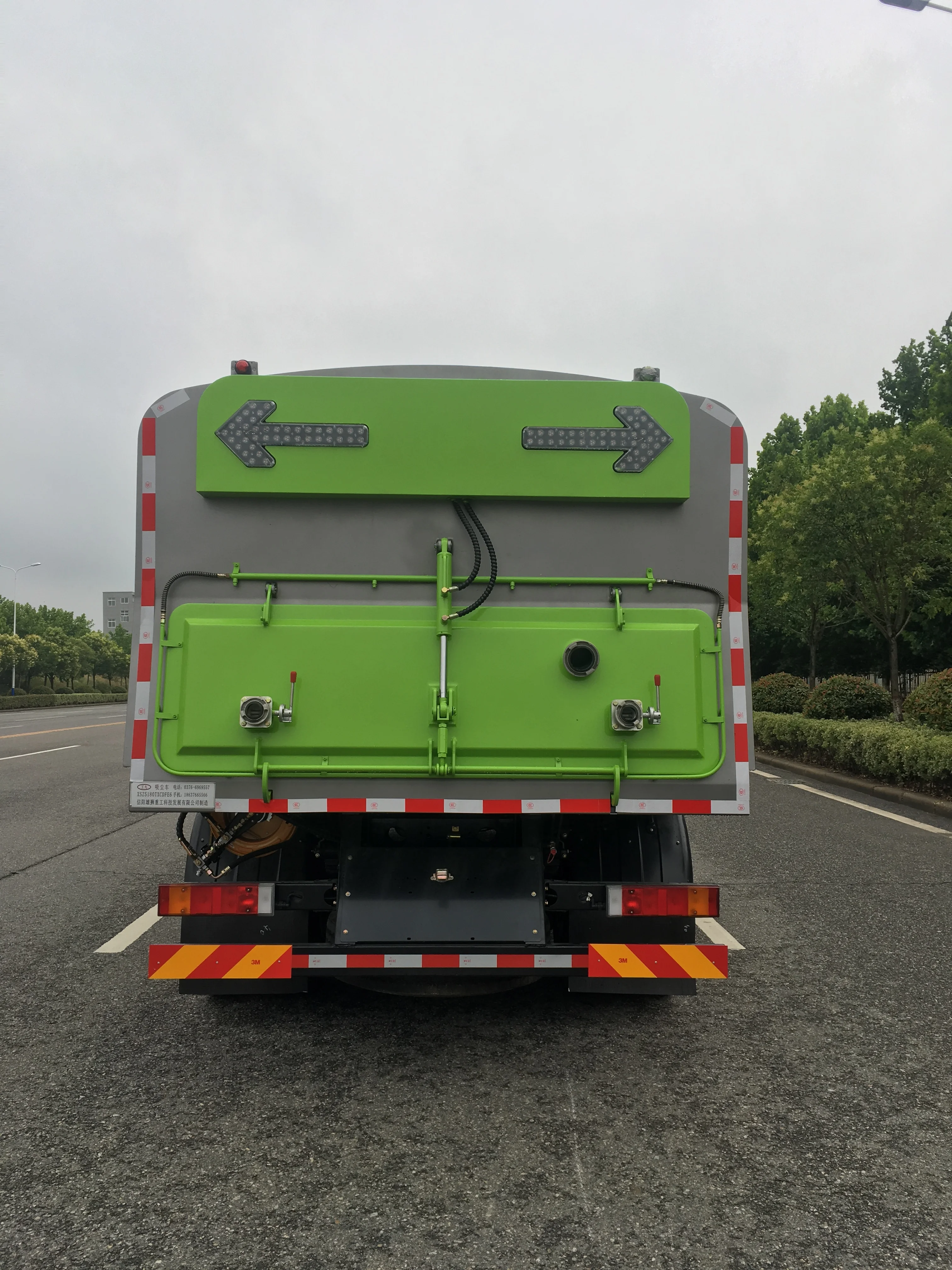

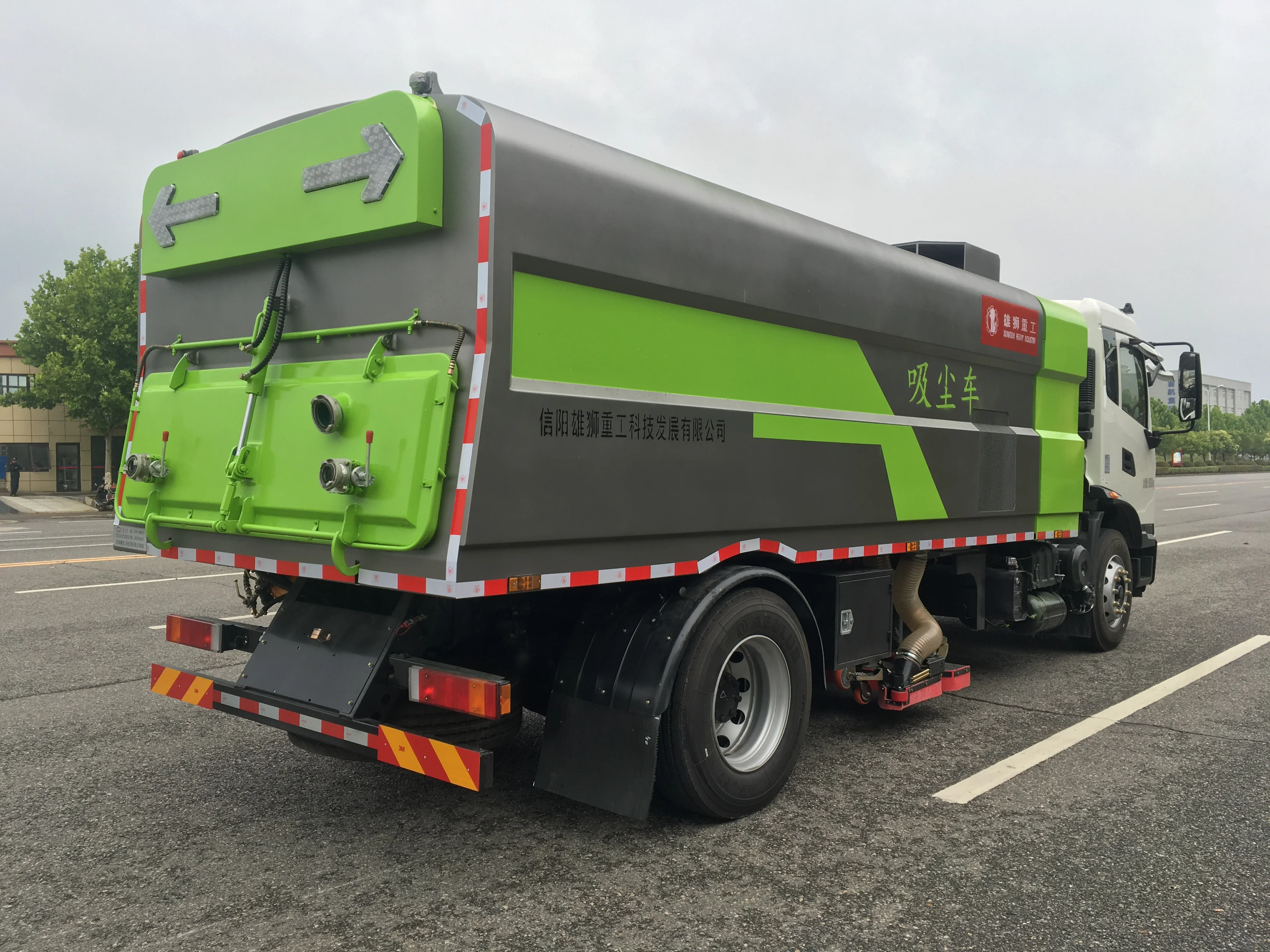

Dongfeng New Product China Vacuum Sweeper Trucks Factory Sales XSZ5180TXCDFE6
Product Characteristic:
1. Use auxiliary engine to drive fan and other working devices, use the working principle of vacuum dust extraction, suction and sweep combination, dry dust removal, full filter air discharge to clean the road surface, electric, liquid, gas and manual control mode, hydraulic lifting sweep plate and dump unloading.2. Automatic pulse cleaning function, the auxiliary machine with pumping pump and volume air tank, when reaching a certain air pressure, open the pulse backblowing device, backblowing vibration of the box filter barrel, so that the filter barrel is not easy to block, effectively improve the suction, so as to achieve better cleaning effect.
3 computer PLC control, adjustable pulse interval time. Manual button-down hydraulic system of cab drives the lifting of main sucker, the driving of left and right auxiliary sucker, pulse cleaning function, the opening and closing of the back door of dustbin, dustbin tilt reset and other mechanical actions.
4. The hydraulic pipeline adopts the sealing structure form of German standard technology, which has good anti-vibration
performance and high sealing reliability, and can achieve the sealing effect without leakage.
5. High quality solenoid valve set, key electronic control components using imported electrical switch, high reliability, long
service life.
6. Hydraulic components adopt integrated superposition design, electro-hydraulic centralized control of cab, easy to operate.
7. Equipped with manual pump emergency system, it can lift the dustbin even when the auxiliary engine stops, which is convenient for maintenance.
8. The rotation between the auxiliary engine and the fan is provided with a pneumatic controlled automobile clutch device. The device can ensure the automatic separation of the fan from the auxiliary engine when the auxiliary engine is stopped, simplify the operation, and improve the reliability and service life of the auxiliary engine.
9. Dustbin corrosion resistance, large volume, no skeleton, continuous cleaning operation for a long time, easy to dump garbage, easy to clean.
10. Left and right independent or linkage work design, ensure that in the use of the vehicle skills independent right sweep or do sweep, so that the working mechanism near the fast lane side does not extend out of the car body, reduce road occupation, and can sweep left and right at the same time to improve the cleaning width.
11. The rise and fall of the dustbin can be separately controlled by the main and auxiliary engines. The rise and fall of the
dustbin, suction nozzle and sweep device can also be controlled by manual operation of the electric button at the rear of the vehicle, which is convenient for maintenance.
12. Fully floating suction nozzle, can be levelled automatically with the ground condition, large cleaning capacity, cleaning
speed.
PRODUCT SPECIFICATIONS
No | Item | Data | Item | Data |
1 | Dimensions(mm) | 8530*2500*3090 | Approach Angle/Departure Angle | 17°/15° |
2 | Chassis Engine Power | 169KW | Tank Capacity | 8m³ |
3 | Gross Mass(KG) | 18000 | Water Tank Volume | 2m³ |
4 | Unladen Mass(KG) | 11080 | Cleaning Width(mm) | 3500 |
5 | Rated Contained Mass(KG) | 6725 | Cleaning Capacity | 87500m²/h |
6 | Wheelbase(mm) | 5300 | Max Suction Particle Size(mm) | 110 |
7 | Max Speed(km/h) | 89 | Cleaning Efficiency | ≥96% |
8 | Working Speed(km/h) | 3-20 | Cleaning Speed(km/h) | 3.5-15 |
9 | Min Diameter Of Turning Circle | 18m | Max Unloading Angle Of Dustbin | ≥45° |
10 | Overhang F/R(mm) | 1400/1830 |
