Чистое серебро провода 9999, акустический кабель провод
US $0.85-$1.20
Супергибкий Электрический силиконовый кабель из луженой меди красного и черного
- Категория: Wires, Cables & Cable Assemblies >>>
- Поставщик: Shenzhen,E-Fire,Technology,Development,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 67.74 $* | 68.48 $* |
| Jul-16-2025 | 55.53 $* | 56.18 $* |
| Jun-16-2025 | 66.14 $* | 67.55 $* |
| May-16-2025 | 66.49 $* | 67.26 $* |
| Apr-16-2025 | 52.5 $* | 53.30 $* |
| Mar-16-2025 | 65.43 $* | 66.57 $* |
| Feb-16-2025 | 64.69 $* | 65.28 $* |
| Jan-16-2025 | 64.50 $* | 65.32 $* |
Характеристики
Product Description
You could buy full roll or buy meters

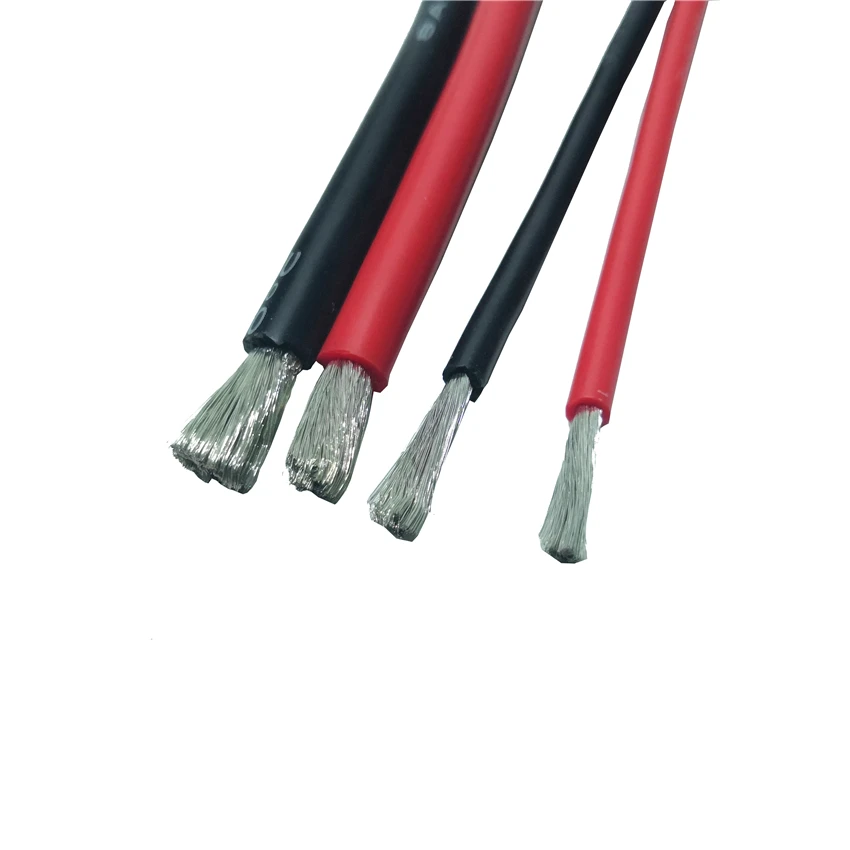

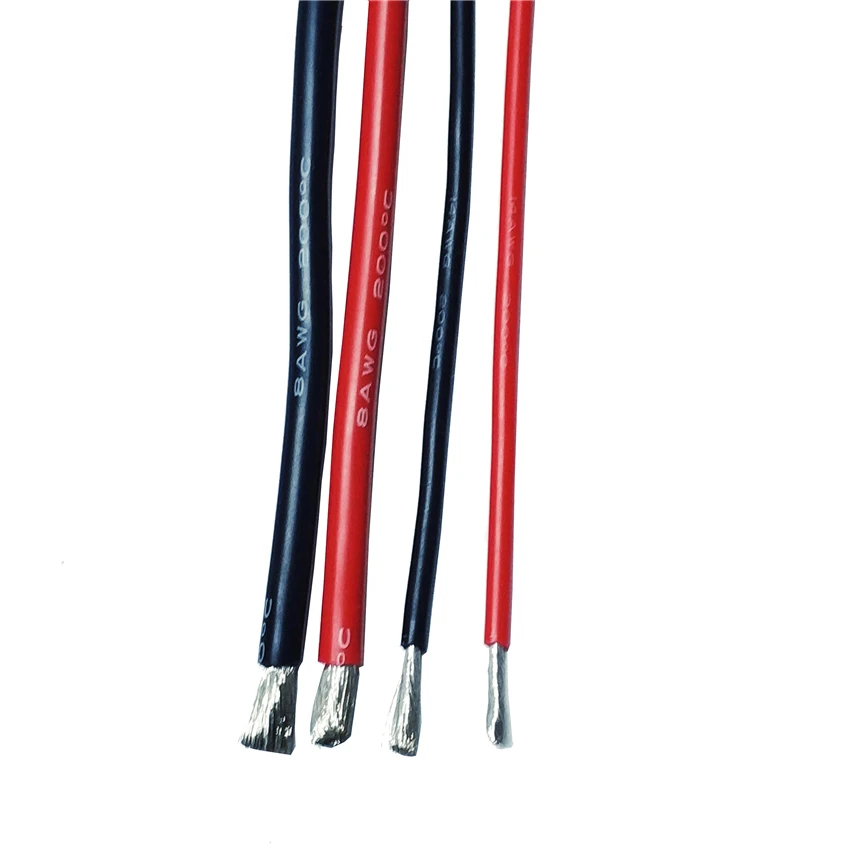

Model Number: 16AWG Silicone Wire

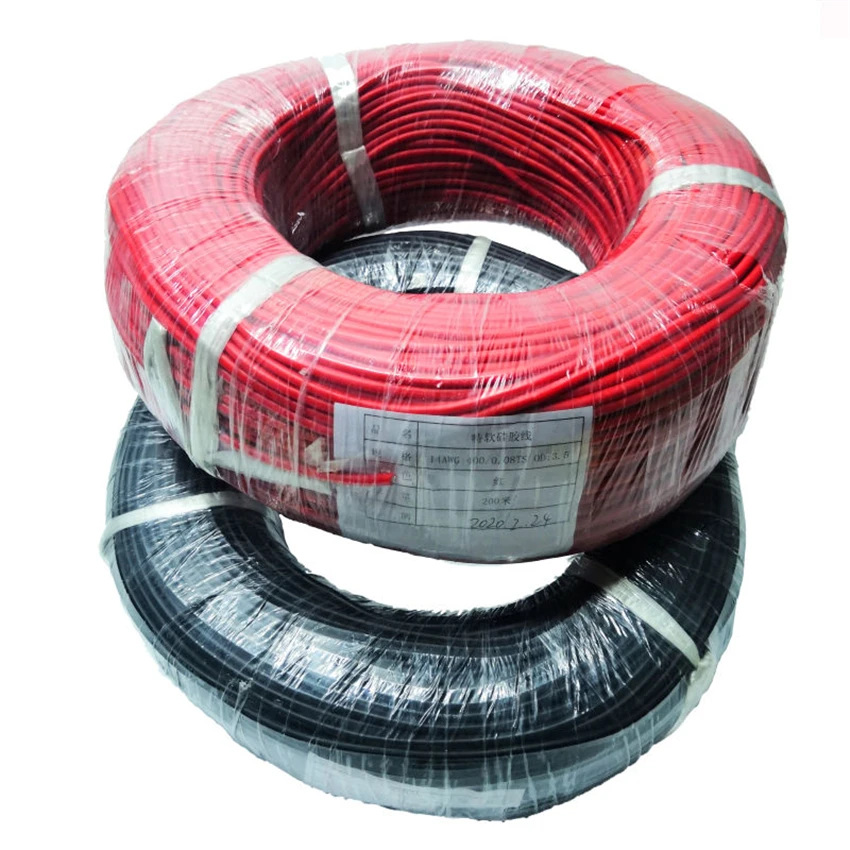

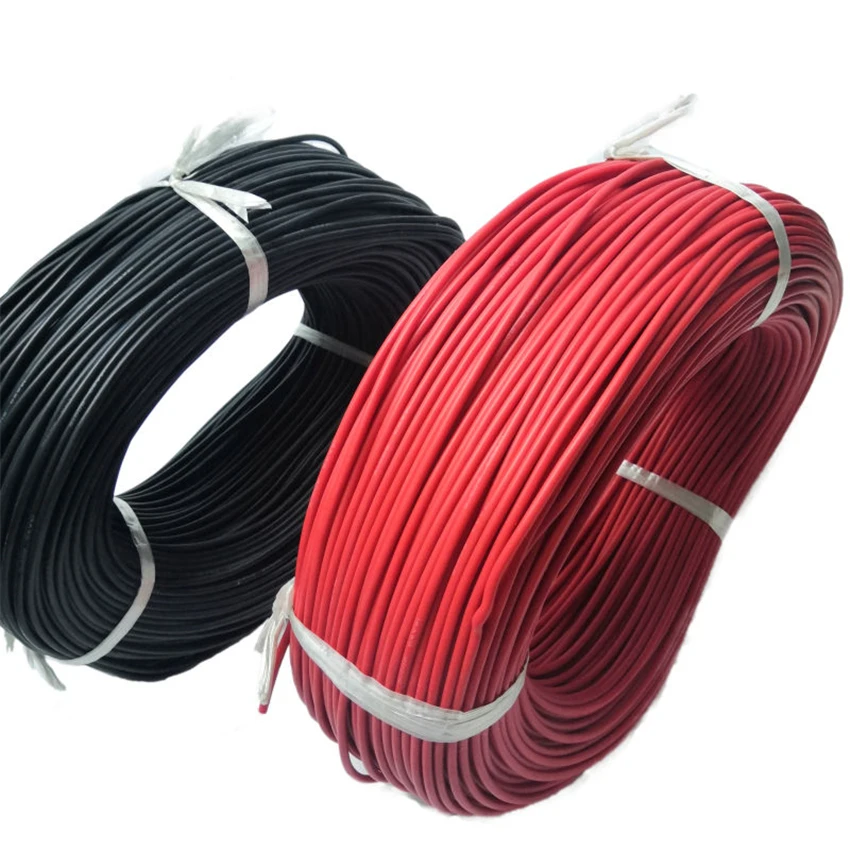

Packing:200Meter / Roll
Net Weight:4.25kg/Roll
Color:Red/Black
Rated voltage:600V Rated temperature:-60 to 200 degree
Stranded Tinned copper, 252/0.08TS OD:3.0mm
Insulator:Silicone Rubber
Application:Highly Efficient - Super Low Impedance, High Temperature Resistant Silicone Wire
We have Red and Black two colors available, Please tell which color do you need when order
Specification:
Model Number: 16AWG Silicone Wire
Packing:200Meter / Roll
Net Weight:4.25kg/Roll
Color:Red/Black
Rated voltage:600V Rated temperature:-60 to 200 degree
Stranded Tinned copper, 252/0.08TS OD:3.0mm
Insulator:Silicone Rubber
Application:Highly Efficient - Super Low Impedance, High Temperature Resistant Silicone Wire
Specifications (AWG) | Copper wire shares (compos.NO./mm) | Insulation thickness (mm) | Diameter (mm) | Overall diameter (mm) | Conductor resistance (Ohm/km) | Sectional area (mm2) | Carrying current (ampere) |
6AWG | 3200/0.08mm | 1.65 | 5.2 | 8.5 | 1.21 | 16.08 | 300 |
8AWG | 1650/0.08mm | 1.2 | 4.4 | 6.3 | 4.1 | 8.29 | 190 |
10AWG | 1050/0.08mm | 5.28 | 2.92 | 5.5 | 6.3 | 5.3 | 140 |
12AWG | 680/0.08mm | 3.42 | 2.41 | 4.5 | 9.8 | 3.4 | 88.4 |
14AWG | 400/0.08mm | 2 | 1.85 | 3.5 | 15.6 | 2.07 | 55.6 |
16AWG | 252/0.08mm | 1.3 | 1.47 | 3 | 24.4 | 1.27 | 35 |
18AWG | 150/0.08mm | 0.75 | 1.13 | 2.3 | 39.5 | 0.75 | 22 |
20AWG | 100/0.08mm | 0.5 | 0.92 | 1.8 | 62.5 | 0.5 | 13.87 |
22AWG | 60/0.08mm | 0.3 | 0.72 | 1.7 | 88.6 | 0.33 | 8.73 |
24AWG | 40/0.08mm | 0.2 | 0.58 | 1.6 | 97.6 | 0.2 | 5 |
26AWG | 30/0.08mm | 0.15 | 0.44 | 1.5 | 123 | 0.14 | 3.5 |
28AWG | 16/0.08mm | 0.08 | 0.32 | 1.2 | 227.2 | 0.08 | 1.25 |
30AWG | 11/0.08mm | 0 .055 | 0.3 | 0.8 | 331 | 0.06 | 0.8 |
