В наличии Deye Гибридный инвертор 8kw 10kw 12kw 3 фазы
- Категория: >>>
- Поставщик: Luxsun,Tek,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 2142.35 $* | 2249.35 $* |
| Aug-16-2025 | 2124.44 $* | 2230.52 $* |
| Jul-16-2025 | 1782.33 $* | 1871.42 $* |
| Jun-16-2025 | 2088.77 $* | 2192.54 $* |
| May-16-2025 | 1818.47 $* | 1909.67 $* |
| Apr-16-2025 | 2052.29 $* | 2155.21 $* |
| Mar-16-2025 | 2034.39 $* | 2136.99 $* |
| Feb-16-2025 | 2016.84 $* | 2117.46 $* |
| Jan-16-2025 | 1998.60 $* | 2098.75 $* |
Характеристики
Product Description
Specification
Model | Sun-8K-SG04LP3 | SUN-10K-SG04LP3 | SUN-12K-SG04LP3 | |||
Battery Input Data | ||||||
Battery Type | Lead-acid or Li-Ion | |||||
Battery Voltage Range (V) | 40-60V | |||||
Max. Charging Current (A) | 190A | 210A | 240A | |||
Max. Discharging Current (A) | 190A | 210A | 240A | |||
Charging Curve | 3 Stages / Equalization | |||||
External Temperature Sensor | Optional | |||||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |||||
PV String Input Data | ||||||
Max. DC Input Power (W) | 10400W | 13000W | 15600W | |||
PV Input Voltage (V) | 550V(150V~800V) | |||||
MPPT Range (V) | 200V-650V | |||||
Start-up Voltage (V) | 160 V | |||||
PV Input Current (A) | 13A+13A | 26A+13A | 26A+13A | |||
No.of MPPT Trackers | 2 | |||||
No.of Strings Per MPPT Tracker | 1+1 | 2+1 | 2+1 | |||
AC Output Data | ||||||
Rated AC Output and UPS Power (W) | 8000W | 10000W | 12000W | |||
Max. AC Output Power (W) | 8800W | 11000W | 13200W | |||
Peak Power (off grid) | 2 times of rated power, 10 S | |||||
AC Output Rated Current (A) | 12A | 15A | 18A | |||
Max. AC Current (A) | 18A | 23A | 27A | |||
Max. Continuous AC Passthrough (A) | 50A | |||||
Output Frequency and Voltage | 50/60HZ； 230/400Vac (Three phase) | |||||
Grid Type | Three Phase | |||||
Current Harmonic Distortion | THD<3% (Linear load<1.5%) | |||||
Efficiency | ||||||
Max. Efficiency | 97.60% | |||||
Euro Efficiency | 97.00% | |||||
MPPT Efficiency | 99.90% | |||||
Protection | ||||||
PV Input Lightning Protection | Integrated | |||||
Anti-islanding Protection | Integrated | |||||
PV String Input Reverse Polarity Protection | Integrated | |||||
Insulation Resistor Detection | Integrated | |||||
Residual Current Monitoring Unit | Integrated | |||||
Output Over Current Protection | Integrated | |||||
Output Shorted Protection | Integrated | |||||
Output Over Voltage Protection | Integrated | |||||
Surge protection | DC Type II/ACType II | |||||
Certifications and Standards | ||||||
Grid Regulation | IEC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1 | |||||
Safety EMC / Standard | IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11,1EC61000-3-12 | |||||
General Data | ||||||
Operating Temperature Range (°C) | -25~60°C, >45°C Derating | |||||
Cooling | Smart cooling | |||||
Noise (dB) | <30 dB | |||||
Communication with BMS | RS485; CAN | |||||
Weight (kg) | 36.8 | |||||
Size (mm) | 422Wx658Hx281D | |||||
Protection Degree | IP65 | |||||
Installation Style | Wall-mounted | |||||
Warranty | 5 years | |||||
Packing & Delivery
Details Images

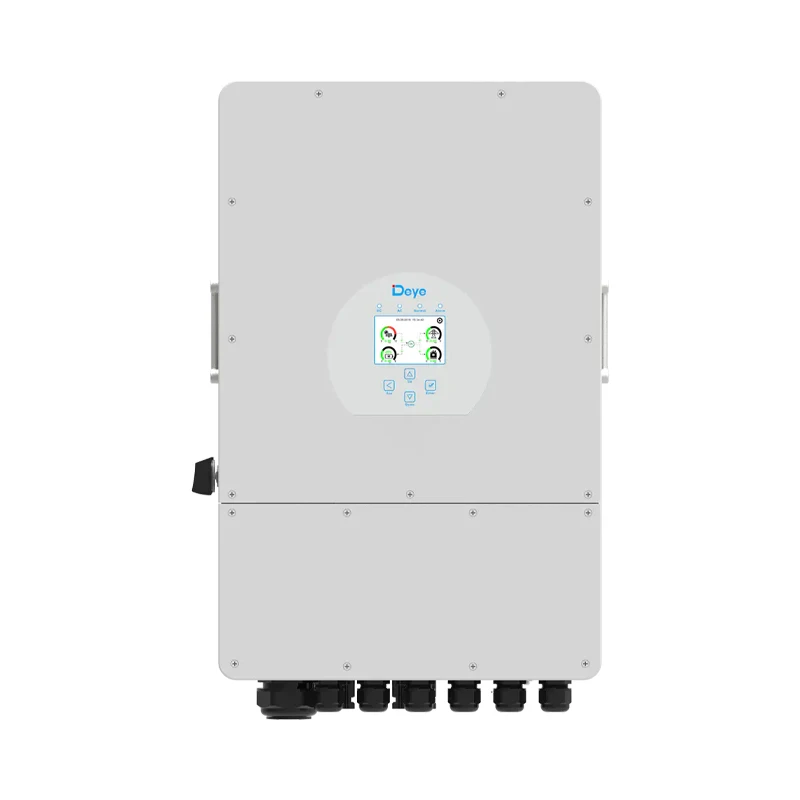

Deye Three Phase Hybrid Inverter
SUN-8/10/12K-SG01LP3 | 8-12KW | Three Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery SUN 8/10/12K-SG is brand new three phase hybrid inverter with low battery voltage 48V, ensuring system safe and reliable.
With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment.
It supports three phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remotely control, x1DRM port, which makes the system smart and flexible.
Global Projects
Why Choose Deye Inverter
Deye SOLAR inverters have been installed in more than 60 countries (e.g. Australia, Brazil, India, the UK, Germany, Italy,
Belgium, Spain, Netherland, France, Vietnam, South Africa, Pakistan, Japan, Korea, China etc.) with currently 9 own subsidiaries in Shenzhen, Wuxi, Dongguan, Xinyang, Australia, India, Germany, UK and Italy
Your Best Choice For AC Storage Hybrid Solutions and String Inverters
All Deye SOLAR inverters can be found in PV Solar system All Deye SOLAR inverters and distributors are insured by US CHUBB Insurance corporation company
All Deye SOLAR inverters are equipped with Standard WiFi communication
Deye SOLAR inverters are equipped with 25-year data storage capability (Internal SD Card)
Belgium, Spain, Netherland, France, Vietnam, South Africa, Pakistan, Japan, Korea, China etc.) with currently 9 own subsidiaries in Shenzhen, Wuxi, Dongguan, Xinyang, Australia, India, Germany, UK and Italy
Your Best Choice For AC Storage Hybrid Solutions and String Inverters
All Deye SOLAR inverters can be found in PV Solar system All Deye SOLAR inverters and distributors are insured by US CHUBB Insurance corporation company
All Deye SOLAR inverters are equipped with Standard WiFi communication
Deye SOLAR inverters are equipped with 25-year data storage capability (Internal SD Card)
Payment term
