Хорошая производительность 47 (Европа) m Автомобильная бетоно мешательных насосов 47X-5RZ с

Хорошая производительность 47 (Европа) m Автомобильная бетоно мешательных насосов 47X-5RZ с

Категория: Concrete Pumps >>>
Поставщик: Sinomada,Heavy,Industry,(Changsha),Co.,Ltd.

Цена:175 000,00 $ - 196 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	208250.29 $*	218663.24 $*
Aug-19-2025	206500.35 $*	216825.17 $*
Jul-19-2025	173250.91 $*	181913.73 $*
Jun-19-2025	203000.59 $*	213150.27 $*
May-19-2025	176750.52 $*	185588.11 $*
Apr-19-2025	199500.77 $*	209475.86 $*
Mar-19-2025	197750.56 $*	207638.39 $*
Feb-19-2025	196000.82 $*	205800.83 $*
Jan-19-2025	194250.83 $*	203963.30 $*

Характеристики

Products Description

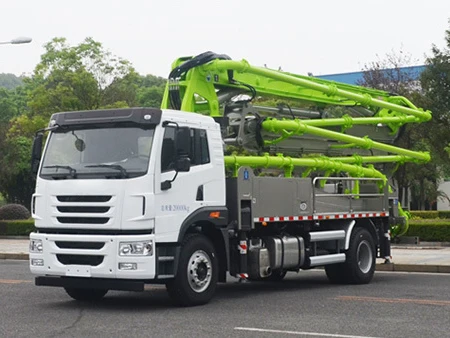

Truck Mounted Pumps 38X-5RZ-2

• Compact in design. If you want a truck pump with 38m boom working in narrow space, you can choose 38X-5RZ on a 2 axles truck.

• Dual-function. Max. pressure is up to 150 bar, so it can be used as a city pump.

• Boom intelligent damping technology. Reducing the impacting vibration of booms and makes operate more stably, reliably and safely.
• Accurate pumping control technology(APC):Great leap of pumping accuracy and adaptability, improving pump efficiency.
•Adaptive concrete material pumping technology: Specially designed for poor concrete with easy segregation and big viscosity, and auto-adaptive pumping mode, reducing the block rate by more than 50%.
•Full self-diagnosis before, after and during pumping to ensure working safely.

Details Images

Boom intelligent damping

Accurate pumping control

Adaptive concrete pumping

Product Paramenters

Model			Unit	38X-5RZ-2
Pump Unit	Maximum theorical output	m3/h	100/60
		Maximum pressure on concrete	bar	80/150
		Conc. cylinders (diam. x stroke)	mm	230x1650
		Concrete hopper capacity	L	550
		Hydraulic circuit		Open
Boom Section	Maximum vertical reach	m	37.1
		Maximum horizontal distance	m	32.8
		Minimum unfolding height	m	8
		Section numbers		5
		Rotating angle		±270°
		End hose lenght	m	3
