Переключатель скольжения CenterMcx 2 положения переключатель постоянного тока
- Категория: >>>
- Поставщик: Shenzhen,Centermcx,Tech.,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.11 $* | 0.10 $* |
| Aug-19-2025 | 0.6 $* | 0.93 $* |
| Jul-19-2025 | 0.47 $* | 0.88 $* |
| Jun-19-2025 | 0.60 $* | 0.5 $* |
| May-19-2025 | 0.46 $* | 0.52 $* |
| Apr-19-2025 | 0.71 $* | 0.7 $* |
| Mar-19-2025 | 0.87 $* | 0.70 $* |
| Feb-19-2025 | 0.31 $* | 0.25 $* |
| Jan-19-2025 | 0.37 $* | 0.86 $* |
Характеристики
Product Description

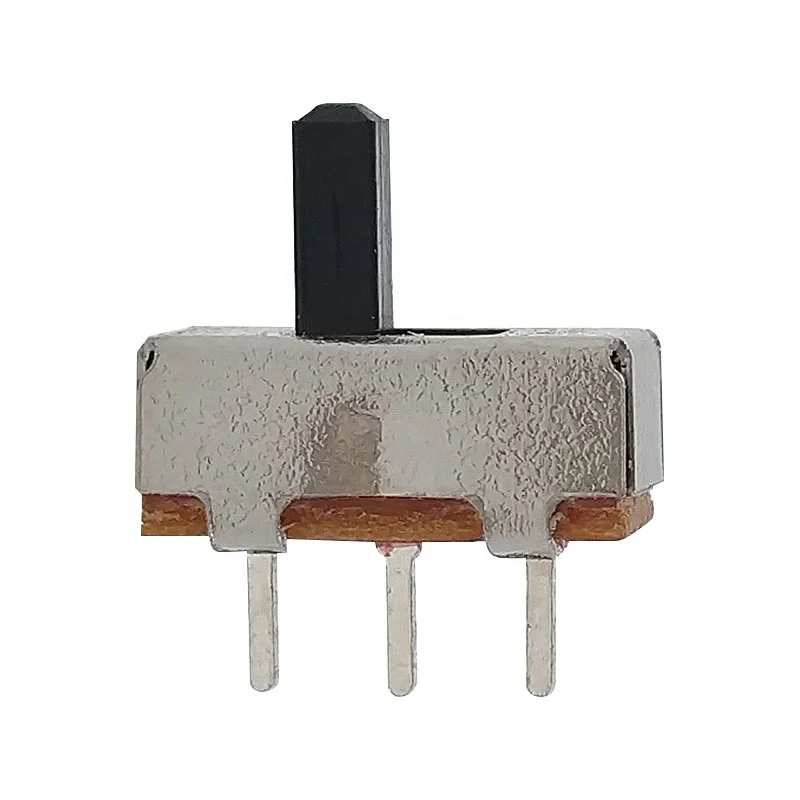

SS-12D00 Slide Switch
It is a 1p2t top push type slide switch with 3 terminals. And there are operating force of 160gf, 200gf and 250gf, multiple actuator length for choosing from. It is also a typical snap in type slide switch. Other manufactures are also known as through hole type or DIP type slide switch.
3pins DIP slide switch PCB land pattern
Circuit diagram for mini slide siwtch with 1p2t feature
Specification
Product Name | SS-12D00 |
Circuit Features | 1P2T |
Travel | 2mm |
Rating | 0.5A 50DVC |
Lifetime | 10000 cycles |
Operating force | 200gf, 250gf |
Operating temperature | -25oC-82oC |
Compressive Strength | 100V AC |
Certification | Rohs, Reach |
Recommend Products
Company Profile
Shenzhen Centermcx Technology Co., Ltd.established in 2009, is specializing in the micro coaxial cable assy, slide switches, tact switches, connectorsFPC flat flexible printed circuit cable, high speed SFP+ cable assy, and so on. All products have passed the CE, CQC and REACH, and other safety certification and environmental protection materials. The company has now formed a comprehensive service system integrated by the R&D, production and domestic trade and export. We satisfy all customers with advanced products, competitive prices, and fast delivery. Welcome to inquiry.
Our Advantages
Packing & Delivery
Reel & Tape packing
Tape & Reel packing will be adopted. The packing details are as follows.
* In reels of 1000 pieces;
* External diameter of reels 330mm
* The inner thickness of reels 13.5mm
* Export packing 1 carton 10000 pieces
● For reels of 380mm diameter, please
* In reels of 1000 pieces;
* External diameter of reels 330mm
* The inner thickness of reels 13.5mm
* Export packing 1 carton 10000 pieces
● For reels of 380mm diameter, please
inquire.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
