Клеммная колодка Daiertek 4 x M8 6 M4 распределительная шина питания луженая медная для автомобиля морского
- Категория: Terminal Blocks >>>
- Поставщик: Wenzhou,Daiertek,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 10.82 $* | 11.46 $* |
| Aug-17-2025 | 9.96 $* | 9.95 $* |
| Jul-17-2025 | 8.82 $* | 8.14 $* |
| Jun-17-2025 | 9.51 $* | 9.95 $* |
| May-17-2025 | 8.67 $* | 8.95 $* |
| Apr-17-2025 | 9.96 $* | 9.52 $* |
| Mar-17-2025 | 9.69 $* | 9.13 $* |
| Feb-17-2025 | 9.36 $* | 9.4 $* |
| Jan-17-2025 | 9.94 $* | 9.55 $* |
Характеристики

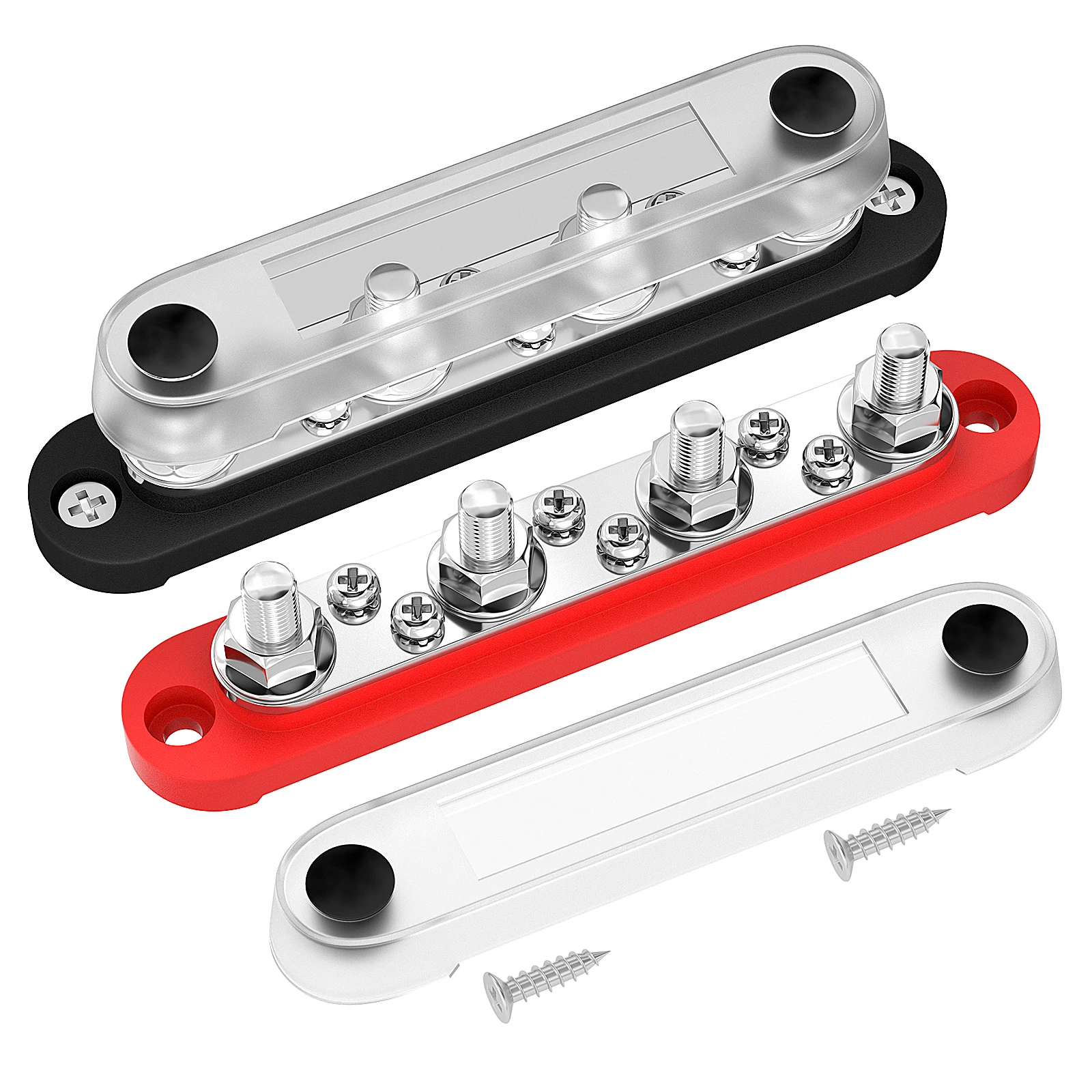

4 Stud Power Distribution Busbar Tinned Copper Bus Bar
* Features: Power distribution block also known as battery bus bar, this busbars will come in pairs, includes one red bus bar and one black bus bar.
* Rating: Max voltage: 300V AC, 48V DC. Max continuous amperage: 130A AC, 150A DC.
* Terminals: Each battery distribution block includes - M8 terminal studs x 4 and M4 screw terminals x 6, suitable for 5/16" and #8 insulation ring terminals.
* Application: These 12v bus bars are using copper plates and stainless steel terminals as conductors, which makes it can work in extreme environment, suitable for automotive, car, truck, marine, boat, yacht, etc.
* What you get: Positive distribution block x 1, ground distribution block x 1, 4 x screws, 1 year warranty. If you have any questions about the product, please contact us, we will respond you within 24 hours.
* Rating: Max voltage: 300V AC, 48V DC. Max continuous amperage: 130A AC, 150A DC.
* Terminals: Each battery distribution block includes - M8 terminal studs x 4 and M4 screw terminals x 6, suitable for 5/16" and #8 insulation ring terminals.
* Application: These 12v bus bars are using copper plates and stainless steel terminals as conductors, which makes it can work in extreme environment, suitable for automotive, car, truck, marine, boat, yacht, etc.
* What you get: Positive distribution block x 1, ground distribution block x 1, 4 x screws, 1 year warranty. If you have any questions about the product, please contact us, we will respond you within 24 hours.
Specification
Item | 4 Stud Power Distribution Busbar Tinned Copper Bus Bar |
Model Number | BB150-T4M8S6-C |
Number of Contacts | 1 - 10 |
Conductor Size | 12-28AWG |
Type | Screw |
Terminal Studs | M8 (5/16") * 4 |
Terminal Srews | M4 (#8) * 6 |
Max Voltage | 300V AC, 48V DC |
Max Continuous Amperage | 130A AC, 150A DC |
Material of terminal | Brass |
Feature | Nylon Plastic Base |
Application | Distribution Line |
Color | Black/Red |
Size | 140*41*20mm |
BB10-B 12V Battery Copper Bus Bar Terminal Block
Terminal Studs: M8 (5/16") * 4
Terminal Srews: M4 (#8) * 6
Max Voltage: 300V AC, 48V DC
Max Continuous Amperage: 130A AC, 150A DC
Terminal Srews: M4 (#8) * 6
Max Voltage: 300V AC, 48V DC
Max Continuous Amperage: 130A AC, 150A DC

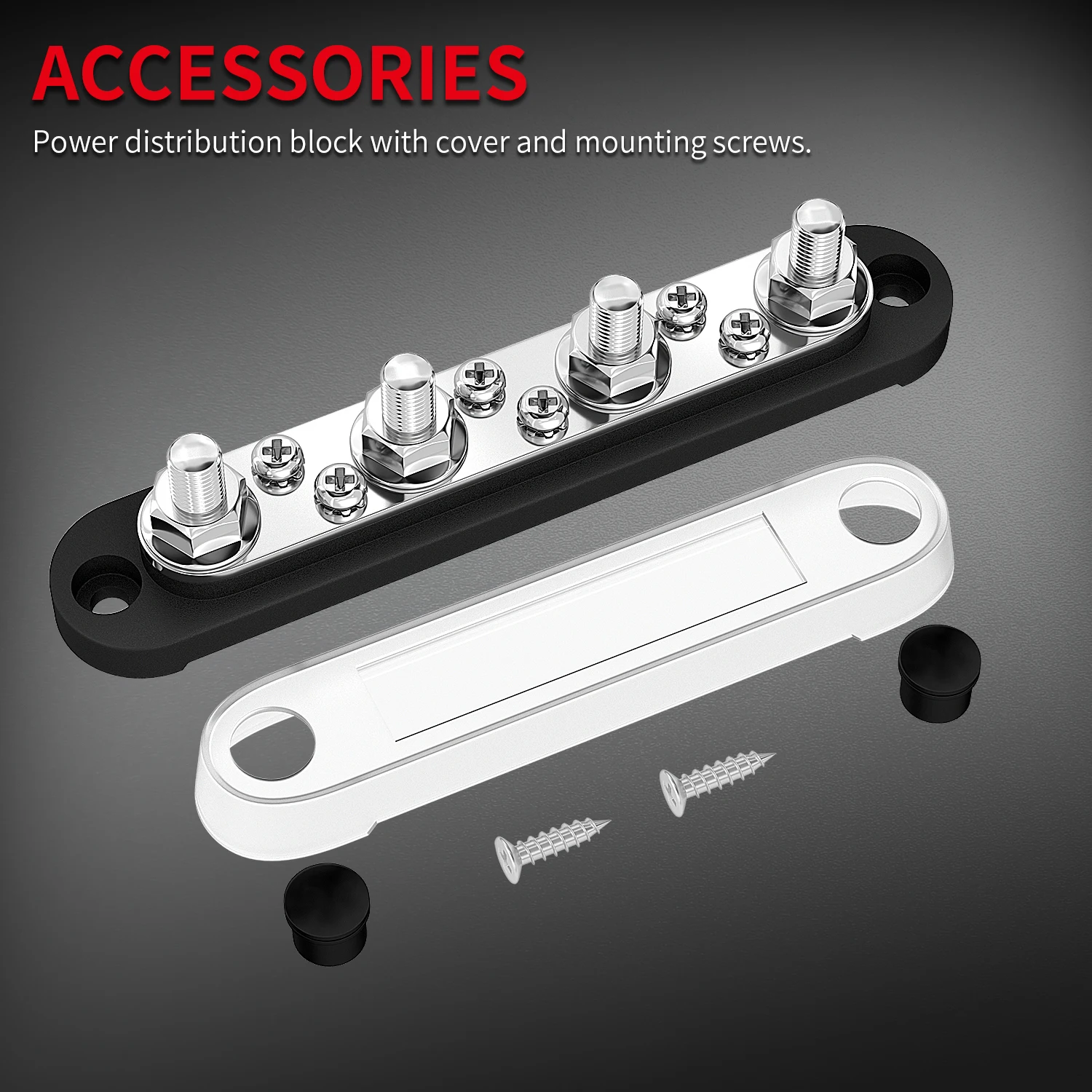

* Package Includes:
* 1 x Positive Bus Bar
* 1 x Negative Bus Bar
* 4 x Mounting Screws
* 1 x Positive Bus Bar
* 1 x Negative Bus Bar
* 4 x Mounting Screws

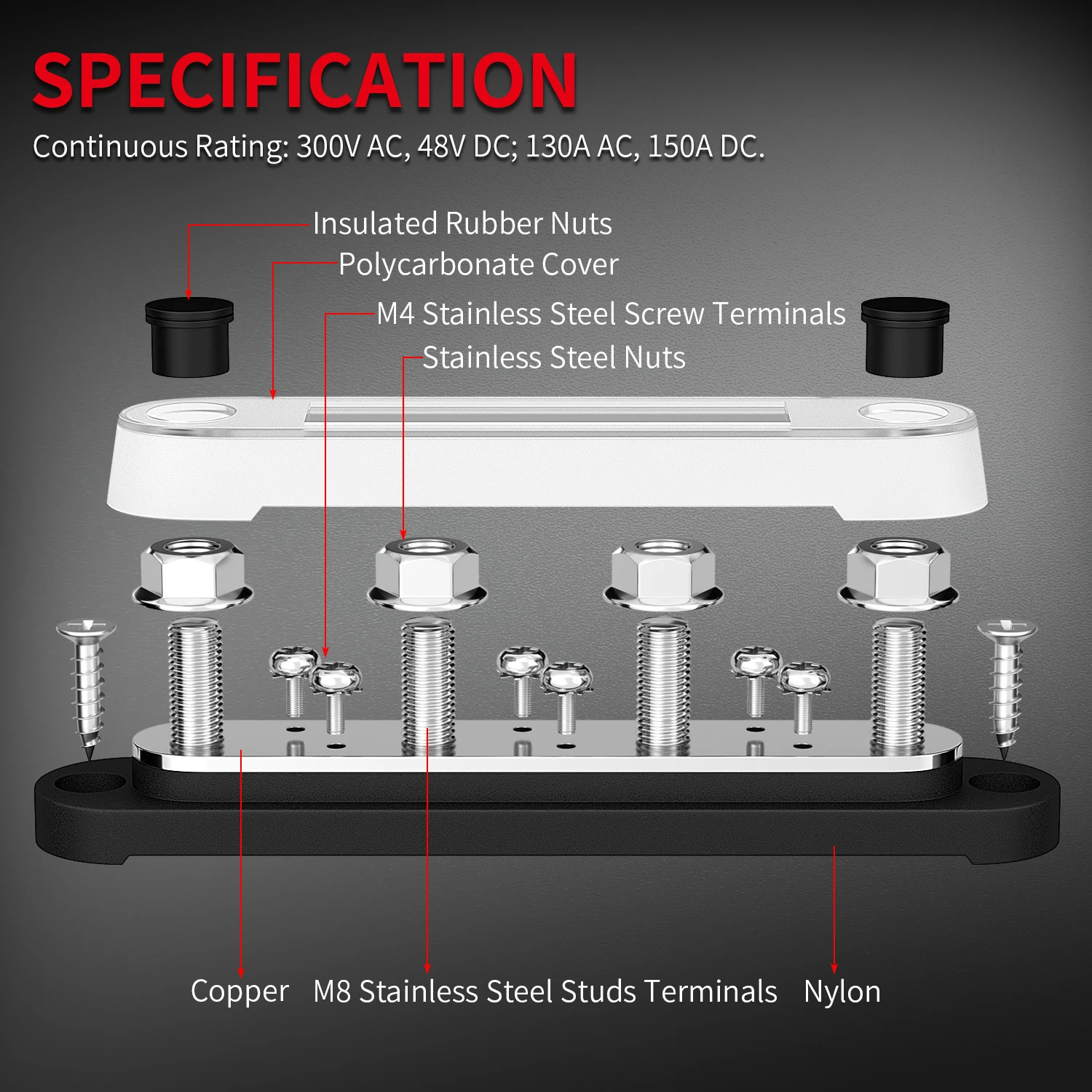

Copper Plate & Stainless Steel Terminals
Copper plate and stainless steel terminals as the conductors of the busbars, make the bus bar 12v have better performances on conduction and corrosion resistance, enables the bus bars to be used in extreme environment.

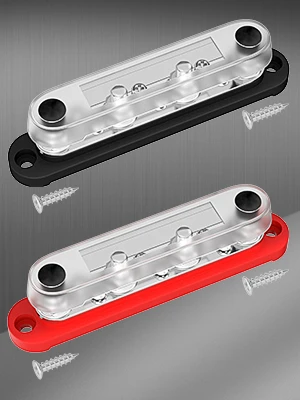

Cover&Nut
Each copper bus bar will come with polycarbonate cover and nylon nuts, which can cover the exposed stainless steel terminals and prevent the busbar from causing accidental electrical short circuit.
Application
The package includes both positive and ground distribution block, which is easy to use. This bus bar 12v is suitable for both automotive and marine use, such as car, truck, rv, utv, atv, boat, yacht, etc.
WORKSHOP
Yueqing Daier Electric Co., Ltd. was established in 2003,the company covers an area of 2,500 square meters. Daier is a collection of scientific research, production and domestic and international trade company. The company mainly develops, produces and sells Bus Bar Terminal Block,Copper Bus Bar,Battery Bus Bar and other accessories.
The company has more than 200 employees, and has a highly qualified engaged in electronic components and international trade experience decades of research and development, production and sales team.
Daier owns a powerful technical staff, advanced production equipment,and perfected quality control system.Most of our products have CE,CQC,TUV.Rohs and UL Certificate. All production, processing and sales are in strict accordance with ISO9001:2015.
Daier owns a powerful technical staff, advanced production equipment,and perfected quality control system.Most of our products have CE,CQC,TUV.Rohs and UL Certificate. All production, processing and sales are in strict accordance with ISO9001:2015.
Daiertek 10 Way Bus Bar Terminal Block 4 x M6 Terminal Studs 6 x M4 Terminal Screws Battery Copper Bus Bar for Car Marine
EXHIBITION
OUR TEAM
CERTIFICATION
TRANSPORTATION
FAQ
1.Q: Could I put my own logo on the products?
8.Q: I couldn't find the products I want in your catalogue, can you develop it for me?
A: Yes. we have a research & development dept.
A: Sure, your logo can be put on every product, either by laser, or by moulds.
2.Q: Could I put my own designs of label on the products?
A: Of course, you can send us your design, we'll follow your design.
3.Q: Can I have some samples before formal order?
A: Yes. we can send you some free samples for your test before your order.
4.Q: How long is the lead time?
A: Normally we keep stock for most products, the lead time is 1-5 days as soon as the payment is released.
For customized products, it takes longer.
5.Q: How about the after-sale service? What's the Warranty terms?
A: We offer 12 months for every products we sold. If you meet any problems after sales, pis contact us freely,
we'll help solving the problems within 24 hours.
6.Q: Are you manufacturer or just dealer?
A: We're manufaturer, we do produce all products by ourself. Welcome to visit our plant at any time.
7.Q: What's the payment terms? Can I pay after you got the products?
A: Normally we accept TT and western union. L/C is also accepted if the order quantity is large. For old customers,
we'll guanartee monthly payment after good cooperationship.
2.Q: Could I put my own designs of label on the products?
A: Of course, you can send us your design, we'll follow your design.
3.Q: Can I have some samples before formal order?
A: Yes. we can send you some free samples for your test before your order.
4.Q: How long is the lead time?
A: Normally we keep stock for most products, the lead time is 1-5 days as soon as the payment is released.
For customized products, it takes longer.
5.Q: How about the after-sale service? What's the Warranty terms?
A: We offer 12 months for every products we sold. If you meet any problems after sales, pis contact us freely,
we'll help solving the problems within 24 hours.
6.Q: Are you manufacturer or just dealer?
A: We're manufaturer, we do produce all products by ourself. Welcome to visit our plant at any time.
7.Q: What's the payment terms? Can I pay after you got the products?
A: Normally we accept TT and western union. L/C is also accepted if the order quantity is large. For old customers,
we'll guanartee monthly payment after good cooperationship.
8.Q: I couldn't find the products I want in your catalogue, can you develop it for me?
A: Yes. we have a research & development dept.
