Масляный расходомер Овальный прибор для измерения расхода краски rs485 механический измеритель тяжелого топлива и
- Категория: Flow Meters >>>
- Поставщик: Henan,Wesdom,Flow,Control,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 286.21 $* | 300.71 $* |
| Aug-15-2025 | 283.9 $* | 297.20 $* |
| Jul-15-2025 | 238.80 $* | 250.2 $* |
| Jun-15-2025 | 278.71 $* | 292.77 $* |
| May-15-2025 | 242.87 $* | 254.54 $* |
| Apr-15-2025 | 274.36 $* | 288.20 $* |
| Mar-15-2025 | 271.31 $* | 285.58 $* |
| Feb-15-2025 | 269.31 $* | 282.25 $* |
| Jan-15-2025 | 266.67 $* | 279.75 $* |
Характеристики
Product description

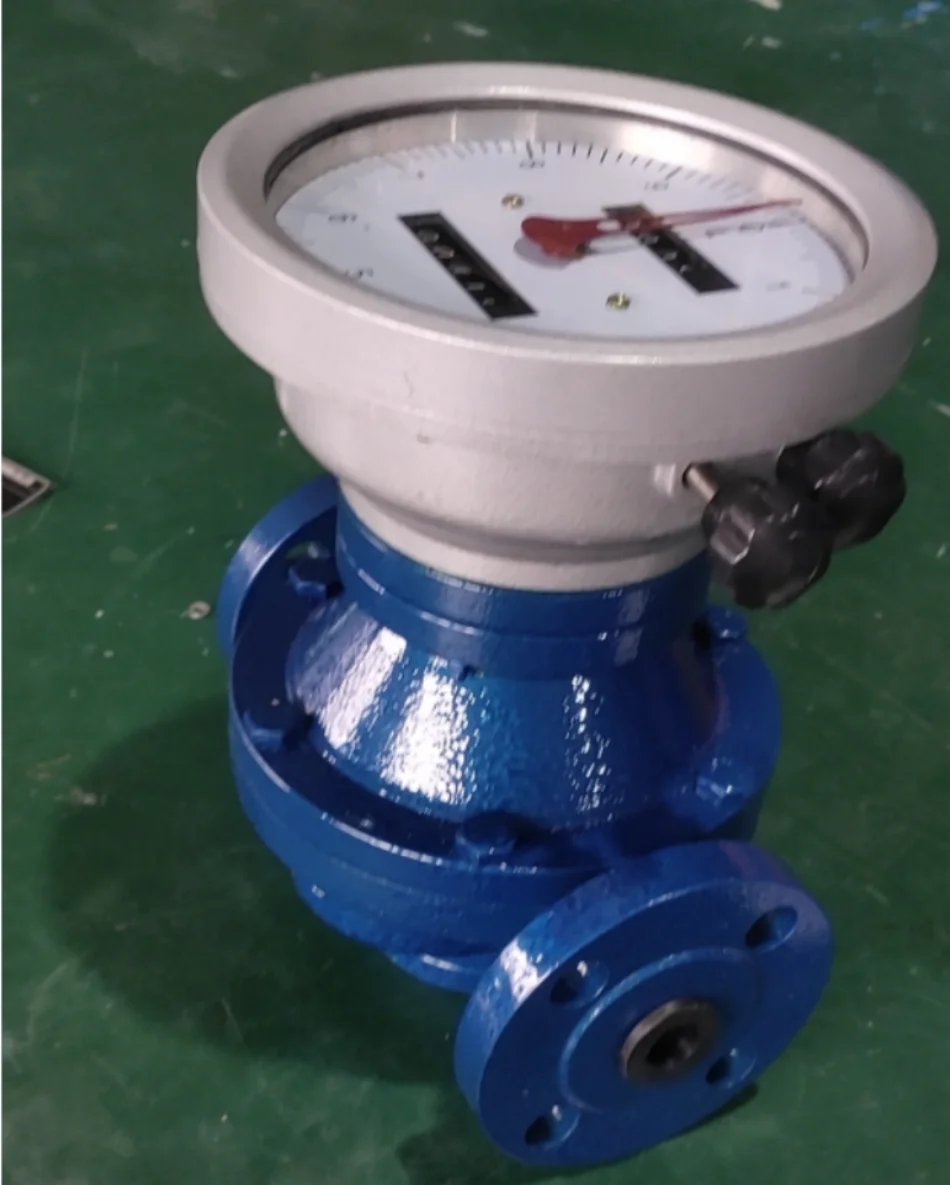

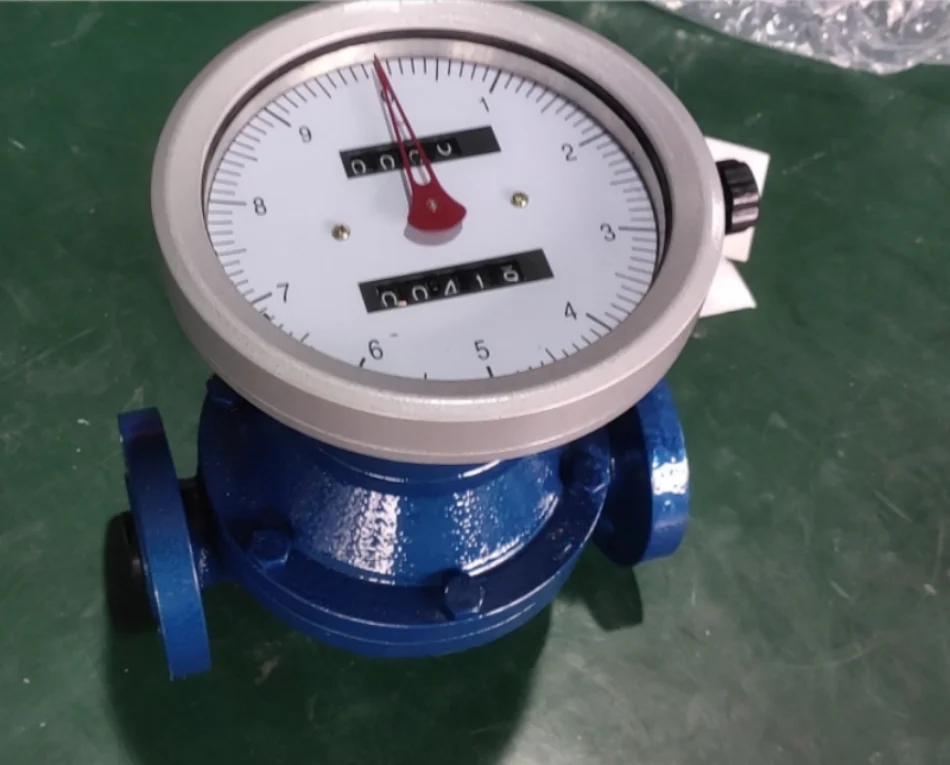

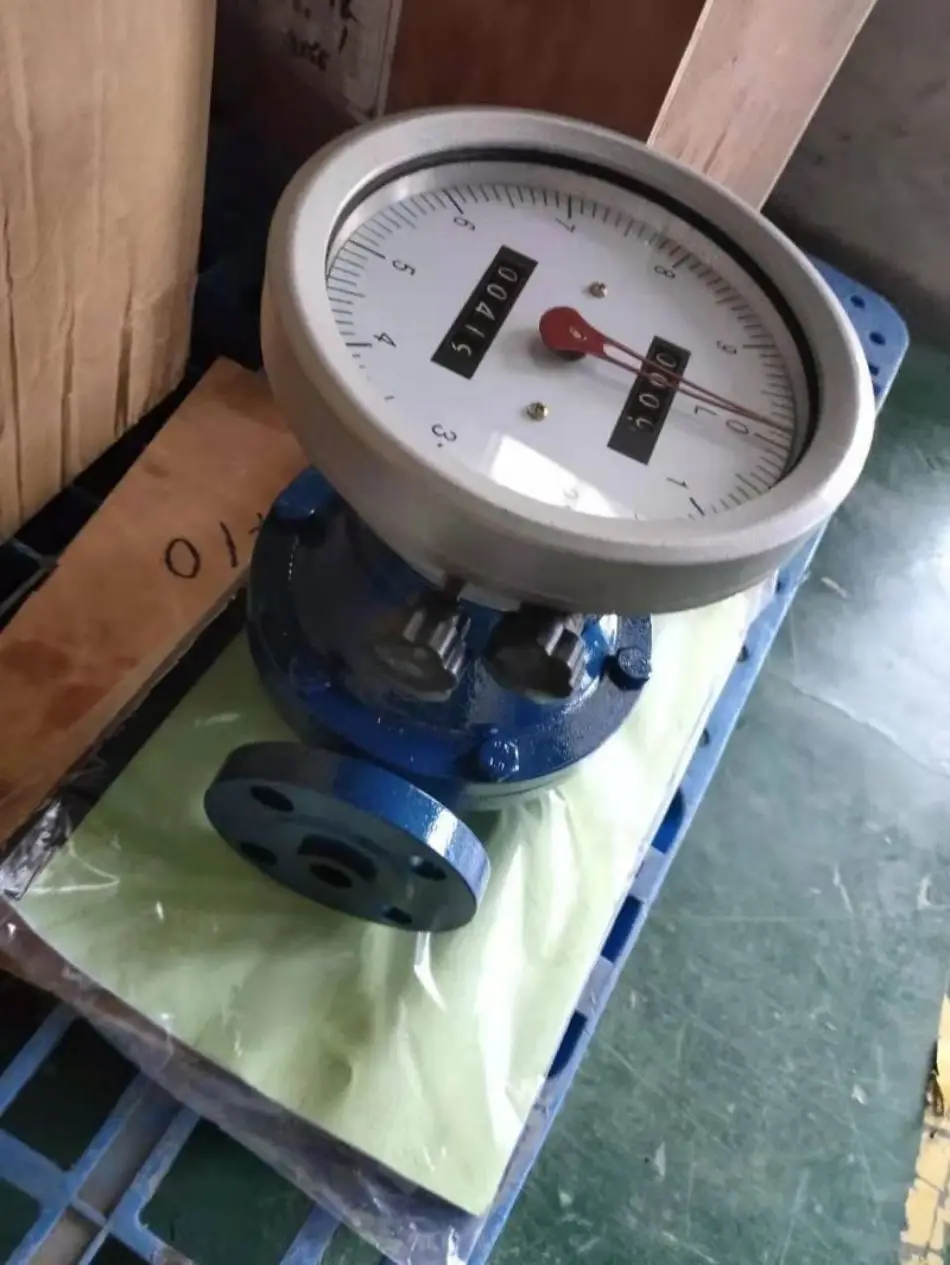

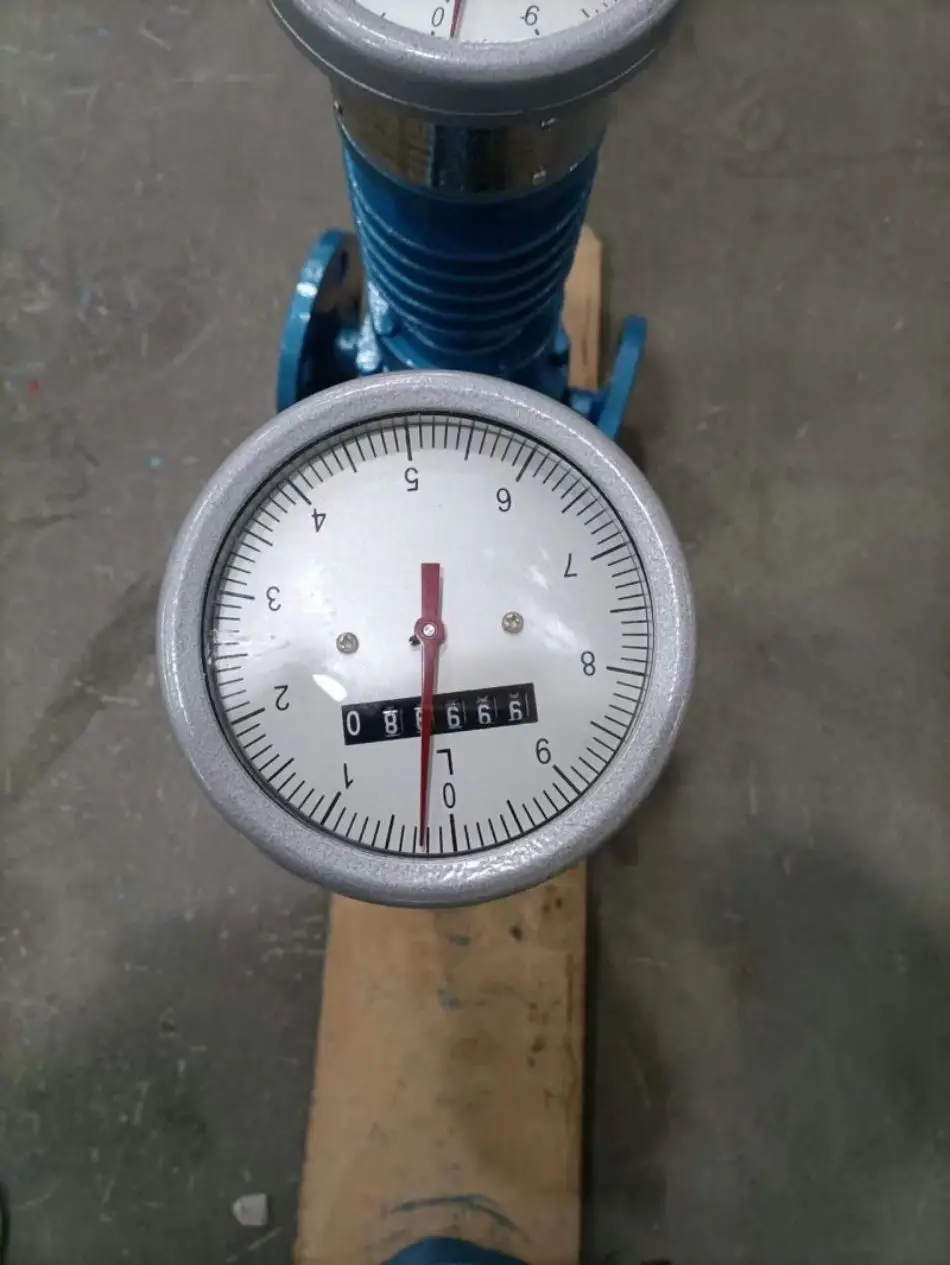

Oval gear flowmeter is a light volumetric flow meter with pointer display, word wheel cumulative counting device and zero return device.
It is widely used in liquid flow control in various industrial fields and is suitable for various types of liquid measurement, such as crude oil and diesel.Gasoline, etc., have the characteristics of large range, high precision,convenient use and maintenance, etc. Different manufacturing materials are selected to meet the liquid flow measurement in various fields such as petroleum, chemical industry, medicine, food, metallurgy, electric power, and transportation.
It is widely used in liquid flow control in various industrial fields and is suitable for various types of liquid measurement, such as crude oil and diesel.Gasoline, etc., have the characteristics of large range, high precision,convenient use and maintenance, etc. Different manufacturing materials are selected to meet the liquid flow measurement in various fields such as petroleum, chemical industry, medicine, food, metallurgy, electric power, and transportation.
Transmitter Type | Pointer Display; Pointer with zero returning; Pointer display with Output; LCD |
Medium | Fuel Oil; Petroleum; Petroleum Products; Vegetable Oil; Food; Chemicals |
Accuracy | ±0.2%;±0.5% |
Nominal Diameter | DN8~DN200mm |
Nominal Pressure | PN1.6~6.3MPa |
Medium Temperature | -10 ℃~ 280℃ |
Medium Viscosity | 2~-300OMPa · s |
Power Supply | 12V.DC; 24V.DC |
Output Signal | Pulse;4~20mADC; RS485 |
Display | AccumulativeFlow, Single Measurement(Mechanical Dial);Remote transmission of total and instantaneous flow |
Error Adjustment | Changing Gear Adjustment |
Level Of Protection | IP65 |
Explosion Proof | Flame-proof Type,ExdllBT4 |
Ambient Temperature | -20~55℃ |
Sensor Material | Cast lron; Cast Steel; Stainless Steel |
Sensor Connection | Flange, Screw, Sanitary tri-clamp |
