Оборудование для производства соломенной бумаги линия по

Оборудование для производства соломенной бумаги линия по

Категория: Straw Making Machines >>>
Поставщик: Henan,Yugong,Machinery,Co.,Ltd.

Цена:950,00 $ - 125 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	1131.10 $*	1188.32 $*
Aug-19-2025	1121.71 $*	1177.6 $*
Jul-19-2025	941.76 $*	988.89 $*
Jun-19-2025	1102.34 $*	1157.20 $*
May-19-2025	960.16 $*	1008.73 $*
Apr-19-2025	1083.15 $*	1137.61 $*
Mar-19-2025	1074.27 $*	1128.47 $*
Feb-19-2025	1064.48 $*	1117.2 $*
Jan-19-2025	1055.17 $*	1108.89 $*

Характеристики

Product Description

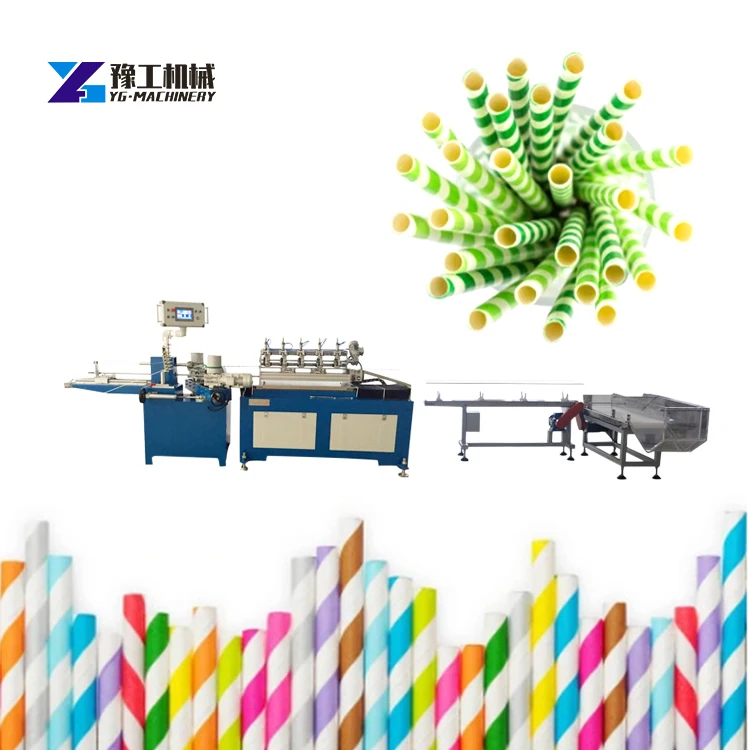

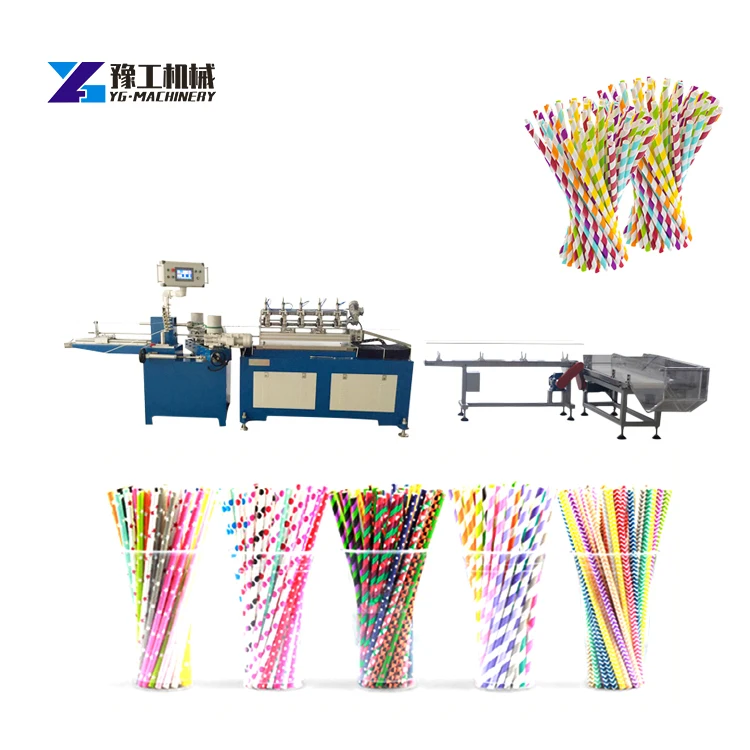

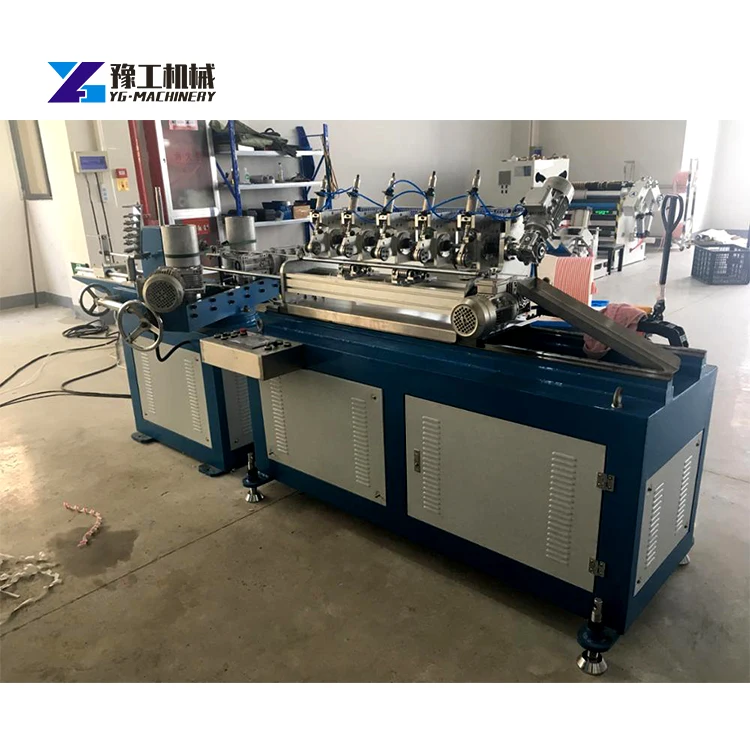

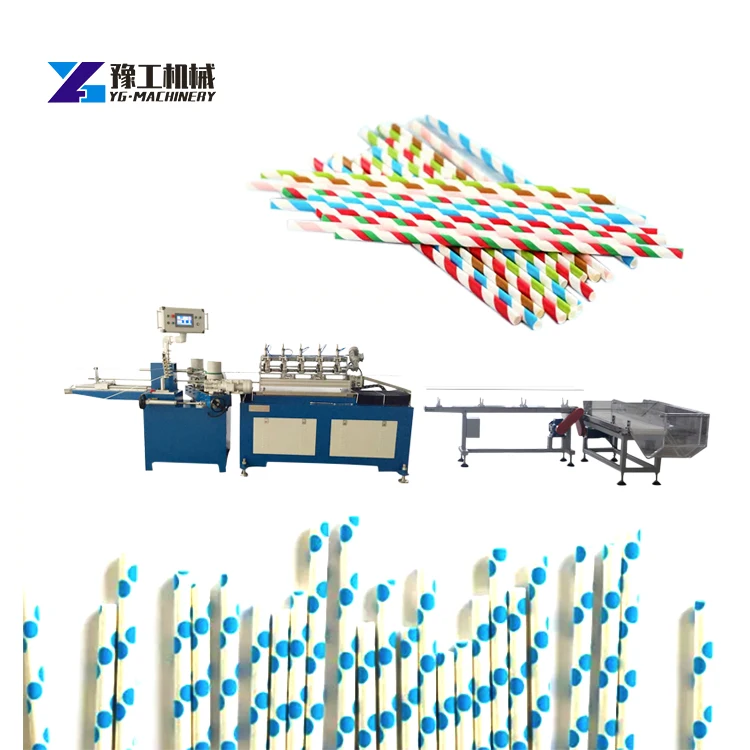

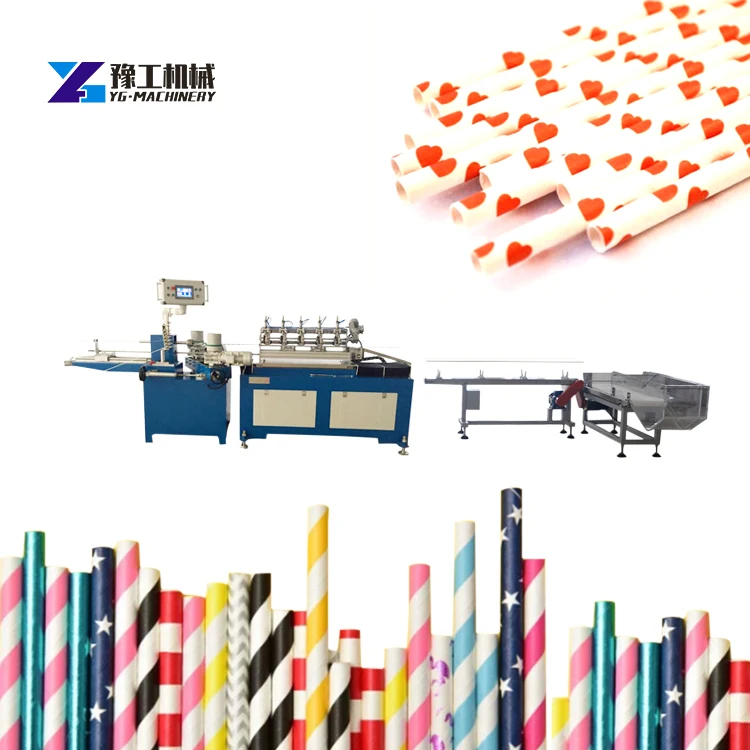

Paper straw making machine:
Paper straw making machine is suitable for producing different sizes of paper straws diameter 3-16mm.Mainly used for the production of paper straws, pen core tubes, E-cigarette, Nail Sand Ring，Balloon stick making machine . Straw paper making machine 6-9 cutting knife system..

Specification

Machine Model	YG-MC510
Paper Straw	3-5 layers
Paper Straw Diameter	3-16 mm
Paper Straw length	5cm-120cm
Motor Model and Power	Gear motor 3kw
Machine speed	In paper 85-120m/min
Machine speed	Output paper 65-105m/min
Servo Motor	3 pcs
Cutting Blades	7-9 PCS
Winding Head Control	Inverter (ABB)
Movement module PLC	Customized
Speed Control	Inverter
Air Pressure	0.5 Mpa
Angel Correction	Auto by motor
Machine Area Space	6000mmx6000mm

Features:
1.It adopted with PLC controller; main motor is equipped with variable frequency speed regulation; touch screen man-machine interface. Easy for parameters setting & operating.

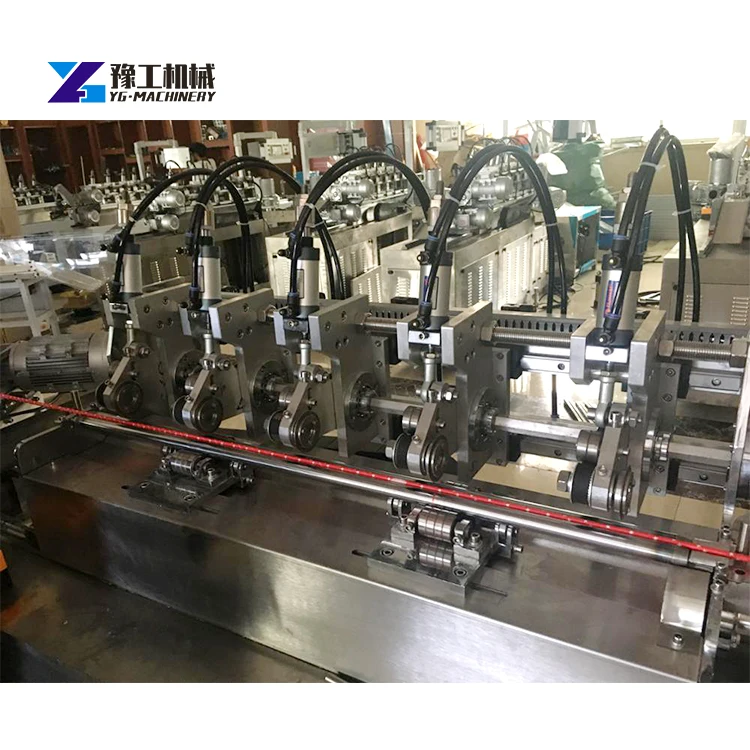

2. Cutting knife system, new structure of cutting cylinder. Easier to adjust air cylinder travel when changing different
diameter mould.
3. Auto feeding function glue station, Glue station heating and recycle function.auto spray glue system (Import USA Valco
Melton) .
4. Equip with 3 sets servo motor for cutting system moving left & right, supporting roller and cutting knifes.
5. Machine equip with Intelligent, centralized monitoring, Production data can be introduced into the user ERP system to
facilitate production data collection.
6. Remote detection function,machine can connect to internet for remote diagnosis and repair, more simple for after service.
7. paper straw machine Auto paper roll connecting function hanging bracket, auto splicer, 3-5layers.
8. Main electric parts choose famous brand, Like main servo motor, servo motor driver, frequency charger.
