Высокоточный процесс строительства повторное использование АБС-пластика 100 раз строительный материал пластиковая
- Категория: Formwork >>>
- Поставщик: Shandong,Kaixuan,Molding,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 50.82 $* | 51.93 $* |
| Jul-19-2025 | 40.83 $* | 41.49 $* |
| Jun-19-2025 | 49.1 $* | 50.83 $* |
| May-19-2025 | 48.51 $* | 49.70 $* |
| Apr-19-2025 | 39.70 $* | 40.74 $* |
| Mar-19-2025 | 48.72 $* | 49.30 $* |
| Feb-19-2025 | 47.49 $* | 48.92 $* |
| Jan-19-2025 | 47.62 $* | 48.61 $* |
Характеристики
Product Description
What is a plastic formwork?
Plastic template is a composite material extruded through high temperature 200 ℃ based on digestion and absorption of European advanced equipment manufacturing technology and semi-high processing experience. Plastic formwork is an energy-saving and environmentally friendly product. It is another new generation product after wood formwork, combined steel formwork, bamboo and wood glued formwork, and all-steel large formwork.
High Precision Construction Process ABS Plastic Reuse 100 Times Construct Material Plastic Waffle Slab
Kaixuan Waffle Slab Formwork Feature
3. Easy to demould. The concrete does not stick to the surface of the mold, does not require a release agent, is easy to demold, and is easy to clean dust.
4. Under the temperature condition of 20 degrees, stable weather resistance, high mechanical strength, no shrinkage, no swelling, no cracking, no deformation, dimensional stability, alkali and corrosion resistance, flame retardant and waterproof Plastic construction plastic formwork
1.Clean and tidy. The formwork is tightly spliced and smooth, and the surface flatness of the concrete structure after
demoulding exceeds the technical requirements of the existing clear water formwork. No need for secondary plastering, saving labor and materials.
High Precision Construction Process ABS Plastic Reuse 100 Times Construct Material Plastic Waffle Slab2. Light weight and easy to install. Light weight, strong process adaptability, can be sawed, planed, drilled,
nailed, and can be freely made into any geometric shape with accessories to meet the needs of various shapes of construction molds.
nailed, and can be freely made into any geometric shape with accessories to meet the needs of various shapes of construction molds.
3. Easy to demould. The concrete does not stick to the surface of the mold, does not require a release agent, is easy to demold, and is easy to clean dust.
4. Under the temperature condition of 20 degrees, stable weather resistance, high mechanical strength, no shrinkage, no swelling, no cracking, no deformation, dimensional stability, alkali and corrosion resistance, flame retardant and waterproof Plastic construction plastic formwork
5. Conducive to maintenance, the plastic formwork does not absorb water, and the maintenance effect is good
High Precision Construction Process ABS Plastic Reuse 100 Times Construct Material Plastic Waffle Slab
6. Strong variability, type, shape and specification can be customized according to construction engineering requirements.
6. Strong variability, type, shape and specification can be customized according to construction engineering requirements.
Detailed Images
Company View
Shandong Kaixuan Mould Co., Ltd. is a plastic formwork manufacturer, established in 2017, is a plastic formwork manufacturer, established in 2017, mainly engaged in construction plastic formwork bases, waffle formwork bases, plastic mould shells, etc.
High Precision Construction Process ABS Plastic Reuse 100 Times Construct Material Plastic Waffle Slab
Production line and production capacity:
1.The production capacity is about 1,000 square meters every 24 hours2.Five production lines
3.Injection molding machine 20 sets.
Production workshop 6000 square meters, office building 2000 square meters

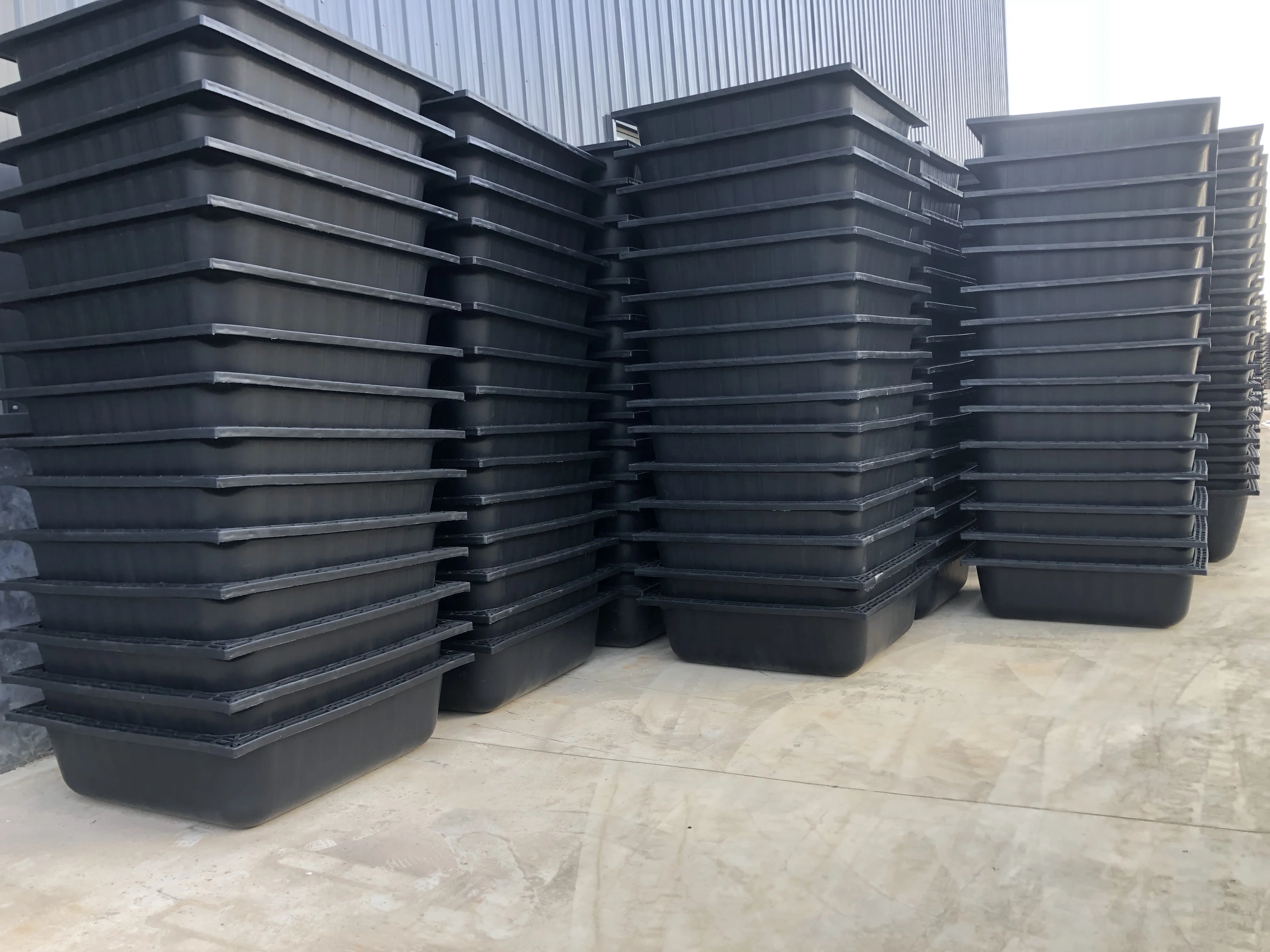

Warehouse:
Warehouse 8000 square meters
Warehouse 8000 square meters
Sufficient warehousing capacity Small orders are shipped within 3 days, and bulk orders can be negotiated
OEM/ODM and QC team:
We can offer OEM/ODM service.
We can offer OEM/ODM service.
Professional design team will design a customized plan for you according to your needs
Quantity guarantee:
The service life of the plastic formwork is about 100 turns
Pass the high and low temperature environment test (-30°C/+70°C, -22°F/158°F)
After the QC team tested the performance of the product to reach the standard, goods can enter the warehouse

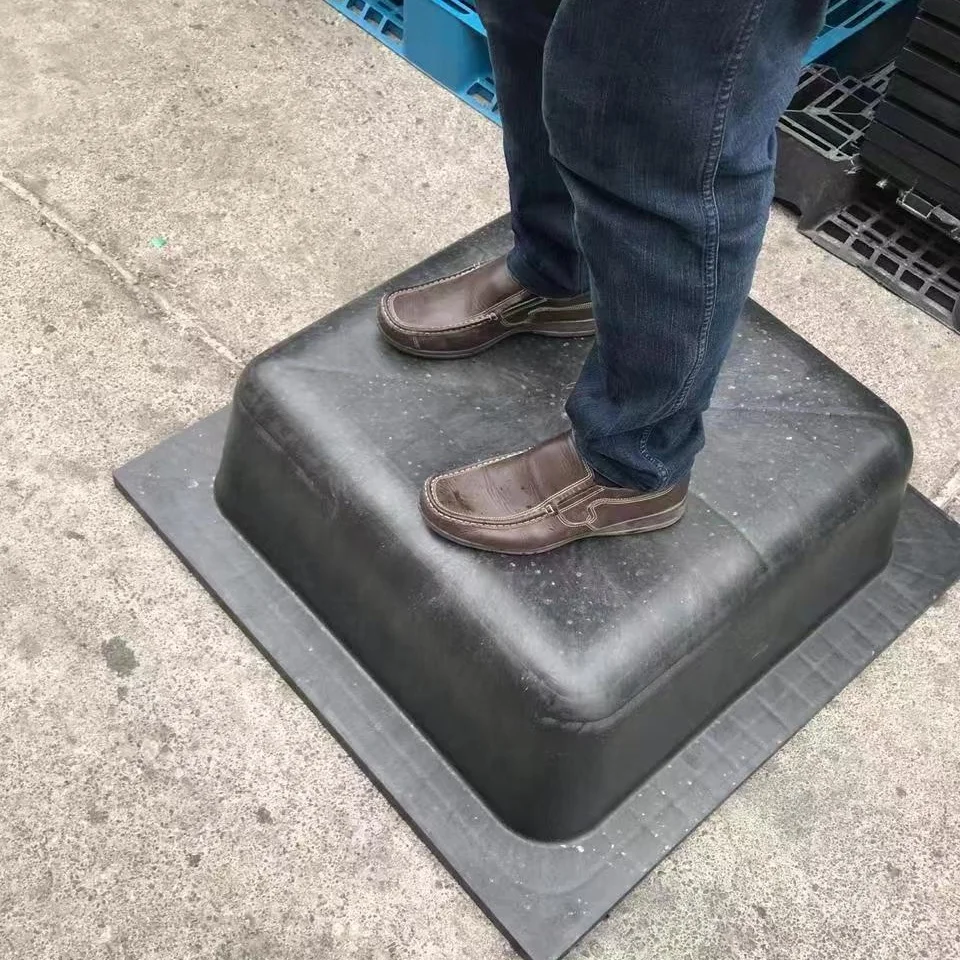

Pass impact test, mechanical strength test
Certificate:
SGS laboratory test, ISO quality system certification
Low MOQ:
100PCS or send send inquire negotiation
After-sales:
1.Usage guidance, technical support and train.
1.Usage guidance, technical support and train.
2.Free spare parts
3.Free sample service
4.24-hour manual online service, quick response
High Precision Construction Process ABS Plastic Reuse 100 Times Construct Material Plastic Waffle Slab
High Precision Construction Process ABS Plastic Reuse 100 Times Construct Material Plastic Waffle Slab
Size Information
High Precision Construction Process ABS Plastic Reuse 100 Times Construct Material Plastic Waffle Slab
Surface Size | Use Size | Flange Size | Net Weight | Total Weight |
1135*1135*530 | 1015*1015*500 | 60*30 | 30KG | 36KG |
1050*1050*480 | 950*950*450 | 50*30 | 25KG | 30KG |
1135*1135*430 | 1015*1015*400 | 60*30 | 25KG | 30KG |
1142*1142*380 | 1042*1042*350 | 50*30 | 25KG | 30KG |
1090*1090*330 | 990*990*300 | 50*30 | 23KG | 28KG |
788*788*400 | 715*715*370 | 36.5*30 | 20KG | 24KG |
1080*1080*450 | 980*980*420 | 50*30 | 17KG | 17KG |
Waffle Slab Plastic Formwork Customized:
If you have customized requirements for plastic formwork, please send an inquiry to tell us
Comparison of ordinary floor slabs with plastic formwork:
The cost of building formwork is low. Compared with ordinary floor slabs, the use of building formwork can reduce the amount of concrete by 10-20%, the amount of steel bars by 30-40%, and the comprehensive cost by 20-30%. In addition, various special-shaped formwork can be produced. During construction, the building formwork is placed between the small ribs and fixed firmly to ensure the axis position and cross-sectional size of the small ribs, and at the same time play the role of small rib side molds. When removing the bottom mold of the floor slab. The mold shell is not removed and the surface of the mold plate is smooth.
1. Clean and tidy. The formwork is tightly spliced and smooth, and the surface flatness of the concrete structure after demoulding exceeds the technical requirements of the existing clear water formwork. No need for secondary plastering, saving labor and materials.
2. Light weight and easy to install. Light weight, strong process adaptability, can be sawed, planed, drilled, nailed, and can be freely made into any geometric shape with accessories to meet the needs of various shapes of construction molds.
3. Easy to demould. The concrete does not stick to the surface of the mold, does not require a release agent, is easy to demold, and is easy to clean dust.
4. Under the temperature condition of 20 degrees, stable weather resistance, high mechanical strength, no shrinkage, no swelling, no cracking, no deformation, dimensional stability, alkali and corrosion resistance, flame retardant and waterproof Plastic construction formwork.
5. Conducive to maintenance, the template does not absorb water, and the maintenance effect is good
6. Strong variability, type, shape and specification can be customized according to construction engineering requirements.

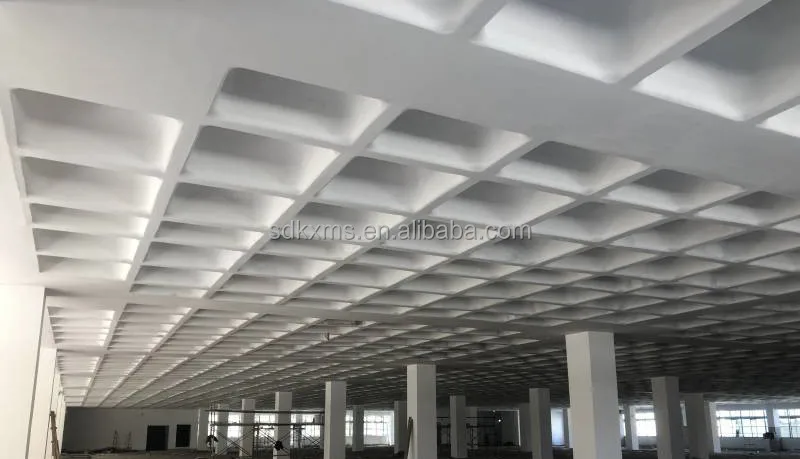

Application Scenario Display
Product packaging
Packing and shipping: High Precision Construction Process ABS Plastic Reuse 100 Times Construct Material Plastic Waffle Slab by container marine transport
Customer Case Show: High Precision Construction Process ABS Plastic Reuse 100 Times Construct Material Plastic Waffle Slab
Best Selling
FAQ
Q: How to get a quotation?
You can send us your material list to request for a quotation, or you can also simply send us the structural drawing and project information for complete formwork & scaffolding proposal via below contacts.
High Precision Construction Process ABS Plastic Reuse 100 Times Construct Material Plastic Waffle Slab
You can send us your material list to request for a quotation, or you can also simply send us the structural drawing and project information for complete formwork & scaffolding proposal via below contacts.
High Precision Construction Process ABS Plastic Reuse 100 Times Construct Material Plastic Waffle Slab
Q: How to confirm the Product Quality before placing orders?
We can offer free samples for the products, plz send your address and contact detailed to us, we can talk more.
Q: How can I use it?
After you purchase, we have a professional after-sales team to train and use for you, and we can also provide on-site guidance if necessary.
We can offer free samples for the products, plz send your address and contact detailed to us, we can talk more.
Q: How can I use it?
After you purchase, we have a professional after-sales team to train and use for you, and we can also provide on-site guidance if necessary.
Q: Is there a discount?
The price is negotiable. It can be changed according to your quantity or package, Can you tell me more about your purchase quantity and more details? Our sales team will give you details of our special offers and discounts within 2 hours.
Q: How many the MOQ?
Normally 100 pcs, other demands can also be solved by discussing details.
High Precision Construction Process ABS Plastic Reuse 100 Times Construct Material Plastic Waffle Slab
Q: How about delivery lead-time?
The small order within 3-10 days after payment confirmed, bulk order about 7-30 days after payment confirmed.
Welcome click here Contact US!
The price is negotiable. It can be changed according to your quantity or package, Can you tell me more about your purchase quantity and more details? Our sales team will give you details of our special offers and discounts within 2 hours.
Q: How many the MOQ?
Normally 100 pcs, other demands can also be solved by discussing details.
High Precision Construction Process ABS Plastic Reuse 100 Times Construct Material Plastic Waffle Slab
Q: How about delivery lead-time?
The small order within 3-10 days after payment confirmed, bulk order about 7-30 days after payment confirmed.
Welcome click here Contact US!
