Высококачественный продукт цифровой HD 1CH HDMI к Rf ATSC
- Категория: Radio & TV Broadcasting Equipment >>>
- Поставщик: Good,Mind,Electronics,(Shenzhen),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 146.35 $* | 149.43 $* |
| Jul-16-2025 | 118.34 $* | 120.23 $* |
| Jun-16-2025 | 144.49 $* | 147.62 $* |
| May-16-2025 | 143.9 $* | 146.70 $* |
| Apr-16-2025 | 114.0 $* | 116.49 $* |
| Mar-16-2025 | 140.96 $* | 143.38 $* |
| Feb-16-2025 | 139.69 $* | 142.82 $* |
| Jan-16-2025 | 138.53 $* | 141.73 $* |
Характеристики
Product Description
Specification
Place of Origin:Guangdong,China | ||||||
Model Number:GDM-023-2(CM-1050) | ||||||
ITEM | TYPICAL | Q.C LIMIT | TEST CONDITIONS | |||

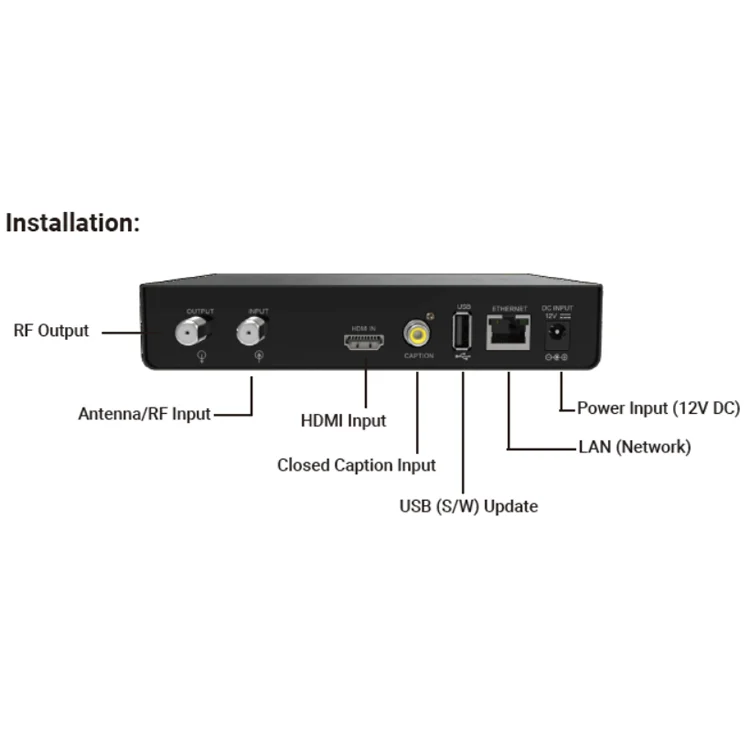

1. RF Output | ||||||
Connector | Female TYPE-F | |||||
Impedance | 75 ohms | |||||
Output Frequency Range | CH2~CH69 | 57MHz ~803MHz | ||||
Low Band CH2~CH13 | 57 MHz ~213MHz | |||||
High Band CH13~CH69 | 473MHz~803MHz | |||||
RF Out Level | 100dBµV | 100dBµV ± 5dBµV | ||||
RF Out Level ADJ | 0dBm~-30dBm | |||||
MER | ≥33dB | |||||
2. RF Input | ||||||
Connector | Female TYPE-F | |||||
Impedance | 75 ohms | |||||
FREQ. RANGE | 50~ 950 MHz | |||||
INSERTION LOSS | - 4.8dB | - 4.8 dB MAX. | ||||
3.HDMI INPUT | ||||||
Connector | HDMI JACK | |||||
Compatible format | Auto /480I/ 480P /576I /576P/720P/1080I/1080P | |||||

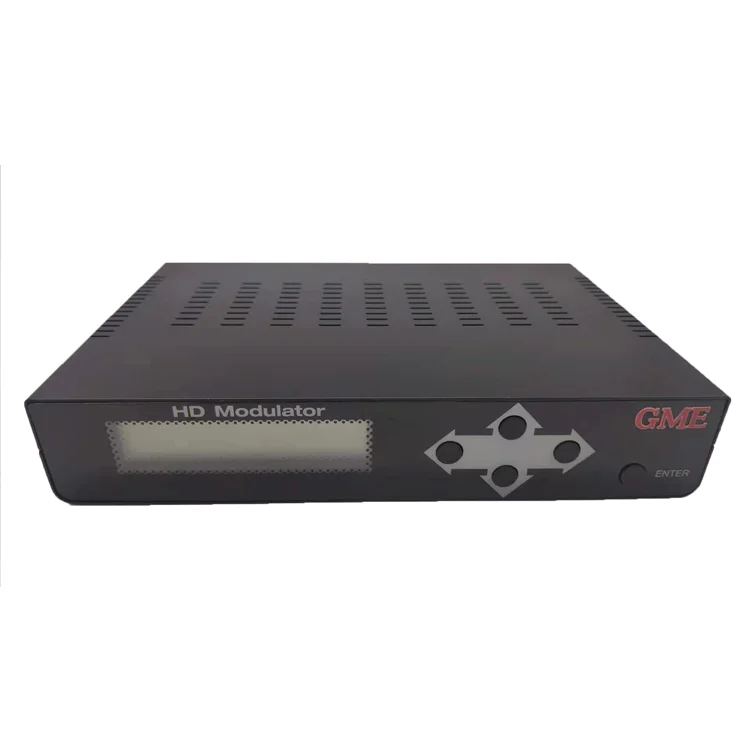

4.Front Panel Function | ||||||
ENTER | ||||||
▲UP | ||||||
▼Down | ||||||
◀ Left | ||||||
▶ Right | ||||||
Display | LCD | |||||
5．USB2.0 | ||||||
Connector | USB2.0 JACK | |||||
Signals | Firmware Update | |||||
USB Power Load | 5VDC 0.5A | |||||
6. Ethernet | ||||||
Ethernet Port | RG45,100M | |||||
Remote management | Web Management | |||||
7. Capttion | ||||||
Input Connectors | Closed Caption(RCA yellow) | |||||
8. General Data | ||||||
Software | Software Version | |||||

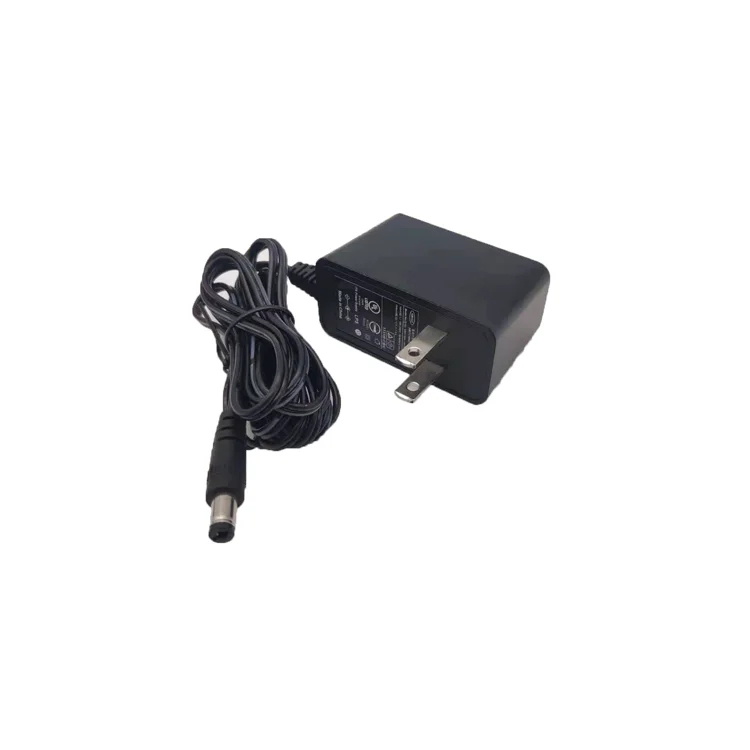

Supply Voltage | AC100V~240V 50Hz/ 60Hz OUTPUT:DC12V/1A | |||||
Power Consumption Max | 10W | 10W Max in AC input | ||||
Working Temperature | +5℃ to + 40℃ | |||||
Storage Temperature | -20℃ to + 65℃ | |||||
Environmental | ||||||
Temperature | 0℃ to + 40℃ | |||||
Humidity | 40RH to 90RH | |||||
Mechanical Specification | ||||||
Dimensions | 172*126*32mm | |||||
Weight | 0.6Kg approximate | |||||
