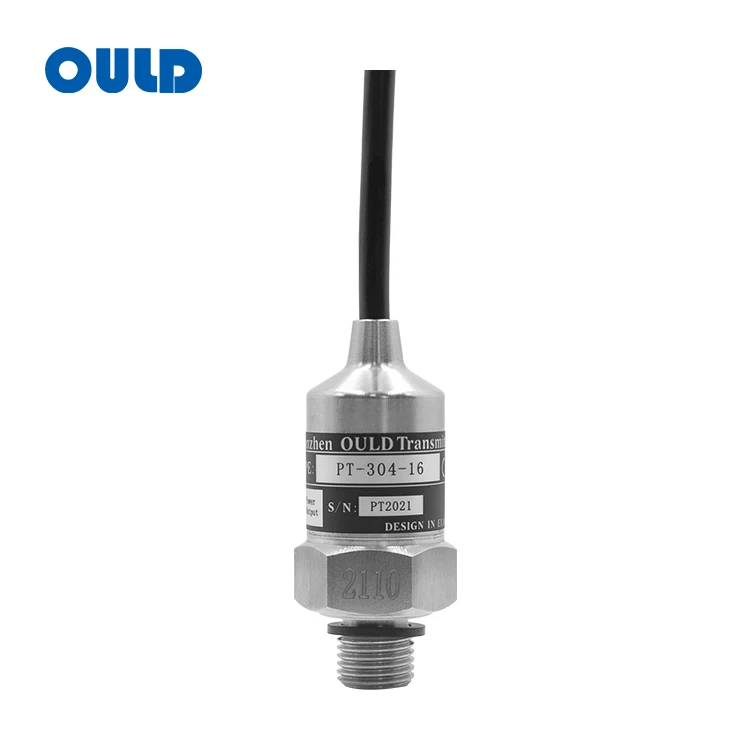

Преобразователь давления датчик для воздуха низкая стоимость PT-304
- Категория: Pressure Transmitters >>>
- Поставщик: Shenzhen,Ould,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 14.65 $* | 14.46 $* |
| Jul-16-2025 | 11.8 $* | 11.80 $* |
| Jun-16-2025 | 14.81 $* | 14.96 $* |
| May-16-2025 | 14.17 $* | 14.35 $* |
| Apr-16-2025 | 11.92 $* | 11.75 $* |
| Mar-16-2025 | 13.0 $* | 13.32 $* |
| Feb-16-2025 | 13.93 $* | 13.80 $* |
| Jan-16-2025 | 13.23 $* | 13.63 $* |
Характеристики

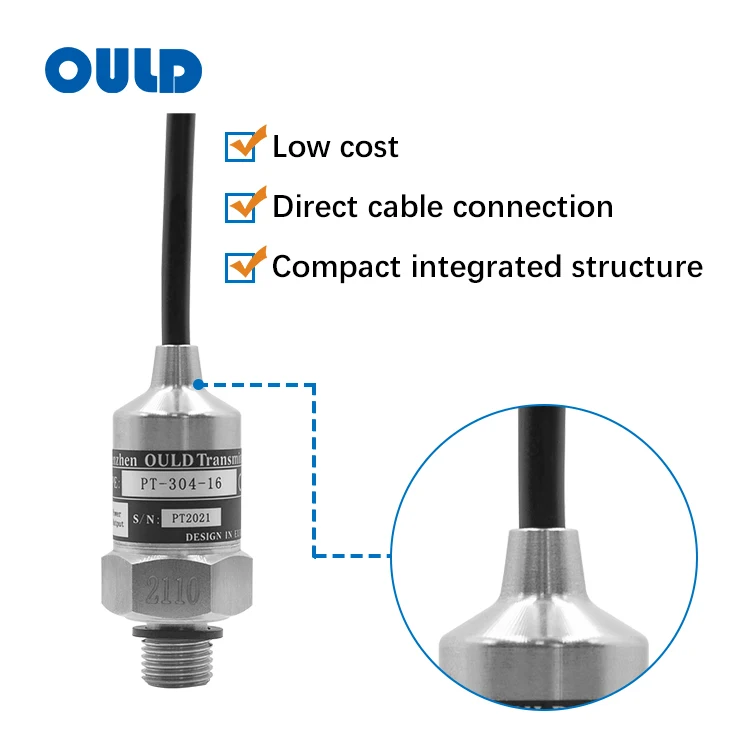

Product Features
Rroduct Exploded View
Specifications
Parameters:
Model | PT-304 |
Pressure range | 0MPa~0.1MPa~4MPa |
Accuracy | ± 0.5%FS ， ± 1%FS |
Output signal | 0.5 - 4.5VDC , 4 - 20mA |
Overload pressure | 200%FS |
Working temprature | -40℃~85℃ |
Temperature drfit | ±0.03%FS/℃ |
Power supply | 3-5VDC，24VDC（10-36VDC） |
Electrical connection | cable, terminal, etc |

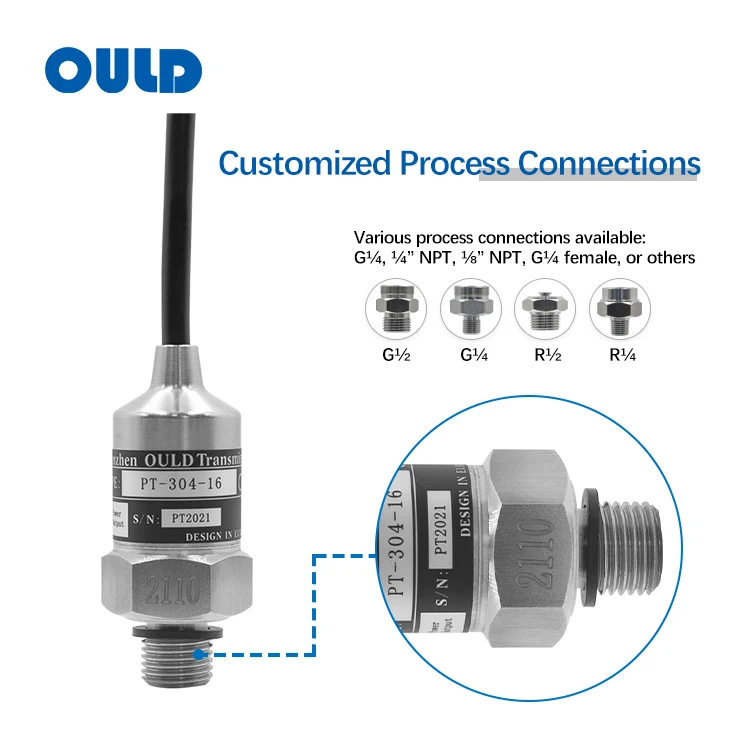

Process connection | G1/4, R1/4etc, can be customized |
Ingress protection | IP65 |

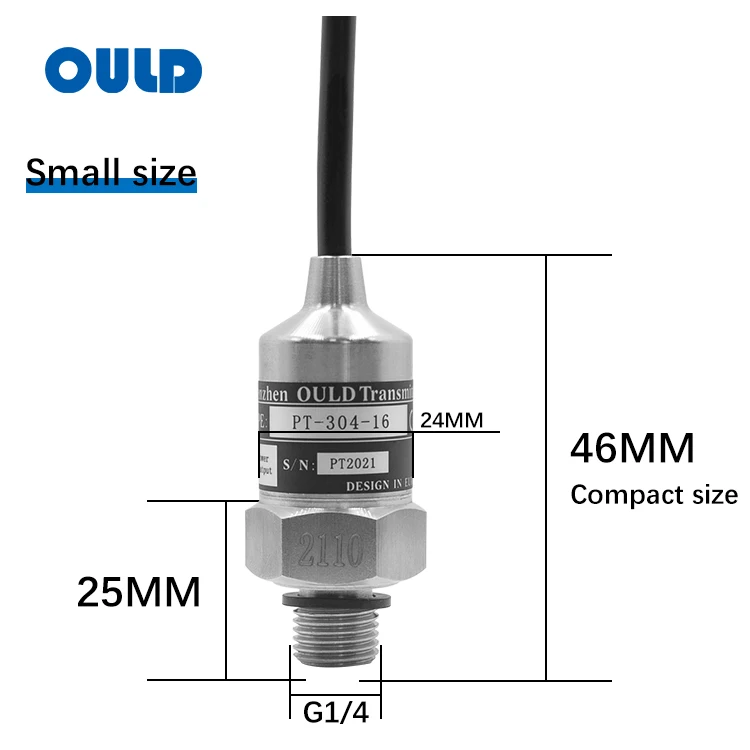

Dimensions: (mm)
Electrical connection:
4 ~ 20mA | 0 ~ 5VDC , 0.5 ~ 4.5VDC | |
Red | Power supply+ | Power supply+ |
Black | Output | Power supply- |
Green or white | N/A | Output |
Applications
Why Choose Us?
INNOVATION:
High-end research and development capability
Excellent production capacity

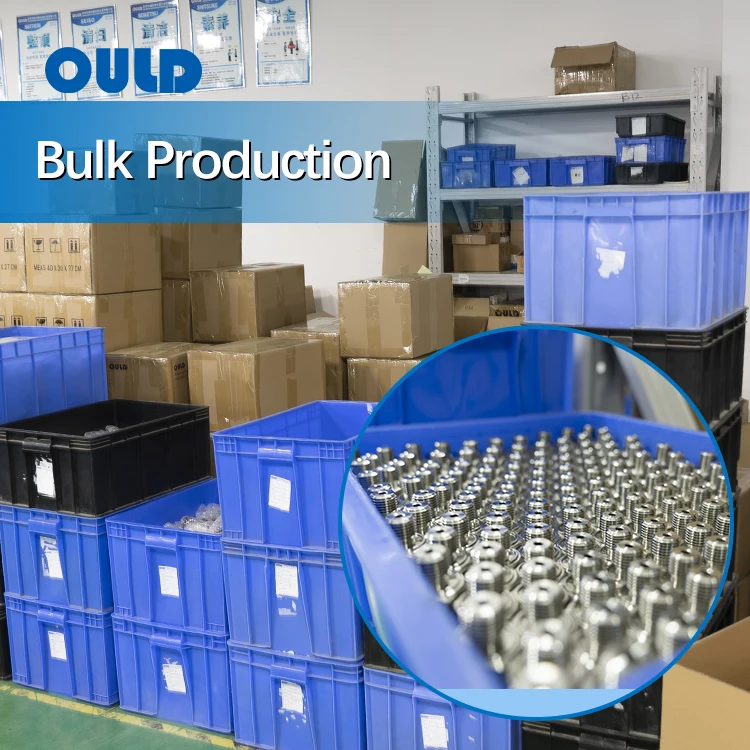

PRODUCTION:
Large percentage of market share
Professional manufacturing
Advanced production lines
QUALITY:
ISO9001 quality management system
CE certified products
National High-Tech Enterprise
SERVICE:
Quick-response within 24 hours
12-18 months long warranty period
Recommended Products
Shenzhen OULD Instrument CO.,Ltd.
We are professional manufacturer of pressure measurement products since 2002.
products
Our main products include pressure sensors, pressure transmitters, temperature sensors, temperature transmitters, wireless pressure/temperature transmitters, and level transmitters.
OEM
We are OEM supplier for many well-known producers of air compressors, water pumps, air conditioning equipment, hydraulic equipment, etc.
we are also authorized distributor for the automation components of Hirschmann, Lumberg, Metallux, IST, HTP, etc.in China.
Factory
Our manufacturing plant occupies more than 3,000 square meters, including a dust-free workshop of 1350 square meters for pressure sensors manufacturing, and we have around 100 employees.
Research
We have CNC machines and 35 kinds of manufacturing facilities, including temperature compensation test equipment, laser resistance regulator machines, etc. We can produce more than 600,000 pressure sensors/transmitters and 300,000 sets temperature sensors/transmitters monthly.
Qualification
We have strong capability for research and development on our main products and customized products.
Our company implements ISO9001 quality management system, and has been identified as National High-Tech Enterprise since 2017. Our products have CE certificate and explosion-proof certificate (certain products).
Our company implements ISO9001 quality management system, and has been identified as National High-Tech Enterprise since 2017. Our products have CE certificate and explosion-proof certificate (certain products).
Transportation
FAQ
Q: Are you manufacturer or trading company?
A: We are leading manufacturer for pressure sensors, pressure transmitters, temperature sensors, temperature transmitters, wireless pressure transmitters, and level transmitters for more than 20 years.
A: We are leading manufacturer for pressure sensors, pressure transmitters, temperature sensors, temperature transmitters, wireless pressure transmitters, and level transmitters for more than 20 years.
Q: How do you guarantee your product quality?
A: WE are an IS09001:2017 certified manufacturer. We have strict quality control system, to do testing, calibration, and temperature compensation for each product. Our products are CE certified as well.
A: WE are an IS09001:2017 certified manufacturer. We have strict quality control system, to do testing, calibration, and temperature compensation for each product. Our products are CE certified as well.
Q: Do you accept OEM production?
A: Yes, we also do customized products, customized pressure range, output signals, housing, logo, etc. Normally, we will have requirement on MOQ for customized products.
Q: What is the lead time for your products?
A: For the products we have in stock, our lead time is immediate shipment after payment. For the products of no stock, our lead time is 1-2 weeks after payment.
Q: Can I get samples?
A: Yes, we will be glad to provide you samples as per your specific technical requirements.
Q: How long is the warranty for your products?
A: We offer 12 months warranty period for our products.
A: We offer 12 months warranty period for our products.
