DWIN 4 3 7 10 1 дюймов ips tft ЖК-модуль водонепроницаемый ЖК-дисплей сенсорный экран с
DWIN 4 3 7 10 1 дюймов ips tft ЖК-модуль водонепроницаемый ЖК-дисплей сенсорный экран с
DWIN 4 3 7 10 1 дюймов ips tft ЖК-модуль водонепроницаемый ЖК-дисплей сенсорный экран с
DWIN 4 3 7 10 1 дюймов ips tft ЖК-модуль водонепроницаемый ЖК-дисплей сенсорный экран с
DWIN 4 3 7 10 1 дюймов ips tft ЖК-модуль водонепроницаемый ЖК-дисплей сенсорный экран с
DWIN 4 3 7 10 1 дюймов ips tft ЖК-модуль водонепроницаемый ЖК-дисплей сенсорный экран с
DWIN 4 3 7 10 1 дюймов ips tft ЖК-модуль водонепроницаемый ЖК-дисплей сенсорный экран с

DWIN 4 3 7 10 1 дюймов ips tft ЖК-модуль водонепроницаемый ЖК-дисплей сенсорный экран с


Поделиться:


Цена:17,90 $ - 44,90 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-17-2025 22.56 $* 22.1 $*
Jul-17-2025 18.37 $* 18.29 $*
Jun-17-2025 21.25 $* 21.33 $*
May-17-2025 21.55 $* 21.8 $*
Apr-17-2025 17.70 $* 17.13 $*
Mar-17-2025 21.46 $* 21.34 $*
Feb-17-2025 21.2 $* 21.82 $*
Jan-17-2025 20.60 $* 20.96 $*

Характеристики















Display


Item
Parameter
Description
Color
262K colors
18-bit 6R6G6B
（A.A）
154.1mm (W) ×85.9mm (H)
800x480
Resolution
800x480
Support 0°/90°/180°/270°rotated display
Backlight
LED
≥10000H（Continuous working with maximum brightness, time of brightness halves）
Brightness
200nit
TA system:64 levels adjustment;
DGUSⅡsystem:100 levels adjustmen
(It's not recommend to set brightness to 1%~30% of the maximum,which may lead a flicker)
Note: Displaying of high-contrast still images for more than 30 minutes may result in residual images. Please add screen saver to avoid this problem.


Voltage & Current


Item
Conditions
Min
Typ
Max
Unit
Power Voltage
-
6
12
36
V
Operation Current
VCC = +12V, Backlight on
-
280
-
mA
VCC = +12V, Backlight off
-
140
-
mA
Recommended power supply: 12V 1A DC


Reliability Test


Item
Conditions
Min
Typ
Max
Unit
Working Temperature
60%RH at 5V voltage
-10
25
60
℃
Storage Temperature
-
-20
25
70
℃
Working Humidity
25℃
10%
60%
90%
RH
Protective Paint
-
-
None
-
-


Interface


Item
Conditions
Min
Typ
Max
Unit
Baudrate
User Set
3150
115200
3225600
bps
Output Voltage
（TXD）
Output 1, Iout =-4mA
4.78
5.0
-
V
Output 0, Iout = 4mA
-
-
0.4
V
Input Voltage
（RXD）
Input 1
2.5
5.0
-
V
Input 0
-
-
1.0
V
Interface
UART2: N81  RS232
UART4: N81/E81/O81/N82   RS232   (Only available after OS configuration)
UART5: N81/E81/O81/N82   RS485   (Only available after OS configuration)

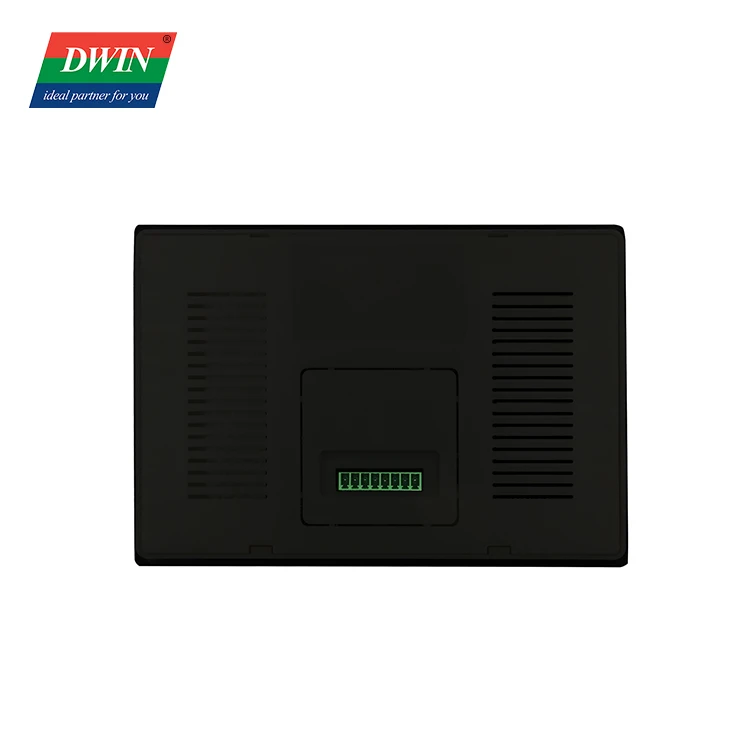

Socket
8Pin_3.81mm Socket
USB
None
SD Slot
YES (SDHC/FAT32 Format)


Memory


Item
Typical value
Features
Typ value
Unit
Description
FLASH
（TA/DGUSⅡ）
16Mbytes
Space of Font
4-12
Mbytes
A single font of 256Kbytes,store font, icon libraries,and other binary files
Picture Storage
（.ICL file)
12-4
Mbytes
JPEG format(Picture quantity relate to JPEG size，size of a single JPEG image file should not exceed 256Kbytes)
RAM
（DGUSⅡ）
128Kbytes
Variable Storage Space
/
/
Data is not saved when power down
Nor Flash（DGUSⅡ）
320Kbytes
User database
/
/
Data is saved when power down


UI & Peripherals


Peripherals
UI Version
TA / DGUSⅡ ( DGUSⅡ pre-installed )
Peripherals
Resistive touch screen, Buzzer


Packing Capacity & Dimension


Dimension
Dimension
194.8mm (W)×135.0mm (H) ×21.0mm (T)
Net Weight
319g
Packing Capacity
Model
Size
Layer
Quantity/Layer
Quantity(Pcs)
Carton1：
220mm(L)×160mm(W)×47mm (H)
-
-
-
Carton2：
250mm(L)×200mm(W)×80mm (H)
2
1
2
Carton3：
320mm(L)×270mm(W)×80mm (H)
--
-
-
Carton4：
450mm(L)×350mm(W)×300mm(H)
none
none
none
Carton5：
600mm(L)×450mm(W)×300mm(H)
1
20
20


Remark: There is no extra-notice if the product design changes that do not affect performance parameters and use.








Beijing DWIN Technology is a world-leading high-tech industrial automation enterprise which is dedicated to the research, development, manufacture and sales of UART LCM. The head office of DWIN is located in the core area of China's "Silicon Valley" Zhong Guan Cun. The company has set up offices in many provinces of China (Beijing, Suzhou, ChangSha, GuangZhou and ShenZhen etc.), established the effective sales channels and branches in Northern Europe, America, India, Turkey, Brazil and Korea. The manufacturing center of the company is seated at DWIN Hunan Technology Park covering 28000 m2. The manufacturing centers are equipped with high cleanliness assembly lines, quality improvement centers, laboratories and aging test workshops. A 4500-square-metre Application Support Center has been built in Guangzhou for providing technical support. Established in 2003, DWIN advocates its operation philosophy of "Professional, Creditable, and Successful". The company believes that only by creating value for the clients, could DWIN realize its idea of "Double win", and therefore could meet its need to grow and expand. Relying on the competitive advantage of its product in function, quality, service and price, DWIN plays a major role in the market of Industrial UART LCM, especially in the market of the construction machinery, healthcare instrument, and electronic equipment for export, which are products focused on high reliability. As a result, DWIN has already won the trust and support from clients like SANY Group, GE and SIEMENS. Creating value for the clients is DWIN's belief; Technology innovation is DWIN's focus; "Double Win" and mutual development are DWIN's spirit!


















FAQ


Question 1:
How can I start development with a DWIN LCD Module? Can I assemble it directly on my machine?
Answer: No, you should update the program to LCD at first, and then assemble it.
Step 1, check the software platform of the screen, it mentioned in datasheet.
Step 2, use the correct development SDK (different platform use different SDK) to finish developing.
Step 3, update software program and test
Step 4, when test OK, assemble it on machine.

Question 2:
What industries are DWIN LCD used in?
Answer: Beauty machine, Physical therapy, Health and fitness, Medical treatment, Air treatment, Air control, Transportation (Car &ship instruments), instruments and apparatus automation, Electricity, Water treatment, IC design and manufacture, Kitchen appliances (Juicer, oven, ice machine, ice-cream machine, kitchen ventilator), New energy(Photovoltaic, Wind electricity, Charging Pile), Household appliances…

Question 3:
Does DWIN product need a MOQ when purchase? I only need some samples in the first.
Answer: No MOQ for standard product, and we have free sample for application, please scan below QR, or leave messages to us on Alibaba.com

Question 4: Will DWIN have online technical support?
Answer: Yes of cause, below 6 ways you can get technical support.
- Hotline: 4000189008
- QQ: 4000189008
- DWIN wechat official ( scan the above QR)
- DWIN Forum: hppt://forum.dwin.com.cn/
- Leave messages to us on Alibaba.com

Question 5: What kind of Express are supported? Trade terms is ?
Answer: DHL, TNT, UPS, Fedex. Trade terms is EXW.

Question 6: How long is the operating life of the product?
Answer: Industrial grade screen: 30,000 - 50,000 hours
Consumer and Commercial screen: 10,000 hours
(Operating life means brightness goes down to 50% of initial brightness)
