300 Вт yag лазерный сварочный аппарат для ювелирных изделий оптоволоконного кабеля лампы-вспышки мини ювелирные изделия YAG лазерная машина точечной


Поделиться:


Цена:272 175,63 ₽*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-16-2025 345662.56 $* 352575.54 $*
Jul-16-2025 280340.65 $* 285947.95 $*
Jun-16-2025 340219.3 $* 347023.36 $*
May-16-2025 337497.55 $* 344247.52 $*
Apr-16-2025 269453.75 $* 274842.30 $*
Mar-16-2025 332054.3 $* 338695.62 $*
Feb-16-2025 329332.70 $* 335919.30 $*
Jan-16-2025 326610.53 $* 333142.61 $*

Характеристики



Product Paramenters


Product description
1、Adopt imported ceramic concentrating cavity, high reflectivity, strong energy, high temperature resistance, corrosion resistance and long service life;
2、The whole machine is with ergonomic design, more suitable for the jewelry industry, the product is fine, beautiful, with stable performance, suitable for long-term continuous work needs;
3、The internal space is large, which is convenient for the placement of laser spot welding tools and fixtures; the welding debris recovery box is installed to facilitate cleaning and gold welding residue recovery;
4、LED ring type shadowless lamp, observe the workpiece without shadow, with high-definition parallel light path microscope, laser welding position observation is more clear;
5、 High-magnification beam expansion system, to obtain a more precise spot, to meet the needs of fine laser spot welding.




Ceramic condenser cavity
Ceramic condenser cavity, with high energy, high temperature resistance, corrosion resistance, long service life.


Autonomous welding system

Own intellectual property rights of laser power system ,many years of development and upgrad ,Chinese/English interface ,simple operation


Closed table

Large internal Space,convenient for laser spot welding tools,jig placement,The welding chip recovery box is installed to facilitate cleaning and gold welding slag recovery.

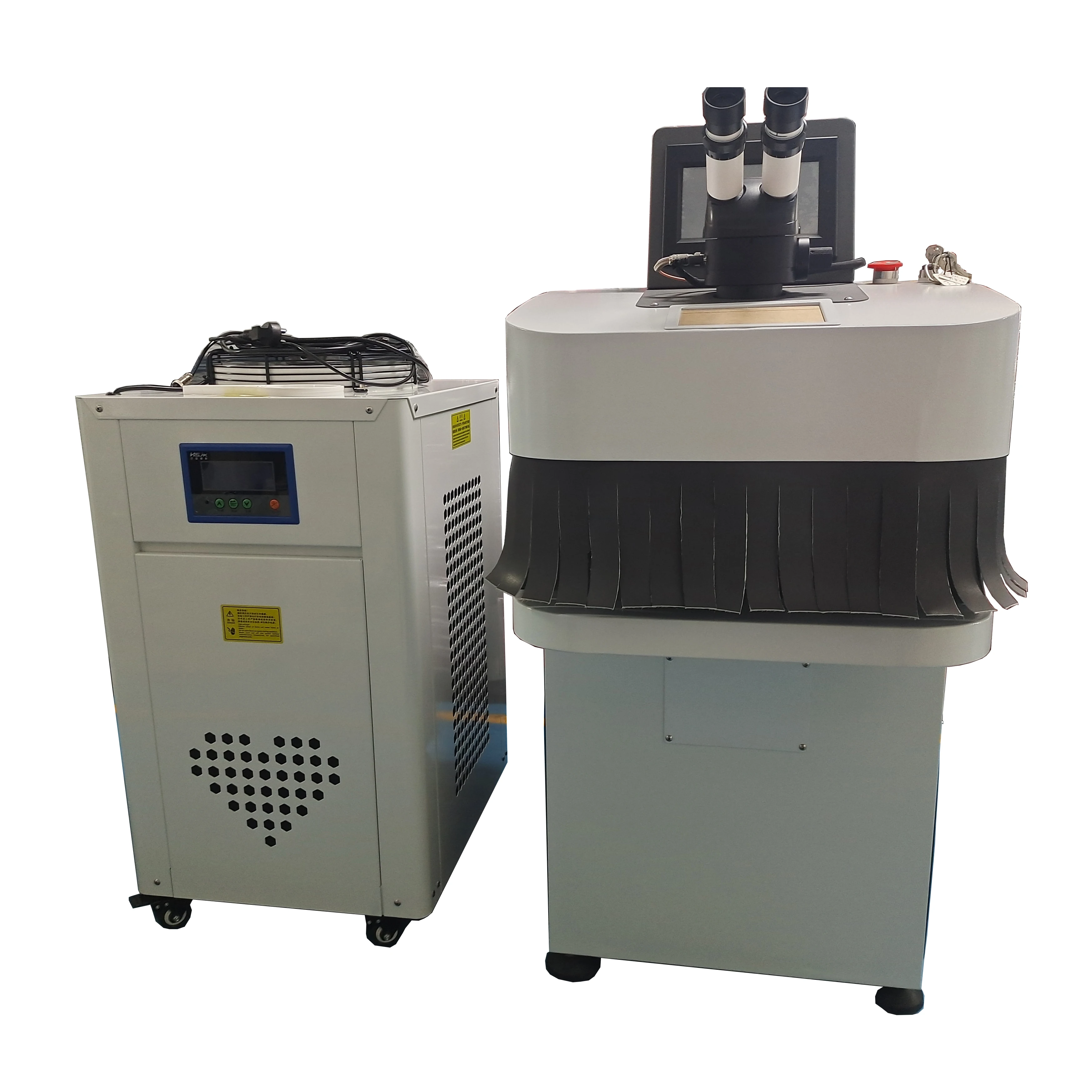

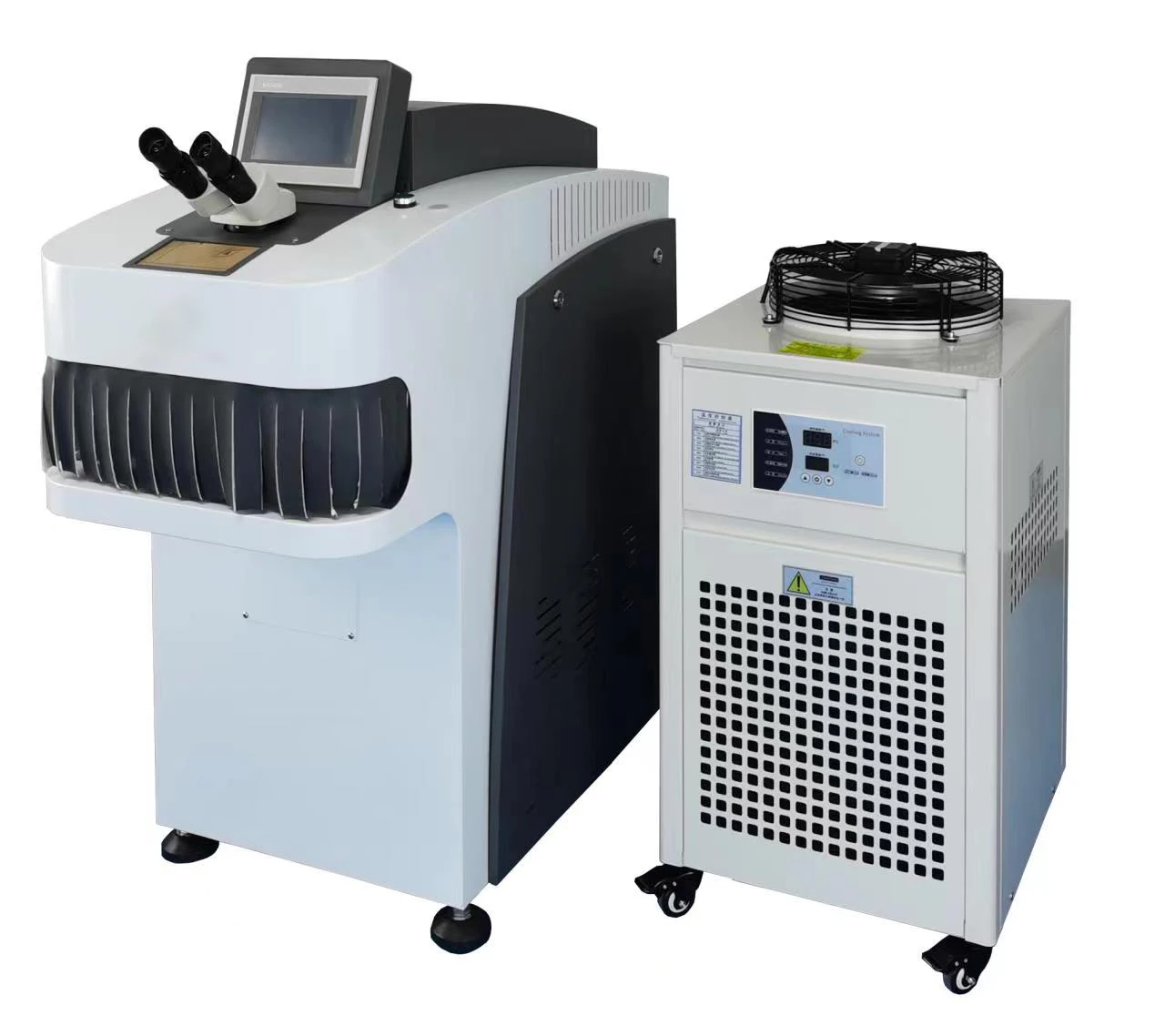

Water chiller
200w is equipped with 1P, or you can choose a built-in water machine, which can meet the demand for a long time. High-power welding is more stable.


Mold welding, without worktable, you can choose any worktable you need.
Blue mold welding, electric workbench and color can be customized according to your needs.
400W mold welding with 3P chiller.


Device parameters


Device parameters
Machine No
YME-200W-FBS
Maximum laser power
200W
The laser wavelength
1064nm
Laser frequency
1-20Hz
Pulse width
0.1-10Ms
Light spot adjustment range
0.1-1.5mm
Aiming and positioning
Microscope and red light (optional camera system)
Cooling power of chiller
1P
Total power
8KW
Demand for electricity
380V±5V 50Hz/60A /220V±5V 50Hz/40A
External dimensions/net weight
Host machine:1100×600×1300mm
108kg
Chiller:500×550×750mm
65kg


Device Configuration
1、One set of YAG laser;\t
2、One set of laser power supply;
3、One set of optical system;
4、One set of liquid crystal display system;
5、One set of refrigeration and water temperature detection and protection system;
6、One microscope;
7、One 1P chiller(Built-in water dispenser);
8、One set of main engine cabinet.





Sample Display




Product packaging




Our Services






Other Product Recomm




Welcome To Visit Our Factory




Certifications




Company Information



Shenzhen Youmir Technology Co., Ltd. is a high-tech enterprise integrating R&D, production, sales and service, providing a complete set of laser application solutions and related supporting equipment for domestic and foreign customers.
The company was established in 2012 and is located in Songgang Street, Bao'an District, Shenzhen, adjacent to Songgang Wuzhihake Scenic Spot. In 2017, Zhongshan branch was established. In 2018, Hunan Youmir Laser Technology Co., Ltd. was established to provide services for foreign customers.
At present, the company's main products are: laser welding machine series, laser marking machine series, laser cleaning machine series, laser cutting machine series and many other series of industrial laser equipment.
Products are widely used in stainless metals, steel metallurgy, non-ferrous metals, jewelry, batteries, automobiles and parts, aerospace, precision instruments, machinery manufacturing, molds, hardware tools, integrated circuits, semiconductor manufacturing, solar energy, education , Communications and measurement, packaging, shoe materials and leather, plastics and rubber, jewelry, craft gifts and other industries.
The company pays attention to humanistic care, comfortable office environment, relaxed working atmosphere, let everyone feel the warmth of home!











FAQ


How about warranty?
A1: 2 years warranty for laser source, 1 year quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
I don’t know which machine is suitable for me ?
A2:Please tell me what material and thickness do you want to weld
Payment terms?
A3:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
Do you have CE document and other documents for customs clearance?
A4:Yes,we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
Delivery time
General configuration:7 days. Customized:7-10 working days.
Can I get the sample to check the quality or machine?
Of course, we can help make welding samples with free, please send us your product to our company
Can you arrange the shipment for me?
A: Sure, we can arrange the shipment for our clients accordingly by sea and air or by courier. Trading terms FOB, CIF, EXW etc. are available.
What's the package?
A: All of machines we will packed with standar wooden box
Does the machine can be customized according to my requirements ?
Sure, we have a strong technical team and have rich experience. We can customized machines according your product requriements.
What's your payment terms? MOQ?
We can accept Alibaba trade assurance T/T. Usually we do 30% as deposit, balance paid before shipment. MOQ 1 set.
What to do if the machine has problem?
A: If it is with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.How about warranty?
A1: 2 years warranty for laser source, 1 year quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
