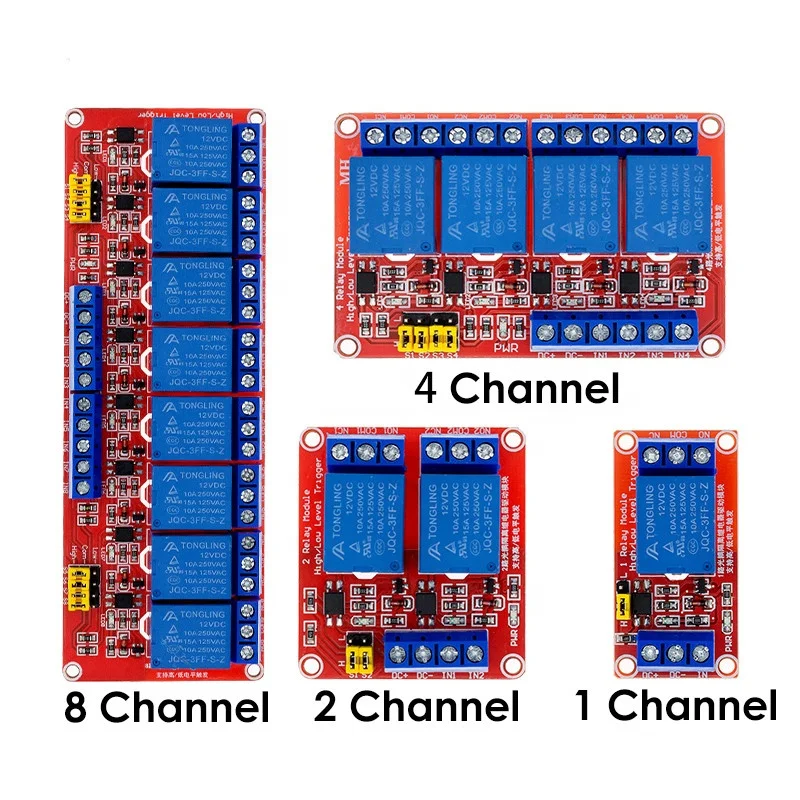

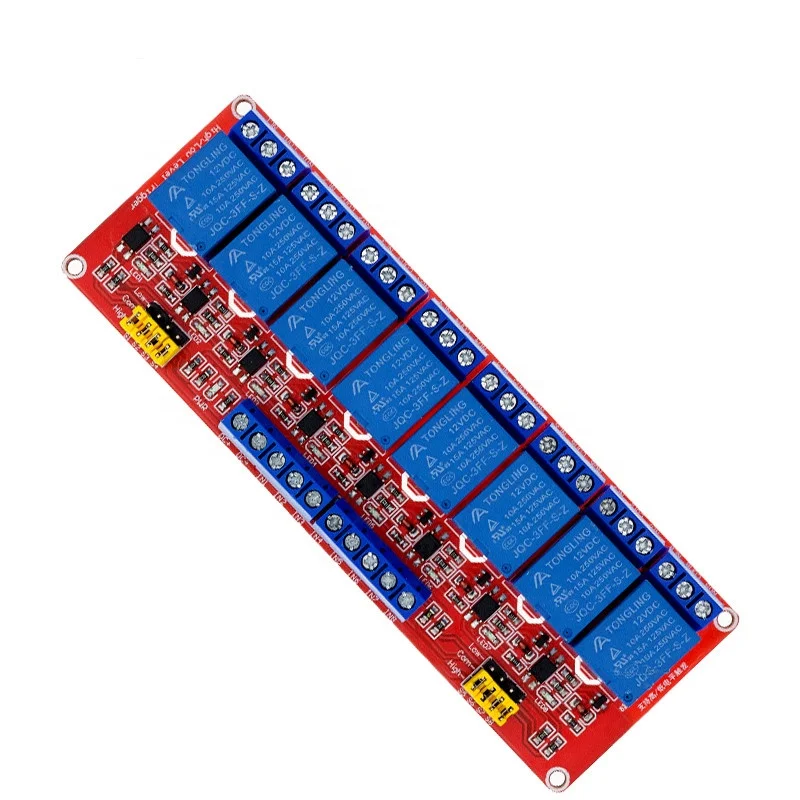

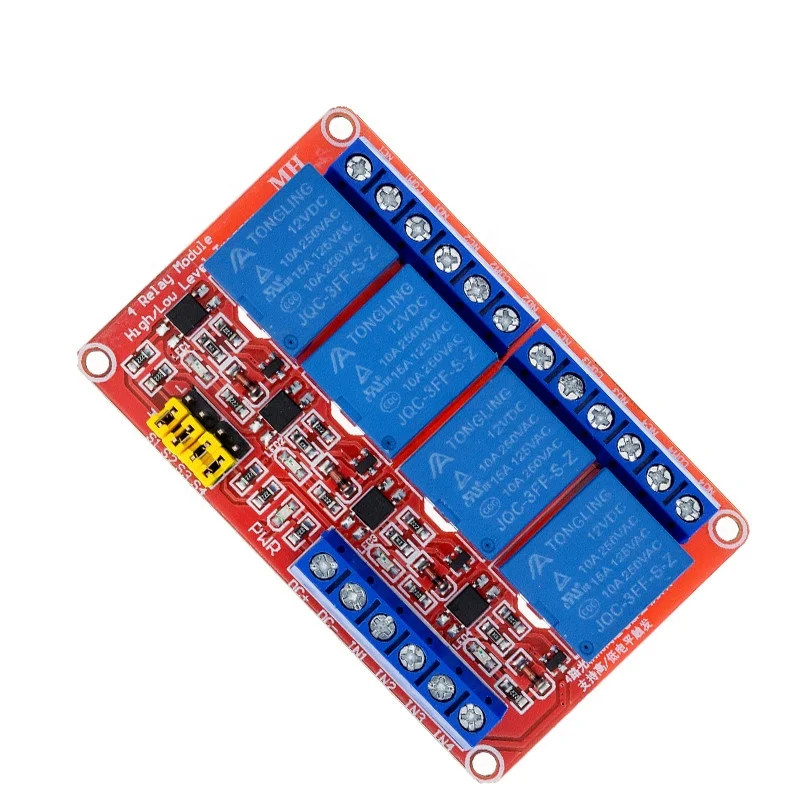

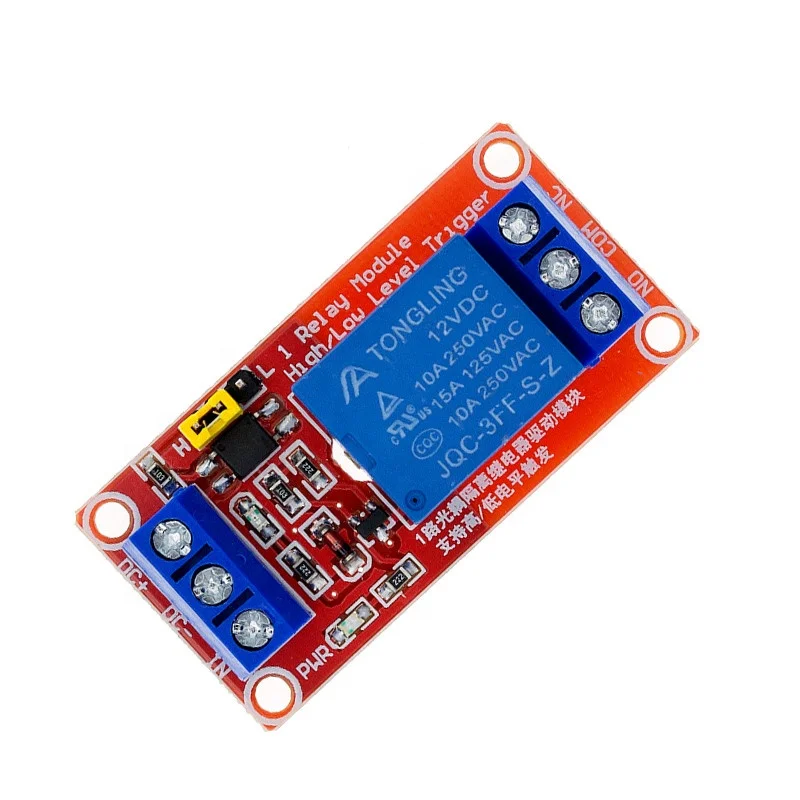

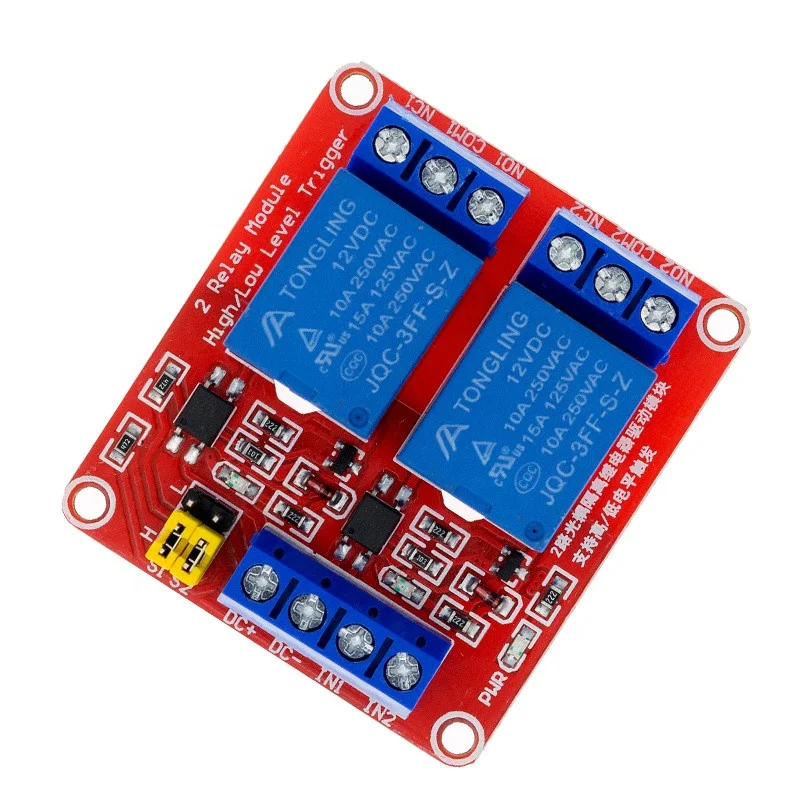

Плата релейного модуля 1 2 4 8 каналов 12 В щит с оптроном поддержка высокого и низкого уровня курка
- Категория: Electronic Accessories & Supplies >>>
- Поставщик: Shenzhen,Signalwell,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.4 $* | 0.66 $* |
| Aug-18-2025 | 0.58 $* | 0.70 $* |
| Jul-18-2025 | 0.47 $* | 0.49 $* |
| Jun-18-2025 | 0.87 $* | 0.6 $* |
| May-18-2025 | 0.64 $* | 0.17 $* |
| Apr-18-2025 | 0.21 $* | 0.66 $* |
| Mar-18-2025 | 0.32 $* | 0.64 $* |
| Feb-18-2025 | 0.1 $* | 0.72 $* |
| Jan-18-2025 | 0.64 $* | 0.42 $* |
Характеристики
Features:
1.Dual trigger design, use a dedicated two-way driver IC.
2.Strong resist interference, use diode continued current to protect it.
3.The relay contact part adopts double cloth line for large current, safe and reliable.
4.The input and output are 5.08mm wiring terminals, wiring is more convenient, suitable for PLC control.
5.Input terminals can be arbitrarily set high and low level, the control mode is more flexible.
6.Equipped with fixing screw hole, easy to install.
7.Each way module can be set high or low triggered by jumper.
Specifications:
Material: Metal
Mounting bolts holes: 4
Holes diameter: 3mm
Voltage: 5V 12V
Maximum load : AC 250V/10A, DC 30V/10A
Interface:
VCC: Power end
GND: Ground strap
CTR1-CTR8: Signal input trigger
Outputs:
24 line interface, the interface can be directly connected to all leads , user-friendly.
NO1-NO8: normally open relay interfaces , relay before the vacant after the pull shorted with COM
COM1-COM8: Relay Common Interface
NC1-NC8: normally closed relay interface relay shorted with COM ago , after the pull- vacant
1.Dual trigger design, use a dedicated two-way driver IC.
2.Strong resist interference, use diode continued current to protect it.
3.The relay contact part adopts double cloth line for large current, safe and reliable.
4.The input and output are 5.08mm wiring terminals, wiring is more convenient, suitable for PLC control.
5.Input terminals can be arbitrarily set high and low level, the control mode is more flexible.
6.Equipped with fixing screw hole, easy to install.
7.Each way module can be set high or low triggered by jumper.
Specifications:
Material: Metal
Mounting bolts holes: 4
Holes diameter: 3mm
Voltage: 5V 12V
Maximum load : AC 250V/10A, DC 30V/10A
Interface:
VCC: Power end
GND: Ground strap
CTR1-CTR8: Signal input trigger
Outputs:
24 line interface, the interface can be directly connected to all leads , user-friendly.
NO1-NO8: normally open relay interfaces , relay before the vacant after the pull shorted with COM
COM1-COM8: Relay Common Interface
NC1-NC8: normally closed relay interface relay shorted with COM ago , after the pull- vacant
Product Description
Specification
item | value |
Place of Origin | GUA |
Brand Name | SIGNALWELL |
Model Number | SW-14017 |
Theory | Solid State Relay |
Usage | General Purpose |
Contact Load | High Power |
Product name | 12V Relay Module Board |
Common interface load | AC 250V/10A, DC 30V/10A |
Voltage | 5V 12V |
Holes diameter | 3mm |
Weight | 60g/2.1oz |
VCC | Power end |
GND | Ground strap |
CTR1-CTR8 | Signal input trigger |
