XY5008L источник питания постоянного тока с ЧПУ регулируемый Постоянное напряжение регулятор 8A 400W
- Категория: Voltage Regulators\/Stabilizers >>>
- Поставщик: Rtx,Technology,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.59 $* | 0.96 $* |
| Aug-15-2025 | 0.50 $* | 0.96 $* |
| Jul-15-2025 | 0.45 $* | 0.55 $* |
| Jun-15-2025 | 0.59 $* | 0.81 $* |
| May-15-2025 | 0.58 $* | 0.43 $* |
| Apr-15-2025 | 0.46 $* | 0.13 $* |
| Mar-15-2025 | 0.84 $* | 0.98 $* |
| Feb-15-2025 | 0.0 $* | 0.7 $* |
| Jan-15-2025 | 0.15 $* | 0.5 $* |
Характеристики
Product Description

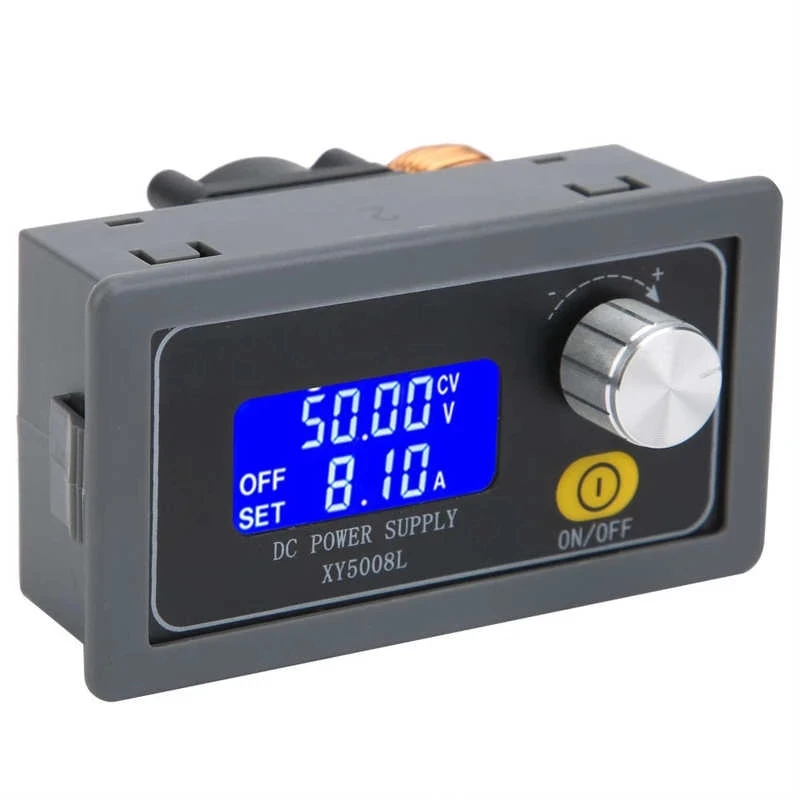

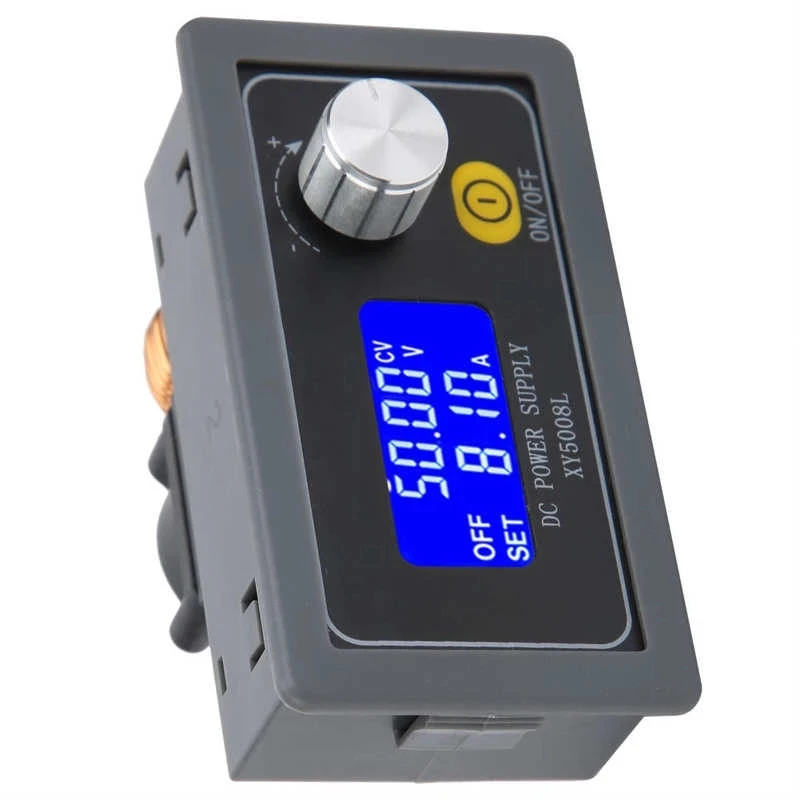

XY5008L DC Power Supply CNC Adjustable Constant Voltage Current Regulator 8A 400W DC6.0-55V
Item Type: DC Power Supply
Model: XY5008L
Material: Plastic
Purpose: Display power supply voltage rise and fall
Input Voltage: DC6.0-55V (extreme low voltage 5.5V, extreme high voltage 60V)
Output Voltage: DC0V-50V
Output Current: 0A-8.1A
Output Power: 0-400W
Typical Output Ripple: Vpp-150mv
Voltage Resolution: 0.01V
Current Resolution: 0.001A
Voltage Accuracy: ±0.4%+1 digits
Current Accuracy: +0.5%+3 digits
Capacity: 0-999999AH
Energy: 0-999999WH
Time: 0-1000 hours

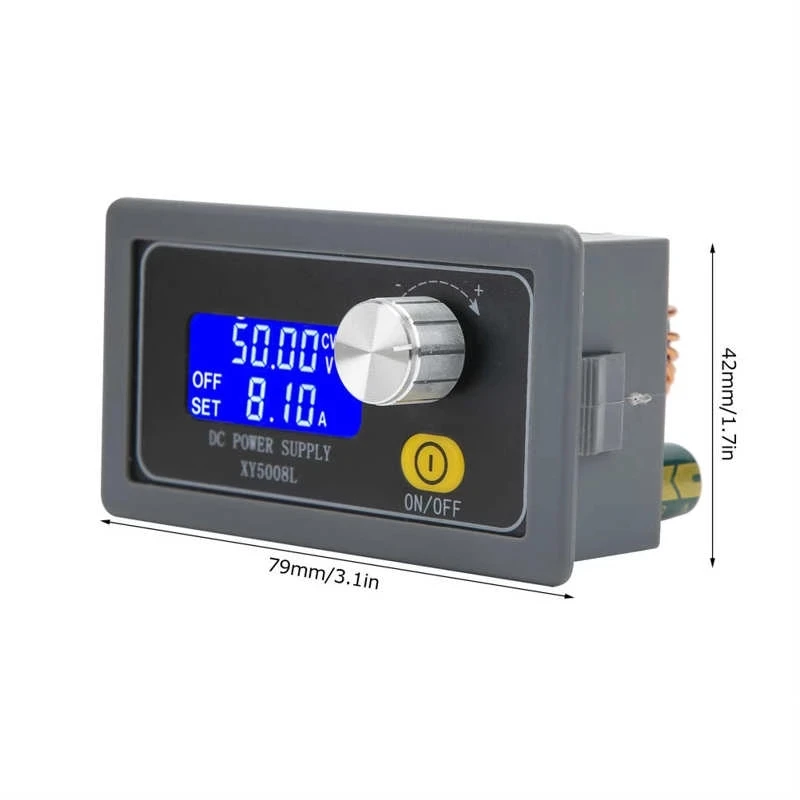

Product Size: Approx. 79 x 42mm / 3.1 x 1.7in
Setting Interface(how to use):
1. Long press the rotary encoder button for 3 seconds to enter the setting interface
2. Adjust the size of the parameter through the rotary encoder potentiometer, support rapid rotation (rapid increase/decrease),short press the rotary potentiometer button to switch the parameter to be adjusted
3. In the maximum capacity (OAH) / maximum energy (OPH) / maximum operating time (OHP) interface, short press the "ON/OFF" button to select the corresponding function on or off, if it is off, it will display "----"
4. In the maximum capacity (OAH)/maximum energy (OPH) parameter interface, long press the "ON/OFF" button to select the capacity range (9.999Ah/99.99Ah /999.9Ah/9999Ah, 9.999Wh/99.99Wh /999.9Wh/9999Wh )
5. After setting the parameters, press and hold the encoder potentiometer button for 3 seconds to exit the setting interface, and the setting parameters are automatically saved
Specification:
Item Type: DC Power Supply
Model: XY5008L
Material: Plastic
Purpose: Display power supply voltage rise and fall
Input Voltage: DC6.0-55V (extreme low voltage 5.5V, extreme high voltage 60V)
Output Voltage: DC0V-50V
Output Current: 0A-8.1A
Output Power: 0-400W
Typical Output Ripple: Vpp-150mv
Voltage Resolution: 0.01V
Current Resolution: 0.001A
Voltage Accuracy: ±0.4%+1 digits
Current Accuracy: +0.5%+3 digits
Capacity: 0-999999AH
Energy: 0-999999WH
Time: 0-1000 hours
Product Size: Approx. 79 x 42mm / 3.1 x 1.7in
Setting Interface(how to use):
1. Long press the rotary encoder button for 3 seconds to enter the setting interface
2. Adjust the size of the parameter through the rotary encoder potentiometer, support rapid rotation (rapid increase/decrease),short press the rotary potentiometer button to switch the parameter to be adjusted
3. In the maximum capacity (OAH) / maximum energy (OPH) / maximum operating time (OHP) interface, short press the "ON/OFF" button to select the corresponding function on or off, if it is off, it will display "----"
4. In the maximum capacity (OAH)/maximum energy (OPH) parameter interface, long press the "ON/OFF" button to select the capacity range (9.999Ah/99.99Ah /999.9Ah/9999Ah, 9.999Wh/99.99Wh /999.9Wh/9999Wh )
5. After setting the parameters, press and hold the encoder potentiometer button for 3 seconds to exit the setting interface, and the setting parameters are automatically saved
