Машина для производства труб из нержавеющей стали
- Категория: Pipe Making Machinery >>>
- Поставщик: FOSHAN,GXG,TECHNOLOGY,CO.,LTD
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 2596730.85 $* | 2726567.61 $* |
| Aug-20-2025 | 2574909.73 $* | 2703654.19 $* |
| Jul-20-2025 | 2160305.33 $* | 2268320.84 $* |
| Jun-20-2025 | 2531266.33 $* | 2657829.95 $* |
| May-20-2025 | 2203947.15 $* | 2314144.73 $* |
| Apr-20-2025 | 2487624.91 $* | 2612005.28 $* |
| Mar-20-2025 | 2465802.5 $* | 2589092.33 $* |
| Feb-20-2025 | 2443981.66 $* | 2566180.4 $* |
| Jan-20-2025 | 2422160.19 $* | 2543268.96 $* |
Характеристики
Product Introduction

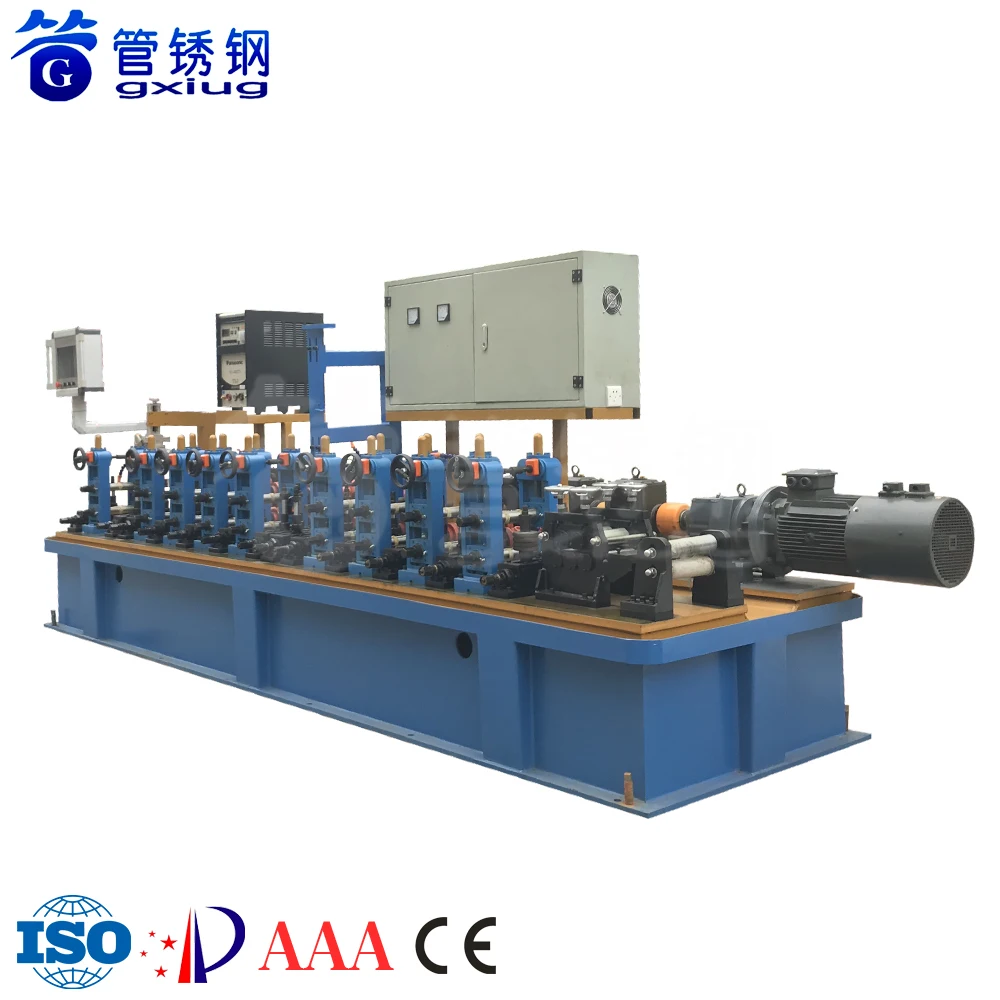

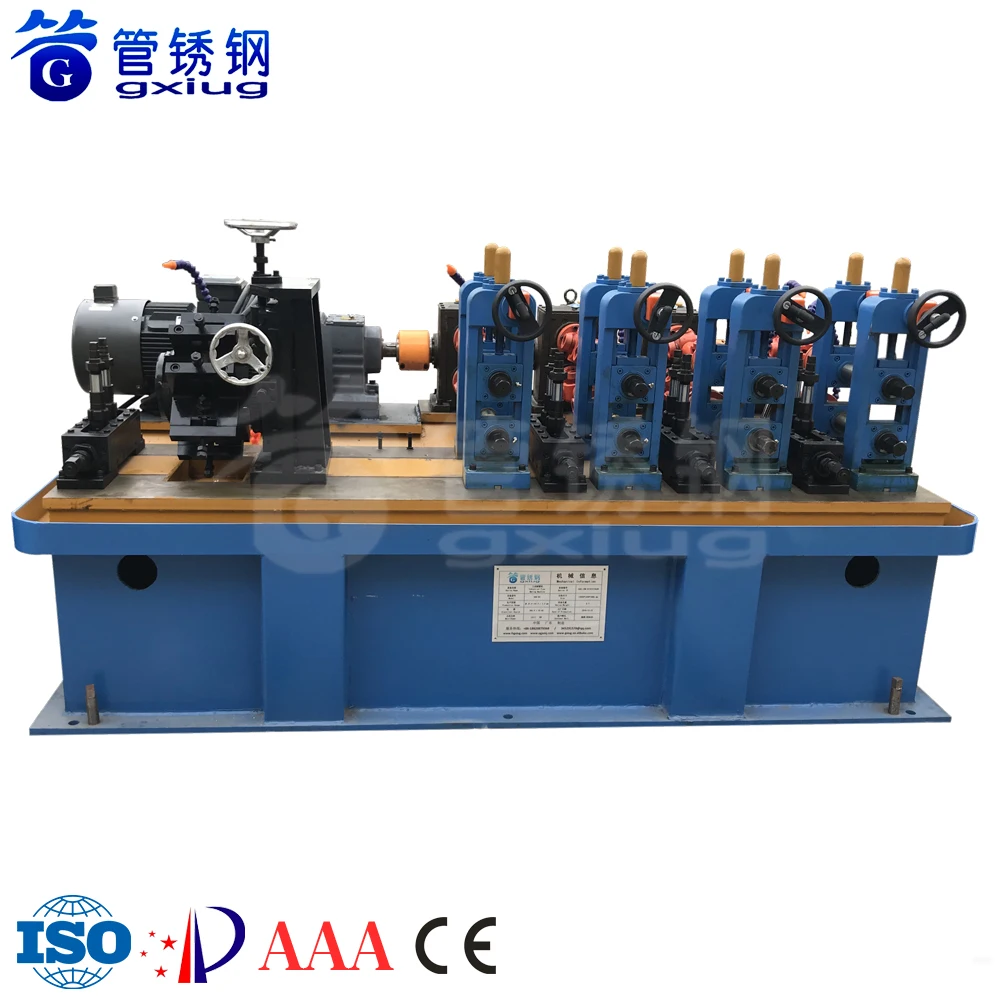

GXG Stainless Steel Water Tube Roll Forming Production Line Equipment Fluid Weld Pipe Making Machine Mill Manufacturer Supplier
TUBE MATERIAL:Stainless Steel 304/316L / Titanium Etc
PIPE SHAPE:Round Etc
USDAGE:Water pipe / Fluid pipe / Titanium pipe / Petrochemical pipe / Aerospace Automobile pipe /Drinking food grade pipe/Hygienic grade pipes Etc
Product Model Parame
GXG Stainless Steel Water Tube Roll Forming Production Line Equipment Fluid Weld Pipe Making Machine Mill Manufacturer Supplier
| MODEL | GXG-20 | GXG-30 | GXG-40 | GXG-50 | GXG-60 |
| Round Tube Range (mm) | Ø5-20 | Ø15-32 | Ø25-51 | Ø38-76 | Ø63-114 |
| Square Tube Range (mm) | —— | —— | 10*10-40*40 | 20*20-60*60 | 40*40-90*90 |
| Wall Thickness Range (mm) | 0.2-1.0 | 0.3-1.5 | 0.3-2.0 / 1.5 | 0.5-2.5 / 1.8 | 0.5-3.0 / 2.2 |
| Horizontal Shaft Diameter(mm) | Ø40 | Ø40 | Ø40 | Ø50 | Ø60 |
| Vertical Shaft Diameter(mm) | Ø20 | Ø25 | Ø25 | Ø30 | Ø35 |
| Main Motor Power(kw) | 5.5*2 | 5.5+7.5 | 7.5*2 | 11*2 | 15*2 |
| Installation Dimension(L*W m) | 20*1 | 21*1 | 22*1.3 | 24*1.4 | 26*1.5 |
| Rated Voltage(v) | 220 / 380/ 415 / 440 | ||||
| MODEL | GXG-70 | GXG-80 | GXG-90 | GXG-100 | GXG-120 |
| Round Tube Range (mm) | Ø89-168 | Ø114-219 | Ø168-273 | Ø219-325 | Ø168-325 |
| Square Tube Range (mm) | 70*70-130*130 | 90*90-170*170 | 130*130-210*210 | 170*170-250*250 | 130*130-250*250 |
| Wall Thickness Range (mm) | 0.8-4.0 / 3.0 | 1.0-6.0 / 4.0 | 2.0-7.0 / 5.0 | 2.0-8.0 / 6.0 | 3.0-12.0 / 8.0 |
| Horizontal Shaft Diameter(mm) | Ø70 | Ø80 / 90 | Ø90 / 100 | Ø100 / 110 | Ø120 |
| Vertical Shaft Diameter(mm) | Ø40 | Ø50 / 60 | Ø60 / 70 | Ø70 / 80 | Ø90 |
| Main Motor Power(kw) | 18.5*2 | 22*2 / 30*2 | 37*2 /45*2 | 45*2 / 55*2 | 55+75 |
| Installation Dimension(L*W m) | 32*2.2 | 36*2.6/40*2.8 | 38*2.8 / 50*4 | 40*3 / 55*4.5 | 60*5 |
| Rated Voltage(v) | 220 / 380/ 415 / 440 | ||||
Product Description
GXG Stainless Steel Water Tube Roll Forming Production Line Equipment Fluid Weld Pipe Making Machine Mill Manufacturer Supplier
Company Information
Contact Us
