Характеристики
TECON Plastic Formwork TP60
---Ready To Ship
---Respond within 24 hours with material lists and price
Specification
NO. | Items | Data | ||||||
1 | Main Material | ABS | ||||||
2 | Weight | 14kg/sqm | ||||||
3 | Max Size | 1200*600mm | ||||||
4 | Release Agent | No need before 10 times | ||||||
5 | Usage times | 100 times | ||||||
6 | Color | Black or customized | ||||||
7 | MOQ | 100 Square Meters | ||||||
8 | Application | Hotel, Apartment, House | ||||||
9 | Depth | 75mm | ||||||
10 | Package | Steel pallet | ||||||
11 | Delivery time | 7 Days | ||||||

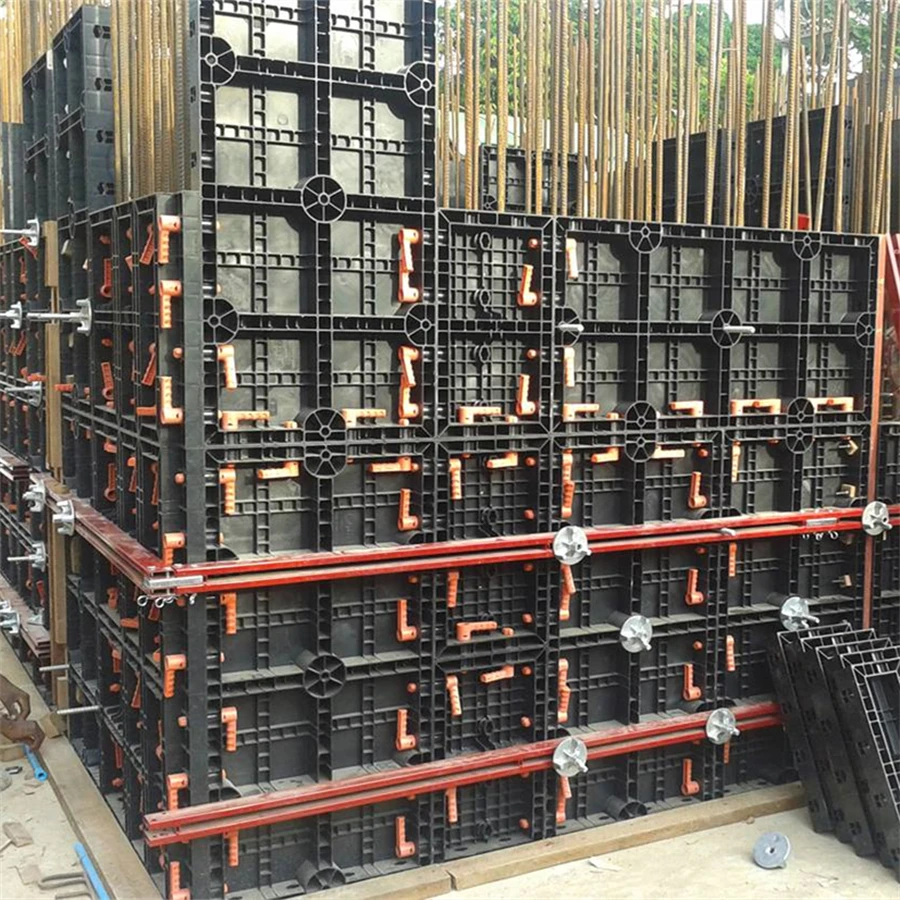

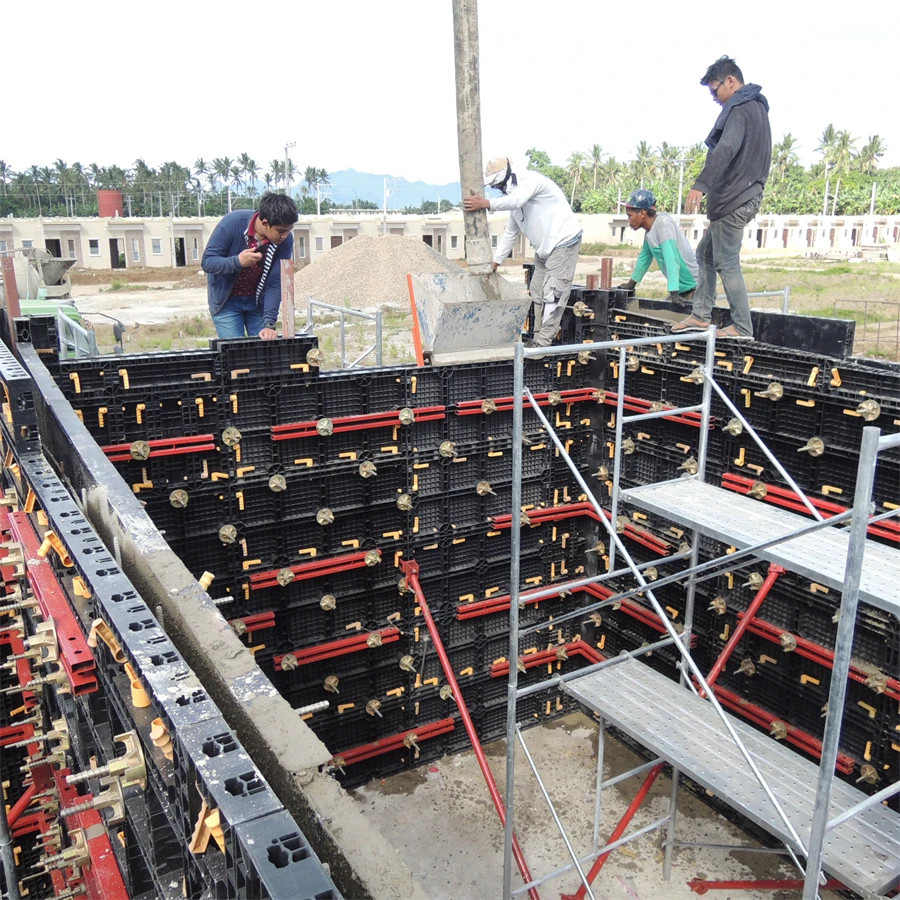

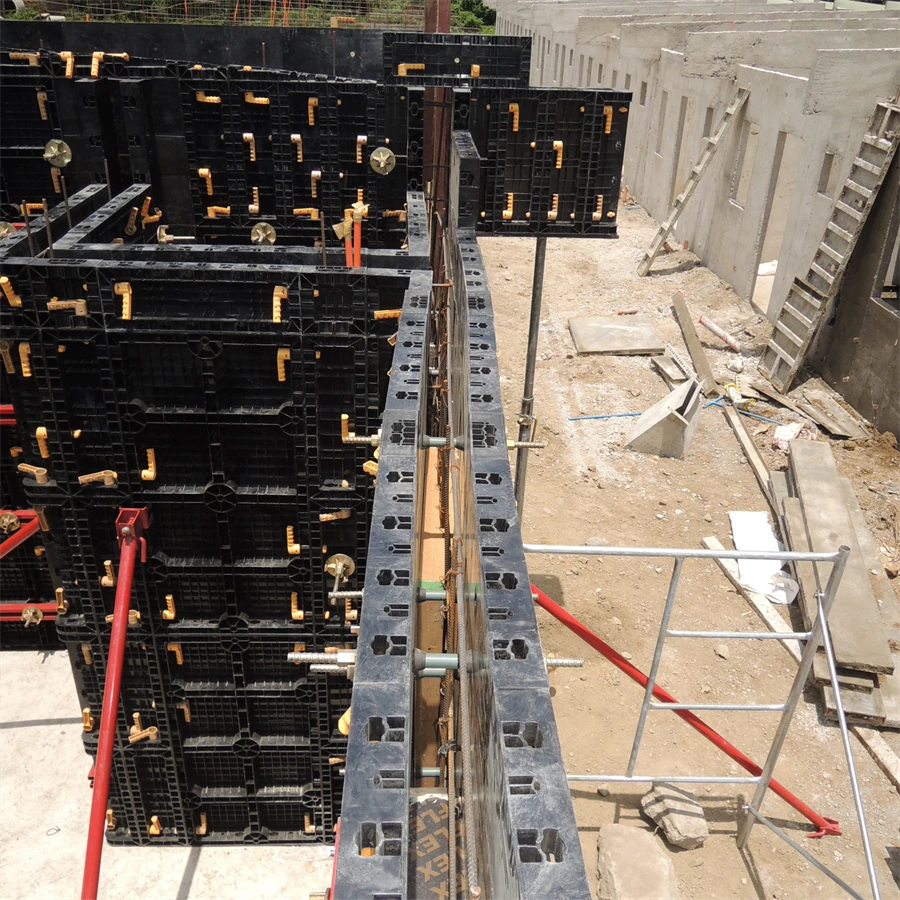

Successful Projects (on-site supervision service and after-sales service)
Features at a glance
--Universal forming application
Wide application in walls, comer, fence walls, foundations, basements,doors&windows,elevator shafts,swimming pools as well as slab,wall, column, beam etc,
--Multiple savings on time & labor cost
The biggest panel(1200*600mm)weights 9.7kg only, thus can be easily handled by manpower, and saves crane time.
Fast erection handle ensure high assembly efficiency, even no experienced workers required.
--Long service life , recyclable
Modified thermoplastic material and high rib design enhances panel's strength, up to 100 uses when correctly cleaned and properly used. Friendly to environment .can be recycled by professional recycling plant.
--No release agent required
Non-water absorption rate (0.13% by laboratory test 18062:2008) ensure easy stripping form concrete. No release agent required but can still produce flflat and smooth concrete finishing.
Wide application in walls, comer, fence walls, foundations, basements,doors&windows,elevator shafts,swimming pools as well as slab,wall, column, beam etc,
--Multiple savings on time & labor cost
The biggest panel(1200*600mm)weights 9.7kg only, thus can be easily handled by manpower, and saves crane time.
Fast erection handle ensure high assembly efficiency, even no experienced workers required.
--Long service life , recyclable
Modified thermoplastic material and high rib design enhances panel's strength, up to 100 uses when correctly cleaned and properly used. Friendly to environment .can be recycled by professional recycling plant.
--No release agent required
Non-water absorption rate (0.13% by laboratory test 18062:2008) ensure easy stripping form concrete. No release agent required but can still produce flflat and smooth concrete finishing.
Besides regular concrete, TP60 panel is also a good companion of foam concrete (light weight concrete)
Using together with TECON 3 in 1 foam concrete machine to achieve low cost structure
Main Components
Panel sizes
--1200x600mm is the most popular panel size which is often applied in major shuttering areas
--The main panels whose widths ranging from 400mm to 180mm with 600mm height, make them possible configuration to shutter the remaining areas
--Small size panels are the additive covering for small holes or areas 50mm in their sizes increment
--The main panels whose widths ranging from 400mm to 180mm with 600mm height, make them possible configuration to shutter the remaining areas
--Small size panels are the additive covering for small holes or areas 50mm in their sizes increment
Recoverable wall tie holes cover with plugs
--No need to use tool to open holes like wooden formwork, steel and aluminium formwork
--Simply remove the plugs from the pre-located holes where there need tie rods to pull through during wall or column castings.--Simply cover the plugs on the holes for slab castings or where there do not require tie rods.
--Improper treatment may cause damage on the panels especially for corners, which will shorten its service life
--Substitutable edges are developed to improve this situation, simply replace them with new comer edges
--Substitutable edges are developed to improve this situation, simply replace them with new comer edges
Despite of the light weight panel , fast erection handle is another key factor lead to high convenient and efficient forming on site
--Insert each handle into every holes of every two panels, rotate it 90 degree to lock panels together
--Smooth locking design allows easy operation by hand, no hammer or special tool required
Shoring system
--TECON TEP-B series props are specially selected to act as the shoring system of slab formwork
--Different from other normal props, TEP-B series props are designed and fabricated according to EN 1065 standard. and thus maintain higher load capacity while considering sufficient safety factor inside
--Well compatible with TECON flex beam and tripod H70 to make your decking job safe, easy and fast without big consumption assembly of pipes and timbers
--Different from other normal props, TEP-B series props are designed and fabricated according to EN 1065 standard. and thus maintain higher load capacity while considering sufficient safety factor inside
--Well compatible with TECON flex beam and tripod H70 to make your decking job safe, easy and fast without big consumption assembly of pipes and timbers
Connection profile L for window & door, or any irregular area with plywood
Connection profile L fix with tailored size plywood help you to seal below infill areas.
--Window and door
--End stop of a liner shear wall
--Wall formwork gaps not be shuttered by 50mm increment panels,like 130mm, 210mm etc.
--Irregular size on the slabs or connection with beams, columns or walls
--End stop of a liner shear wall
--Wall formwork gaps not be shuttered by 50mm increment panels,like 130mm, 210mm etc.
--Irregular size on the slabs or connection with beams, columns or walls
Steel waling
--Always ready to provide additional reinforcement for shear wall construction, such as straight wall, corners, T junctions etc..
--Perfect powder coated finishing prevent concrete adhere on the surface, and thus makes cleaning job easy
--Perfect powder coated finishing prevent concrete adhere on the surface, and thus makes cleaning job easy
--Zine coated wall tie system mainly includes D12 tie rod. D12 big plate nut.
--D12 tie rod Is made from #45 steel and can maintain maximum 90kN break load according to laboratory test
--D12 Big plate nut is made from cast iron, with 90mm diameter base plate
--PVC tube and cone act as the spacer
--D12 tie rod Is made from #45 steel and can maintain maximum 90kN break load according to laboratory test
--D12 Big plate nut is made from cast iron, with 90mm diameter base plate
--PVC tube and cone act as the spacer
Economic column solution with all sizes range by different combination of TP6O panels
Round column
--300mm, 350mm, 400mm and 450mm diameter columns can be produced with TP60 round column formwork panels
--300mm, 350mm, 400mm and 450mm diameter columns can be produced with TP60 round column formwork panels
Our Service Process
Similar Products
Plastic TP60 Column Formwork
Plastic TP60 Column Formwork
Plastic TP60 Round Column Formwork
About Us
The leading formwork brand in China
TECON Formwork & Scaffolding Engineering.As the specialist in formwork & scaffolding engineering area, we provide reliable products & in-time services for our customers in construction industry all over the world.We have a wide range of products line which covers climbing formwork, wall formwork, slab formwork, column formwork, beam formwork, shoring towers and all kinds of scaffoldings.

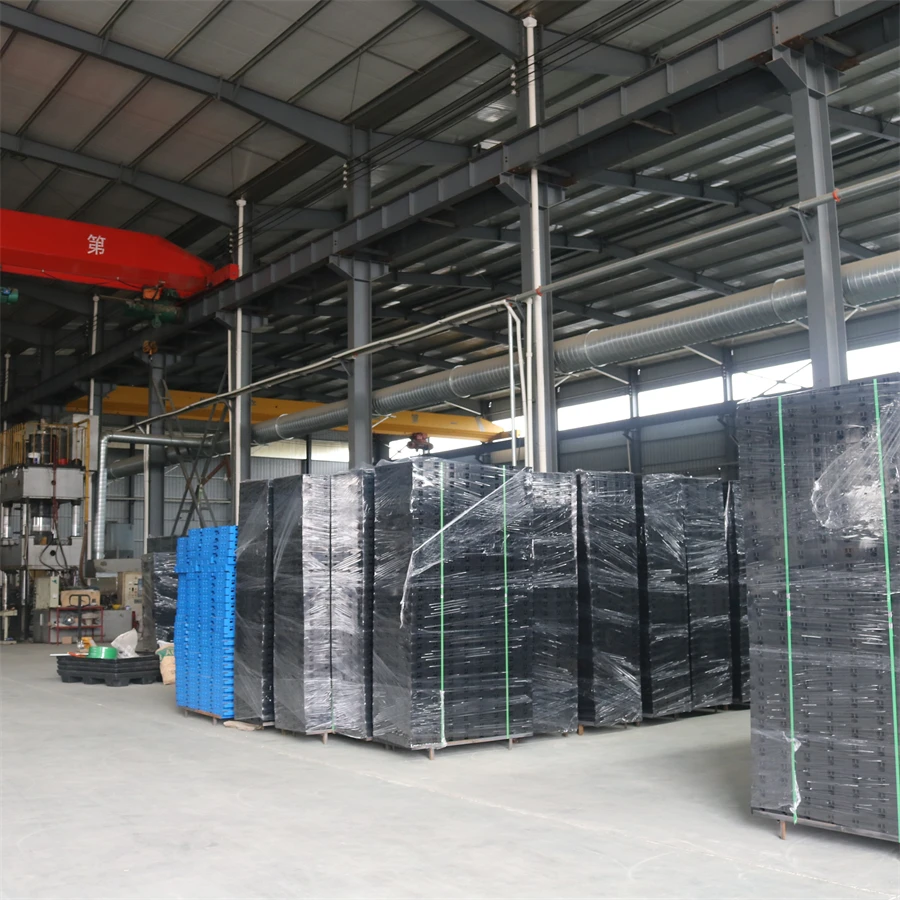

Packing Method
